Enova

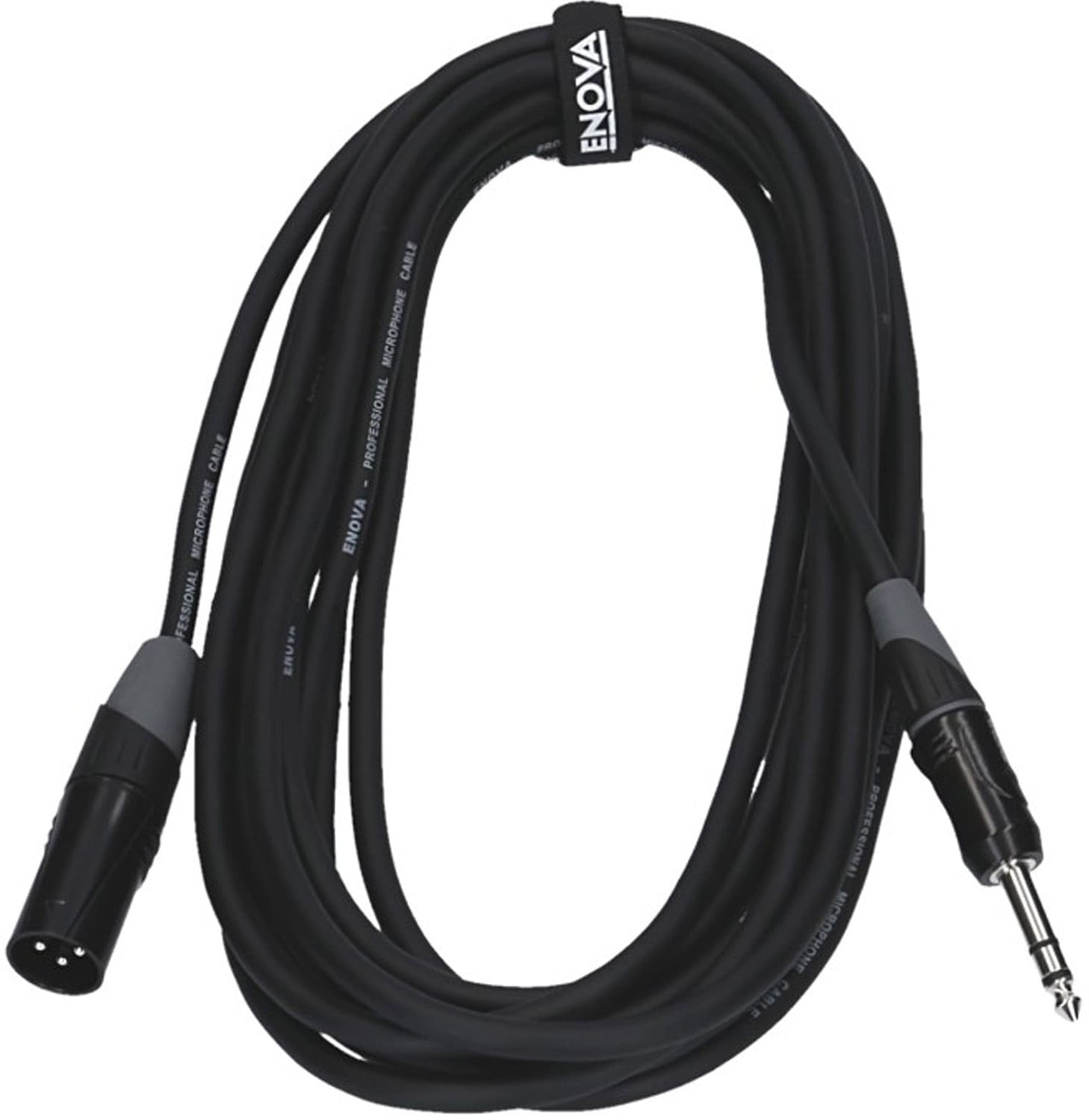

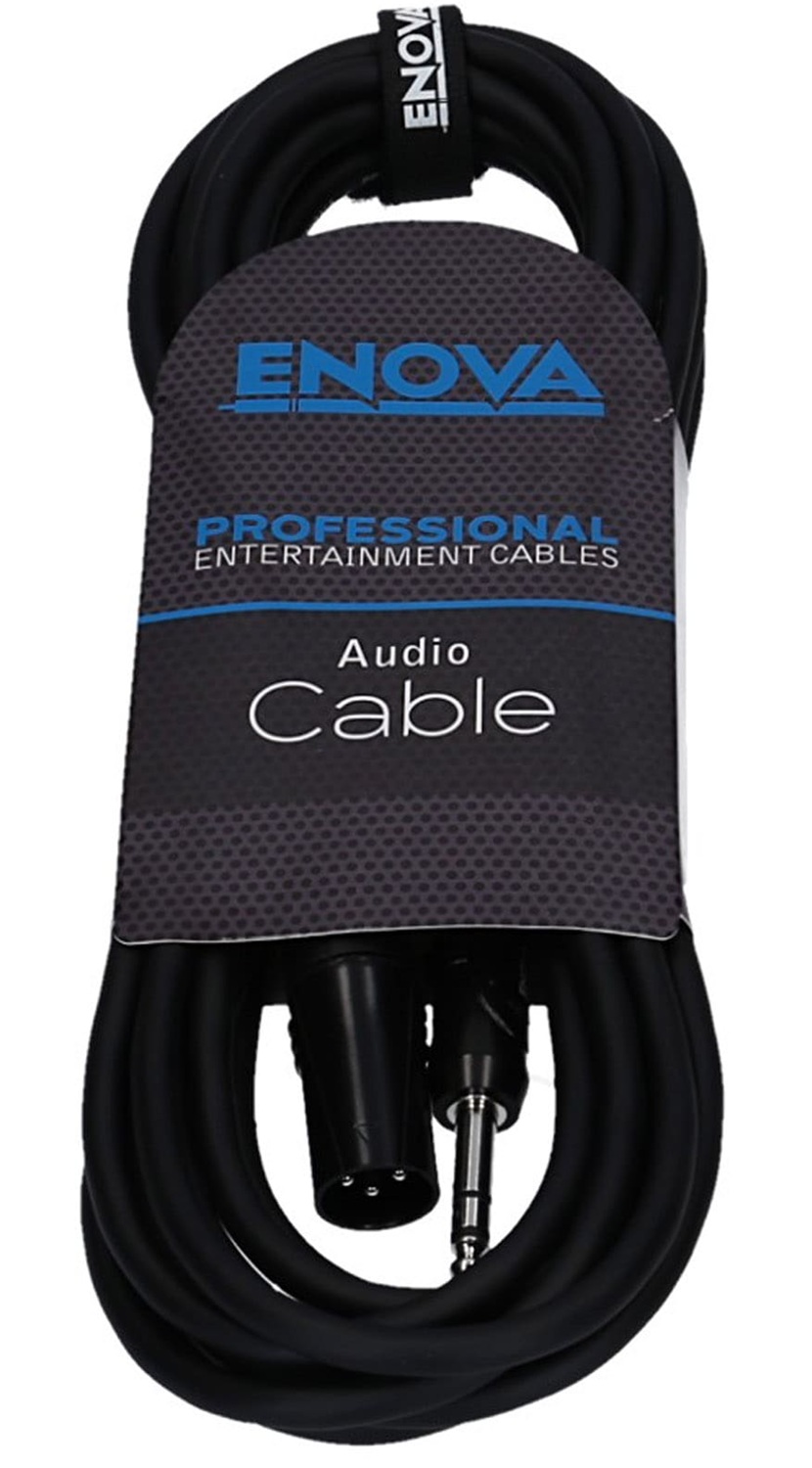

EC-A1-XLMPLM3-10 XLR Male to 1-4" Balanced Jack 10m

Code: 8372

10m XLR male to 1/4" plug 3 pin microphone cable 3-pin analogue & AES with velcro

Price: €34.00
Price: €34.00
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

years

EC-A1-XLMPLM3-10

High quality metal ENOVA XLR connectors with a strain relief and cable bend relief for a clean cable outlet.
Professional assembled microphone cables with additional insulation over each conductor at the solder contact. Handmade products are shipped with a 100% functional inspection.
The cable is designed for balanced audio connections for analog and digital AES /EBU signals suitable up to 200 m.
The cable diameter is 6.5 mm. The outer jacket is flexible and robust and black.
The conductor cross section is 2 x 0.22 mm² (AWG 24 with 7x 0.20 mm strands) The conductors were produced with high quality copper conductors OFC (Oxygen Free Copper).
The conductor insulation is made of FPE material and marked in blue and red colors. Flexible PolyEster (FPE) is a high-tech material that combines various properties such as strength, flexibility and temperature resistance in one material.
The microphone cable has a shielding via spiral shield.
The ENOVA Pro-Audio cable is suitable as a movable and mobile activity cable.

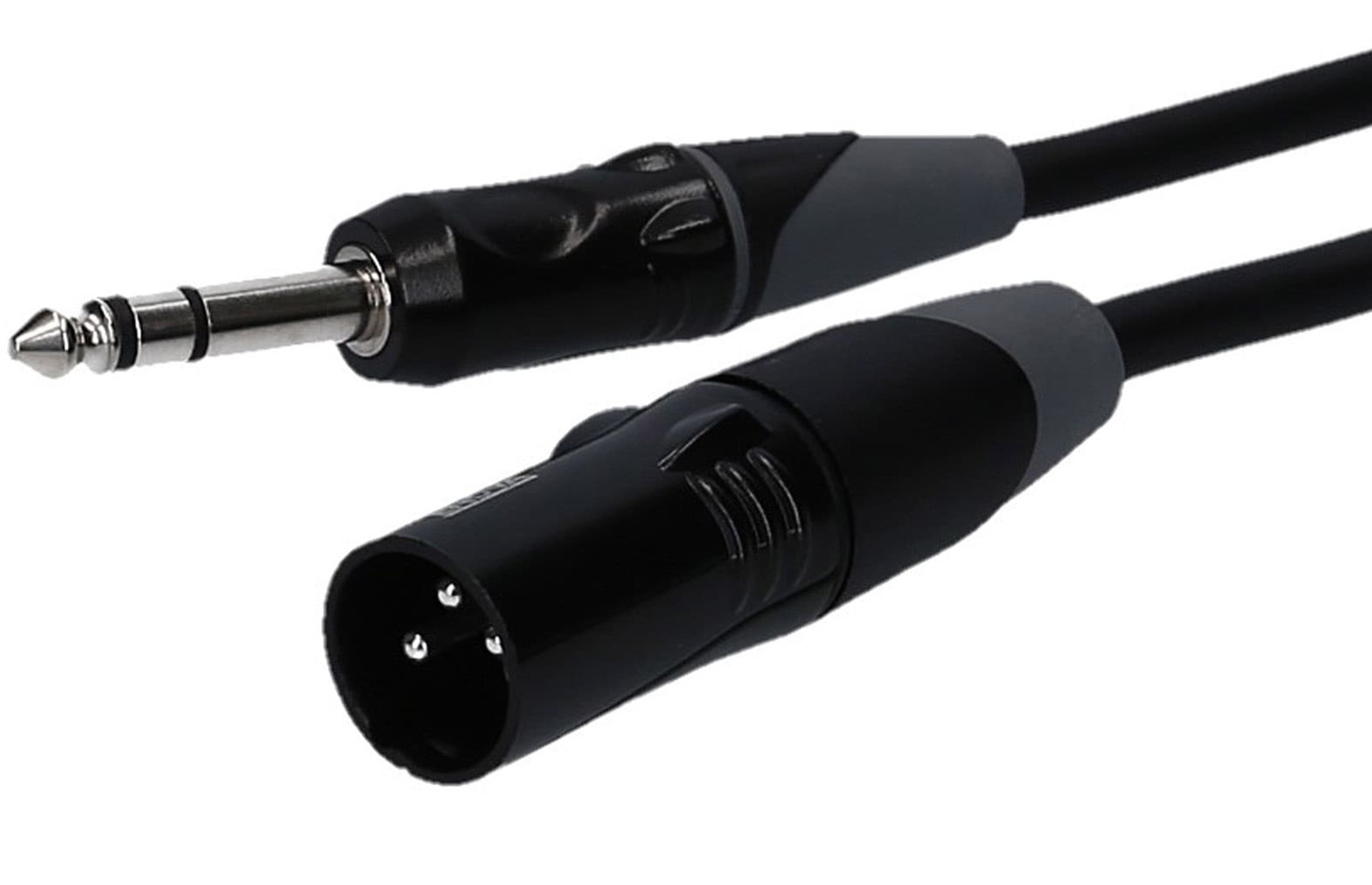

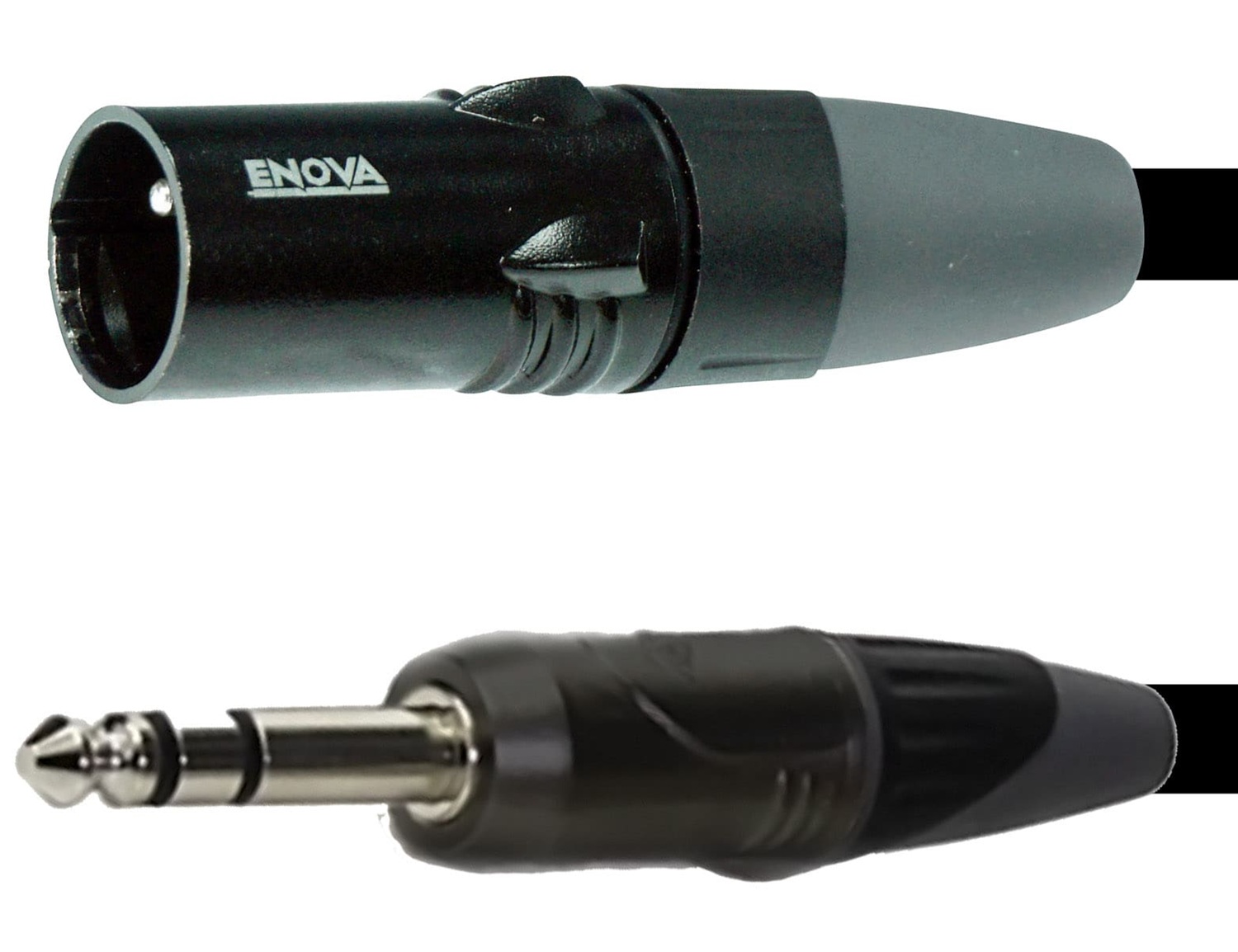

    • Connector side A: ENOVA XLR male 3 pin
    • Connector side B: ENOVA 1/4" jack 3 pin
    • Cable length: 10 meters
  • Series: A1-Serie
  • Version: Cable version
  • Connectors: XLR male (3-pin) → 1/4" TRS jack (3-pole)
  • Cable type: XLR male to 1/4" plug
  • Number of contacts: 3
  • Gender: Male to male
  • Cable color: Black
  • Cable length: 10 meters
  • Cable diameter: Ø 6.5 mm
  • Wire size: 24 AWG (0.22 mm²)
  • Operating temperature: −20°C to +60°C
  • Applications: DJ, keyboard players, singers, sound engineers
  • AES/EBU compatibility: Up to 200 m transmission distance
  • Conductor DC resistance (D.C.R.): < 80 Ω / 1 km
  • Shield DC resistance (D.C.R.): < 30 Ω / 1 km
  • Nominal capacitance: 52 pF/m (between conductors)
  • Operating temperature range: −20°C to +60°C
