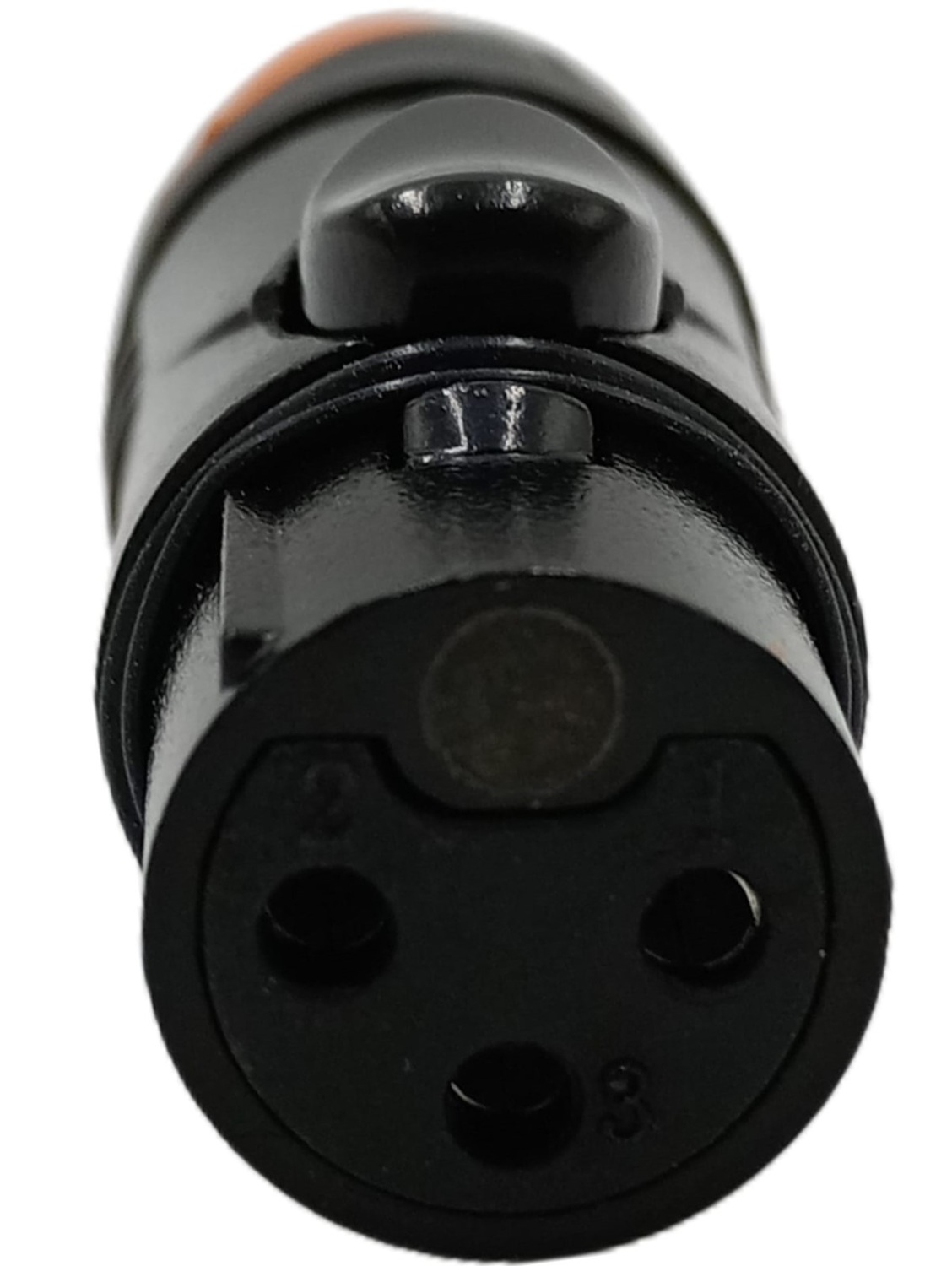

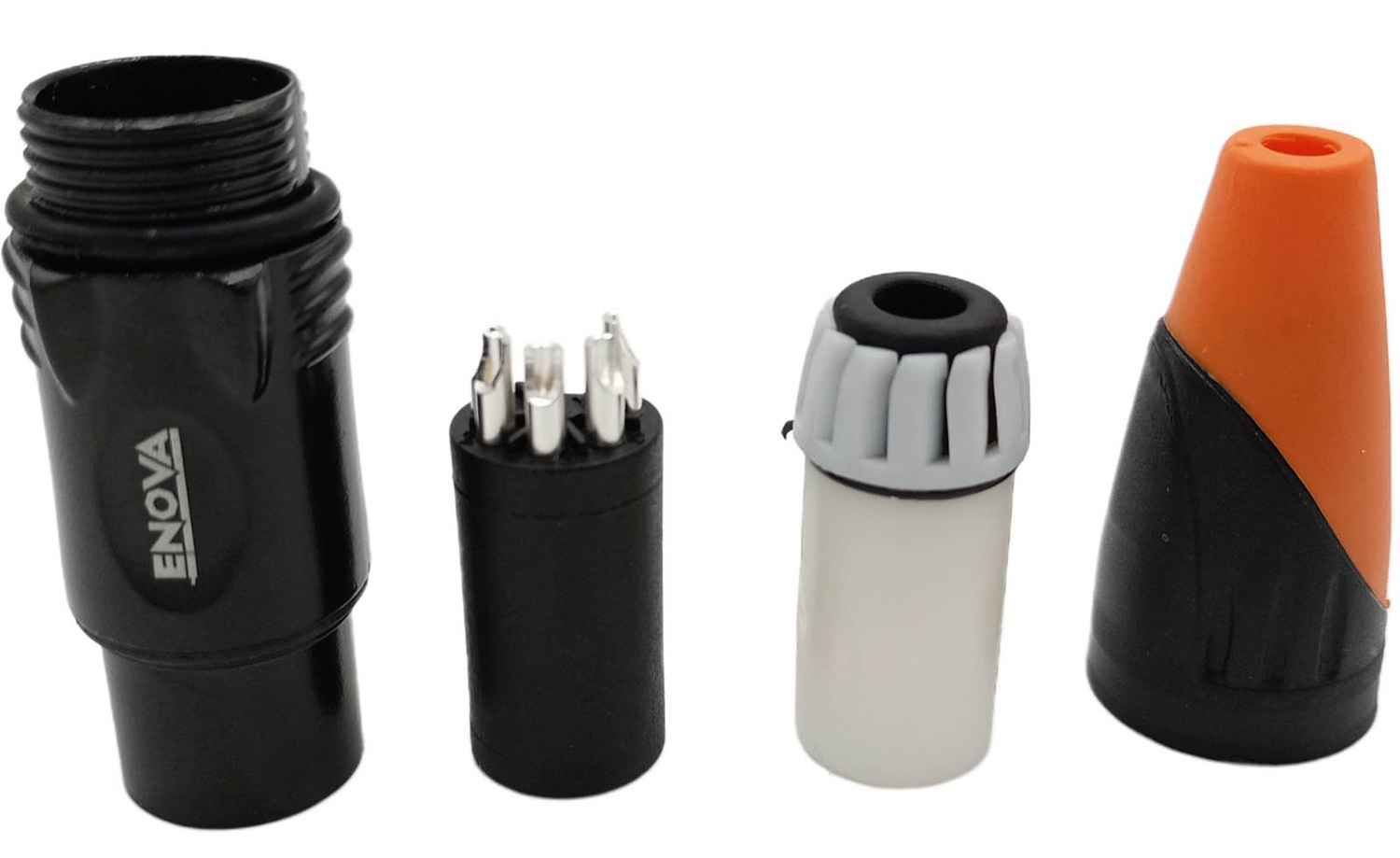

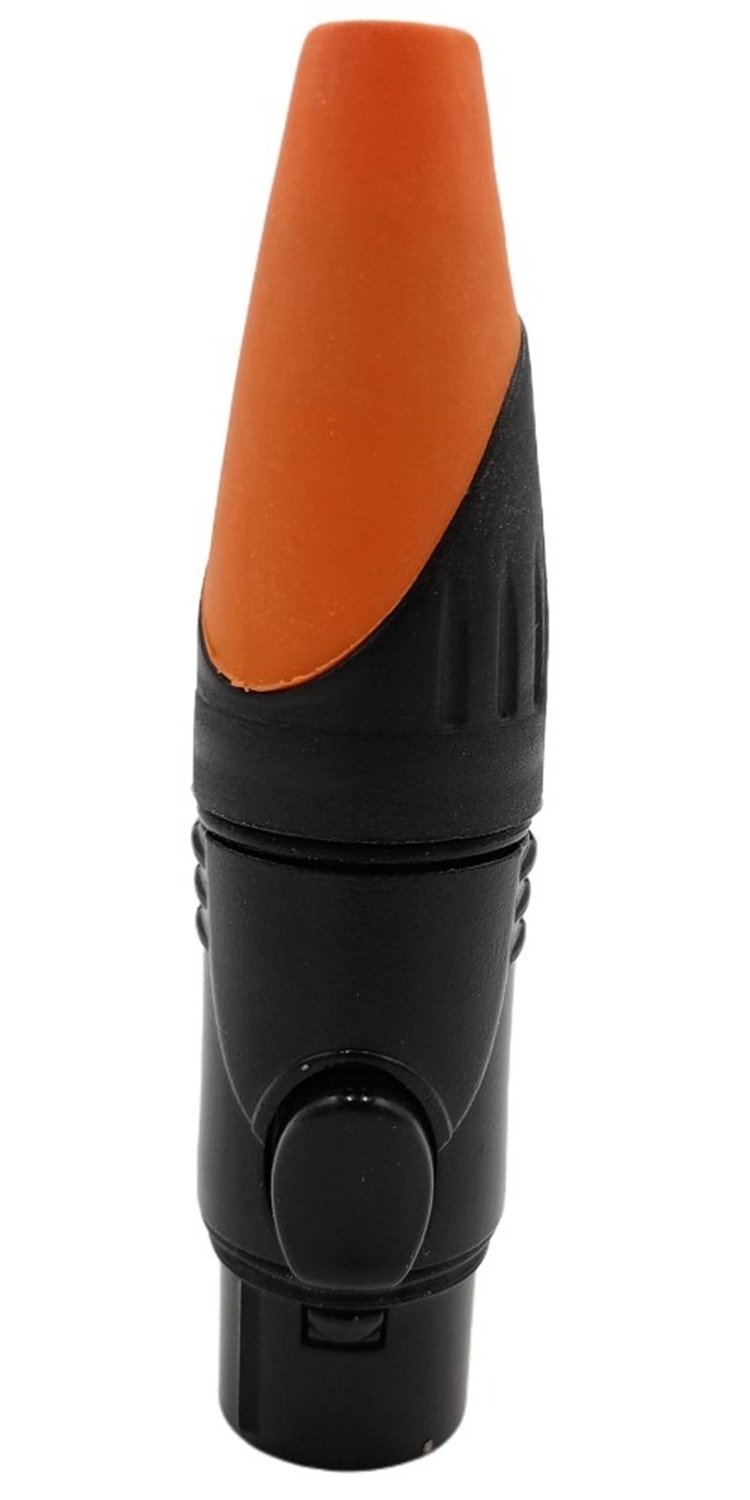

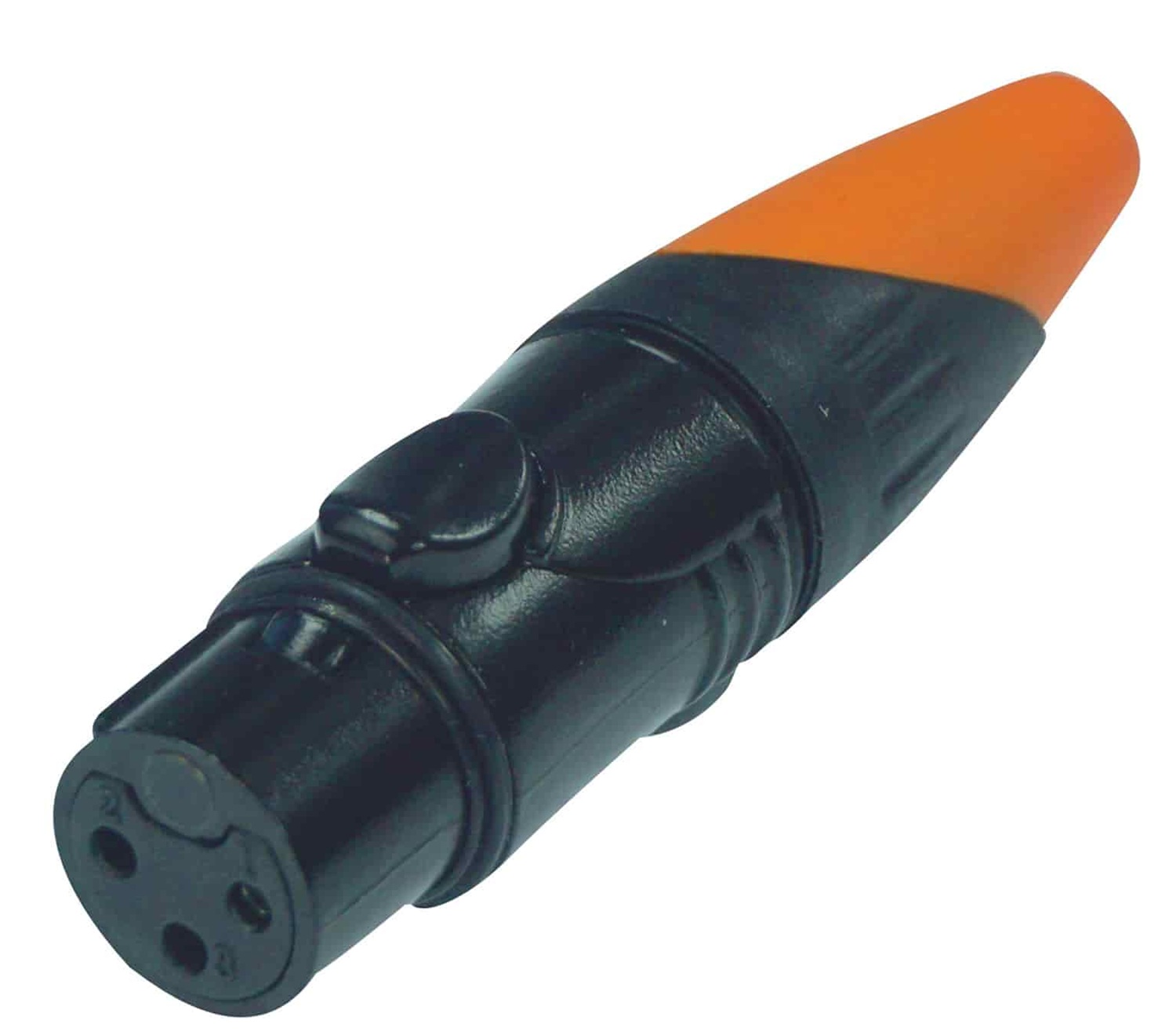

XL23FB-W XLR Female IP65 Cable Connector 3-pin

Code: 8386

XL23FB-W XLR Cable Connector Female 3-pin  IP65 black housing and orange boot solder cups

Price: €6.80
Price: €6.80
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

years

XL23FB-W

XLR cable socket 3-pin. IP65 protection when plugged in with the matching cable plug XL23MB-W or the plug XL13MB-W. A handy shape and a well-formed and robust button make for a better user experience.
The rear nozzle is liquid and dustproof.

    • Length: 80 mm
    • Width: 22 mm
    • Height: 22 mm
  • Brand: ENOVA
  • Series: XLIP-Serie
  • Version: Cable version (Plug/Chassis)
  • Connector type: XLR female, 3-pin
  • Number of contacts: 3
  • Contact diameter: Ø 2.70 mm (x3)
  • Gender: Female
  • Housing color: Black
  • Connector housing material: ZZNAL4-1
  • Contact material: Phosphor Bronze
  • Insulation material: High-performance plastics
  • Waterproof component: NBR
  • Cable diameter range: Ø 3.3–7 mm (min 3.3–5.5 mm, max 6–7 mm)
  • Wiring mode: Solder contact
  • IP rating: IP65 (EN60529)
  • ROHS compliance: Yes (EN62321-1)
  • Operating voltage: < 50 V AC RMS
  • Insulation resistance: > 10 GΩ
  • Contact resistance: ≤ 3 mΩ
  • Plug cycles (durability): 1000
  • Operating temperature: down to -30°C
  • Country of origin: China
  • Applications: DJ, keyboard players, lighting technicians, singers, sound engineers
  • Markets: Event production, LED lighting (indoor/outdoor), industry, medical tech, mechanical engineering, device & plant construction, multimedia installations, digital signage, cable assembly, broadcast, recording studios
