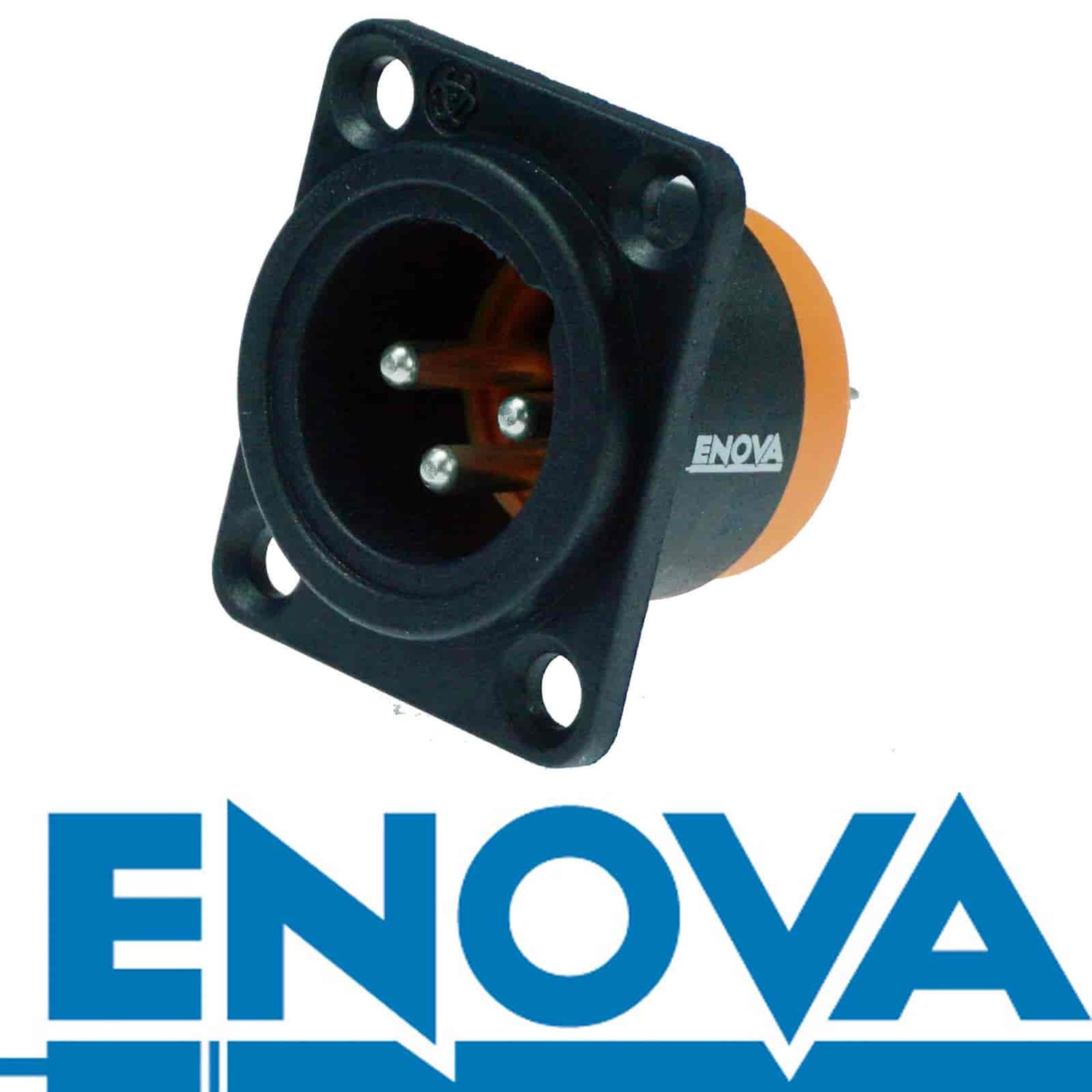

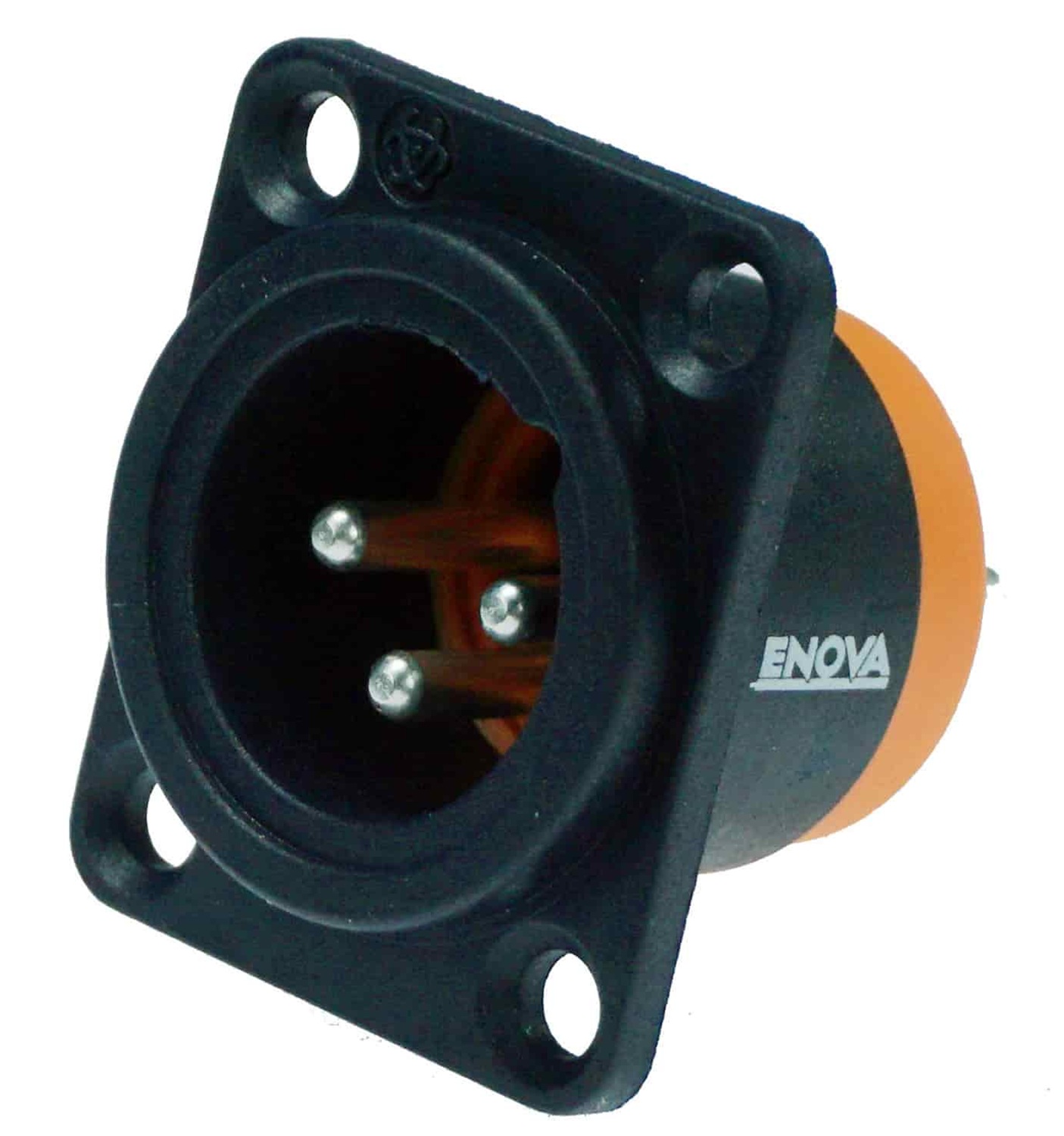

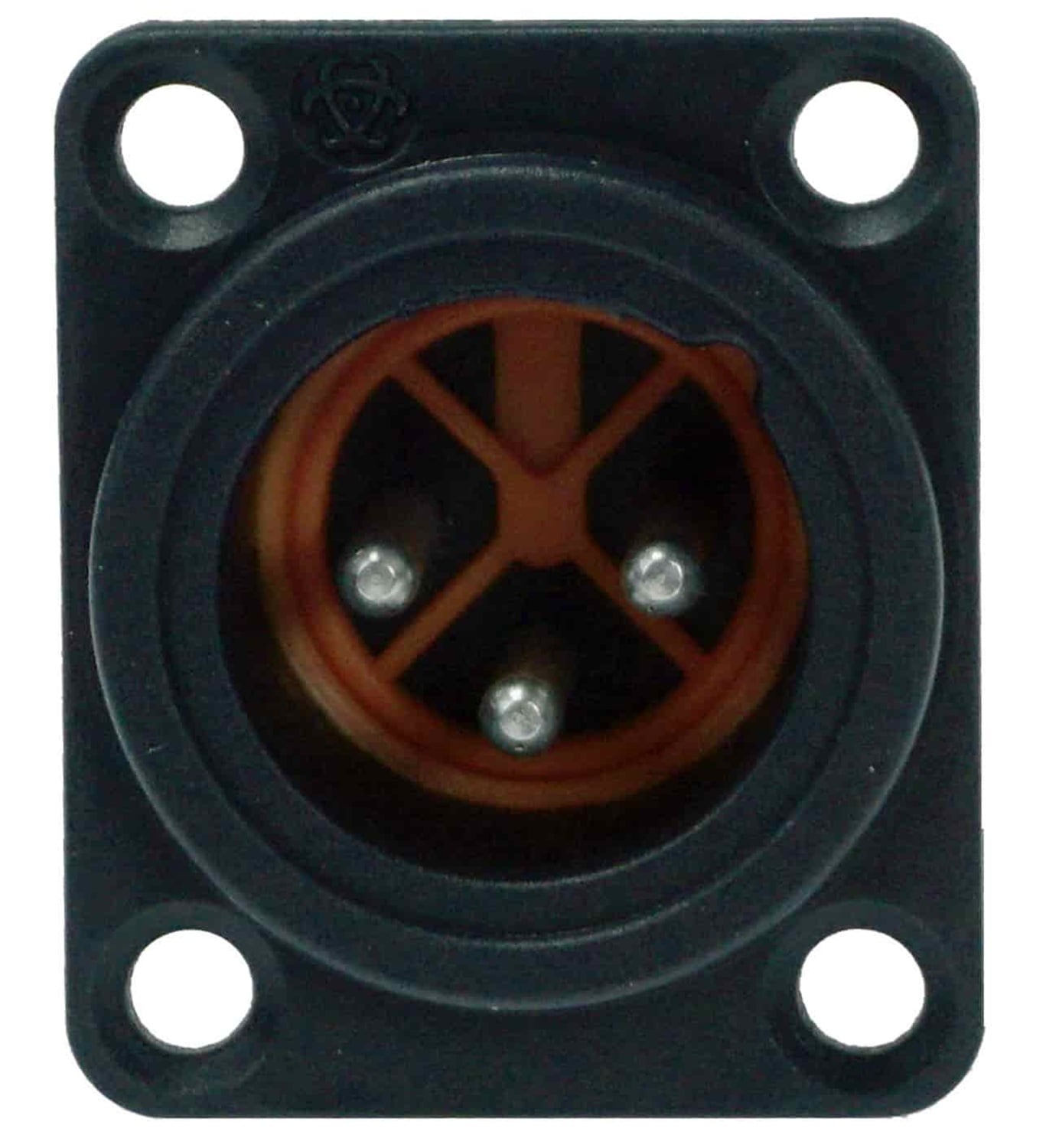

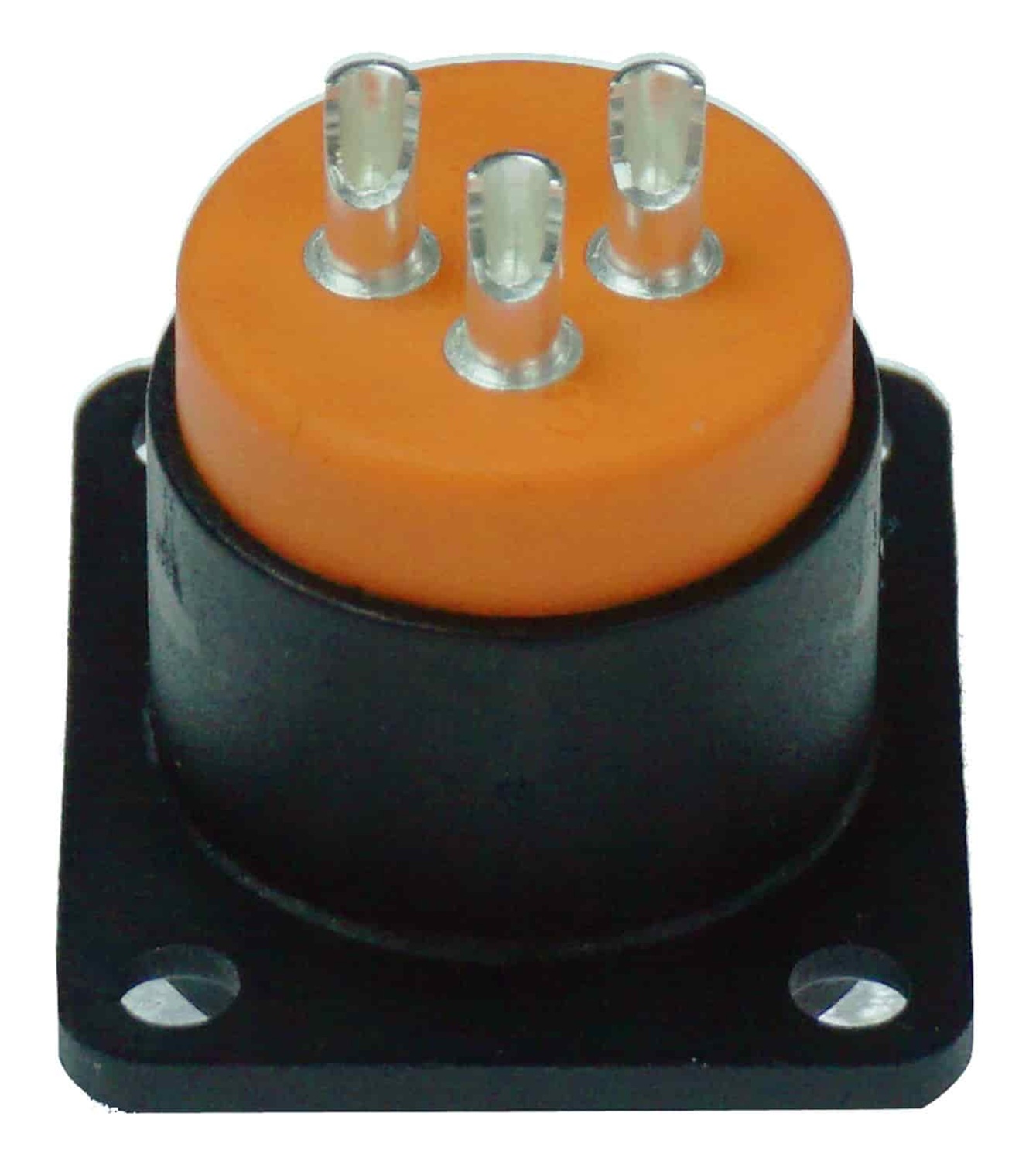

XL13MB-W XLR Chassis Connector Male 3-pin

Code: 8391

XL13MB-W XLR Chassis Connector Male 3-pin IP65 black plastic housing solder

Contact for Price
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +

In Stock

years

XL13MB-W

XLR panel sockets male 3 Pol black with IP protection in mated condition with the appropriate XL23FB-W cable socket. Solder version for easy mounting via XLR Ø 23 - 24 mm Cut Out. The XLR chassis connector is suitable for rack construction, connection panels or wall sockets. Precise XLR standard plug-in systems for exterior lighting and sound applications. The regulation on the appropriate cable socket ensures a secure and robust connection.

    • Depth: 28 mm
    • Width: 26 mm
    • Height: 31 mm
  • Brand: ENOVA
  • Series: XLIP-Serie
  • Version: Chassis version
  • Connector type: XLR male, 3-pin
  • Number of contacts: 3
  • Contact diameter: Ø 2.00 mm / Ø 2.70 mm (3 each)
  • Gender: Male plug
  • Housing color: Black
  • Connector housing material: PA
  • Contact material: H59-1
  • Insulation/waterproof component: TPR
  • Flammability rating: UL94HB
  • Installation diameter: Ø 24.00 mm
  • Mounting size (H × W): 24.00 × 19.00 mm
  • Mounting holes: 2
  • Mounting hole diameter: 3.5 mm
  • Wiring mode: Solder contact
  • IP rating: IP65 (EN60529)
  • ROHS compliance: Yes (EN62321-1)
  • Operating voltage: < 50 V AC RMS
  • Insulation resistance: > 10 GΩ
  • Contact resistance: ≤ 3 mΩ
  • Plug cycles (durability): 1000
  • Operating temperature: -30°C to +80°C
  • Country of origin: China
  • Applications: DJ, keyboard players, lighting technicians, singers, sound engineers
  • Markets: Event production, LED lighting (indoor/outdoor), industry, medical technology, mechanical engineering, device & plant construction, multimedia installations, digital signage, cable assembly, lighting, LED displays, broadcast, recording studios
