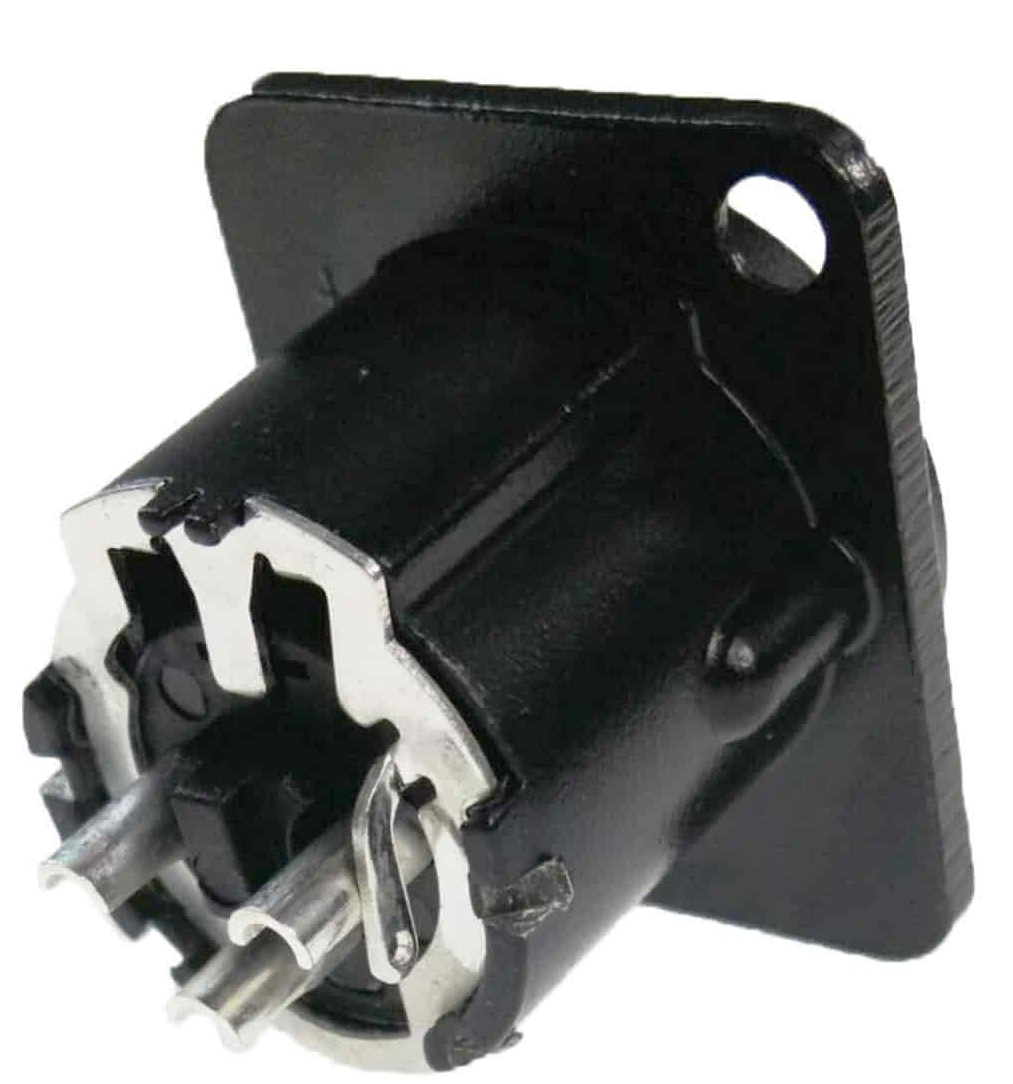

XL13MB XLR Chassis Connector Male 3-pin

Code: 8384

XLR chassis connector male 3-pin black metal housing solder cups

Price: €3.60
Price: €3.60
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

years

XL13MB

XLR built-in plug 3 Pol black. Solder version for easy mounting via XLR Ø 24 mm Cut Out. The XLR chassis connector is suitable for rack construction, connection panels or wall sockets. Precise XLR standard plug-in systems for exterior lighting and sound applications. The regulation on the appropriate cable socket ensures a secure and robust connection.

    • Depth: 27.4 mm
    • Width: 26 mm
    • Height: 31 mm
  • ENOVA XL-Series XLR chassis connector
  • 3-pin XLR male
  • Female panel connector
  • Black housing
  • Solder terminals
  • Ø24 mm mounting size
  • 2 mounting holes (3.6 mm)
  • Operating temp: -30°C to +80°C
  • Contact resistance: ≤ 3 mΩ
  • Insulation resistance: > 10 GΩ
  • Voltage: < 50 VAC
  • 1000 mating cycles
  • RoHS compliant
  • Made in China
