Enova

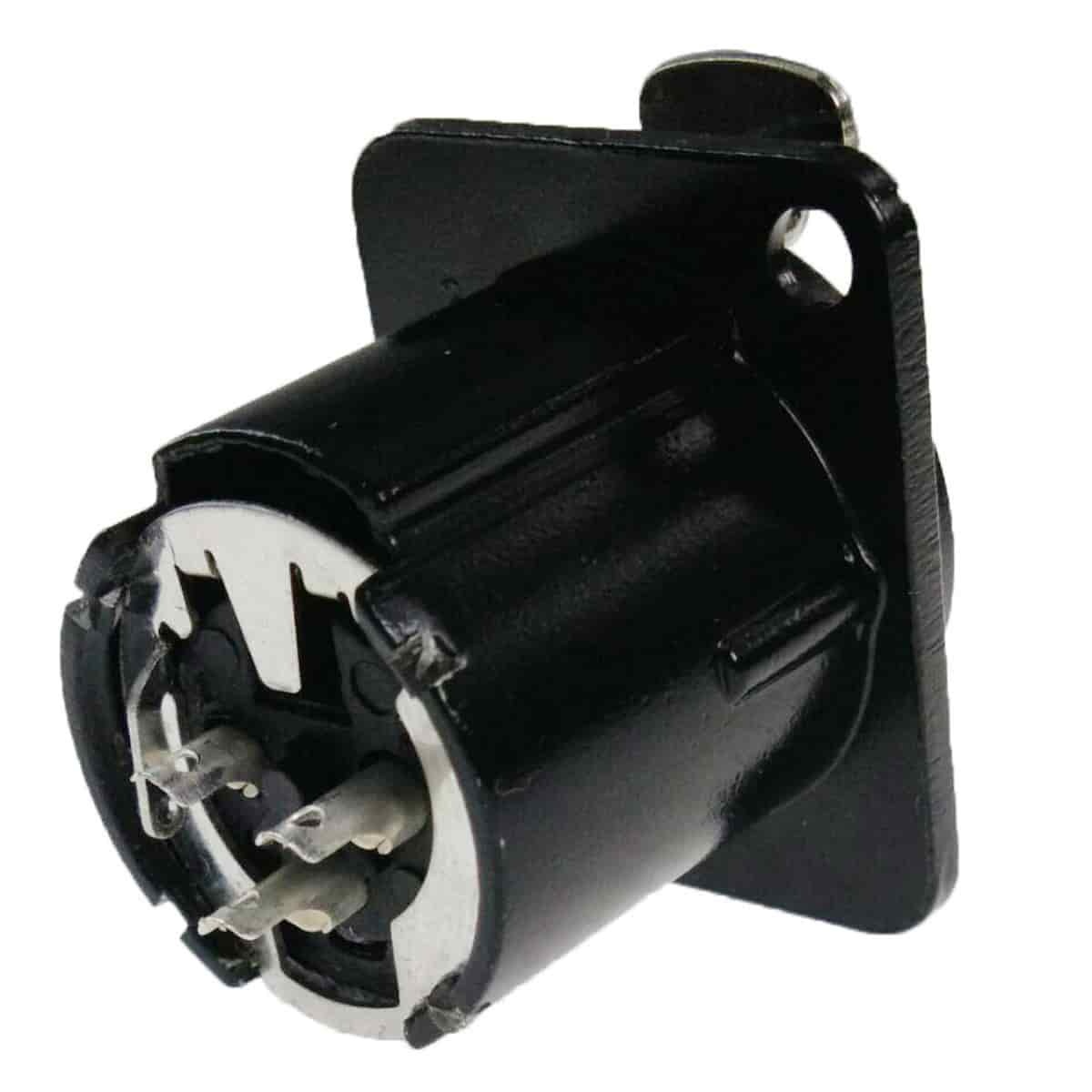

XL13FB XLR Chassis Connector Female 3-pin

Code: 8385

XLR chassis connector female 3-pin black metal housing solder cups

Price: €4.00
Price: €4.00
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

years

XL13FB

XLR panel sockets female 3 Pol black for indoor applications. Solder version for easy mounting via XLR Ø 24 mm Cut Out. The XLR chassis jack is suitable for rack construction, connection panels or wall sockets. Precise XLR standard plug-in systems for exterior lighting and sound applications. The regulation ensures a secure and robust connection. By pressing the push button, the plug or the microphone cable can be unlocked easily.

    • Depth: 30.6 mm
    • Width: 26 mm
    • Height: 31 mm
  • Brand: ENOVA
  • Series: XL-Serie
  • Version: Chassis version
  • Connector type: XLR female, 3-pin
  • Connection mode: Push-button latch
  • Number of contacts: 3
  • Contact diameter: 3 × Ø 2.86 mm
  • Gender: Female connector
  • Housing color: Black
  • Wiring mode: Solder contact
  • Installation diameter: Ø 24.00 mm
  • Installation size: 24.00 × 19.00 mm
  • Mounting holes: 2
  • Mounting hole diameter: 3.6 mm
  • Insulation material: High-performance plastics
  • Housing material: ZZNAL4-1
  • Contact material: Phosphor Bronze
  • Minimum working temperature: -30°C
  • Plug cycle rating: 1000 cycles
  • RoHS compliant: Yes (EN62321-1)
  • Country of origin: China
  • Operating voltage: < 50 VAC RMS
  • Insulation resistance: > 10 GΩ
  • Contact resistance: ≤ 3 mΩ
