Verto MX back fl

Ferrofish

Verto MX

Code: 8310

64 x 64 MADI Dante Converter

Price: €1399.00
Price: €1399.00
BUY Online: €1388.00
BUY Online: €1388.00
You Save €11
You Save €11
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order Usually available within 5-7 days from order

Enquire to be notified upon availability

years

Make MADI future-proof: Bring it to Dante.

Dante is the de facto standard for networking audio equipment. With the Verto MX it’s now possible to easily integrate your existing beloved MADI equipment into a Dante network. Whether mixer or MADI converter – the Verto MX makes all 64 x 64 MADI channels immediately available in the network: “plug and play”.

The ultra compact device has two MADI interfaces, so both optical and coaxial equipment can be connected. If the MADI signal fails, the other interface is automatically switched so that secure redundant operation can be configured.

ATTENTION: Due to technical limitations the Verto MX does not work with the Blackmagic Constellation series.

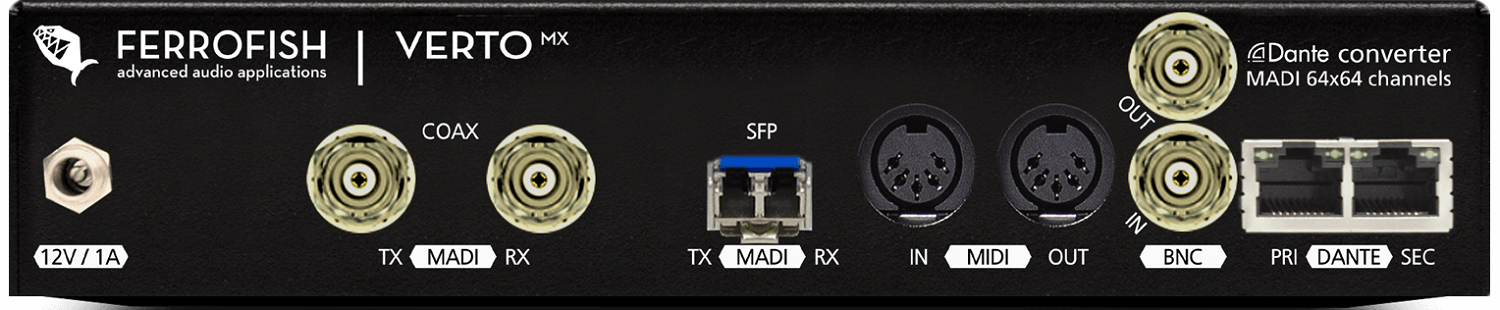

On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto MX supports up to 192kHz sample rate, MIDI jacks for updates, and BNC wordclock jacks for external synchronization.

Two other Verto versions are available:
32×32 ADAT Interfaces: VERTO 32
64×64 ADAT Interfaces: VERTO 64

An additional 19″ rack mount kit is optionally available.

Verto MX - the ultimate upgrade to your MADI equipment.

Dante Plug & Play Eco System

Integrate the Verto MX seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the Verto MX turns into a MADI audio interface.

Redundant MADI I/O

The VERTO MX has two MADI interfaces: optical and coaxial. These are operated redundantly if required, by switching to the other port in case of failure. The optical interface is modular: The MADI SFP module can be easily replaced, for example, with a Singlemode module.

Additional features

The VERTO MX is equipped with a MIDI port and two BNC wordclock connectors. This way an external Wordclock can be fed to the Dante network, or the Dante wordclock can be used for external devices.

    • Dante I/O
    • 2x RJ-45 Ethernet port (PRIMARY/SECONDARY), 1 GBit Network
    • 64 x 64 channel I/O (Dante Brooklyn II board built-in)
    • MADI I/O (AES10)
    • Coaxial I/O (2 x BNC)
    • Optical I/O (2 x LC port via SFP, Multimode – Singlemode SFP module optional)
    • 64 x 64 channels at 44.1, 48kHz
    • 32 x 32 channels @ 88.2, 96kHz
    • 16 x 16 channels @ 176.4, 192 kHz
    • MIDI I/O
    • 2 x DIN 5-pin connectors for updating the unit
    • Wordclock I/O
    • BNC: 1 x input, 1 x output
    • 75 Ohm Termination set by default (switchable via Dante)
    • Power Supply
    • 14.4VA (1.2A at 12V)
    • Polyfuse internal, self-resetting
    • 1 x power supply included
    • Operation
    • Temperature range: 41°F to 113°F (+5°C to +45°C)
    • Humidity: <75%, non-condensing
    • Weight/Size
    • Weight: 0.9 kg
    • Dimensions: 22 x 9 x 4.5 mm (without rack ears)
