Large Diaphragm Condenser Microphones

TLM 103 Mono Set

Code: 1027

TLM 103 + Elastic Suspension Set in Aluminium Case

Price: €1432.00
Price: €1432.00
BUY Online: €1288.00
BUY Online: €1288.00
You Save €144
You Save €144
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

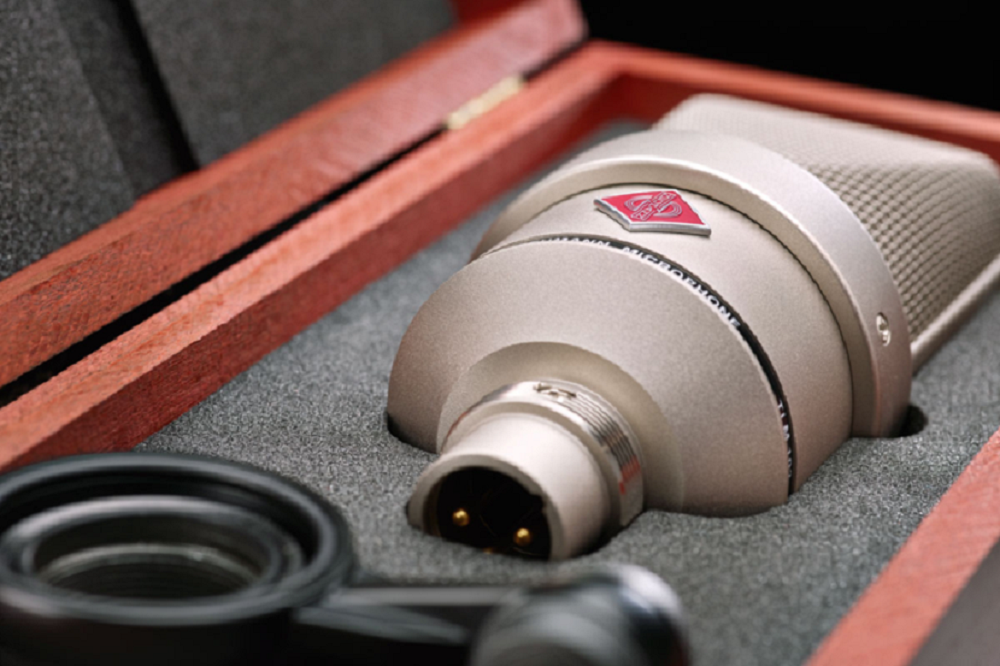

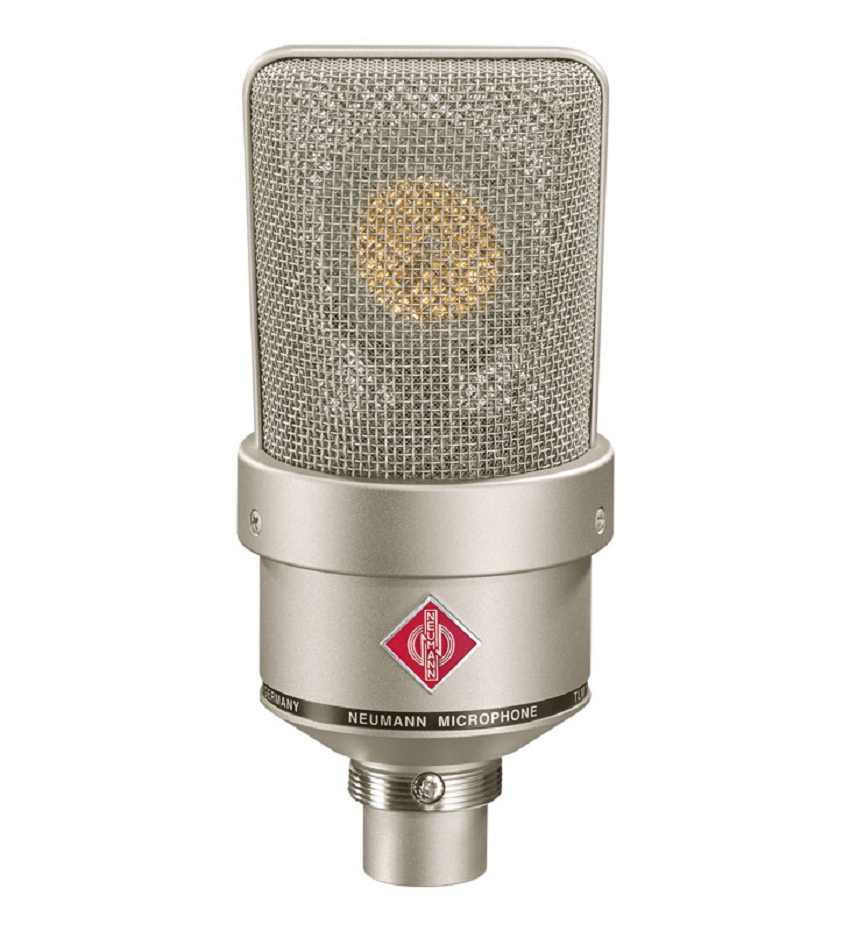

The TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget. By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear. The TLM 103 is available in satin nickel and matte black. TLM103 Mono set comes along with EA1 elastic suspension, in an aluminium set case.

    • Large diaphragm cardioid microphone
    • Pressure gradient transducer with with one-diaphragm capsule
    • Transformerless circuitry
    • Extremely low noise: 7 dB-A
    • Suitable for: Vocalist recording, Announcer's mic for broadcasting/voice over, Due to minimal self-noise: on-air mic for radio/broadcast, very low amplitude signals, radio drama, sampling, foley/sound effects, Home recording and project studios, Spot mic for: wind instruments, strings, percussion, guitar amps, drum overheads
    • High-quality professional equipment for limited budgets
    • TLM 103 (mt) microphone, EA 1 (mt) elastic suspension, in foam/cardboard packaging

    TLM103 Specifications:

    • Acoustical operating principle: Pressure gradient transducer
    • Directional pattern: Cardioid
    • Frequency range: 20 Hz - 20 kHz
    • Sensitivity at 1 kHz into 1 kohm: 23 mV/Pa
    • Rated impedance: 50 ohms
    • Rated load impedance: 1000 ohms
    • Equivalent SPL CCIR 468-3: 17.5 dB
    • Equivalent SPL DIN/IEC 651: 7 dB-A
    • S/N ratio CCIR 468-3: 76.5 dB
    • S/N ratio DIN/IEC 651: 87 dB
    • Maximum SPL for THD 0.5%: 138 dB
    • Maximum output voltage: 13 dBu
    • Dyn. range of the mic. amplifier DIN/IEC 651: 131 dB
    • Supply voltage: 48 V +/- 4 V
    • Current consumption: 3 mA
    • Matching connector: XLR 3F
    • Weight: approx. 500 g
    • Diameter: 60 mm
    • Length: 132 mm
