The Galaxy 64 Synergy Core

Antelope Audio

The Galaxy 64 Synergy Core

Code: 6161

64-CHANNEL DANTE®, HDX & THUNDERBOLT 3™ AUDIO INTERFACE WITH ONBOARD DSP

Price: €10995.00
Price: €10995.00
BUY Online: €10818.00
BUY Online: €10818.00
You Save €177
You Save €177
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

64 Channels of analog audio Dante & HDX connectivity in one device.

Galaxy 64 Synergy Core is a high-end recording system that connects your entire studio within a 2U rack space while providing high-fidelity audio and onboard effects processing for your most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world’s first 64-channel AD/DA converter offers unbeatable flexibility when moving sound around your high-profile production facility, live stage, broadcast, or other enterprise applications.

    • Dimensions: 483 x 88 x 270 mm
    • Weight: 6.4 kg

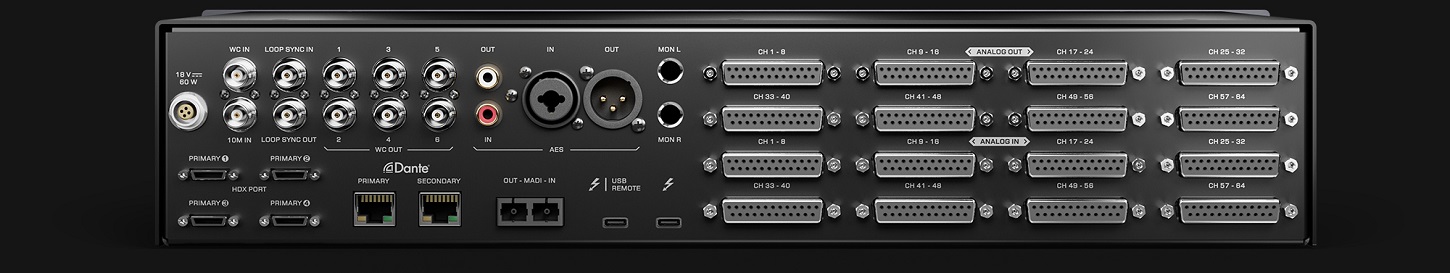

    ANALOG & DIGITAL CONNECTIVITY

    • 64 analog input channels over 8 D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard)
    • 64 analog output channels over 8 DC-coupled D-Sub 25 connectors (TASCAM standard)
    • Dante™ audio over IP with primary/secondary port for audio transfer over long distances
    • Four HDX ports (24-bit, 192kHz): up to 128 channels I/O for Pro Tools HD / HDX integration
    • Two Thunderbolt™ 3 ports with custom macOS & Windows drivers for native DAW application
    • Digital I/O: 64 channels of optical MADI, 2 channels over AES/EBU, and 2 channels over S/PDIF

    CLOCKING & CONVERSION

    • Proprietary 64-bit Acoustically Focused Clocking technology for increased width, separation, and detail in musical performances
    • Proprietary Jitter Management algorithm delivering truthful and expanded soundstage
    • High-resolution A/D and D/A conversion ensuring artefact-free recordings and mastering-grade converter with 130dB headroom for critical listening without coloration or signal degradation.

    ONBOARD REAL-TIME EFFECTS

    • Collection of 36 analog-modeled effects featuring classic as well as rare compressors, EQs, mic preamps and pedals
    • 12×DSP, 2×FPGA Synergy Core proprietary onboard real-time plugin processing platform
    • Up to 256 plugin instances per session loaded simultaneously on 64 individual virtual racks.

    WORKFLOW-ENHANCING FEATURES

    • Advanced digital routing matrix that allows execution of complicated input/output routing with a simple drag and drop functionality
    • 8 low latency hardware-accelerated 32-channel mixers that can be split into individual cue mixes and sub-mixes while applying pan, reverb, other plugins and stereo link
    • Customizable presets complete with signal routing, level adjustments, mixer settings and sub-mixes
    • Direct monitoring with plugins, processed in real-time with imperceptible latency
    • Intuitive touchscreen interface with recallable hardware-based presets
    • Daisy chain over Thunderbolt™ 3 & remote control over USB Type-C
    • Option to work without being connected to a computer (standalone operation)
    • Wireless control of software features from a separate computer connected to the same network

    36 INCLUDED SYNERGY CORE EFFECTS

    • VEQ-55A (3-Band EQ / HPF / LPF)
    • VEQ-4K BLACK (4-Band EQ / HPF / LPF)
    • VEQ-4K BROWN (4-Band EQ / HPF / LPF)
    • VEQ-4K ORANGE (4-Band EQ / HPF / LPF)
    • VEQ-4K PINK (4-Band EQ / HPF / LPF)
    • VEQ-HA32C (4-Band EQ / HPF / LPF)
    • VEQ-STU 900 (4-Band EQ / HPF / LPF)
    • NEU-W492 (4-Band EQ)
    • VMEQ-5 (3-Band Tube Mid-Range EQ )
    • BAE-1084 (3-Band EQ / HPF / LPF)
    • VEQ-STU 089 (3-Band EQ / HPF / LPF)
    • BAE-1023 (3-Band EQ / HPF)
    • VEQ-1A (2-Band Tube EQ)
    • VEQ-HLF (Tube 2-Band HPF / LPF)
    • VEQ-STU 169 (3-Band EQ / HPF)
    • NEU-PEV (3-Band EQ)
    • NEU-W495 (3-Band EQ)
    • Clear Q (Parametric EQ)
    • VCA160 (VCA Compressor / Limiter)
    • X903 (VCA Compressor / Limiter)
    • ALT-436C (Vari-Mu Tube Compressor Amplifier)
    • Tube 176 (Vari-Mu Tube Compressor / Limiter)
    • Stay-Levin (Vari-Mu Tube Compressor)
    • SMT-100A (Tube Leveling Amplifier / Limiter)
    • FET-A78 (FET Compress Stereo Peak Limiter)
    • FET-A76 (FET Compressor / Limiting Amplifier)
    • BAE 10DCF (Compressor / Limiter)
    • PowerEX (Expander)
    • PowerFFC (Feed-Forward Compressor)
    • PowerGate (Noise Gate)
    • BA-31 (Germanium Mic Preamp)
    • Gyraf Gyratec IX (Dual Tube Mic Preamp with HPF)
    • Marble White AutoWah (Auto-Wah Pedal)
    • Vari-Speed Tremolo (Tremolo)
    • Auraverb (Reverb)
    • Master De-Esser (De-Esser)
