Presonus

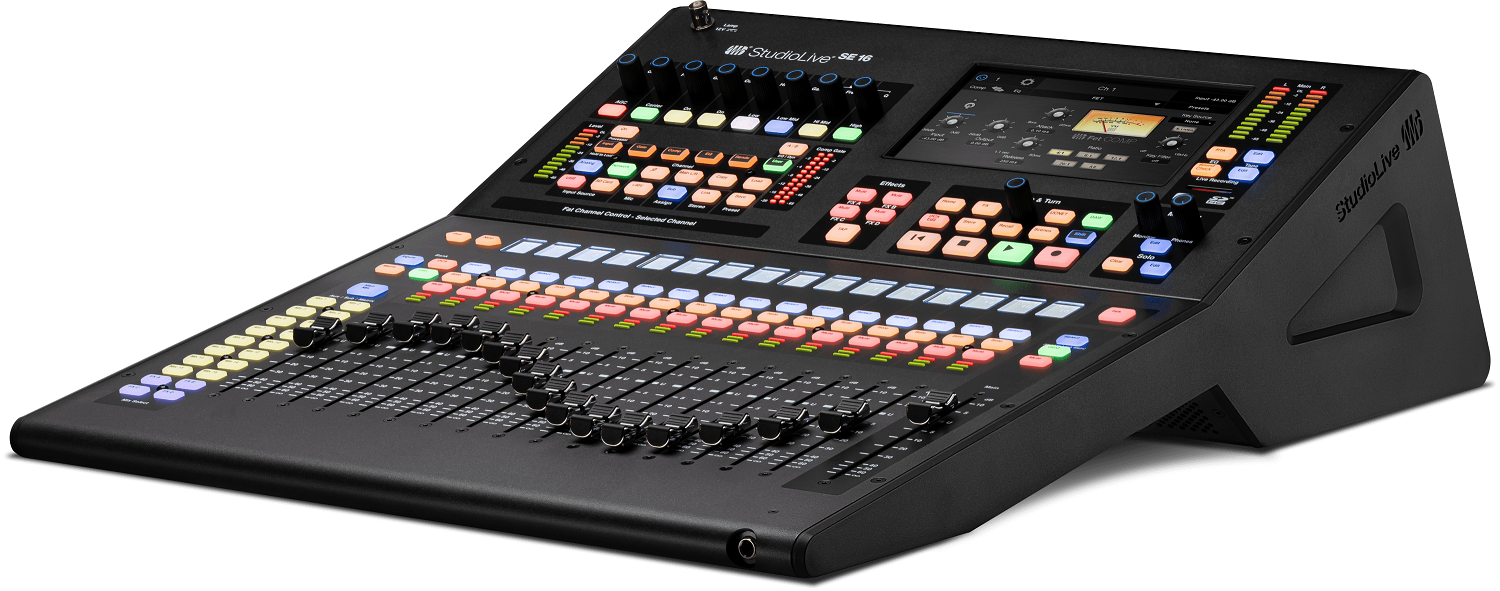

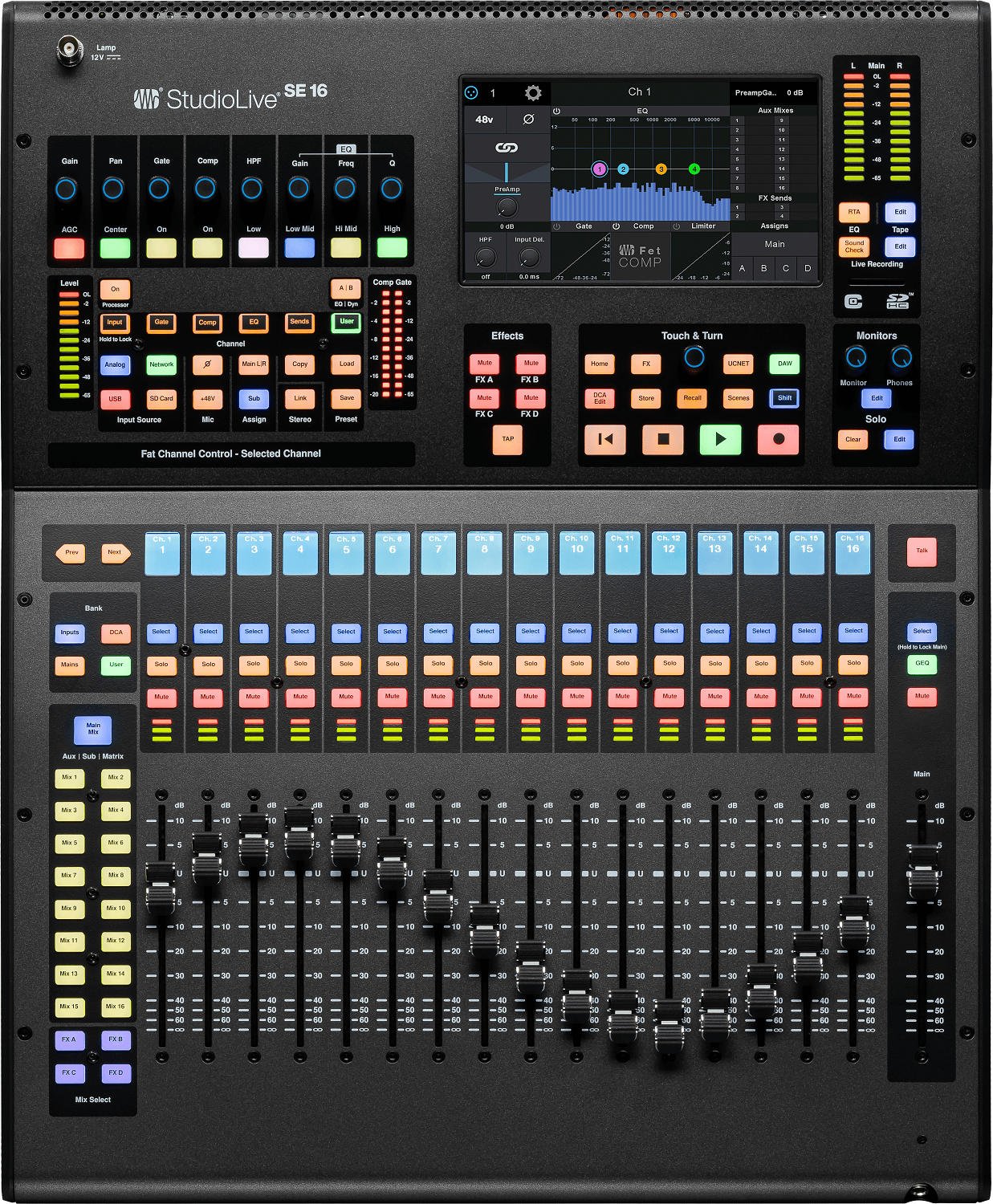

StudioLive Series III SE 16

Code: 8329

40-channel, 26-bus digital mixer with 17 motorized faders, a 64x64 USB Audio Interface, and Milan-certified AVB Audio Networking

Price: €2498.00
Price: €2498.00
BUY Online: €2098.00
BUY Online: €2098.00
You Save €400
You Save €400
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it with Free Delivery within 24 hours, at your closest Akis Express Collection point!
Add to Cart

In Stock

years

Free Fender Studio Pro Software with Purchase and Registration!

Designed to inspire and built to perform, StudioLive SE delivers pristine, ultra-low noise studio-quality sound to the stage in a unique split-fader frame. Dial in your mix with an arsenal of audio processors and effects, including meticulous digital models of coveted EQs, compressors, limiters, and reverb.

But live sound for touring, installations, and houses of worship demands more than pristine audio and powerful effects. With the StudioLive SE 16, you get access to capabilities beyond any solution in its class—like seamless multitrack recording, playback and streaming with integrated Fender Studio Pro and Capture software, remote access mix, console management, and one-click virtual soundcheck.

Expand your system and stay industry-ready—StudioLive SE connects effortlessly to networked StudioLive Stage Boxes and any Milan-compatible I/O, while its sleek design, intuitive layout, ergonomic feel, and high-contrast UI maximize comfort and streamline workflow during long sessions.

    • Integrated Multitrack Recording
    • Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
    • One-click Virtual Soundcheck with Capture
    • Seamless compatibility with Fender Studio Pro and leading DAWs
    • Pristine Studio Sound on Stage
    • 17 XMAX-Remote preamps for transparent analog tone and digital recall
    • 32-bit floating-point DSP processing
    • 115 dB A/D–D/A converters with ultra-low jitter clocking
    • Expanded Routing and I/O
    • 16 FlexMixes configurable as auxes, subgroups, or matrix mixes
    • AVB networking with StudioLive Stage Boxes and Milan-compatible gear
    • Four dedicated effects buses, four subgroups, and 24 DCAs
    • Advanced Fat Channel Processing
    • Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
    • All 7 EQs and 8 Compressors from the Fat Channel Collection included
    • Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
    • Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping
    • Metro™ Remote Access and Universal Control
    • Control every aspect of your mix remotely—from routing to effects
    • Provide technical support and reconfiguration remotely
    • Use QMix®-UC for personal monitor mixing from mobile devices
    • Mixing Comfort and Control
    • 17 touch-sensitive motorized faders deliver smooth automation and tactile mixing
    • Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort
  • General / Electronics
  • Phantom Power: +48 VDC (±2 VDC)
  • Power Consumption: 85W (continuous)
  • Voltage Requirements: 100–230 VAC, 50–60 Hz
  • Headphone Jack: 1/4" TRS Active Stereo
  • Internal Processing: 32-bit floating point
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Channels & Mixing
  • Total Input Channels: 40
  • Onboard Mic/Line Inputs: 16 (with recallable XMAX-R preamps)
  • Total Mix Buses: 26
  • FlexMixes: 16 (configurable as Aux, Subgroup, or Matrix)
  • Dedicated Subgroups: 4
  • FX Mixes: 4 (with dedicated stereo returns and processors)
  • DCA Groups: 24
  • Motorized Faders: 17 (touch-sensitive, fully recallable)
  • Mix Outputs: 10 (plus dedicated Main LR and Mono sum)
  • Microphone Preamp Inputs
  • Connection Type: XLR Female, Balanced
  • Frequency Response: 20–20 kHz (±0.5 dBu at Unity Gain)
  • Gain Control Range: 0–60 dB (±1 dB)
  • Input Impedance: 1 kΩ
  • Maximum Input Level: +12 dBu (Unity Gain)
  • Signal to Noise Ratio: 94 dB (ref +4 dBu, 20 kHz BW, Unity Gain, A-Weighted)
  • THD: <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted
  • CMRR: 65 dB (1 kHz at Unity Gain)
  • Line Inputs
  • Connection Type: 1/4" TRS Female, Balanced
  • Frequency Response: 20–20 kHz (±0.5 dBu at Unity Gain)
  • Input Impedance: 10 kΩ
  • Maximum Input Level: +18 dBu
  • Signal to Noise Ratio: 94 dB (ref +4 dBu, 20 kHz BW, Unity Gain, A-Weighted)
  • THD: <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted
  • Tape Input
  • Maximum Input Level: +12 dBu (±0.5 dBu)
  • XLR Line Outputs
  • Maximum Output Level: +24 dBu (±0.5 dBu)
  • Output Impedance: 100 Ω
  • TRS Line Outputs
  • Connection Type: 1/4" TRS Female, Balanced
  • Maximum Output Level: +18 dBu (±0.5 dBu)
  • Output Impedance: 100 Ω
  • Tape Output
  • Maximum Output Level: +18 dBu (±0.5 dBu)
  • Output Impedance: 100 Ω
  • Headphone Outputs
  • Frequency Response: 20 Hz–20 kHz (±0.5 dB)
  • Maximum Output: 100 mW/ch at 60 Ω load
  • Signal to Noise Ratio: 96 dB (1 kHz, Maximum Gain, 20 Hz BW, Unweighted)
  • THD: 0.01% (1 kHz, Maximum Gain, 20 Hz BW, Unweighted)
  • Digital Audio Performance
  • Bit Depth: 24-bit
  • Supported Sample Rates: 44.1 kHz, 48 kHz
  • ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
  • DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
  • Reference Level for 0 dBFS: +18 dBu
  • Total System Latency: 1.9 ms (local routing, analog in/out, all processing active)
  • Crosstalk (Adjacent Channels): -87 dB (ref +4 dBu, 20 Hz–20 kHz, Unweighted)

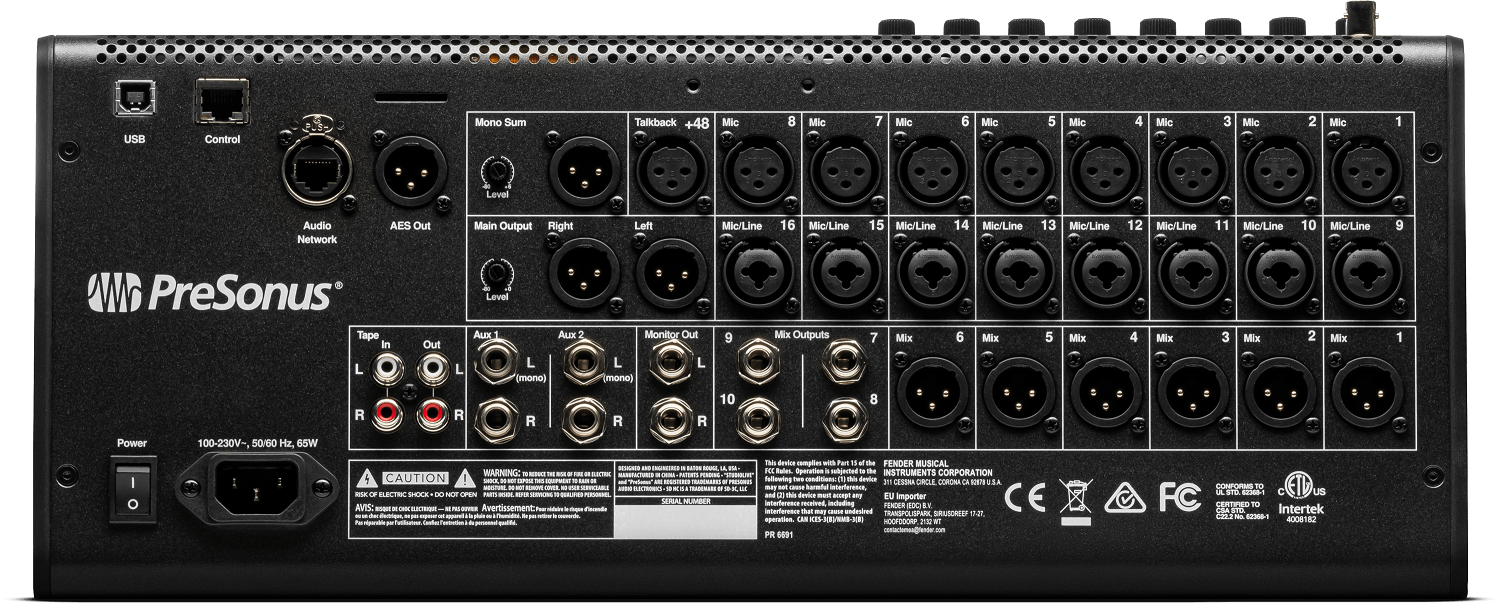

  • Connectivity
  • Mic Inputs: XLR Female (Balanced)
  • Line Inputs: 1/4" TRS Female (Balanced)
  • Tape I/O: RCA Female, Unbalanced (Stereo Pair)
  • USB Recording Port: USB 2.0 Type-B (64x64 bidirectional)
  • AVB Audio Network Ports: Neutrik etherCON
  • Network Control Port: RJ-45
  • AES/EBU Output: XLR Male
  • Recording
  • SD Card Recording: 34x34 multitrack
  • SD Recorder Bit Depth: Recording 24-bit, Playback 16 or 24-bit
  • SD Recorder Sample Rate: 44.1 or 48 kHz
  • Recording File Format: WAV
  • Supported Media: FAT16 SD Card (up to 2 GB), FAT32 SDHC Card (up to 32 GB)
  • Dimensions & Weight
  • Width: 17.59" (446.66 mm)
  • Depth: 22.97" (583.84 mm)
  • Height: 6.51" (165.36 mm)
  • Weight: 23.15 lbs (10.5 kg)
  • Included Software
  • Studio One Pro (perpetual license)
  • Capture multitrack recording software
  • Universal Control (with Offline Editor and Metro internet remote)
  • QMix-UC (iOS and Android)
