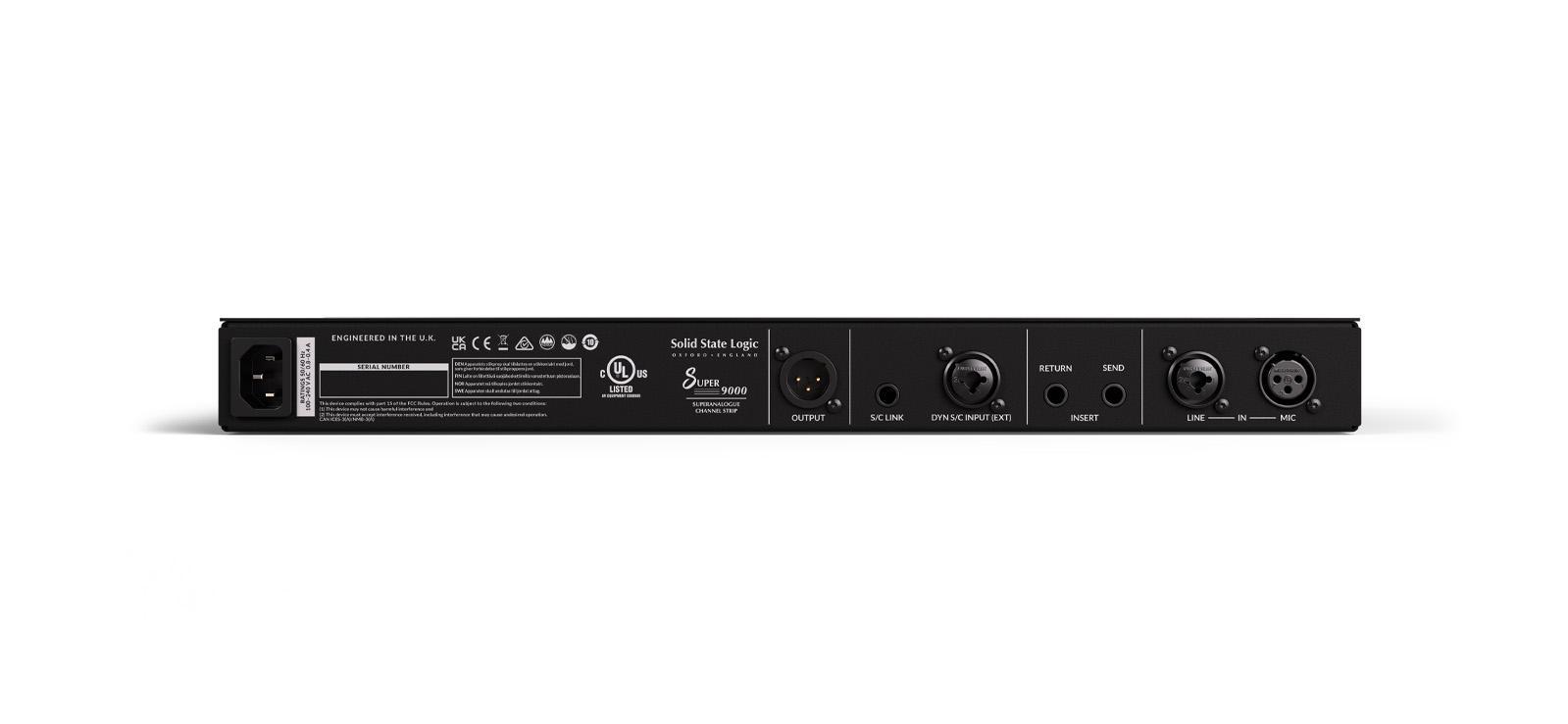

SSL Super 9000 Render Back 573c3d94ea948023d890147bd542e9e0

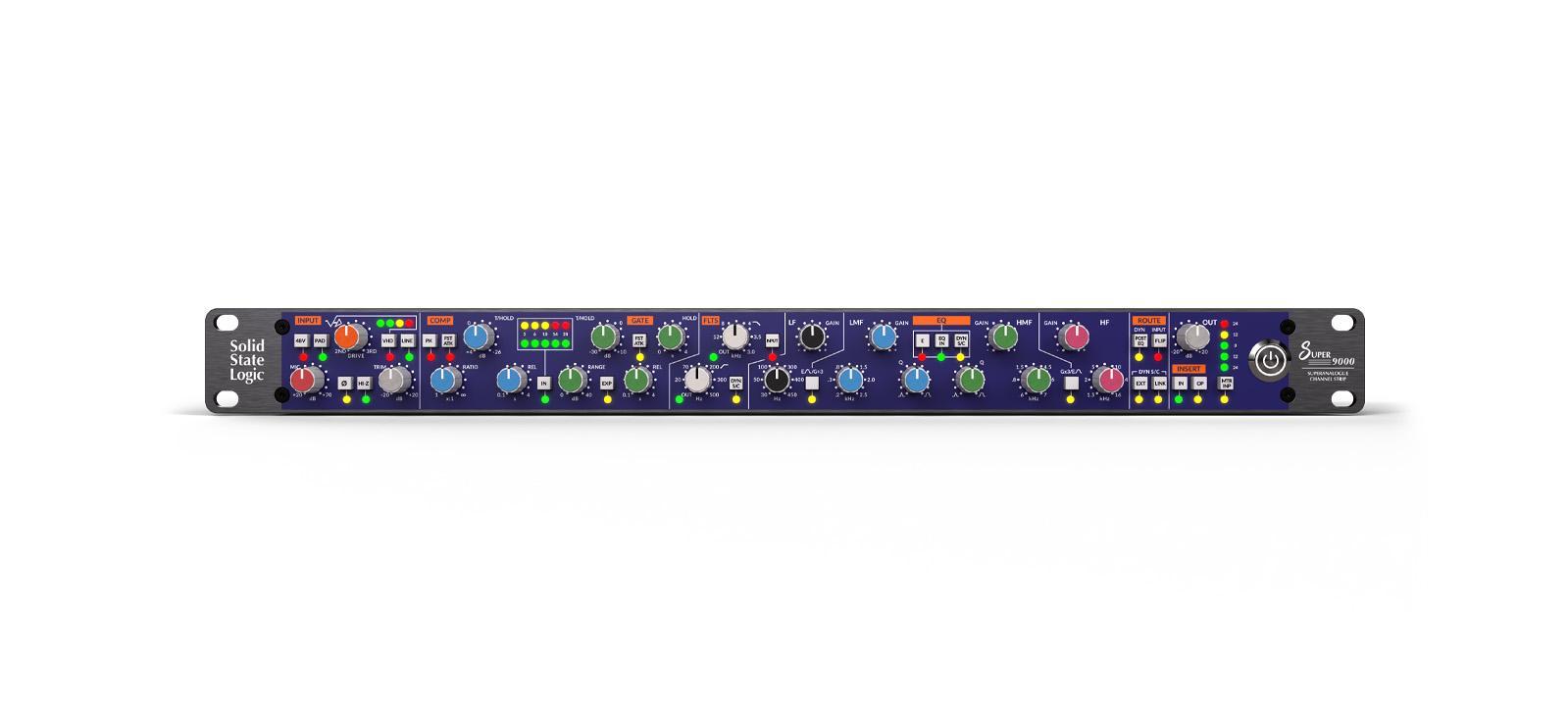

SSL Super 9000 Render Front 2 29a3a6fb0c4661510c7c1b45d4122aa9

Solid State Logic - Super 9000 Channel Strip

Code: 8089

Solid State Logic Super 9000 equips studios large and small with a comprehensive SSL channel strip boasting discrete SuperAnalogue and VHD mic preamps, 4-band G and E series EQ

Pre-Order

Enquire to be notified upon availability

The Solid State Logic Super 9000 equips studios large and small with a comprehensive SSL channel strip boasting discrete SuperAnalogue and VHD mic preamps, 4-band G and E series EQ, a 9000/Duality dynamics section, and extensive sidechain functionality. The Super 9000 incorporates the best of SSL technology, culled from the coveted consoles that have dominated the recording industry over the past half-century. Just like on a Duality console, you can choose a pristine, high-headroom SuperAnalogue preamp or a VHD (Variable Harmonic Drive) circuit to enrich your signals with colorful harmonics and saturation. Packed in an elegantly arranged 1U chassis, the Super 9000 is a formidable front end that delivers definitive SSL clarity and punch. It ranks among the best-sounding and most versatile do-it-all channel strips producers at Sweetwater Studios have had the pleasure of working with.

    • Premium mono channel strip with dual mic preamps, 4-band EQ, and dynamics
    • SuperAnalogue (9000) and VHD (Duality) mic preamps, selectable
    • Selectable mic pre impedance: 1.3 kΩ, 11 kΩ
    • 48V phantom power, polarity invert, pad, and Line input switches
    • Input Flip moves the VHD Pre from the Mic path into the Line in path
    • 4-band EQ with switchable 292 “Pink Knob” and 242 “Black Knob” modes
    • 9000/Duality dynamics section with compressor and gate/expander
    • Dynamics sidechain link for linking two Super 9000 compressors for stereo operation
    • External sidechain (key) input
    • 8dB/octave highpass and 12dB/octave lowpass filters
    • Insert point for integrating external processors into the signal path
    • To-Sidechain switching: Filters to Dynamics sidechain, EQ to Dynamics sidechain
    • Flexible process-order routing: Filters to input, Dynamics post-EQ, Insert to output
    • Switchable input and output metering
    • Line Output trim
  • Preamp Type: Solid State
  • Number of Channels: 1
  • Phantom Power: Yes
  • Pads: Yes
  • Polarity Switch: Yes
  • EQ: 4-band EQ, LPF, HPF
  • Compressor: VCA
  • Other Processing: Gate
  • Frequency Response:     20Hz-20kHz
  • Analog Inputs: 1 x XLR, 1 x XLR-1/4" (line)
  • Analog Outputs: 1 x XLR
  • Other I/O:     2 x 1/4" (return/send), 1 x XLR-1/4" Combo (dynamic sidechain in), 1 x 1/4" (sidechain link)
  • Rack Spaces: 1U
  • Power Source: Standard IEC AC cable
  • Height: 1.75"
  • Depth: 10.9"
  • Width: 19"
  • Weight: 8.15 lbs.
  • Manufacturer Part Number: 729749x3
