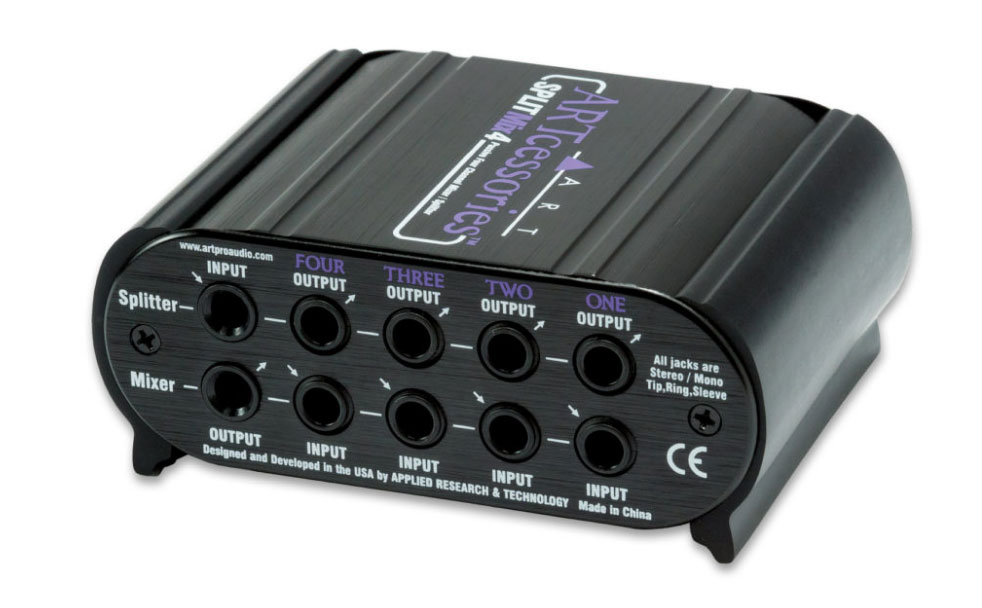

SPLITMix4

Code: 3604

Four Channel Passive Splitter/Mixer

Price: €89.00
Price: €89.00
BUY Online: €82.00
BUY Online: €82.00
You Save €7
You Save €7
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

The SPLITMix4 is a fully passive hybrid mixer that offers a wide variety of configurations. Mix 4 stereo input channels down to 1 stereo output, split a stereo input signal to distribute 4 stereo output channels, or combine the configurations for a wide range of applications. You can even configure the SPLITMix4 as 4 stereo input channels thru 4 independent level attenuators to 4 stereo output channels.

The fully passive design of the SPLITMix4 has no active circuitry to add noise or distortion, and virtually any signal level can be handled. The Level attenuators cover a wide range and offer over 90dB of attenuation and channel isolation. The SPLITMix4 is designed primarily as a line level device with medium input and output impedances.

    • Four Stereo Input Channels
    • Stereo Output
    • Independent stereo level controls are provided on each channel
    • Passive Design (No Power Supply Required)
    • Over 90dB of Attenuation
    • Dimensions: 47 x 117 x 104 mm
    • Weight: 380 g
