Enova

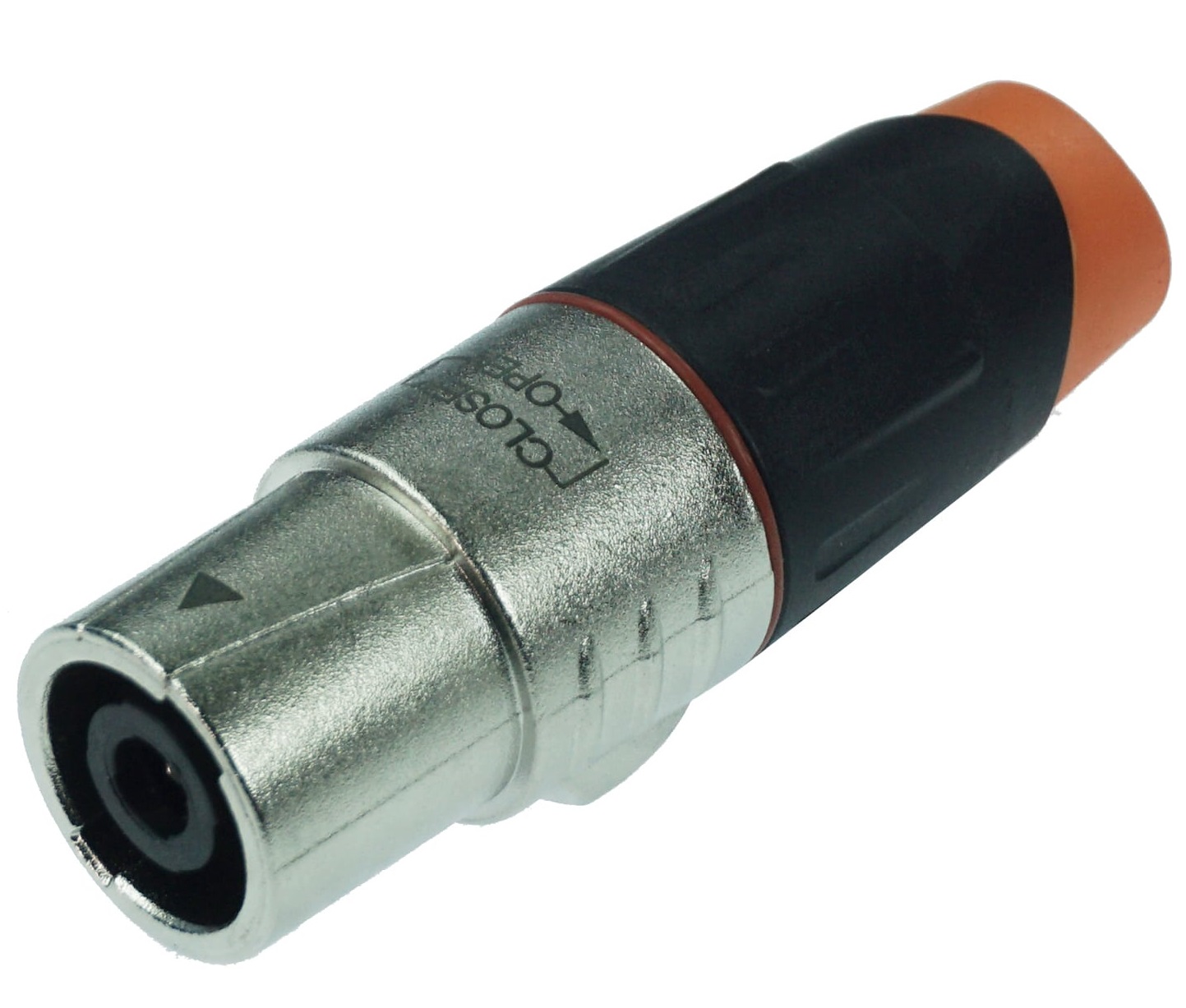

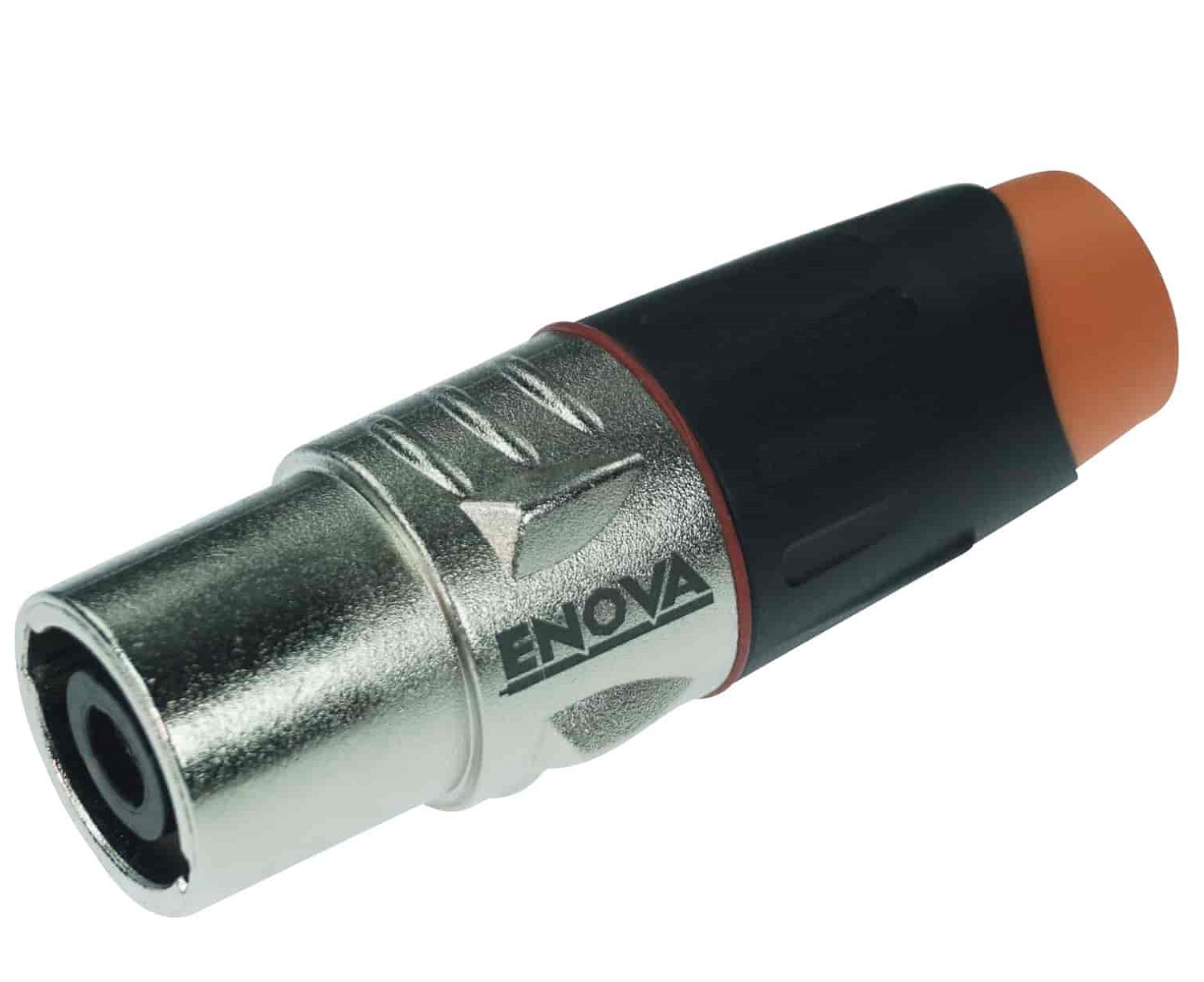

SP24MN Loudspeaker Connection 4-pin, Male

Code: 8387

Loudspeaker connection 4-pin, metal housing male 40 amps

Price: €15.00
Price: €15.00
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

years

SP24MN

4-pole loudspeaker connection with a robust metal housing male. Max. Current of 40 amps.

    • Length: 79.5 mm
    • Width: 26 mm
    • Height: 26 mm
    • Standard black strain relief: suitable for cable sheath diameters Ø8.5–11.5 mm
    • White strain relief: suitable for cable sheath diameters Ø11.5–13 mm
  • Brand: ENOVA
  • Series: SP-Series
  • Type: 4-pin speaker cable connector
  • Connector style: Male plug
  • Number of contacts: 4
  • Cable size supported: 8.5 mm to 14 mm diameter
  • Maximum wire size: 4 mm / AWG 11
  • Connection method: Solder contacts
  • Housing material: Nickel-plated ZZnAI4-0 alloy
  • Contact material: Silver-plated zinc
  • RoHS compliant: Yes
  • Country of manufacture: China
  • Operating voltage: 250V AC
  • Maximum current: 40A
