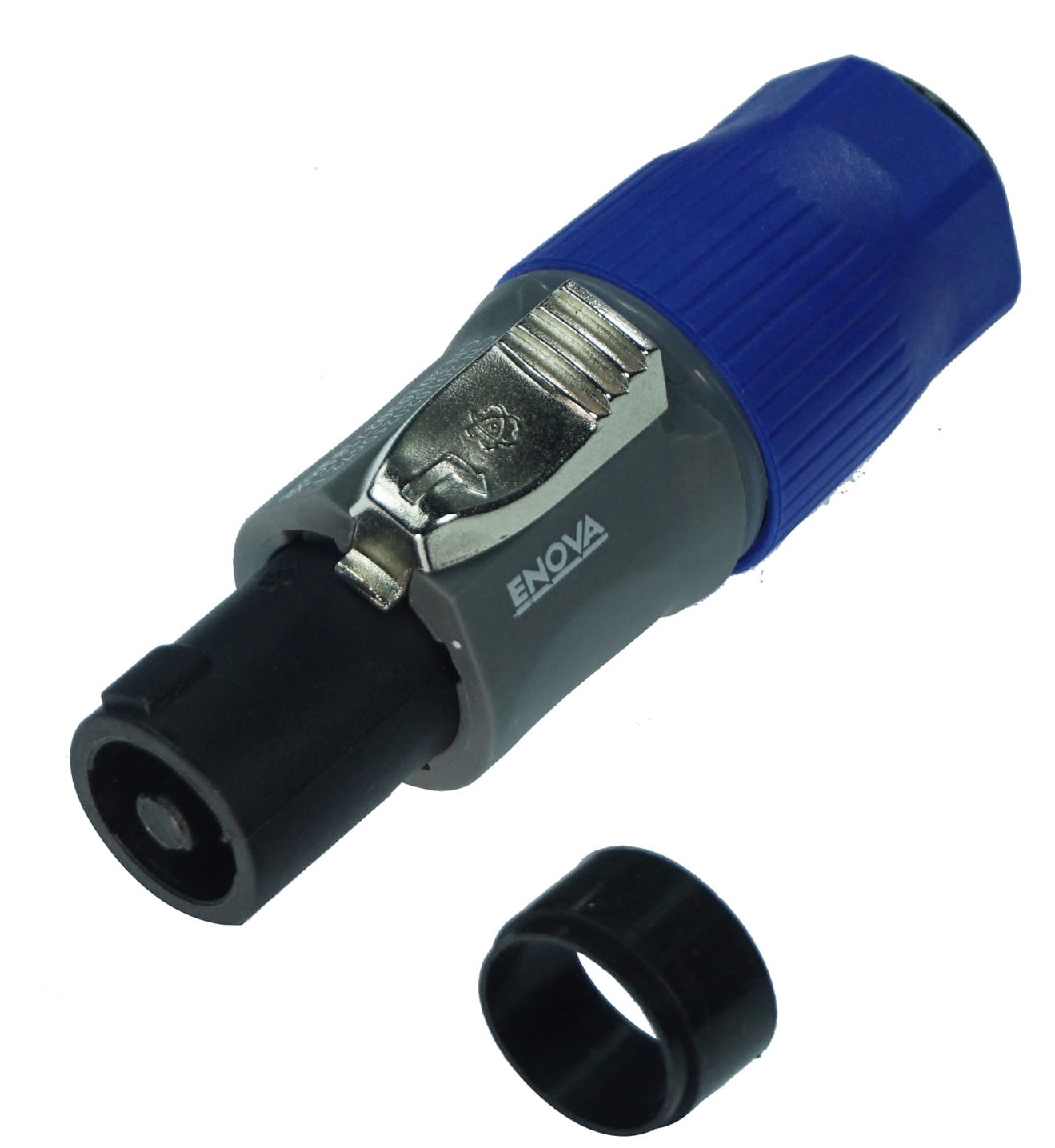

SP24FP Speaker Connector with 4 pin Female Inline

Code: 8395

Speaker Connector with 4 pin Female Inline, silver plated contacts

Price: €4.30
Price: €4.30
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years



SP24FP

4-pin female speaker connector from ENOVA, perfect for the pro audio industry, event technicians, musicians, sound engineers and multimedia electricians.

With silver-plated contacts, this connector offers excellent sound quality and reliability. The waterproof cable clamp ensures a secure connection, even under demanding conditions.

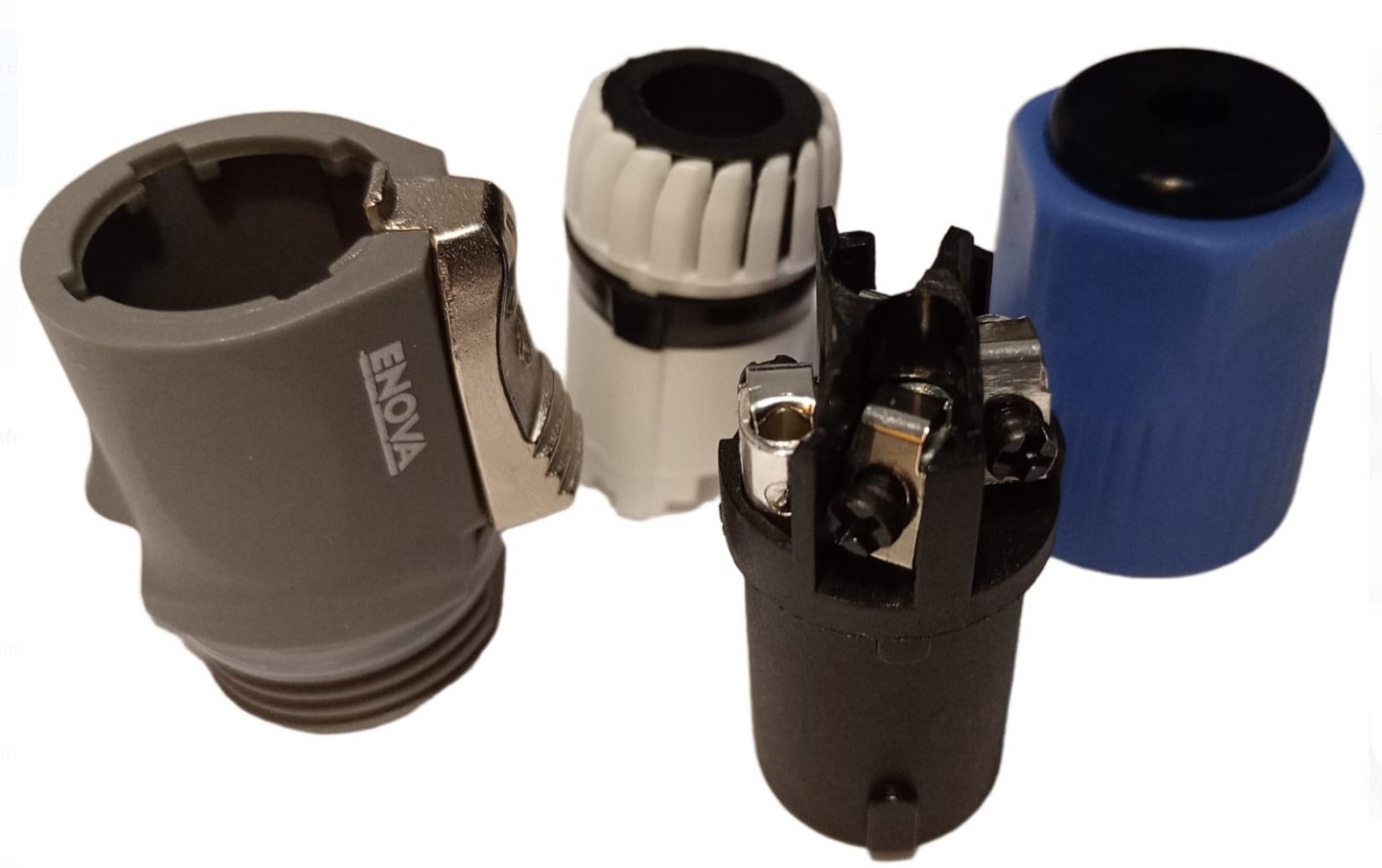

The robust ergonomic locking mechanism ensures easy handling and a secure hold. The T-thread enables a non-rotating installation, which keeps the grommet stable.
The hexagonal rear cable grommet can be tightened with a wrench, ensuring quick and secure installation.

The scope of delivery includes two collets in different sizes, suitable for cables with a diameter of 8.5 to 15 mm.

With 4 screw terminals and a maximum rated current of 25 amps, this plug provides the power you need. Its compact dimensions of 81.9 mm length, 34.2 mm height and 27 mm width make it versatile.

Rely on ENOVA for quality and performance in audio technology.

    • Includes 2 collets for cable diameters from 8.5–15 mm
    • 4 screw terminals
    • Maximum rated current: 25A
    • Compact size: 81.9 × 34.2 × 27 mm
    • Suitable for versatile power applications
  • Brand: ENOVA
  • Series: SP-Serie
  • Type: 4-pin speaker connector
  • Version: Cable version
  • Gender: Female
  • Contacts: 4
  • Wiring: Screw contact
  • Cable diameter: 8.5–15 mm
  • Max wire size: 2.5 mm
  • Housing material: Nylon
  • Contact material: Silver-coated zinc
  • Rated current: 25 A max
  • RoHS compliant: Yes
  • Made in: China
  • Used for: Audio, DJ, lighting, events, installations, cable assembly
