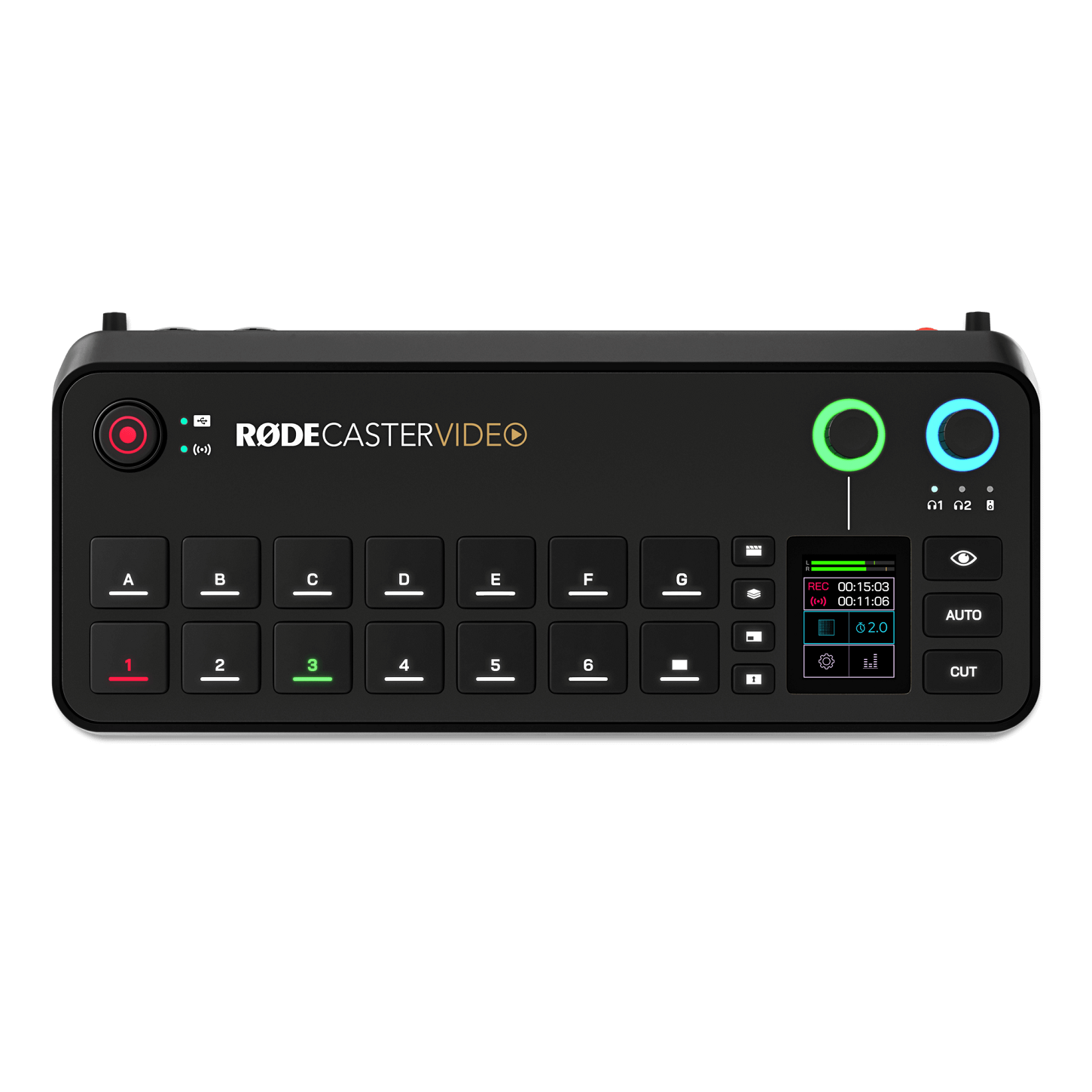

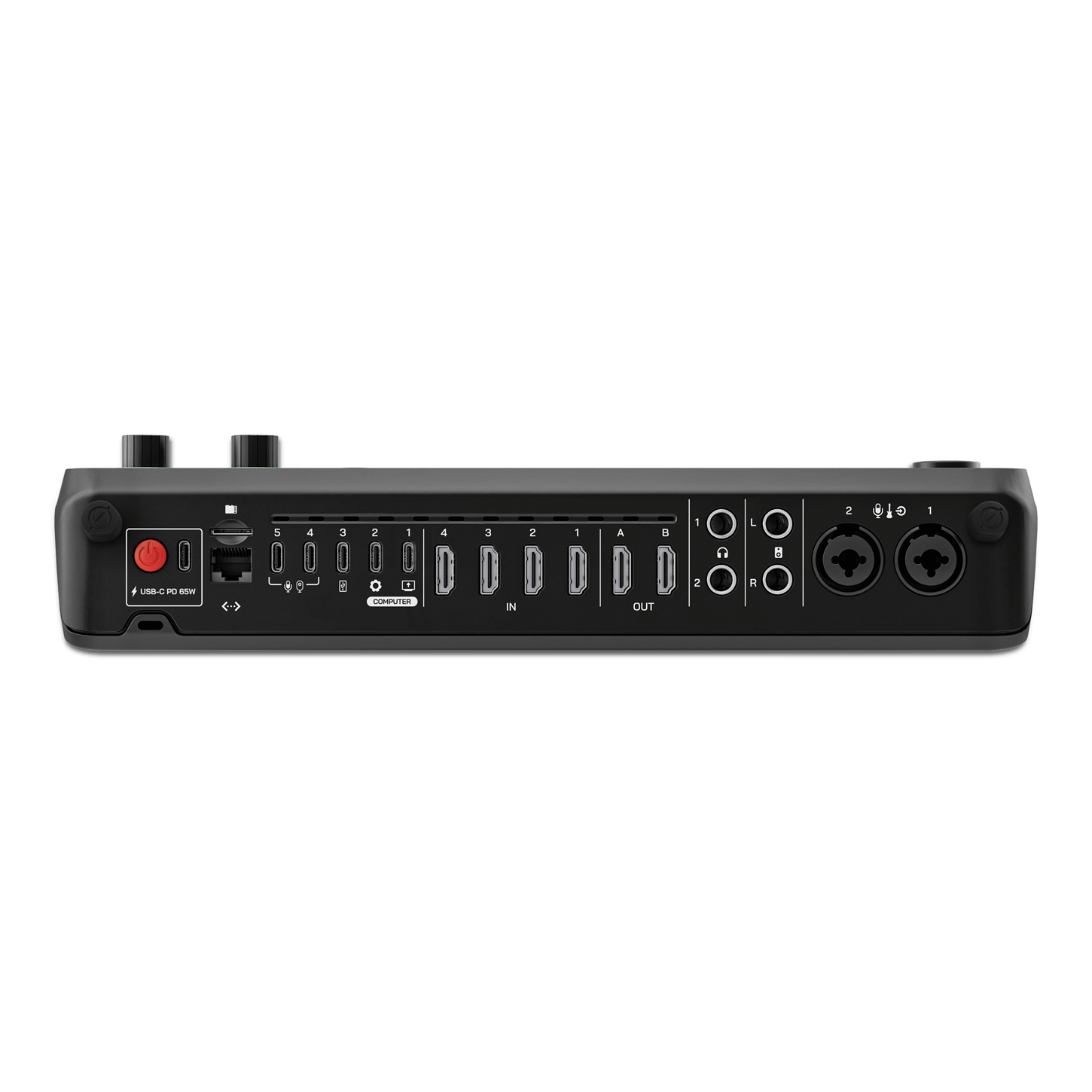

Rodecaster Video

Code: 7566

Video and Audio Production Console

Price: €1298.00
Price: €1298.00
BUY Online: €1098.00
BUY Online: €1098.00
You Save €200
You Save €200
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

The RØDECaster Video is a revolutionary all-in-one video and audio production console that provides intuitive control over every element of your content. Combining powerful video switching, recording and production capabilities with a fully integrated professional audio mixer, it offers a seamless way to streamline and supercharge your workflow for studio productions, video podcasts and interviews, and stream live events with broadcast quality.

Features:

  • Switch between up to six video sources and seven fully customisable scenes at the press of a button
  • High-performance octa-core CPU video and audio processor
  • Four full HD (1080p) HDMI inputs with auto frame rate conversion and two configurable HDMI outputs for viewing program, preview and multiview
  • Two flexible USB-C ports for connecting webcams and RØDE USB audio devices to use as additional video and audio sources
  • Two studio-grade Neutrik® combo jacks with ultra-low-noise, high-gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
  • Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
  • Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
  • 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
  • Ability to create seven complex scenes with multiple layers of video, media and graphics, which can be saved and triggered at the touch of a button
  • Automatic chroma keying for effortlessly replacing backgrounds with media or live video inputs
  • Media playback, graphic overlays, keying, transitions and multi-source scene creation all accessible from the front panel
  • Innovative "Inspect" feature for quick-and-easy preview and configuration of any input or scene
  • Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
  • Stream directly to all major platforms via Wi-Fi or Ethernet, or to streaming software via USB
  • Record directly to external USB storage device, including isolated (ISO) recording for post-editing flexibility
  • Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDE Central
  • Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia

    • Video Input Feeds: 6 simultaneous
    • HDMI Inputs: 4 type-A (HDMI 1.4b)
    • USB (UVC) Inputs: 2 multi-function USB-C for UVC video
    • HDMI Outputs: 2 configurable – preview, program, multiview
    • Video Input Frame Rates: 1920x1080p:23.97, 24, 25, 29.97, 30, 50, 59.94, 60 | (HDMI only) 1920x1080i: 25, 29.97, 30
    • Video Output Frame Rates: 1920x1080p: 24, 25, 30, 50, 60
    • Video Streaming Standards: 1920x1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60
    • Video Engine Colour Space / Bit Depth: 4:4:4 RGB / 8-bit
    • HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
    • USB Input Colour Space: 4:2:2 YUV, 4:2:0 YUV (NV12)
    • HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-bit
    • USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-bit
    • Format and Frame Rate Converters: On all HDMI and USB inputs
  • Analog Audio Inputs: 2 combo jacks (microphone, line or instrument) with Revolution Preamps™
  • Wireless Audio Inputs: 2 Series IV wireless receivers
  • Digital Audio Inputs USB 1: 2-in/2-out or multichannel (20-in) output, USB 1 Chat (uses USB 1 port): 2 in/2-out with mix-minus, USB 2: 2-in/2-out with MFi support, USB 4 & 5: compatible with RØDE USB microphones and RØDECaster Pro II and Duo
  • Audio Mixer: 20 possible audio sources (9 stereo channels simultaneously): combo 1 and 2 (can be combined for stereo), wireless 1 and 2, video clips, sounds, HDMI 1, 2, 3 and 4 (each can be split for two mono), Bluetooth,3 USB audio interfaces (computers), 2 hosting USB audio devices (microphones)
  • 12 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording, monitors, USB Main, USB Chat, USB 1, 2, 4 and 5, Bluetooth. Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs
  • Analog Audio Outputs: 2 headphone outputs (1/4-inch), 2 balanced line outputs (1/4-inch, L/R)
  • Audio Processing: APHEX® VoxLab™ Processing: per channel, Advanced APHEX® granular processing on each channel - Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™ Preamps
  • Frequency range: 20Hz – 20kHz
  • Input gain: up to 76dB Input
  • Equivalent Input Noise: -131.5dBV (A-weighted)
