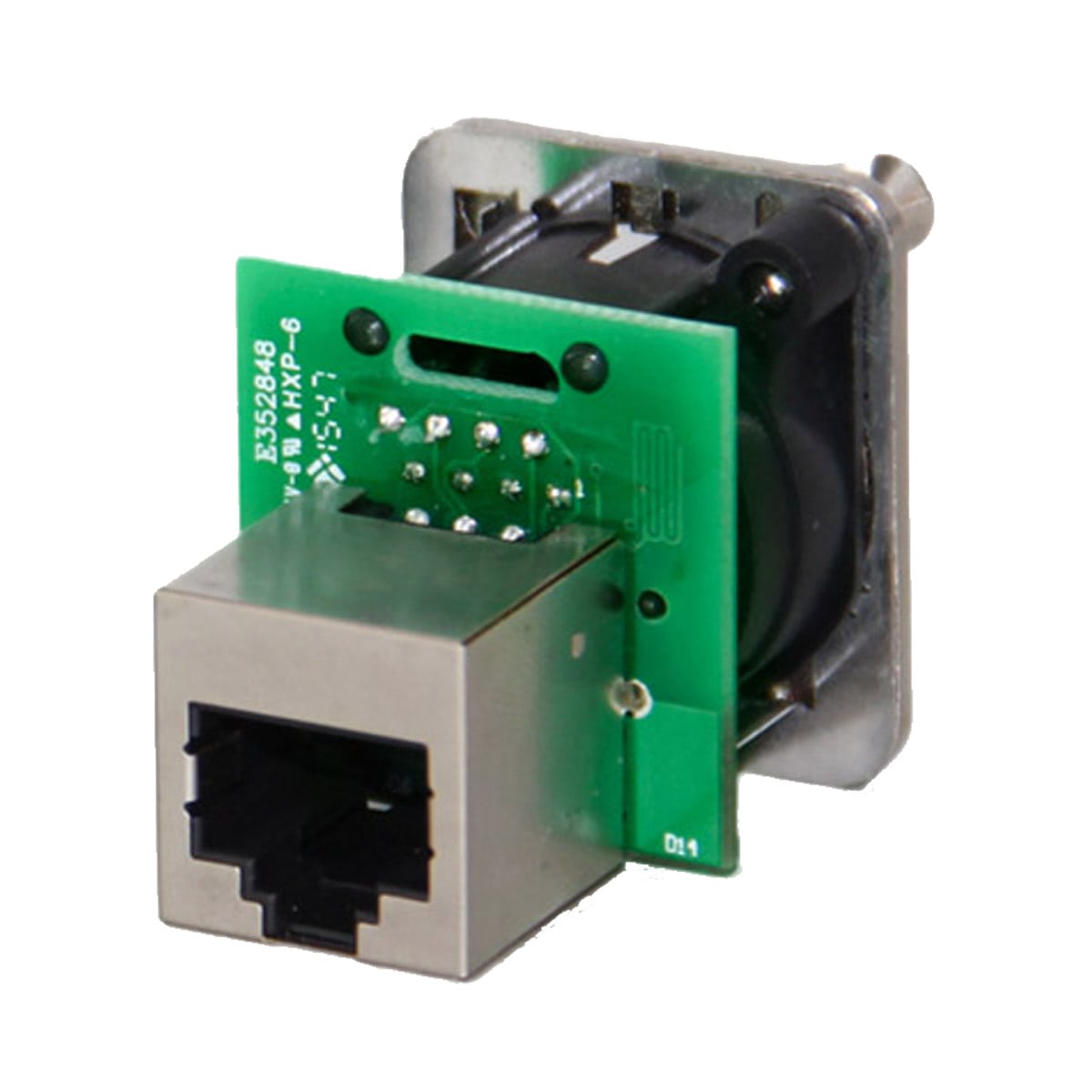

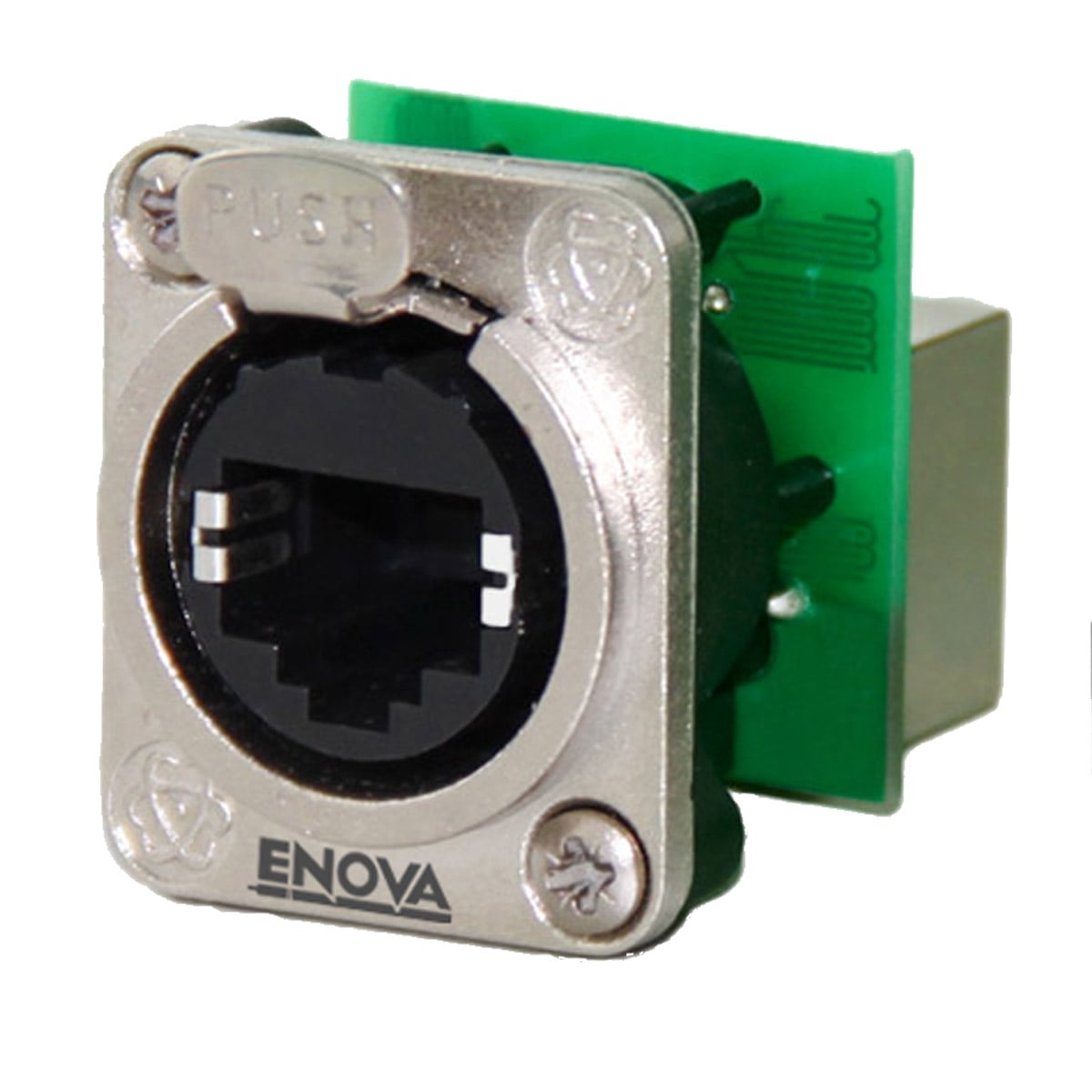

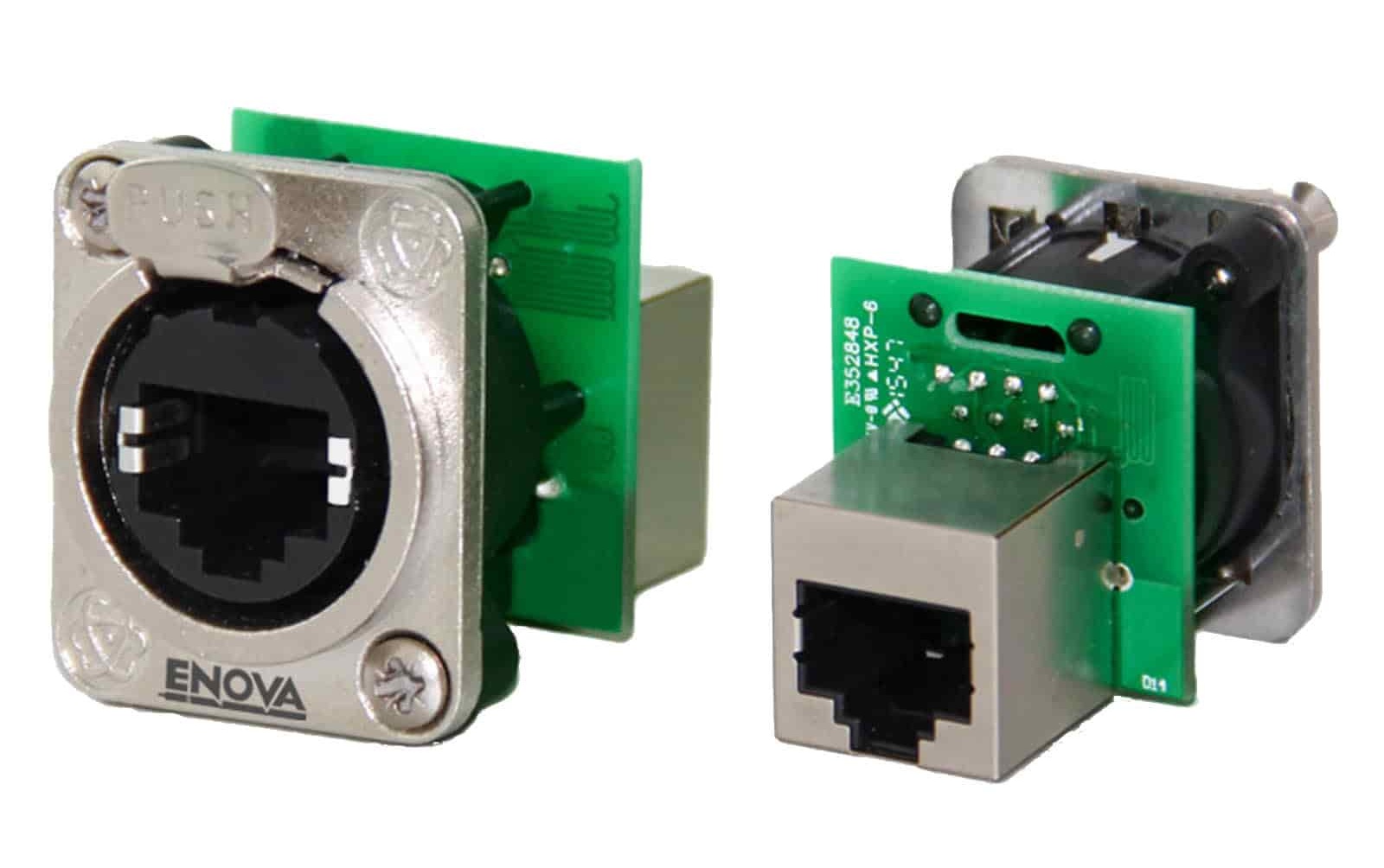

RJ18FN-C5F - RJ45 chassis connector

Code: 8437

Cat5e feed-through

Price: €10.00
Price: €10.00
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

RJ18FN-C5F

The protective cover can be easily installed or removed using the bayonet lock Connector for digital signal transmission. RJ45 feed-through connector,
Metal flange with locking.
Fixing screws included.

Depth 39 mm
Width 26 mm
Height 31 mm

    • Brand:    ENOVA
    • Series:    RJ-Serie
    • Version (Plug / Chassis):    Chassis version
    • Connector type:    RJ45
    • Connection mode:    Push-button latch, Druckknopf am Chassis
    • Gender (M / F):    Female connector
    • Connector housing color:    Black
    • Wiring mode:    plug adapters
    • Installation diameter in mm:    Ø 24.00 mm
    • Installation fixing height x width in mm:    24.00 mm x 19.00 mm
    • Number of mounting holes:    2
    • Material connector housing:    ZZnAL4-0
    • ROHS according to EN62321-1:    Yes
    • Country of origin:    China
    • Applications:    video technician, Lighting technician, Sound engineer
