16x16 Analogue I/O With Independent Level Control.

Pre-Order Usually available within about 1 week from order

years

RedNet A16R MkII is a 16-channel analogue interface for Dante® networks, with two channels of AES3 I/O. Precision A-D and D-A conversion provides 119dB of dynamic range, flat from 20Hz - 20kHz (+/- 0.15dB). Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary EtherCON network connectors, RedNet A16R MkII is perfect for critical-path applications in recording, post production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.

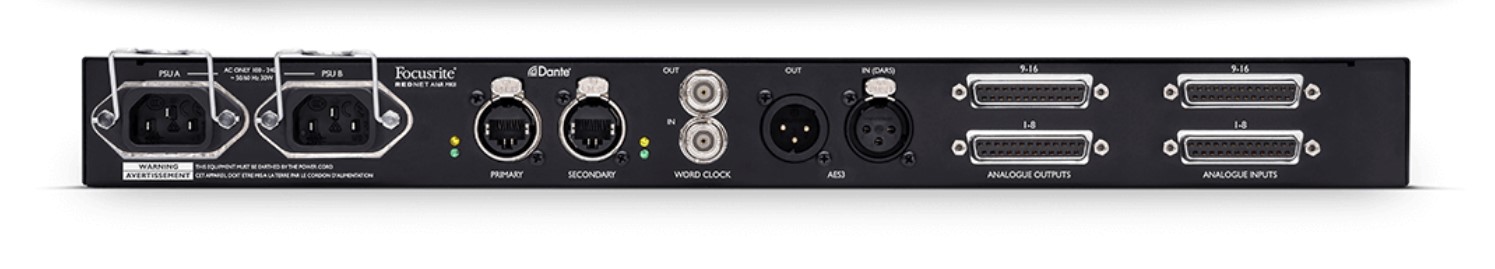

Analogue inputs and outputs are connected through four rear-panel AES59 standard DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, following an external input.


RedNet A16R MkII is well suited to both permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite Pro products come with a three-year warranty and award-winning customer support.






  • 16 channels of high-quality line-level analogue I/O for Dante Audio-over-IP networks.
  • 24-bit precision conversion up to 192kHz.
  • Software-selectable +24dBu or +18dBu level alignment.
  • Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability.
  • Analogue I/O to AES59 standard DB25 connectors.
  • RedNet Control remote monitoring software with powerful graphic user interface.
  • Individual input/output channel level control and calibration available in +/- 1db increments via digital trim fader with mute and dim functions.
  • 119dB dynamic range, flat from 20Hz – 20kHz, +/-0.15dB.
  • AES67, AES70 and SMPTE 2110 compliant.
  • Word Clock I/O and DARS input for increased flexibility plus an additional two channels of AES3 I/O.
  • Comprehensive front-panel metering and indicators.
  • Weight: 5kg









    • Dimensions: 482 x 44 x 327 mm
    • Weight: 4.53 kg

    LINE INPUTS:

    • 0 DBFS Reference Levels: +18 or 24dBu (switchable)
    • Frequency Response: 20Hz – 20kHz ± 0.1dB
    • THD+N: Less than -100dB (0.001) unweighted, 20Hz – 20kHz; -1dBFS input
    • EIN: -96dBu A-Weighted (typical)
    • Signal-To-Noise Ratio: 120dB A-Weighted (typical)
    • Converter Dynamic Range: 120dB A-Weighted (typical), 10Hz – 20kHz


    LINE OUTPUTS:

    • 0 DBFS Reference Levels Outputs: 18 or 24dBu (switchable)
    • Frequency Response Outputs: 20Hz – 20kHz ± 0.1dB
    • THD+N Outputs: Less than -100dB (0.001) unweighted, 20Hz – 20kHz; 23dBu input
    • Noise In Presence Of Signal: -94dBu A-Weighted (typical)
    • Dynamic Range: 118 dB A-Weighted (typical)
    • Converter Dynamic Range Output: 120dB A-Weighted (typical), 10Hz – 20kHz


    CROSSTALK:

    • Input To Output Or Input: Less than -100dB unweighted, 20Hz – 20kHz; 23dBu input
    • Output To Input Or Output: Less than -100dB unweighted, 20Hz – 20kHz; -1dBFS input


    DIGITAL INPUT SAMPLE RATE CONVERTERS:

    • Sample Rate Range: 32kHz to 216kHz
    • Gain Error: -0.3dB
    • Dynamic Range Inputs: Greater than 138dB
    • THD+N Inputs: Less than -130dB (0.00003)
    • Latency: 11 to 45 samples (network and sample rate dependent)


    DIGITAL PERFORMANCE:

    • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
    • Clock Sources: Internal or from Dante Network Master
    • External Word Clock Range: Nominal sample rate ±7.5


    REAR PANEL CONNECTIVITY:

    • Line Inputs: 2 x DB25 connectors
    • Line Outputs: 2 x DB25 connectors
    • Channel Count: 2 x 2 AES/EBU channels
    • Input (Optional DARS): 1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates)
    • Output: 1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates)
    • Word Clock Input: 1 x BNC 75O port (switchable termination)
    • Word Clock Output: 1 x BNC 75O port
    • PSU: 2 x IEC Inputs with retaining clips
    • Network: 2 x EtherCON NE8FBH, also compatible with standard RJ45 connectors


    FRONT PANEL INDICATORS:

    • Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present
    • Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode.
    • Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode.
    • Network Locked: Green LED. When unit is following network grand master, shows valid network lock.
    • Sample Rate: Orange LED for each: 44.1kHz, 48kHz, x2, x4.
    • Pull Up/Down: Orange LED. Indicates that the unit is set to operate on a Dante pull up/down domain.
    • AES/EBU Signal Indicators: 2 I/O signal indicator LEDs.
    • Clock Source: Orange LED for each.


    NETWORK MODES:

    • Redundant: Allows unit to connect to two independent networks.
    • Switched: Connects both ports to integrated network switch allowing daisy-chaining.
