Fender Studio

Quantum HD 8 Interface

Code: 8197

USB-C Audio Interface

Contact for Price
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout

Pre-Order

Enquire to be notified upon availability

years

The Fender Quantum HD 8 expands on the HD 2’s precision and workflow, offering 26 x 30 channels, ADAT expansion, and versatile monitoring for full-band recordings and complex production setups. Featuring MAX-HD mic preamps, ultra-low-latency drivers, and 32-bit / 192 kHz converters, the HD 8 captures every detail of instruments, vocals, and line-level sources with studio-grade fidelity.

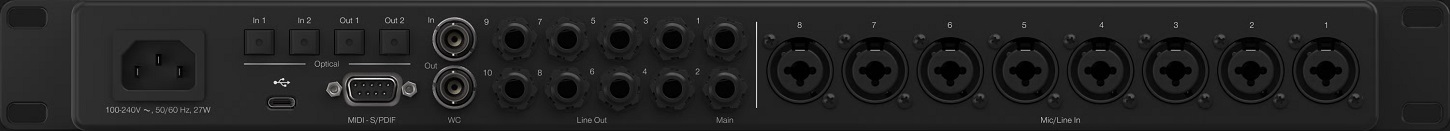

Front-facing Fender instrument inputs, Auto Gain, and re-amp outputs provide fast setup and creative flexibility. Expanded I/O includes ADAT inputs and outputs, additional TRS line outputs, MIDI I/O, and ADAT preamp standalone mode — making it easy to scale your studio and accommodate larger sessions.

Control preamp gain, phantom power, and outputs through Fender Studio Pro or the Universal Control app, while built-in DSP monitor mixing and loopback routing ensure a streamlined workflow. The HD 8 also comes with a perpetual Fender Studio Pro license.

    • 26 x 30 USB-C recording interface with MAX-HD mic preamps and 32-bit / 192 kHz converters
    • Expanded Digital I/O: 16 ADAT channels, S/PDIF I/O, and ADAT preamp standalone mode
    • Front-facing Fender instrument inputs optimized for guitar and bass
    • Auto Gain button for fast and accurate recording levels
    • Re-amp outputs for creative tone experimentation
    • DSP monitor mixer and loopback routing for streaming and recording
    • Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
    • Professional software included: Fender Studio Pro perpetual license
    • Full-color high-resolution display with illuminated push encoder for intuitive operation
    • MIDI I/O and DC-coupled line outputs for modular synth control
    • Fender Studio Pro Perpetual Included – Professional DAW with Mustang and Rumble plug-ins
  • Height: 1.7” (43.1mm)
  • Depth: 8.6" (218 mm)
  • Width: 19" (483mm)
  • Weight: 6.3 lbs. (2.9 kg)
  • Connectivity: USB-C®
  • Bit Depth: 32-bit
  • Dynamic Range: 124 dB
  • Supported Sample Rates: 4.1, 48, 88.2, 96, 176.4, 192 (kHz)
  • Connection Type: Two - 1/4" TRS Female Stereo
  • Frequency Response: 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
  • Impedance Working Range: 33 Ohms
  • Dynamic Range: 118 dB (A-Weighted)
  • THD+N: 0.001% (1 kHz)
  • Maximum Output Level: 11 dBu (50 Ohms)
