Digital Mixers

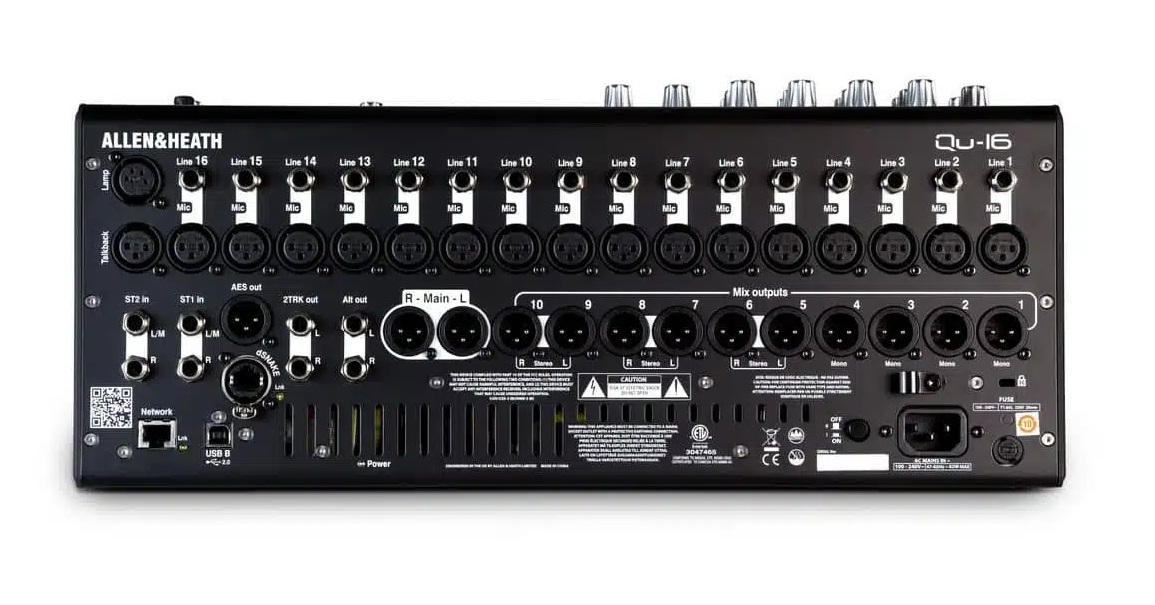

Qu 16 Chrome IO

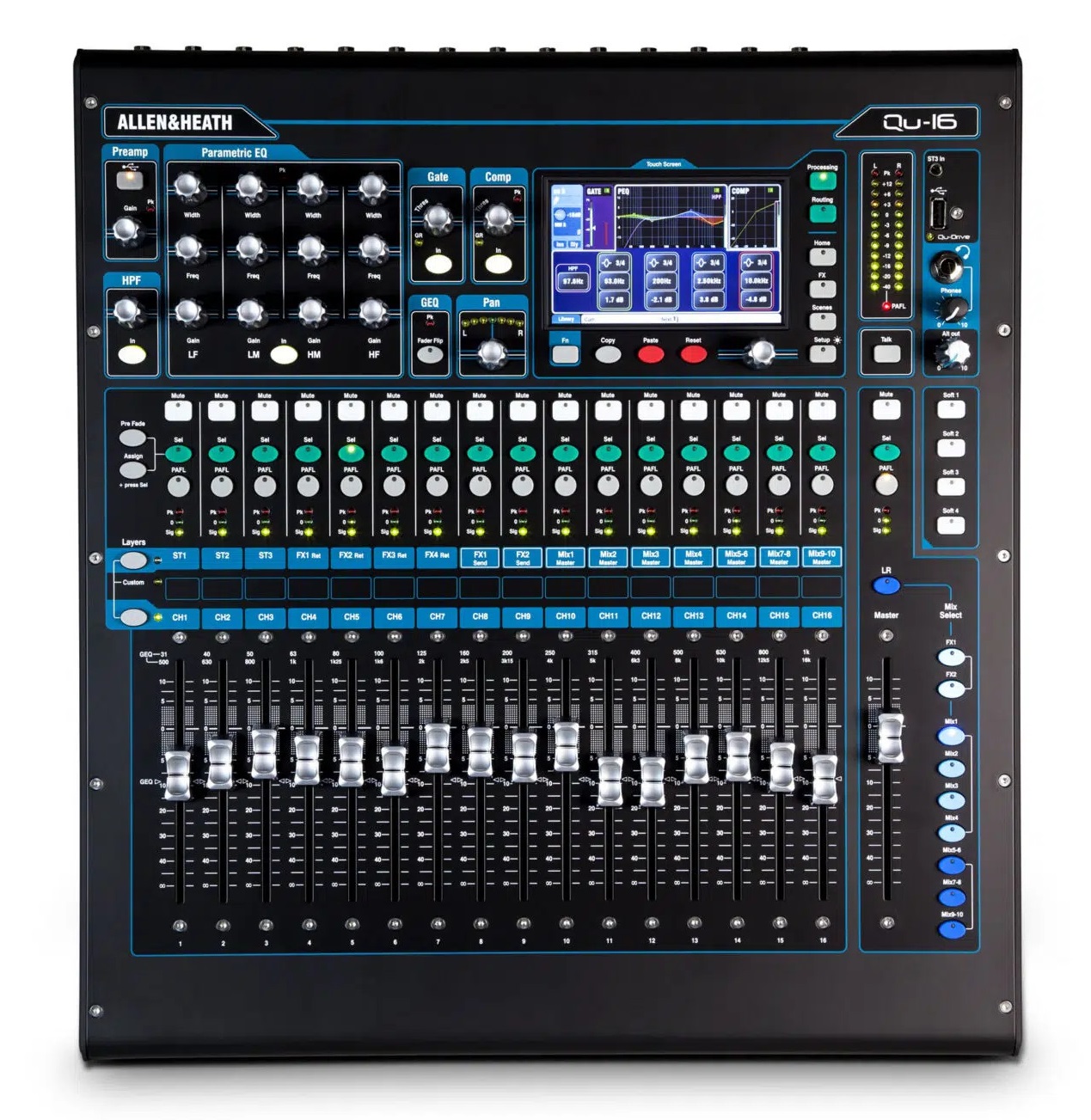

Qu 16 Page 2048x1366

QU-16C

Code: 7845

Compact 22in / 12out Digital Mixer

Price: €2825.00
Price: €2825.00
BUY Online: €2680.00
BUY Online: €2680.00
You Save €145
You Save €145
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

Qu Makes Mixing Feel Natural

Massive processing power and advanced functionality counts for nothing if you can’t access the controls you need in a heartbeat.

Qu-16 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow. Because every mic input is presented on its own fader for fast, easy control, this makes Qu-16 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders.

The True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-16’s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

Complementing the touchscreen is the SuperStrip – a set of single-function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan.

Coming from analogue? Qu will make you feel at home.

    • Inputs: 16 Mono, 3 Stereo
    • Mixes: 4 Mono, 3 Stereo LR
    • 24×22 USB Audio Interface
    • Comprehensive Channel Processing and FX
    • Intuitive Interface with Full Colour Touchscreen
    • Range of Remote Expanders
  • Type: Digital
  • Channels: 16
  • Inputs - Mic Preamps: 16 x XLR
  • Phantom Power: 16 channels
  • Inputs - Line: 16 x 1/4"
  • Inputs - Other: 4 x 1/4" (2 stereo in), 1 x 1/8" TRS (stereo in)
  • Outputs - Main: 2 x XLR (left, right), 2 x 1/4" (2 track out), 2 x 1/4" (alt out)
  • Outputs - Other: 4 x XLR (mono mix outs), 3 x XLR pairs (stereo mix outs)
  • Outputs - Digital: 1 x Ethernet dSnake, 1 x XLR AES
  • Aux Sends: 10 x Aux Sends
  • Busses/Groups: 16-bus
  • Talkback: 1 x XLR
  • Data I/O: 1 x Ethernet TCP/IP Network
  • Headphones: 1 x 1/4" TRS USB: 1 x Type B, 1 x Type A
  • Computer Connectivity: USB (24 x 22), Ethernet
  • Faders: 16 x 100mm channels, 1 x 100mm master
  • EQ Bands: Parametric EQ, 28-band graphic EQ
  • Effects: Reverb, delay, chorus, phaser, flanger (4 x stereo FX returns)
  • DAW Control: MIDI DAW control driver for Mac (HUI, Mackie Control)
  • Rackmountable: Yes
  • Height: 18.59cm (desktop position), 18.99cm (rackmounted)
  • Depth: 49.58cm (desktop position), 47.09cm (rackmounted)
  • Width: 43.99cm
  • Weight: 10kg
