Pro MPA II

Code: 5543

2-channel Tube Microphone Preamp

Price: €688.00

BUY Online: €598.00

You Save €90

including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout

Get it with Free Delivery within 24 hours, at your closest Akis Express Collection point!

Add to Cart

In Stock

The new ART ProMPA II is the next generation in affordable high performance microphone preamp technology. Each microphone input circuit, with selectable 48v phantom power, features variable input impedance which can radically vary the overall performance of any high quality dynamic or ribbon microphone. The ProMPA II can be configured for dual mono or stereo operation with selectable mid/side mic support, summing the adjacent channel, to decode left/right signals.

The ProMPA II can operate at either a low or high plate voltage on the two integrated hand-selected 12AX7 tubes for wider variation of preamp tone and performance. Large back-lit analog VU output meters display output levels while multi-colored LED arrays show tube gain.

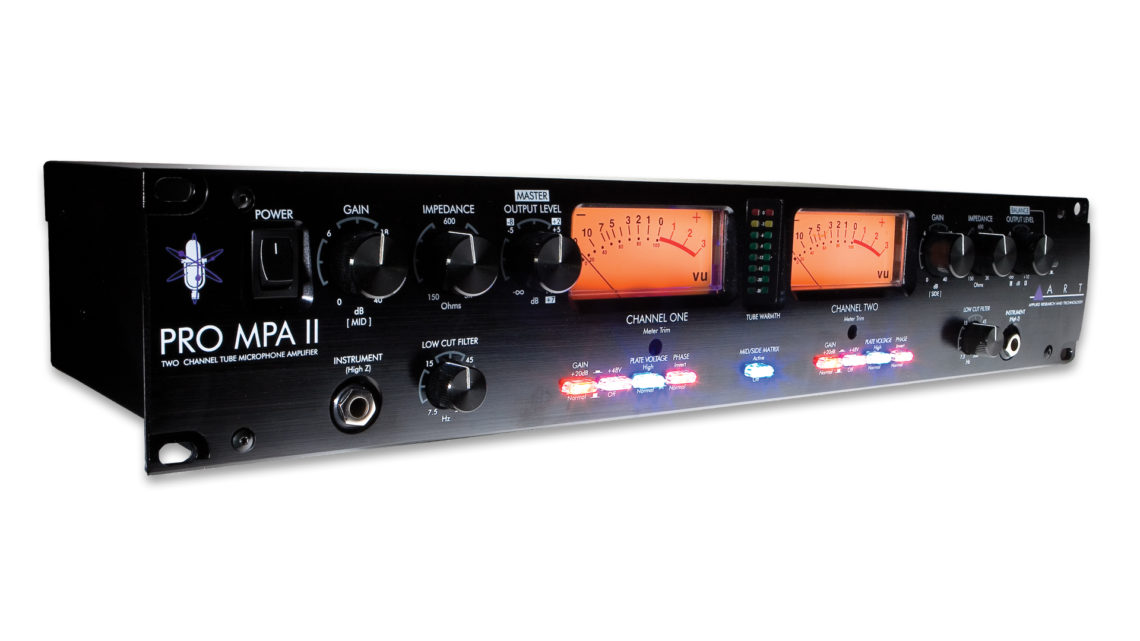

Housed in a standard 2u space rack-mountable steel chassis, with CNC routed black anodized aluminum face panel, the ProMPA II is designed to deliver years of reliable operation in the studio, production facility, or on the road for live sound reinforcement.

Features:
Specifications:

Variable Input Impedance For Flexible Microphone Voicing (150 ohms To 2400 ohms)
Selectable Plate Voltage
Large VU Meters
Backlit Function Switches
Discrete Class-A Input Microphone Preamplifier
Low Noise at Lower Gain Settings Extremely
Low Total Harmonic Distortion (THD)
Wide Frequency Response
Additional Front Mounted Instrument Input Jack
Supports Mid/Side Miking Technique
Operates at +4dbm/-10dbv Output
Selectable Stereo/Dual Operation of Output Controls
Automatic Instrument Input Selection

Frequency Response: 15Hz to 48kHz (+0, -1dB) @ normal plate voltage
15Hz to 120kHz (+0, -1dB) @ high plate voltage
Total Harmonic Distortion: <0.005% (typical)
CMRR: > 90dB
Dynamic Range: > 110dB (“A” weighted)
Equivalent Input Noise: -129dBu (XLR, “A” weighted)
Input Impedance: 150-3000 Ω adjustable (XLR), > 800K Ω (Instrument)
Maximum Gain: 75dB
Maximum Input Level: +19dBu (cannon)

Maximum Instrument Input: +17dBu
Maximum Output Level: +27dBu (XLR)
Output Impedance: <47 Ω (XLR)
Meter Calibration: 0 VU = +4dBu outupt (+4dB mode) / 0 VU = -10dBV output (-10dB mode)
High Pass Filter: Single pole, 10-200 Hz adjustable
Power Requirements: USA – 105 to 125 VAC / 60 Hz Export units configured for country of destination
Dimensions: 8.75″D x 19.0″W x 3.50″ H (222mm x 482mm x 88mm)
Weight: 10.5 lbs (4.5 kg)
