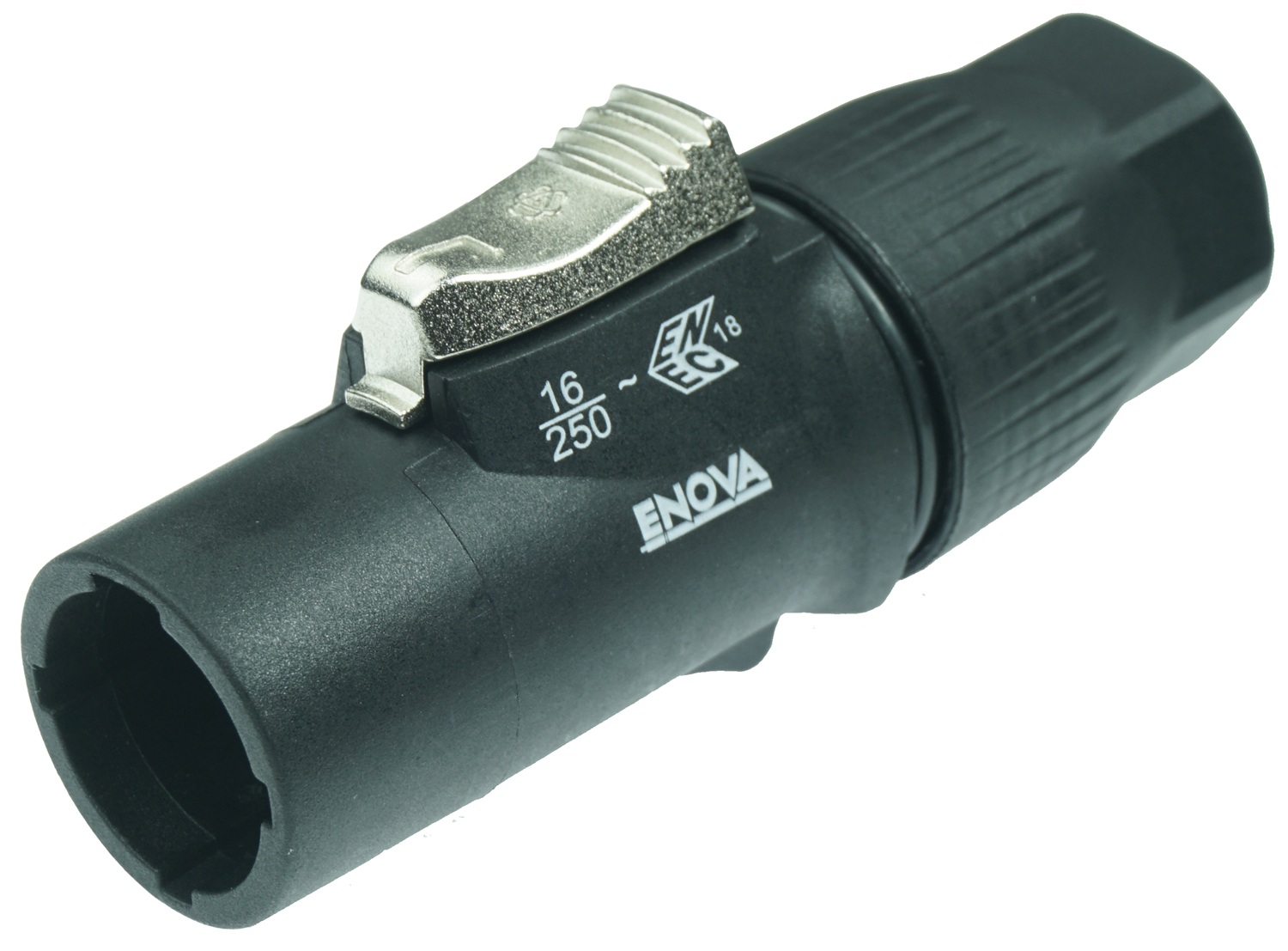

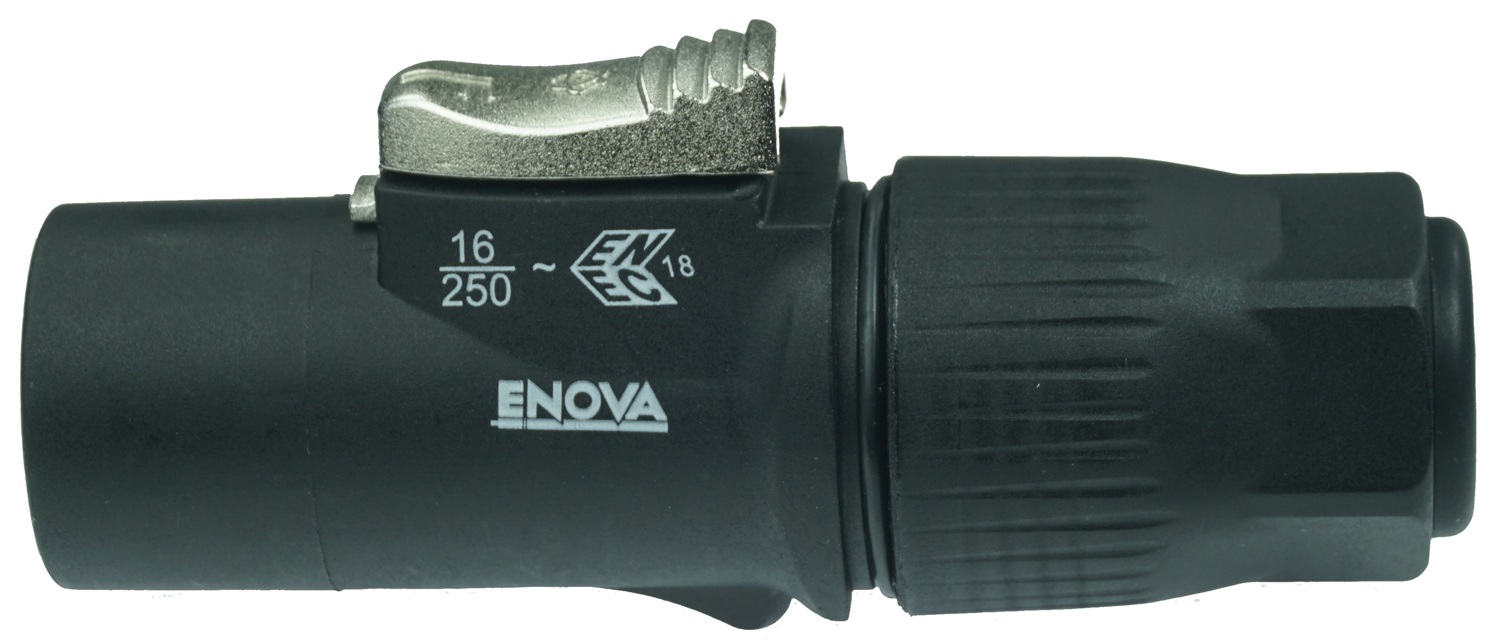

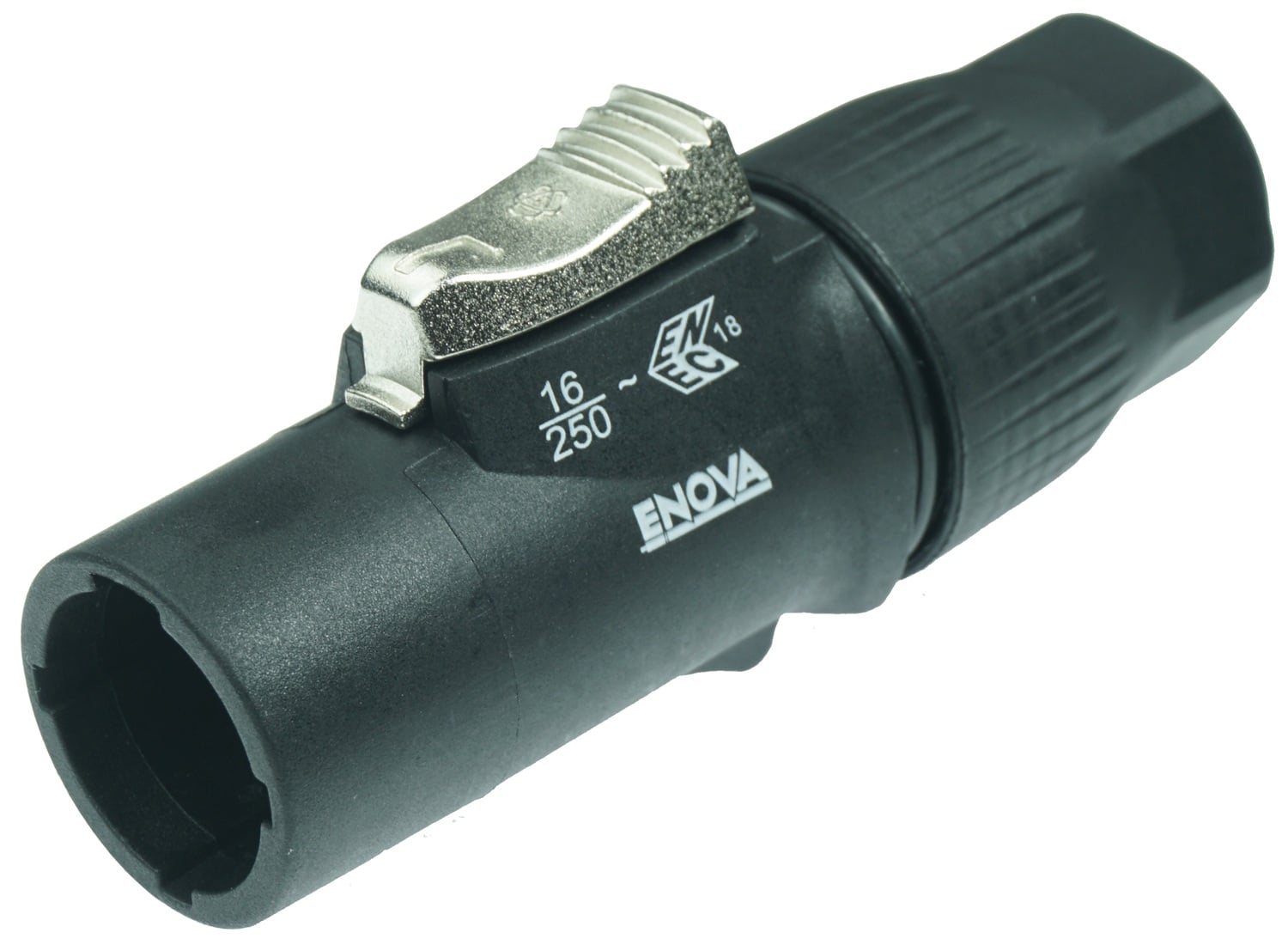

PO23MP-WOU 16A CBC Male Power Connector

Code: 8398

PO23MP-WOU Black 16A CBC Male Power Connector

Price: €9.00
Price: €9.00
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

PO23MP-WOU

16A Power Out Male Connector supply two cable rings for assembling OD 8.5mm to 15mm various cable diameter. This IP65 waterproof power connector with breaking capacity (CBC), it can be connected or disconnected under load or live.

    • 16A Power Out male connector

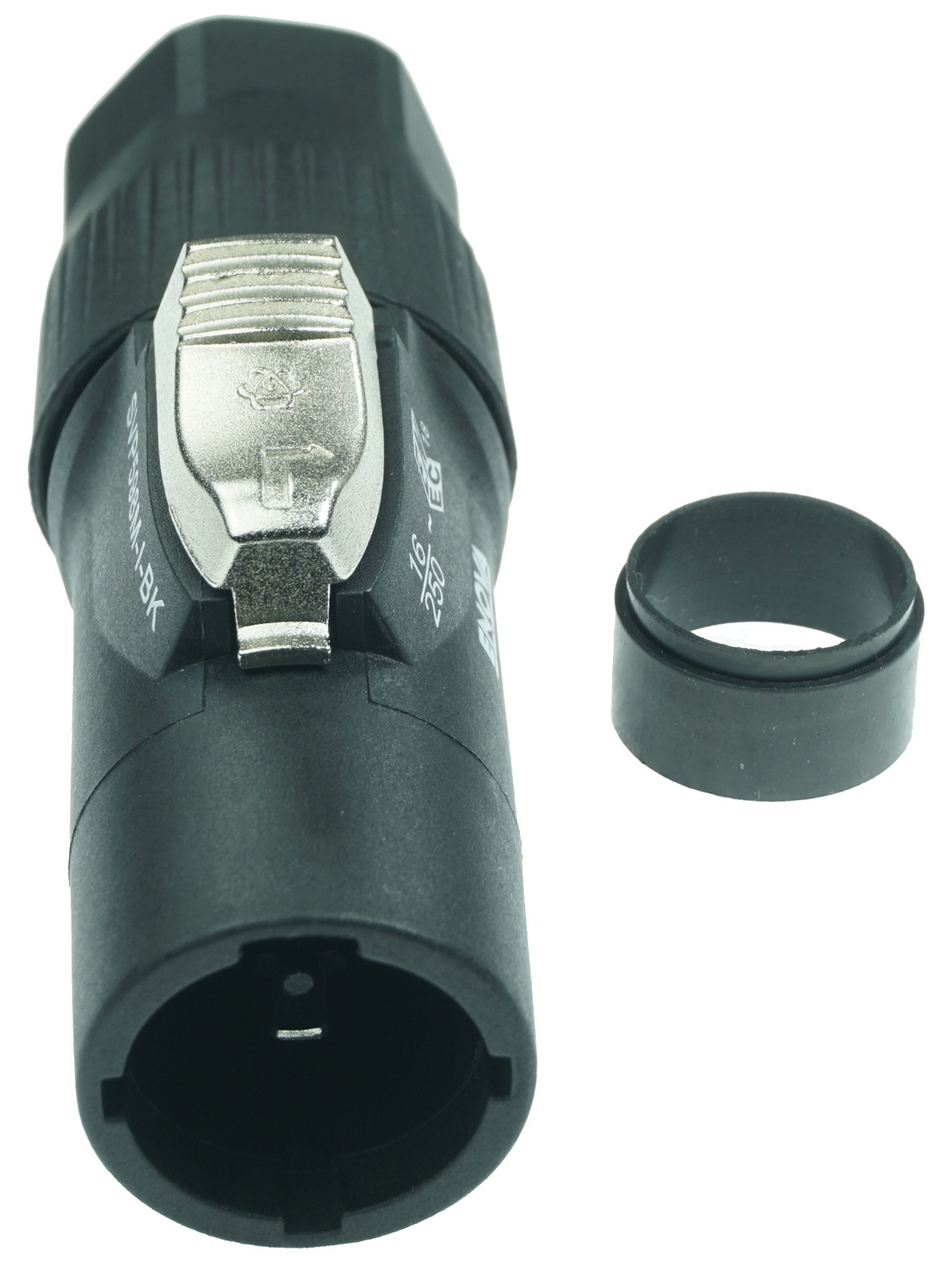

    • Dual cable clamp rings included
    • Cable size support: Ø8.5–11 mm (M), Ø12–15 mm (L)
    • IEC 60302-1 ENEC certified
    • CBC current breaking capacity
    • Single-phase 250V / 16A
    • Push-pull screw connection
    • Copper contact structure
    • PE pin priority protection
    • IP65 waterproof
    • Flame retardant: 94V-0 / HB
  • PO-Series power chassis connector
  • 3 contacts
  • Push-button latch
  • Nickel housing
  • Solder terminals
  • Supports 12 AWG cable
  • 2 mounting holes
  • IP65 rated
  • Operating temp: -30°C to +80°C
  • Rated voltage: 2500 VAC
  • Rated current: 16 A
  • Contact resistance: ≤ 3 mΩ
  • ≥ 500 mating cycles
  • RoHS compliant
  • Made in China
  • Used for: Industrial power, lighting, LED displays, outdoor systems, power supplies/storage
