Enova

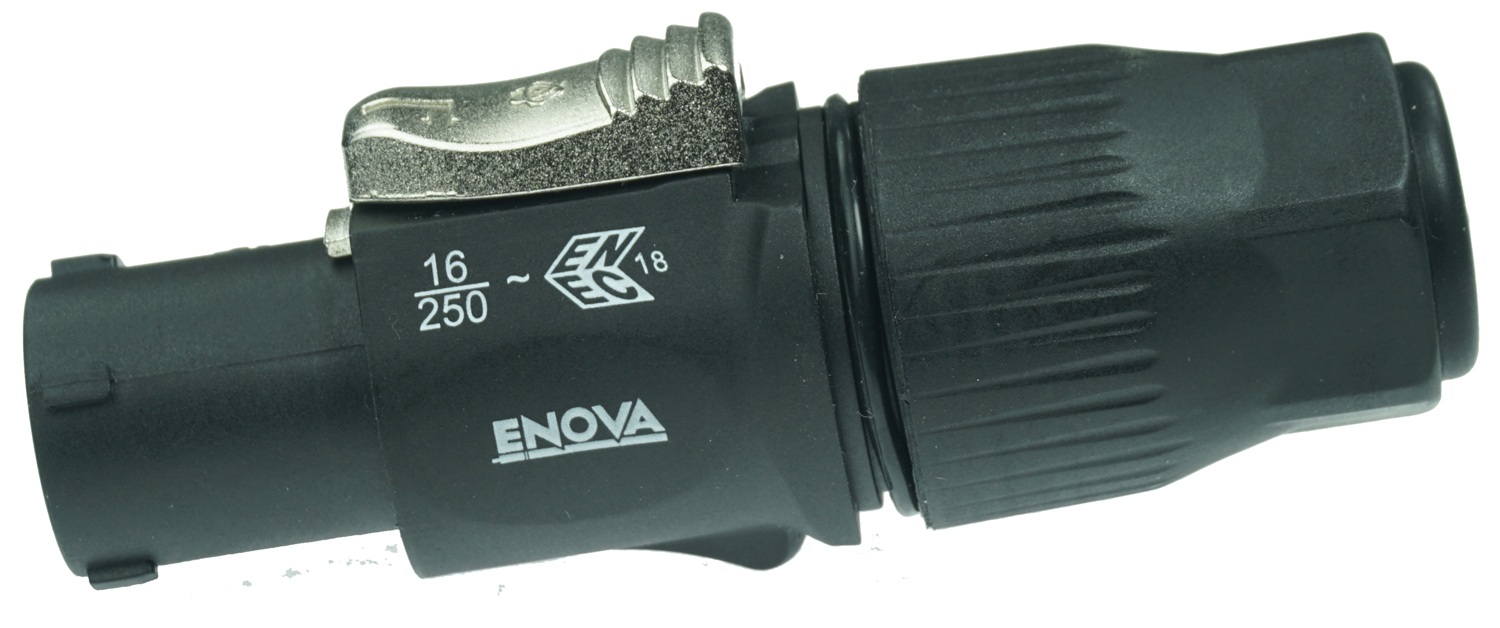

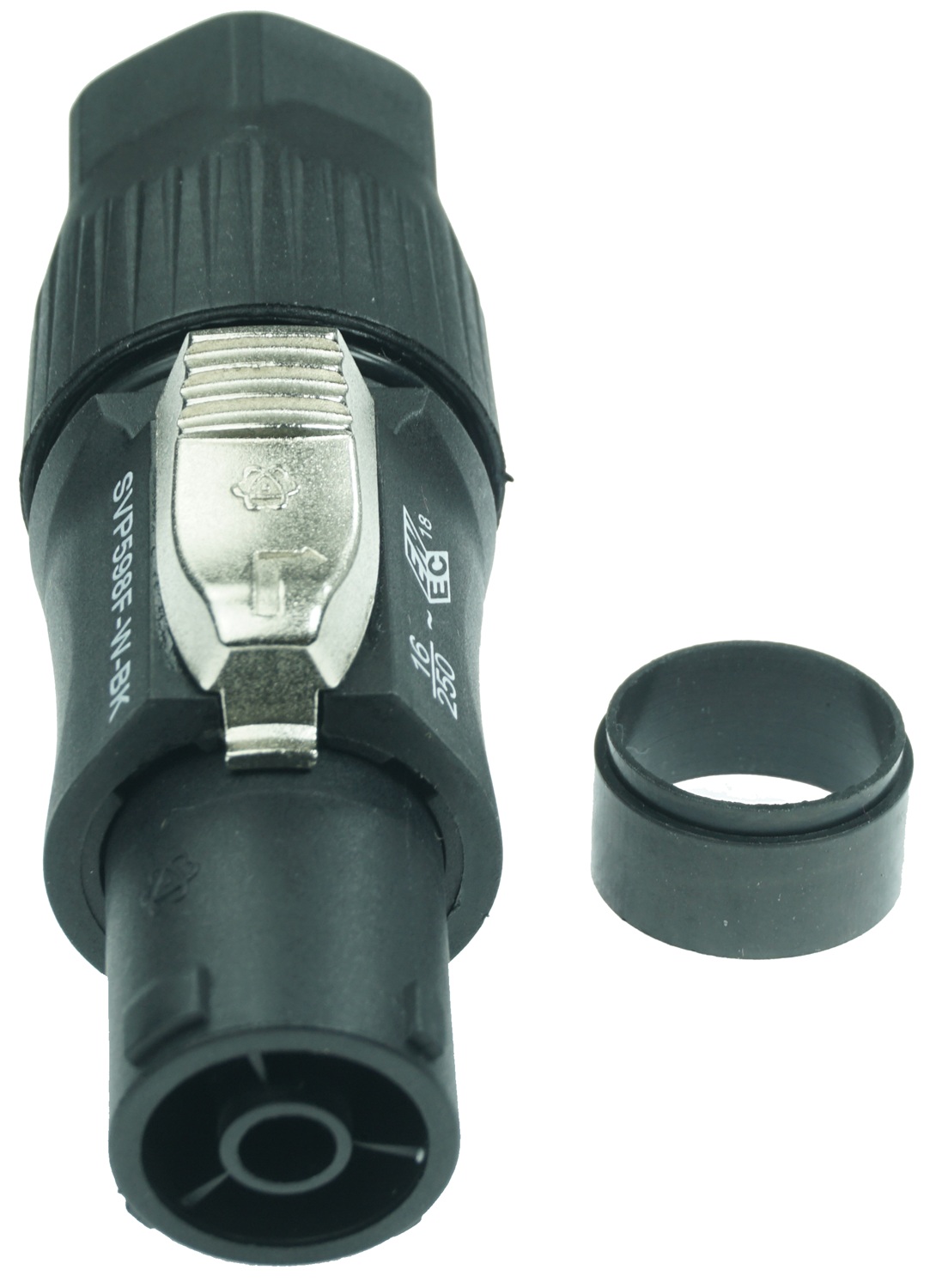

PO23F-WIN 16A CBC Female Power Connector - Output

Code: 8397

Black 16A CBC Female Power Connector

Price: €9.00
Price: €9.00
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

PO23FP-WIN

16A Locking power connector which can be connected or disconnected under a load or live, has the advantage of the locking system used for power supplies. The sealed construction and weatherproof of lockable female power connector is suitable wherever a very rugged solution in combination in order to guarantee a safe power connection.


    •16A Power In Female Connector
    • With two cable clamp ring
       • M size for O.D.: Ø8.5~11mm(standard)
       • L size for O.D.: Ø12~15mm
    ​•ENEC certified according to IEC 60302-1
    ​•CBC current breaking capacity
    ​•Single-phase currents up to 16A and for voltages up to 250V.
    ​•Screw push-pull copper block stamping contact body structure
    ​•PE pin priority retardant grade
    ​•IP65 rate for dust and water resistant
    ​•94V-0/HB flame retardant grade

  • PO-Series power chassis connector
  • 3-pin connector
  • Push-button latch
  • Nickel housing
  • Solder contacts
  • Supports 12 AWG cable
  • 2 mounting holes
  • IP65 waterproof
  • Rated: 2500 VAC / 16A
  • Contact resistance: ≤ 3 mΩ
  • Operating temp: -30°C to +80°C
  • ≥ 500 mating cycles
  • RoHS compliant
  • Made in China
