PL23MB

Enova

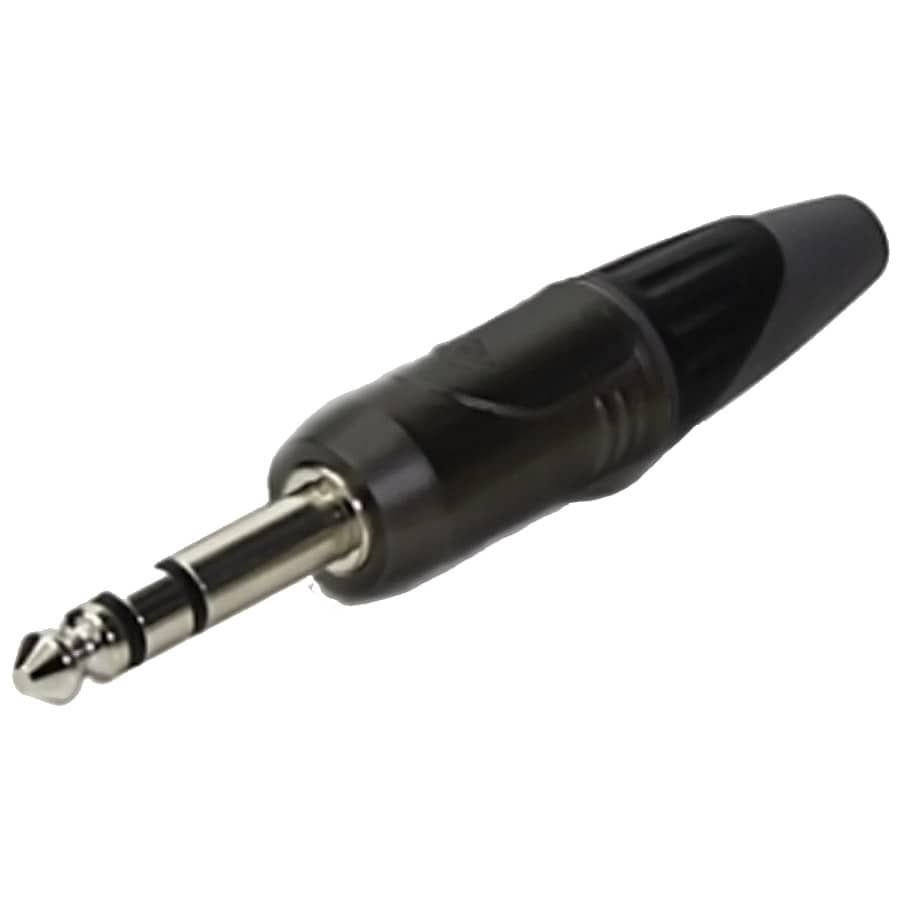

PL23MB 1-4" Plug 3 Pole Stereo

Code: 8393

PL23MB 1/4" Plug 3 Pole Stereo black housing and grey boot

Price: €4.20
Price: €4.20
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

years

PL23MB

Stereo Jack Cable Connector 6.35 mm with three contacts and a well-formed and robust button for a better user experience.
The 3-pin jack has a triple-positioned clamp to prevent the inner cable from twisting and breaking.
This removable clamp is designed for multiple cable types.

    • Remove the outer diameter washers: 3.3 to 4.8 mm
    • Standard connection for outside diameter: 5.0 to 6.5 mm
    • Remove the outer diameter clamp: 6.5 to 7.0 mm
    • Length: 92 mm
    • Width: 16 mm
    • Height: 16 mm
  • Brand: ENOVA
  • Series: PL-Serie
  • Version: Cable version
  • Connector type: 1/4" Jack
  • Number of contacts: 3
  • Gender: Male plug
  • Housing color: Black / nickel locking
  • Connector housing material: ZZNAL4-1
  • Contact material: H59-1
  • Cable diameter range: Ø 3.3–7 mm
  • Wiring mode: Solder contact
  • Flammability rating: UL94HB
  • ROHS compliance: Yes (EN62321-1)
  • Operating voltage: < 50 V AC RMS
  • Insulation resistance: > 10 GΩ
  • Contact resistance: ≤ 3 mΩ
  • Operating temperature: -30°C to +80°C
  • Country of origin: China
  • Applications: DJs, keyboard players, singers, sound engineers
  • Markets: Event production, industry, medical technology, mechanical engineering, device construction, plant construction, multimedia installation, digital signage, cable assembly, lighting, system integration, outdoor lighting, broadcast, recording studios
