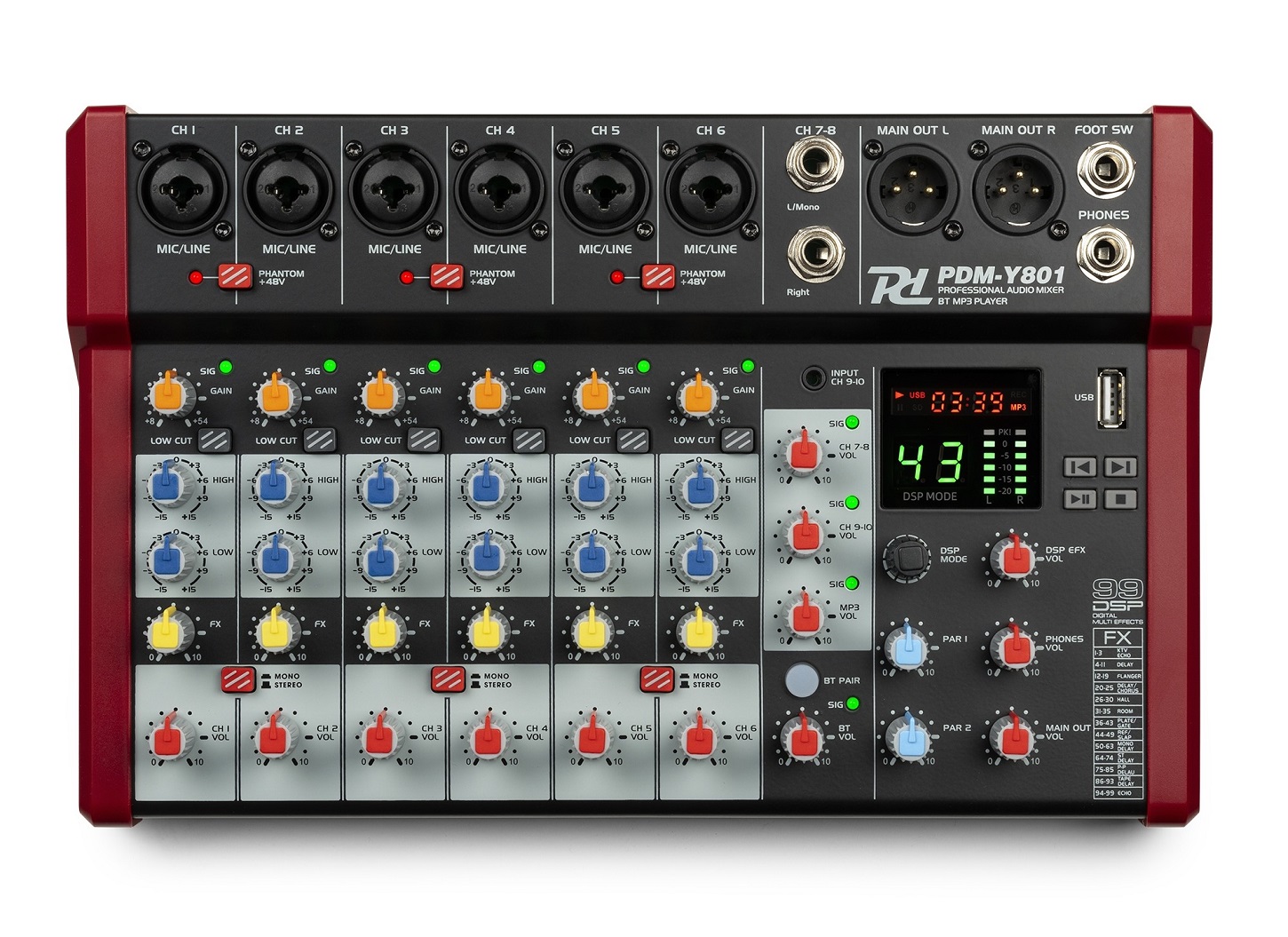

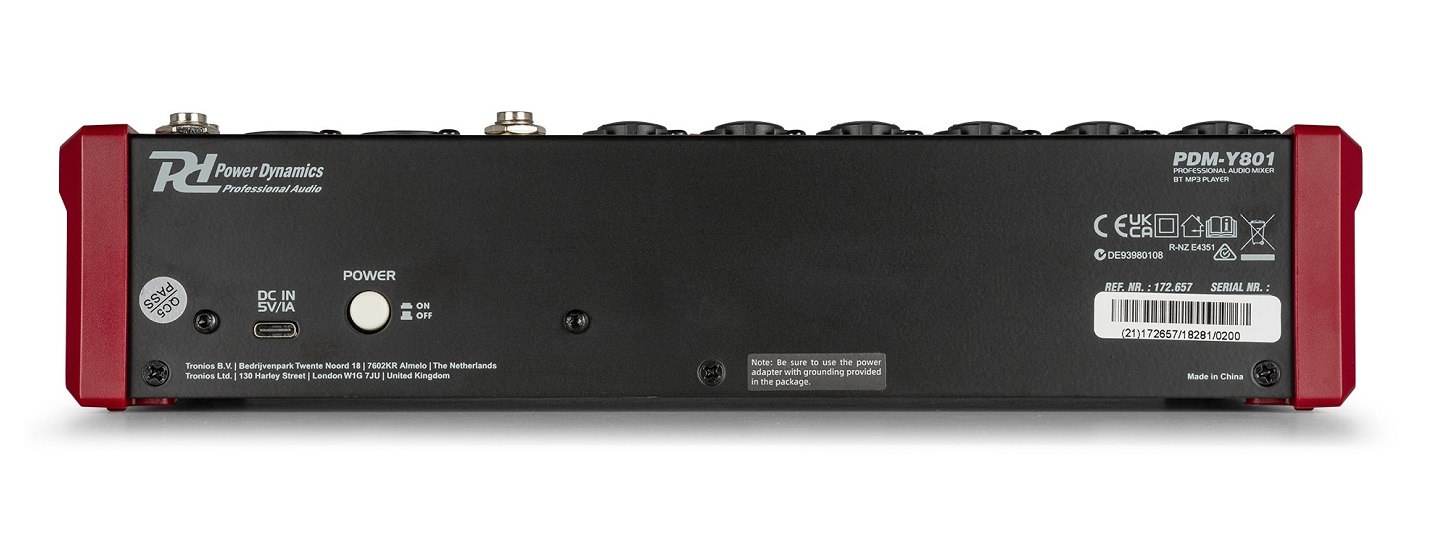

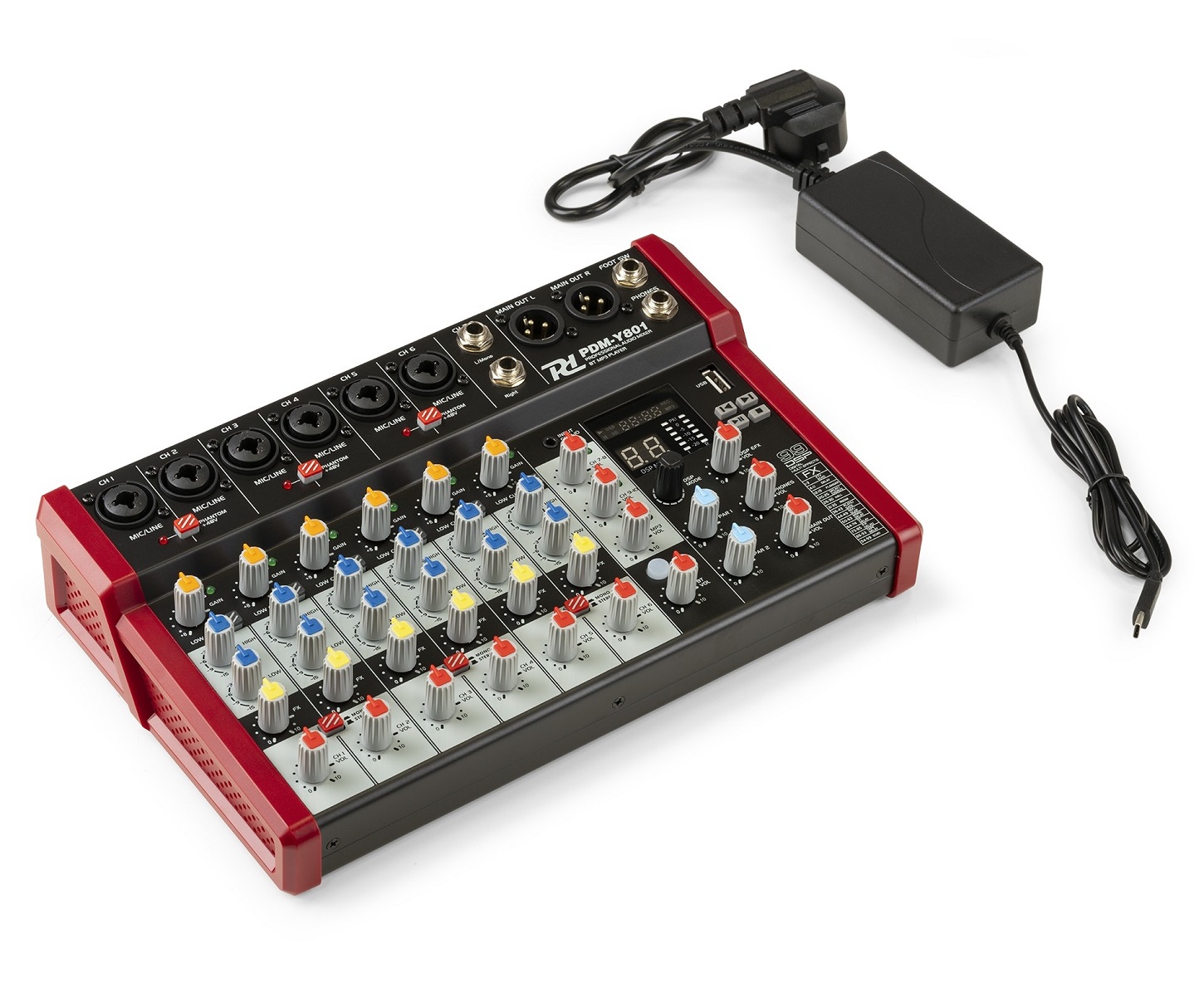

PDM-Y801

Code: 7405

Studio Music Mixer 8-CH

Price: €168.00
Price: €168.00
BUY Online: €158.00
BUY Online: €158.00
You Save €10
You Save €10
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

The PDM-Y mixers are flexible and efficient compact music mixers suitable for home music recording, webcasting, singing, parties and many other applications. Featuring versatile channels and digital audio streaming capabilities via BT, the PDM-Y mixers encompass a wide array of features to enhance any party or event.

This mixer series is equipped with a 24-bit, 48KHz sampling Digital Signal Processor (DSP), boasting an impressive selection of 99 adjustable effects. To ensure a stable power supply, the PDM-Y mixers are equipped with +48V phantom power functionality and are accompanied by a external power adapter. The inclusion of an echo effect and a built-in USB player with an MP3 playback display adds further versatility to these mixers, enhancing their capabilities.

    • 8-Ch digital studio music mixer
    • 24 bit, 48KHz digital effects processor (99 effects)
    • 6x Combined Jack/XLR inputs with +48V phantom power
    • Integrated USB MP3 Player
    • Built-in BT receiver allows music streaming from mobile devices
    • 1 Stereo line input (6.3mm Jack)
    • 2x Stereo balanced main outputs (XLR)
    • Separate foot switch output and headphones outputs
    • Hi and low control per channel
    • Peak LED each mono channel
  • Product colour    Black
  • Playback options: BT streaming, USB
  • Input connections: 3.5mm Jack, 6.3mm Jack, USB, XLR (3-pin)
  • Output connections: 6.3mm Jack, XLR (3-pin)
  • Presets: 99
  • DSP Resolution: 24-bit
  • Output channels: 2
  • Frequency response: 20Hz - 20.000Hz
  • THD: <0,03%
  • Equalizer: 2-Bands
  • Equalizer: Low: 80Hz +15dB
  • Equalizer: High: 12KHz +15dB
  • Output level: Master: 3V
  • Power supply: 100-240VAC 50/60Hz (5V USB)
  • Dimensions (L x W x H): 285 x 183 x 65mm
  • Weight (kg): 1.4
