Power Dynamics

PD504BP Bodypack Set

Code: 7205

Bodypack Set For PD504

Contact for Price

Pre-Order

Enquire to be notified upon availability

years

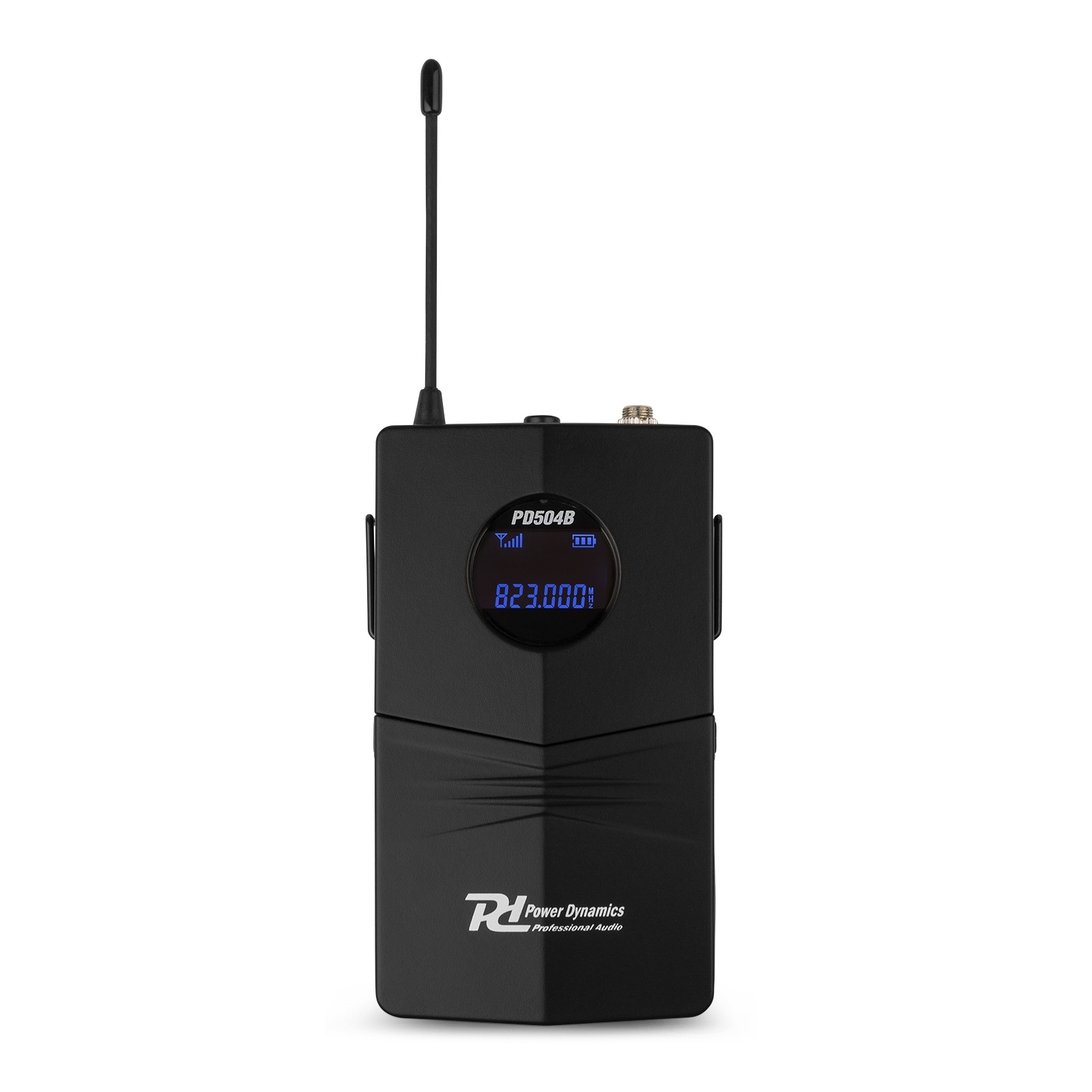

Bodypack transmitter for PD504 wireless UHF microphone systems. Equipped with IR learning system for channel selection. Ideal for handsfree applications, vocals, presentations etc. Including tie-clip and skin-colour headset.

    • IR learning system for channel selection
    • Powered by 2*1.5V batteries
    • Plastic body
    • Input attenuation switch (selects 0 dB or -10 dB)

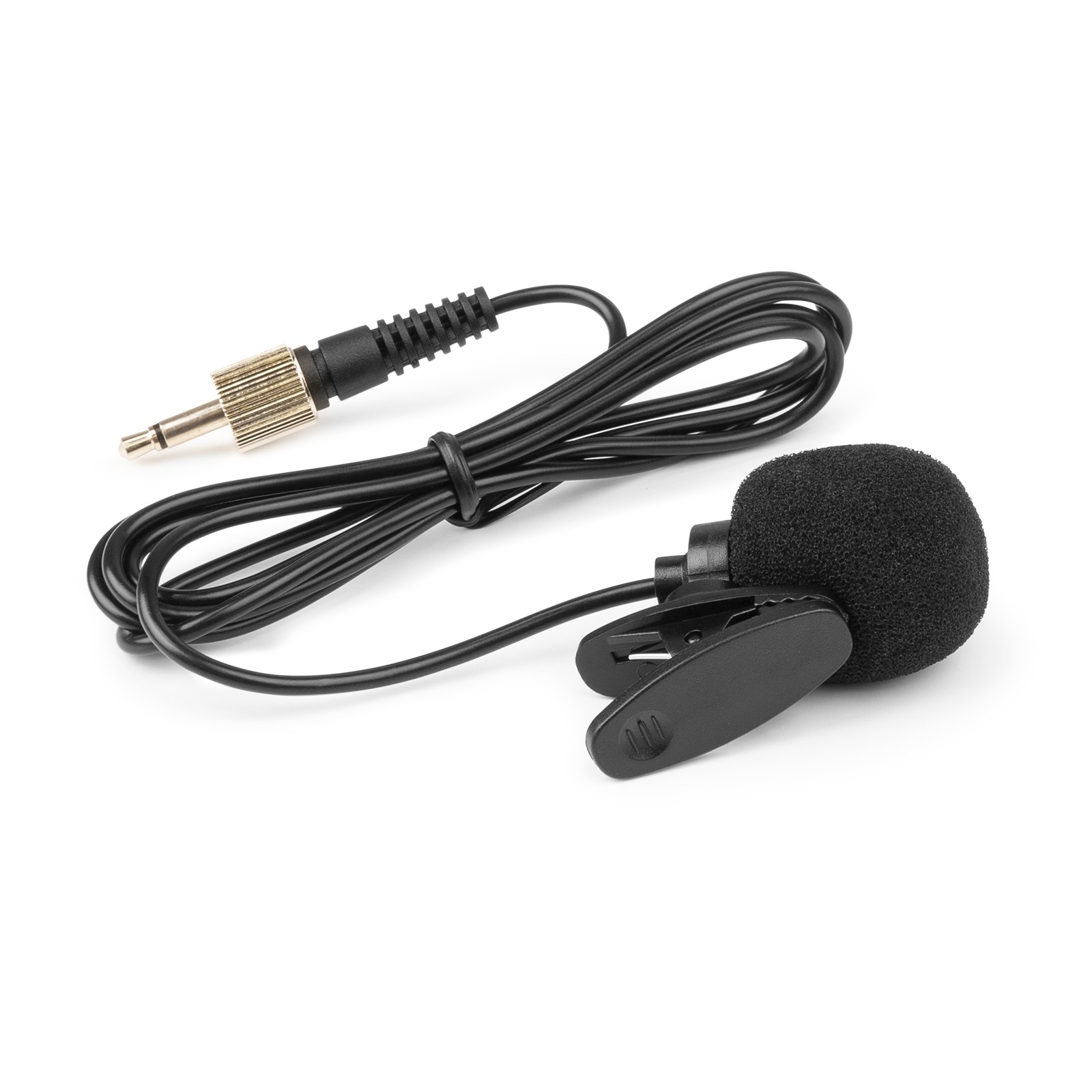

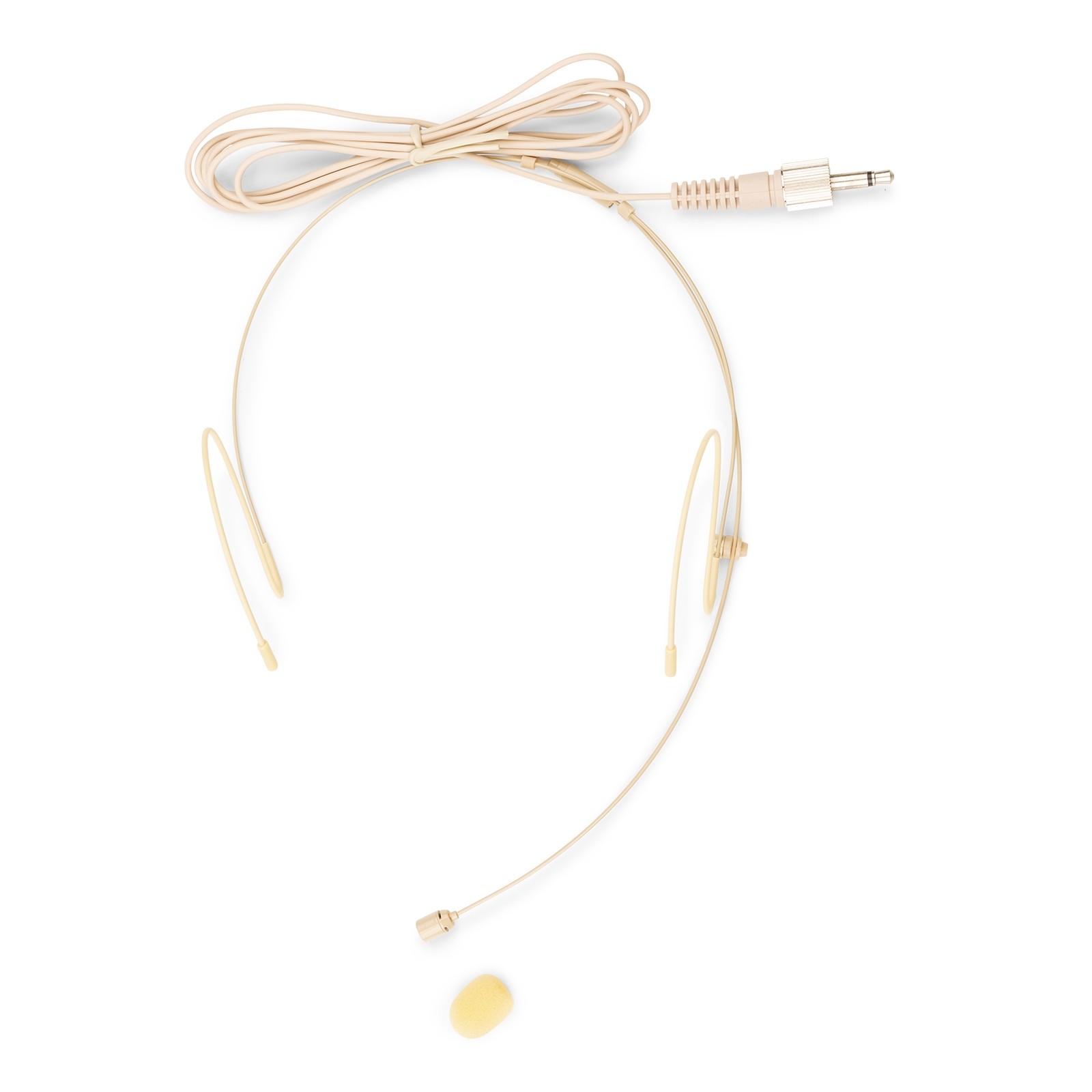

    • Including tie-clip and skin-colour headset
  • Product colour: Black
  • Input connections: 3.5mm Jack
  • Microphone channels: 50 channels
  • Frequency: 826.300 - 831.200 MHz
  • Frequency response: 60 - 15.000Hz
  • Frequency stability: 0.0015%
  • RF output: <10mW
  • Signal-to-noise ratio: >97dB
  • THD: <1%
  • Batteries: 3V (2x AA)
  • Dimensions: Body pack: 75 x 60 x 23mm
  • Weight: 1kg
  • Weight: Bodypack: 0.2
