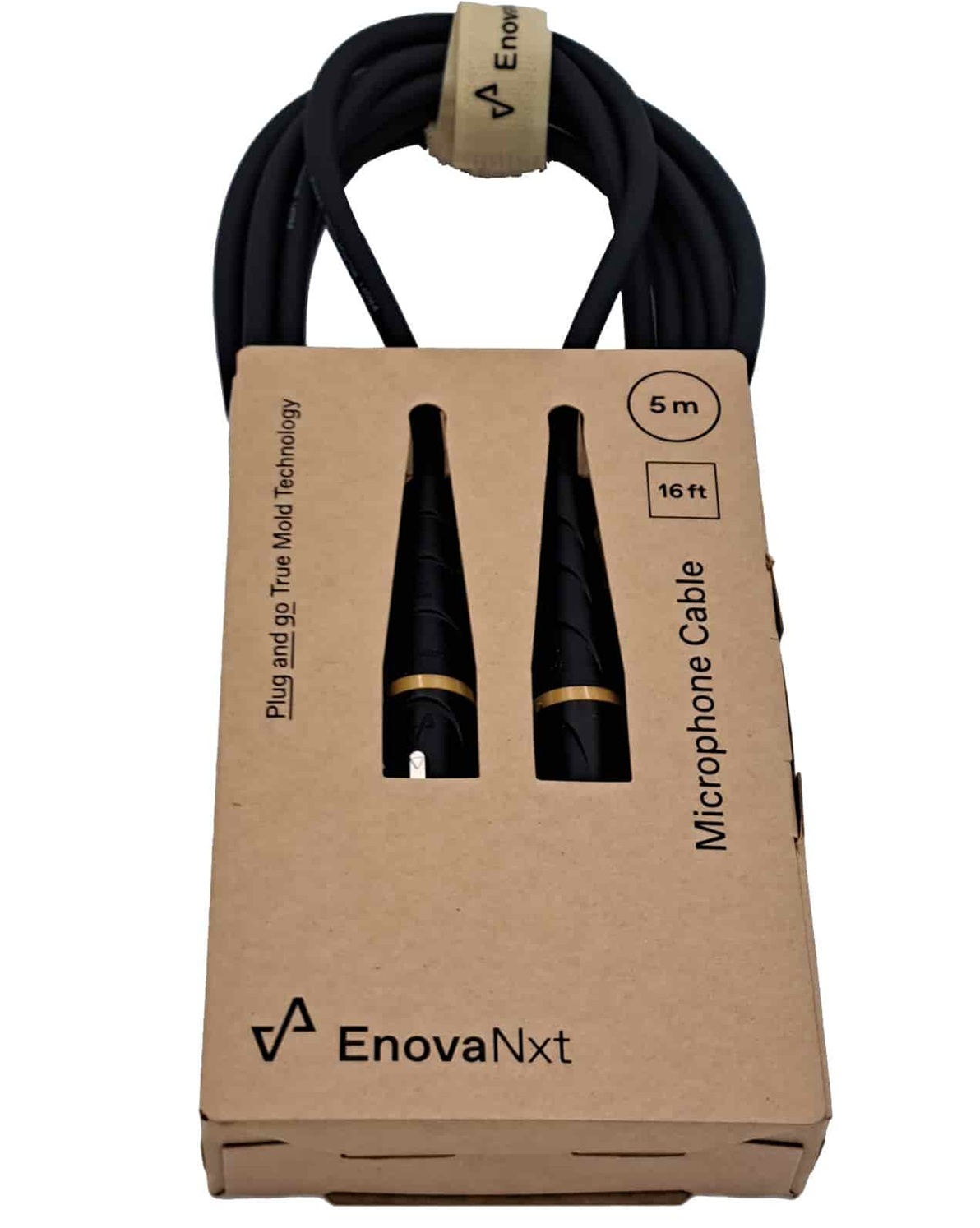

EnovaNxt NXT M1 XLFM 5 Audio Microphone Cable XLR

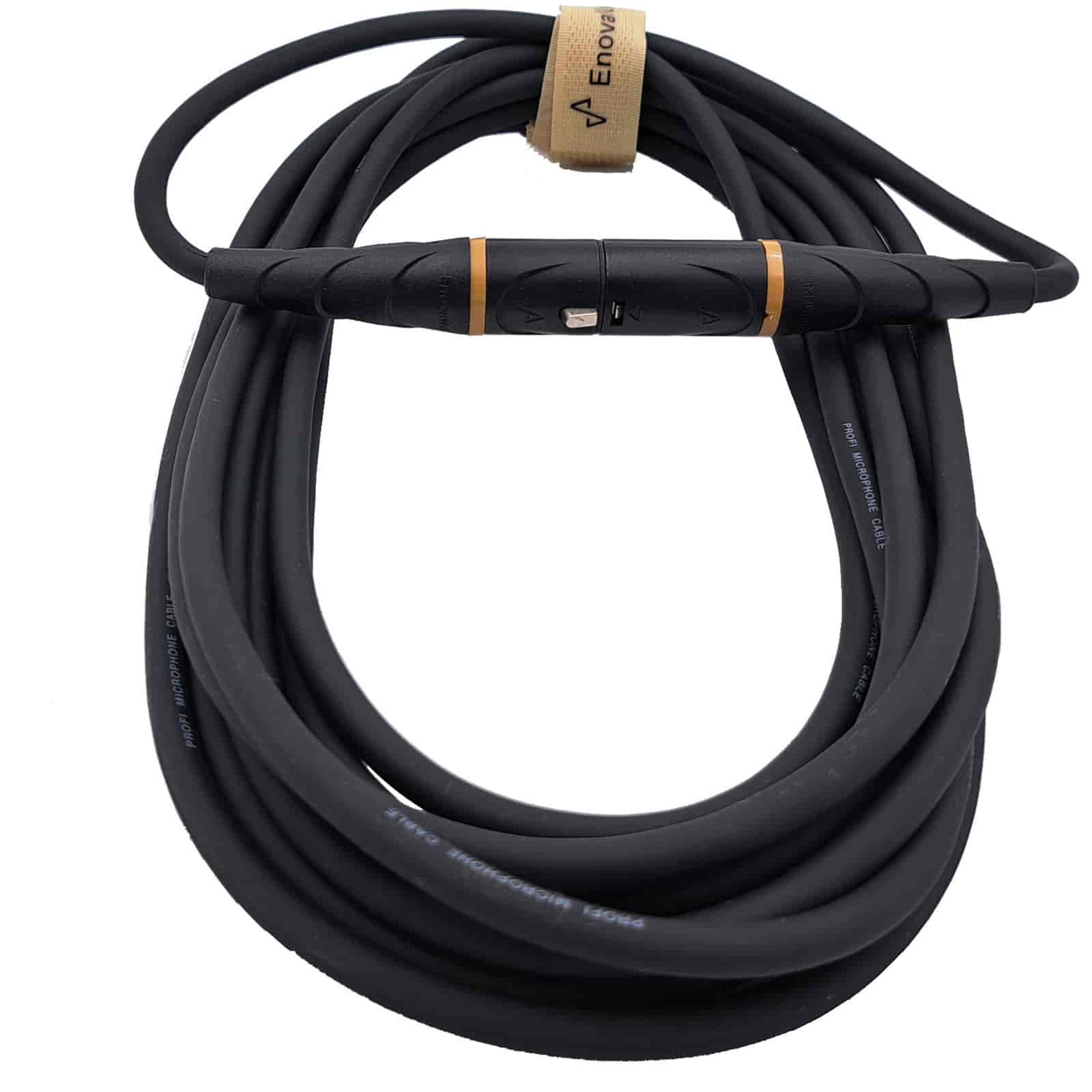

5m XLR cable 3 pin Highly robust suitable for on stage applications En
5m XLR EnovaNxt NXT M1 XLFM 5 True Mold Technology

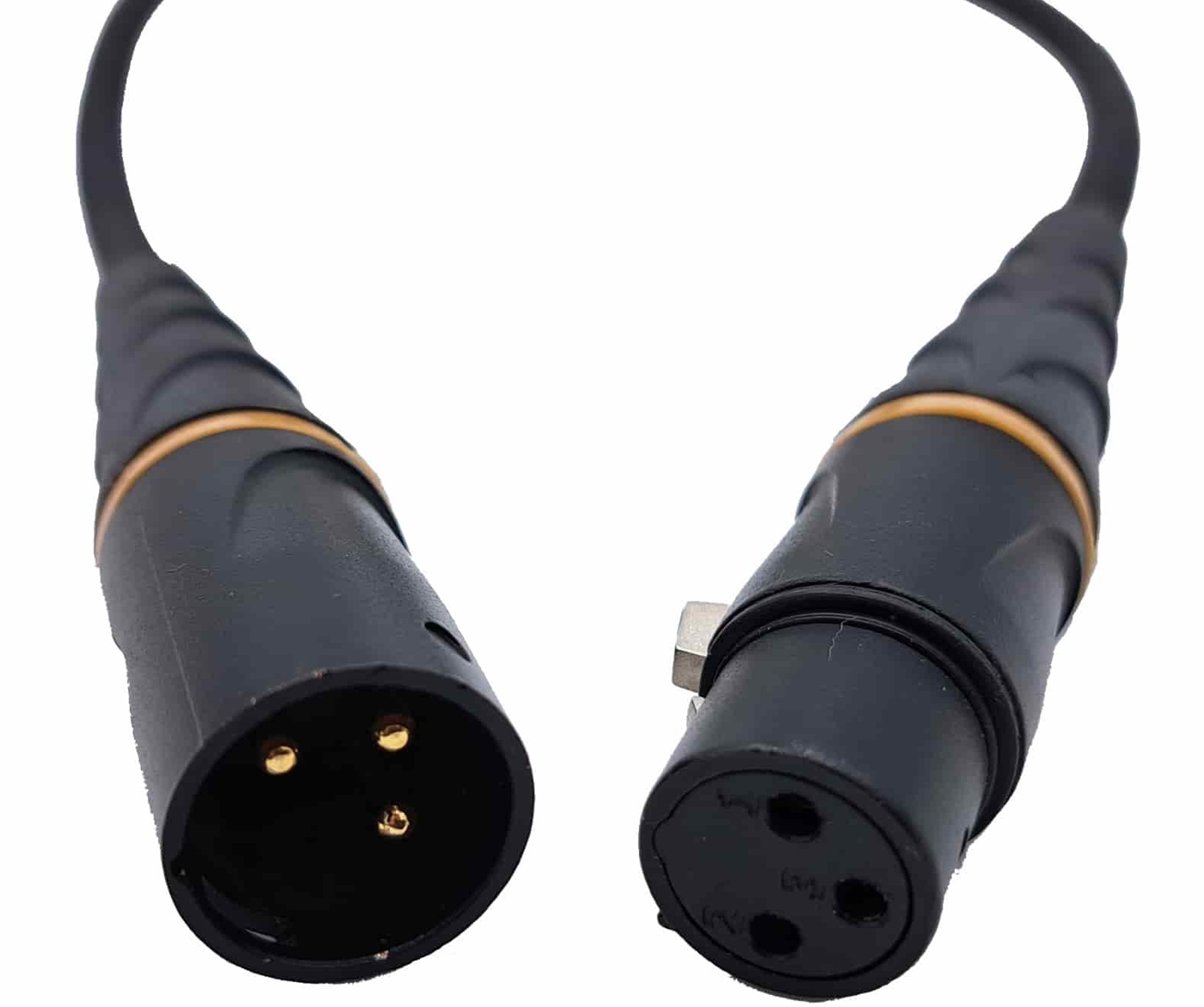

XLR Connector gold plated XLR contacts EnovaNxt

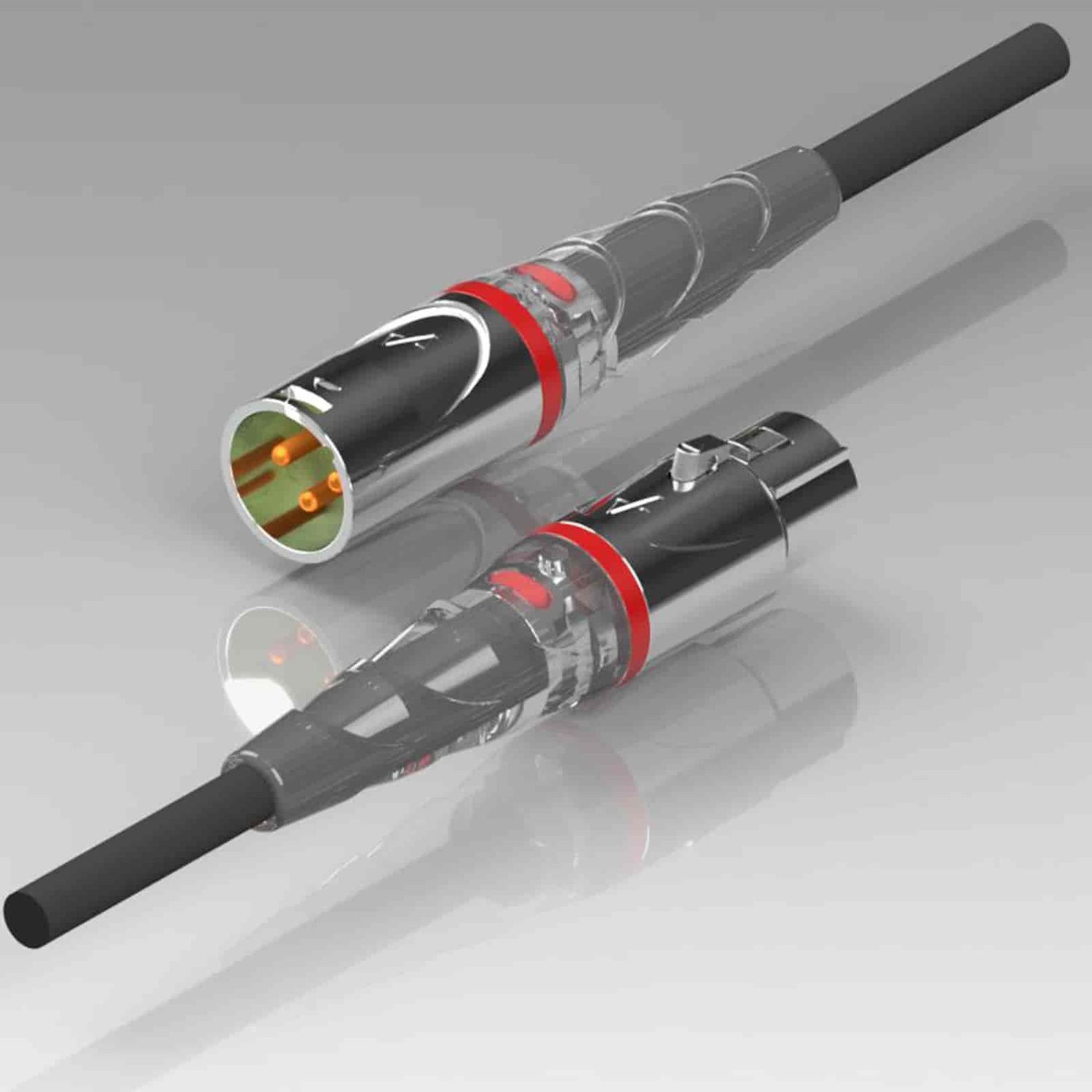

ENOVANxt Bild

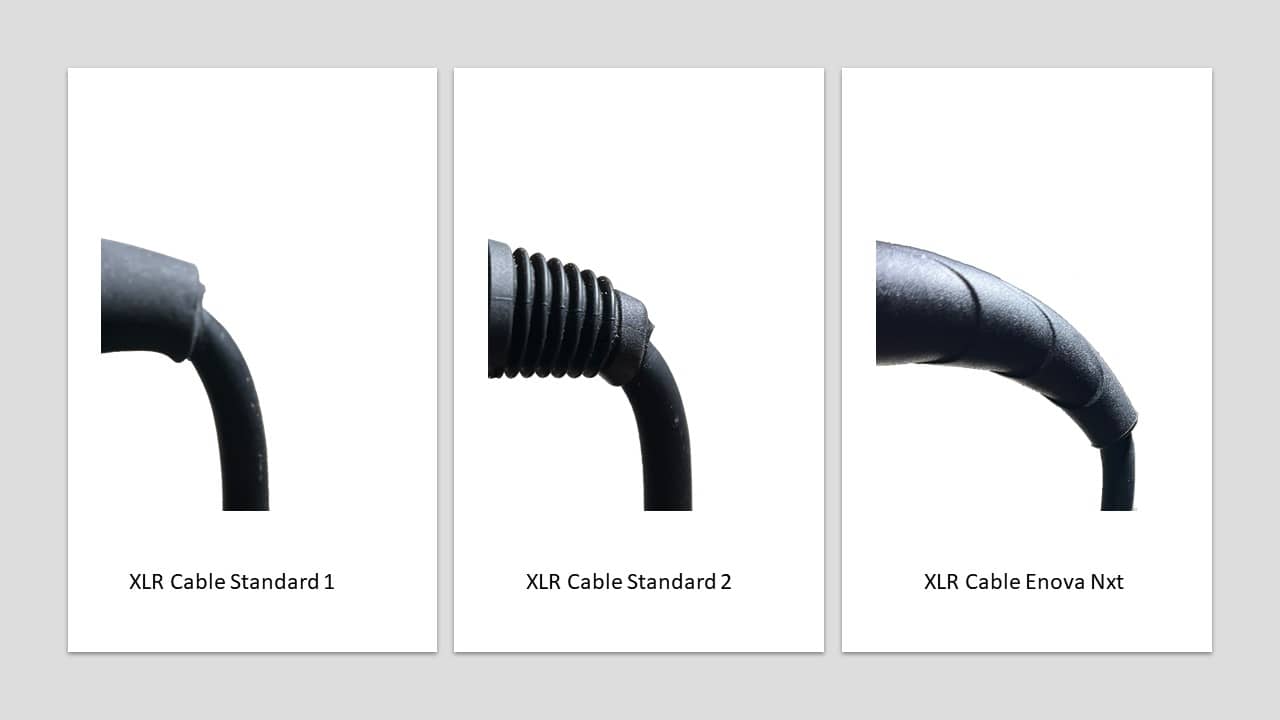

Enova Nxt XLR Cable Pro Audio

M1-XLFM-5 Premium XLR M-F microphone cable 5m

Code: 8331

Enova NTX M1 Premium 5m microphone cable XLR female to XLR male 3 pin - True Mold Technology

Price: €29.00
Price: €29.00
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

M1-XLFM-3

New premium plug-and-go XLR cable based on True Mold connection technology. Highly flexible balanced analog audio cable with over-molded 3-pole XLR metal connectors.

The “True Mold” technology merges the connectors and the cable to a fully integrated, ready-made-cable. Only the essential components of the XLR connectors are used and as a result overcoming the weaknesses of the individual connectors.
Manufactured in Europe, the EnovaNxt product is designed for on-stage applications and offers an improved production again dust and water. Gold plated XLR contacts ensure an optimal conductivity, better corrosion protection and increased durability when mating frequently. To avoid short-circuit faults, the solder joints are protected by heat shrink tubes. As a result of the fully integrated design, the strain relief withstands a higher force than conventional manufactured XLR cables. The modern and slick design of the over-molding allows for an enhanced handling. Further the tapered design puts an end to drooping cables, often seen on stage, in studios and in broadcasting. The new EnovaNxt microphone cable features an interchangeable color coding ring. With this feature, event technicians and musicians can change the color coding of the cable at any time making cumbersome rewiring obsolete.

    • 2-conductor shielded microphone cable
    • Outer diameter: 6.4 mm
    • Conductor cross-section: 2 × 0.22 mm²
    • Shielding: 98% copper braided shield
    • Connector side A: EnovaNxt 3-pin (3-pol) XLR male
    • Connector side B: EnovaNxt 3-pin (3-pol) XLR female
    • Cable length: 5 meters
  • Brand: EnovaNxt
  • Version (plug / chassis): Cable version
  • Connector type: XLR (3-pin male and 3-pin female)
  • Cable type: XLR female to male
  • Connection mode: Push-button latch
  • Number of contacts: 3
  • Gender: Female to male
  • Connector housing color: Black
  • Cable surface color: Black
  • Cable length: 5 meters
  • Cable diameter: Ø 6.4 mm
  • Wire size: 24 AWG (0.22 mm)
  • Wiring mode: Solder contact
  • Minimum working temperature: -15°C
  • Maximum working temperature: +70°C
  • Plug cycle durability: > 1000 cycles
  • Country of origin: EU
  • Operating voltage: < 50 V (VAC RMS)
  • Max rated current: 16 A
  • Contact resistance: ≤ 3 mΩ
  • Applications: DJ, keyboard player, singer, sound engineer
