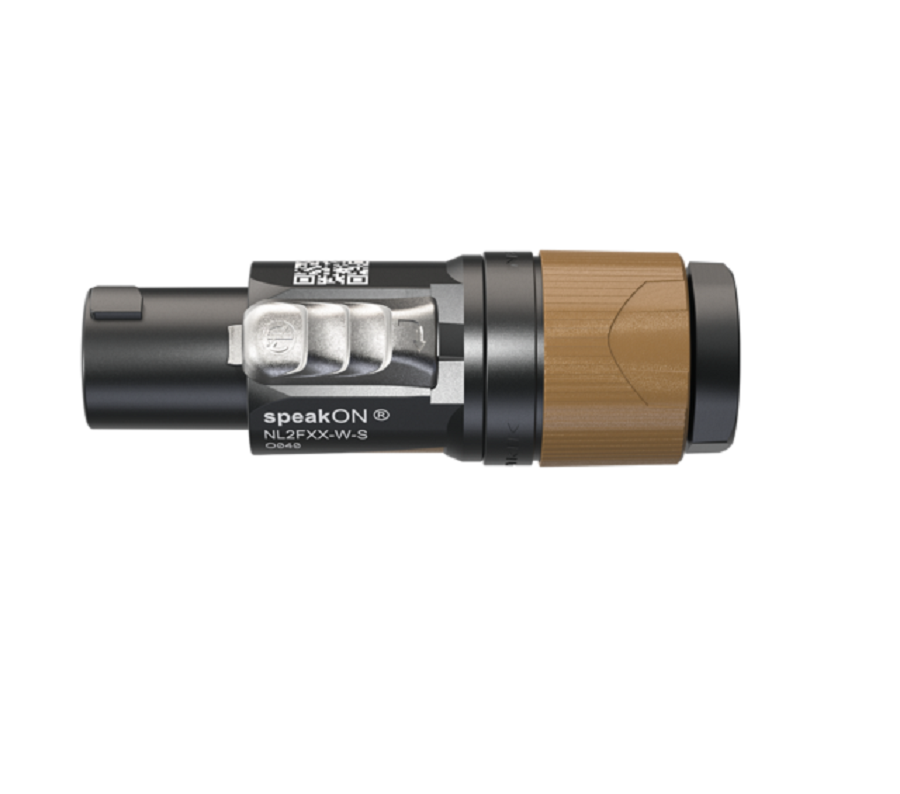

17097 NL2FXX W S view top

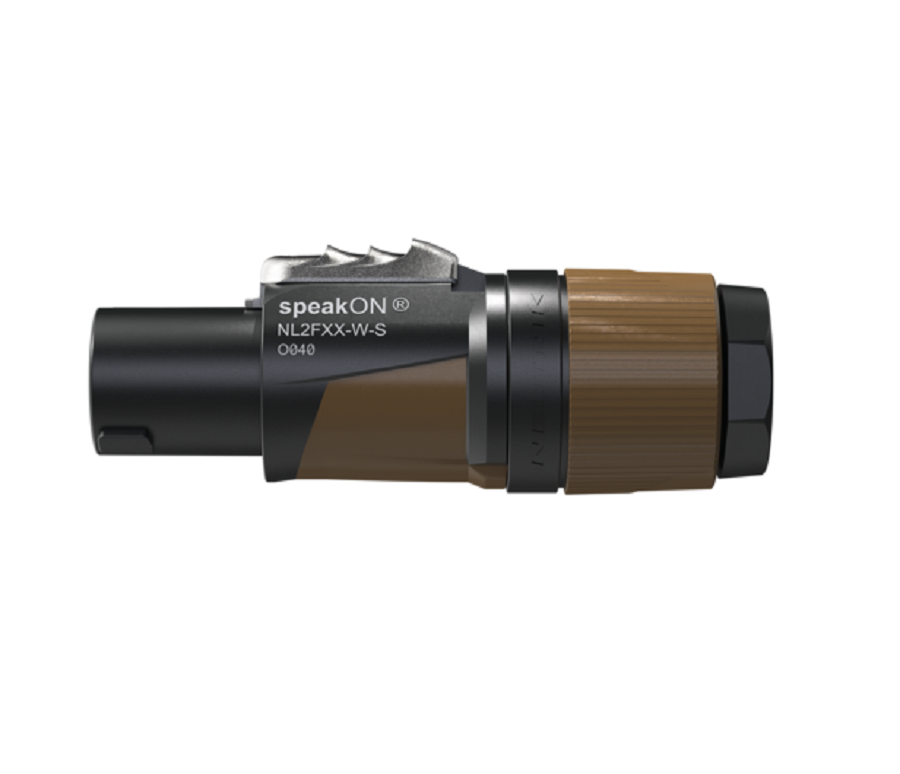

17098 NL2FXX W S view front

Neutrik

NL2FXX-W-S

Code: 7407

Speakon Cable Connector

Price: €5.30
Price: €5.30
BUY Online: €5.00
BUY Online: €5.00
You Save €0.3
You Save €0.3
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

2 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection


    • Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
    • Ergonomic design with slip-proof two-component molded housing
    • Up to 37 A rms current rating
    • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
    • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
    • Superior NEUTRIK quality standard, extremely robust and reliable
    • Easy and reliable twist lock system
    • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
    • Improved kink protection by two-component bushing

  • Connector series: speakON 2-pole
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: 2.8 kVac
  • Insulation resistance: > 10 GΩ (initially)
  • Number of electronical contacts: 2
  • Rating Europe: IEC 61984: 37 A 250 V AC
  • Cable O.D.: 6 – 12 mm
  • Lifetime: typically 5’000 mating cycles
  • Wiresize (mm): 1.5 – 4 mm²
  • Wiresize (AWG): 17 – 11 AWG
  • Locking device: Twist lock
  • Termination: screw type terminals
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Insert: Polyamide (PA6.6)
  • Locking element: Zinc diecast
  • Shell: Polyamide (PA6) / TPE
  • Strain relief: Polyketone
  • Bushing: Polypropylene / TPE
  • Temperature range: -33 °C to +80 °C
  • Protection class: IP20
  • Flammability acc. to UL94: V-0
