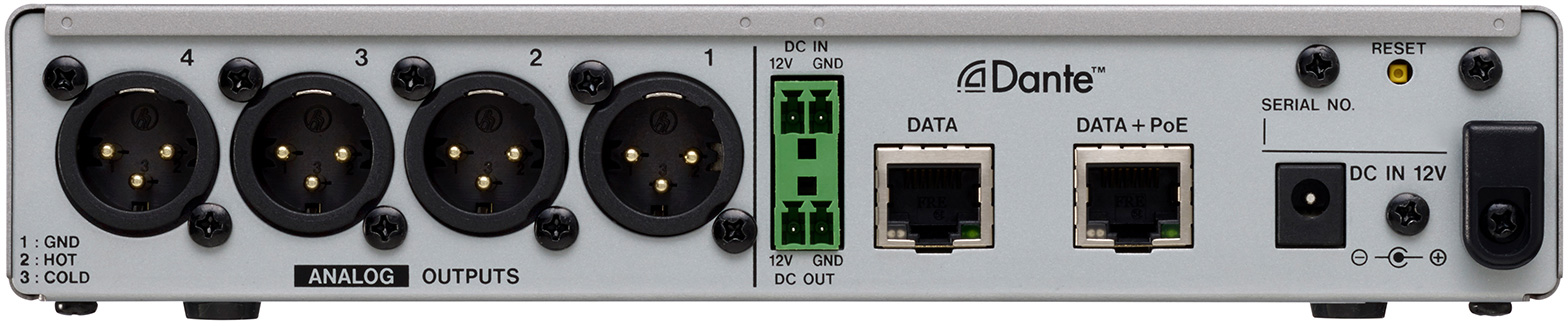

ml 4d out x p rear!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Tascam

ML-4D OUT X

Code: 5006

4-Channel Line Output Dante Converter with built-in DSP Mixer

Contact for Price

Pre-Order

Enquire to be notified upon availability

years

Half-rack size Dante Compact Processor Series
The Dante Compact Processor Series has a line-up of models with different input/output specifications:

  • MM-4D/IN, 4-channel mic/line input
  • ML-4D/OUT, 4-channel line output
  • MM-2D, 2-channel mic/line input/output
  • AE-4D, AES/EBU 4-channel input/output
  • For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.

ML-4D/OUT-X
Optimal input/output unit for different Dante systems
The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.

ML-4D/OUT-XML-4D/OUT-XML-4D/OUT-XML-4D/OUT-XML-4D/OUT-X
Structuring small scale systems with the DSP function
The Dante Compact Processor Series are equipped with a matrix mixer that includes a DSP feature with compressors, parametric EQs, limiter, delay, etc. functions. From the input of microphone signals to the output of powered speakers; also applicable with recording/playback systems, the Dante Compact Processor Series can build up a complete small system on their own.

ML-4D/OUT-XML-4D/OUT-XML-4D/OUT-XML-4D/OUT-X
Flexible routing
Routing to each Dante device is easy via Dante controller. Input/output units can be added flexibly to new or already established Dante systems.

Dante controllerML-4D/OUT-XML-4D/OUT-X
Compatible with Dante Domain Manager and AES67 mode
The Dante Compact Processor Series are compatible with Dante Domain Manager, which features security functions and enables the use of wide-area networks. This helps the Dante Compact Processor Series access easily to Dante systems using already established network infrastructures. With the AES67 mode, connection to AES67 network systems is also possible.

The advantages of introducing Dante Network Audio
These are some of the benefits provided when adopting Dante Network Audio:

Reduction of system costs
It is possible to have a maximum transmission of 128ch I/O with one single CAT5e cable. This leads to fewer cables needed, not to mention the reduction of costs on wiring and space for cable pits.
Improved connection flexibility
All equipment can be freely connected and routed by applying star connections.

    • 4x balanced line outputs
    • Two product variants:
      ML-4D/OUT-E (not included): with Euroblock connectors for fixed
      installation ML-4D/OUT-X: with XLR connectors for touring and other more flexible applications
    • Dante interface enables the transmission of audio signals via Ethernet network
    • 2x network connections for looping through to other Dante devices
    • Flexible Routing Using the Dante Controller Computer Application
    • Supports AES67, allowing connection to Ravenna and other compatible audio networking technologies
    • Up to 96 kHz sampling rate and 24 bit resolution
    • Displays for operating status and current sampling rate on the front of the device
    • Signal displays for the analog output signals
    • Output level individually adjustable via GPI (ML-4D/OUT-E)
    • Power supply via PoE (Power-over-Ethernet) or optional AC adapter
    • 2x devices can be supplied by an AC adapter
    • Compact half rack width housing (1U)
    • Dimensions (W x H x D): 214 x 45 x 136 mm
    • Weight: 885 g
