Telefunken

M80-SH Low Profile

Code: 8039

Dynamic Series, Microphone

Contact for Price

Pre-Order

Enquire to be notified upon availability

The M80-SH is made for low profile microphone applications, while still delivering the wide frequency response and high SPL handling the M80 is known for.

The smaller footprint of the M80-SH low profile dynamic makes them ideal for tight fit applications including drums and guitar amps on stage, as well as vocal positions for drummers and keyboard players, where a full size microphone may be too obstructive. Designed to deliver the same character and high SPL handling as their handheld versions; the M80 provides a natural, condenser-like response with a subtle high frequency rise, and their Supercardioid pickup pattern has minimal proximity effect and provides superior off-axis rejection.

Both the M80-SH & M81-SH come with two styles of drum mounts and a TELEFUNKEN right angle XLR cable.

    • Same detailed, condenser-like performance as the handheld M80
    • Smaller size and built-in mount allow for easier positioning
    • Custom-wound impedance-matching audio transformer
    • High SPL handling and excellent off-axis rejection
    • Right-angle XLR cable included
    • Designed and hand assembled in the USA
    • Recommended Applications: Snare Drum, Singing drummers or keys players, Woodwinds
  • Type: Dynamic
  • Polar Pattern: Supercardioid
  • Frequency Range: 50 Hz – 18 kHz, ±3 dB
  • Capsule: 25mm Dynamic Moving Coil
  • Transformer: TELEFUNKEN Elektroakustik T80
  • Sensitivity: 1.54 mV/Pa, ±1 dB
  • Output Impedance: 325 Ω
  • Maximum SPL (for 1% THD): 135 dB
  • Dimensions: 125 mm L x 48 mm Dia
  • Weight: 340 g

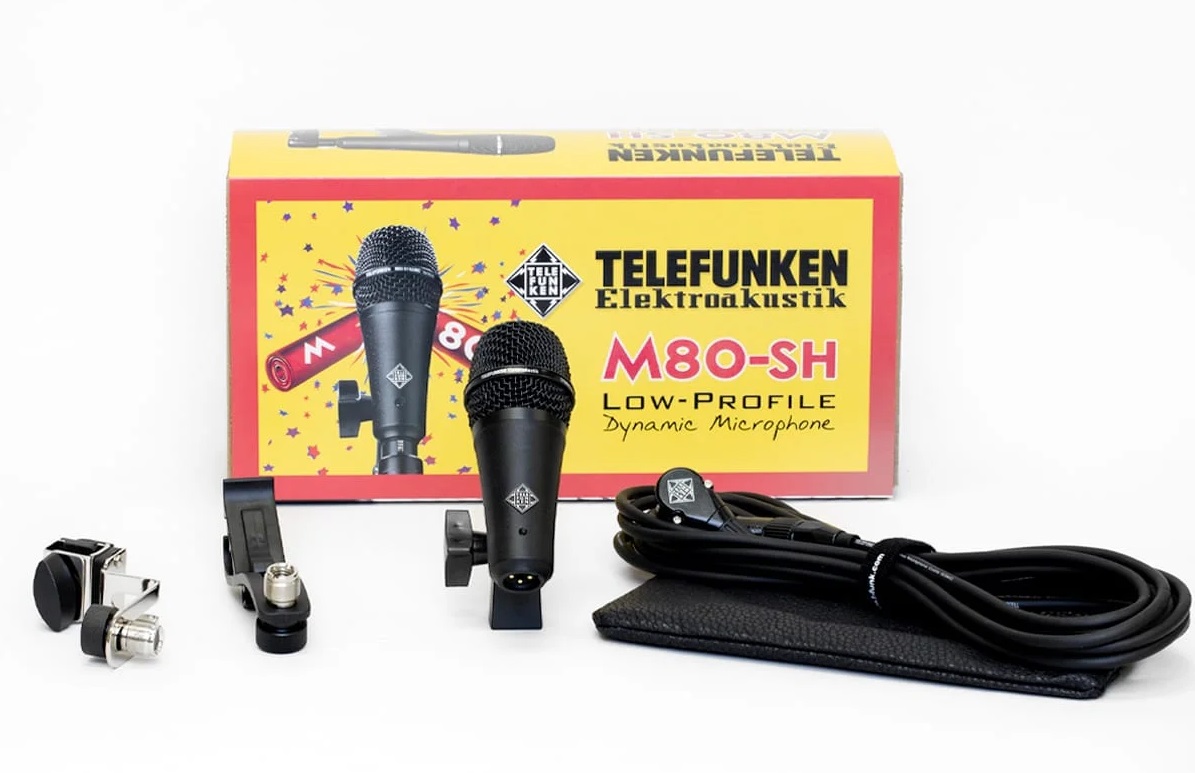

  • Included Accessories: Right Angle XLR Cable, Plastic Mount, Metal Mount, Zip Pouch
