Small Diaphragm Condenser Microphones
M60 FET Cardioid System 01

Telefunken

M60 FET

Code: 8044

Small Diaphragm Condenser Series

Contact for Price

Pre-Order

Enquire to be notified upon availability

The M60 FET is a reinterpretation of the classic phantom-powered pencil mic, featuring an exceptional transient response and SPL handling capabilitie.

Paired with its impressive clarity and subtle tonality, the M60 excels at capturing acoustic and percussive instruments both in the studio and on the stage. The M60 is hand-assembled in our US facility using premium components and utilizes an ultra-clean, true class-A discrete circuit paired with an American-made transformer. Its unique circuit topology captures a wide frequency range, which means life-like capturing of most sources. The M60’s thread-on interchangeable capsules allow the user to easily change polar patterns on the move.

Also available with different and additional capsule options - please contact us for these additional options!

    • Punchy tone with extended high frequency clarity and low frequency definition
    • Ultra fast transient response and extended frequency range
    • Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
    • High headroom, low-noise phantom-powered FET amplifier
    • Designed and hand assembled in the USA
    • Recommended Applications: Acoustic Guitar, Drums, Percussion, Live Sound
  • Type: FET Condenser
  • Polar Pattern: Cardioid, Omnidirectional, Hypercardioid
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: +48V Phantom Power
  • Capsule: TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on
  • Transformer: TELEFUNKEN Elektroakustik T61CT
  • Sensitivity: 10 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.01%
  • Output Impedance: 120 Ω
  • Maximum SPL (for 1% THD): ˃ 135 dB
  • S/N Ratio: 89 dBA
  • Self Noise (Amplifier): 5 dBA
  • Dimensions: 140 mm L x 20 mm Dia
  • Weight: 110 g

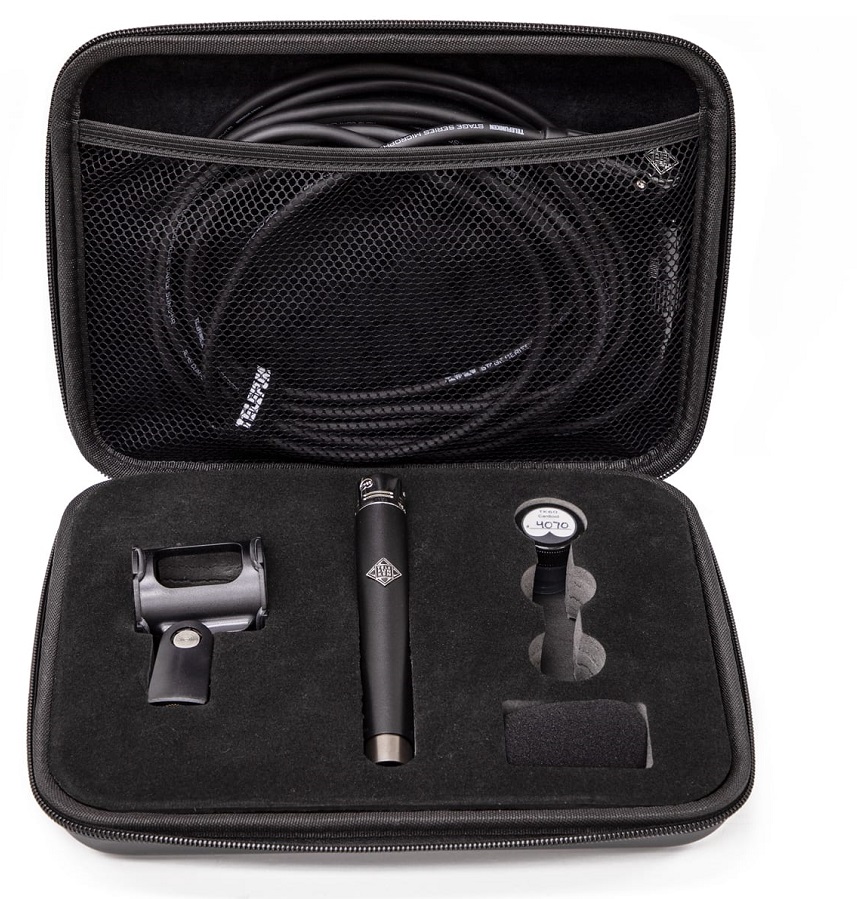

  • Included Accessories: Right Angle XLR Cable, Shock Mount, Foam Windscreen, Carrying Case
