LVX P10

Code: 7412

600W-Passive Speaker

Price: €325.00
Price: €325.00
BUY Online: €292.00
BUY Online: €292.00
You Save €33
You Save €33
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

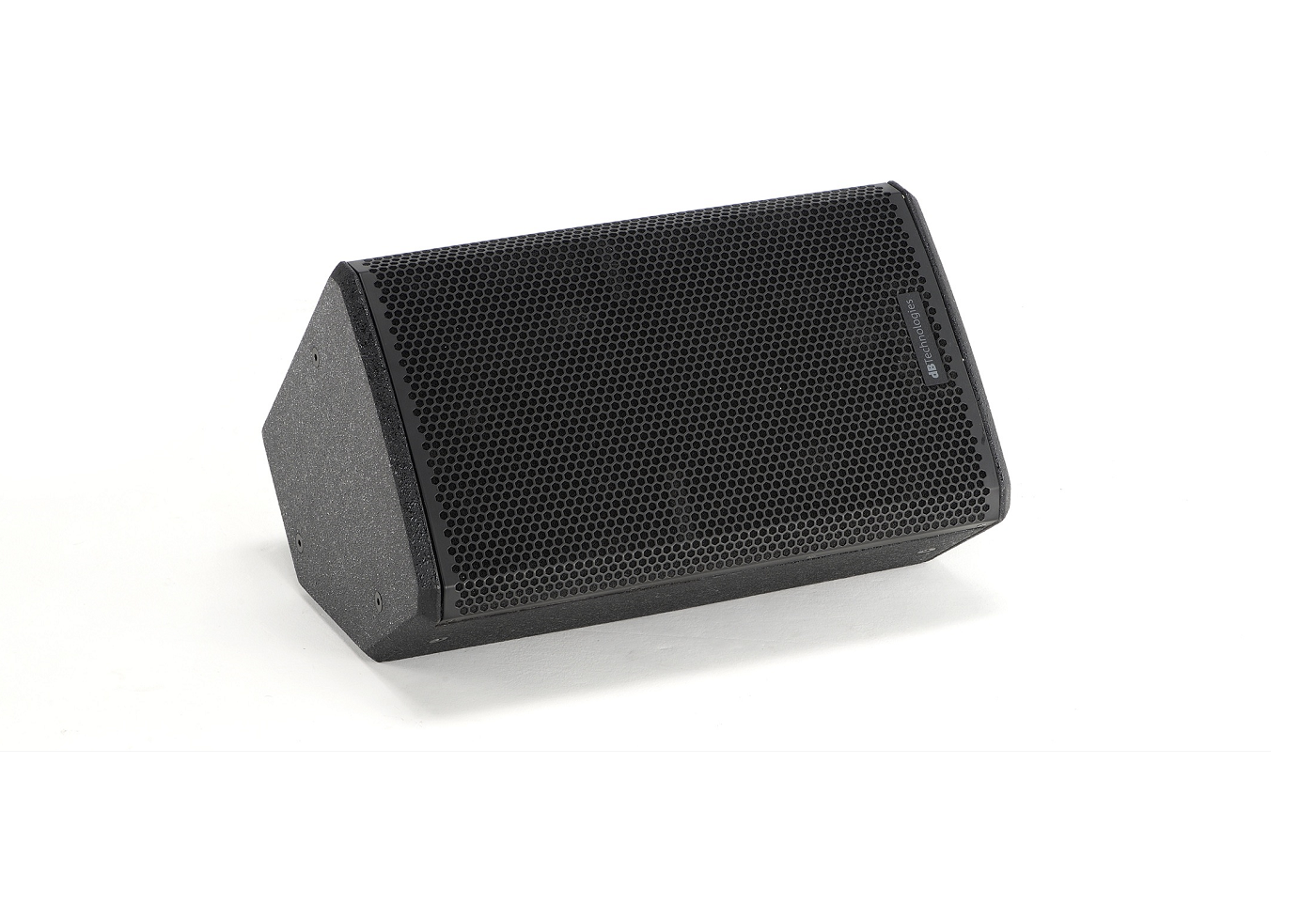

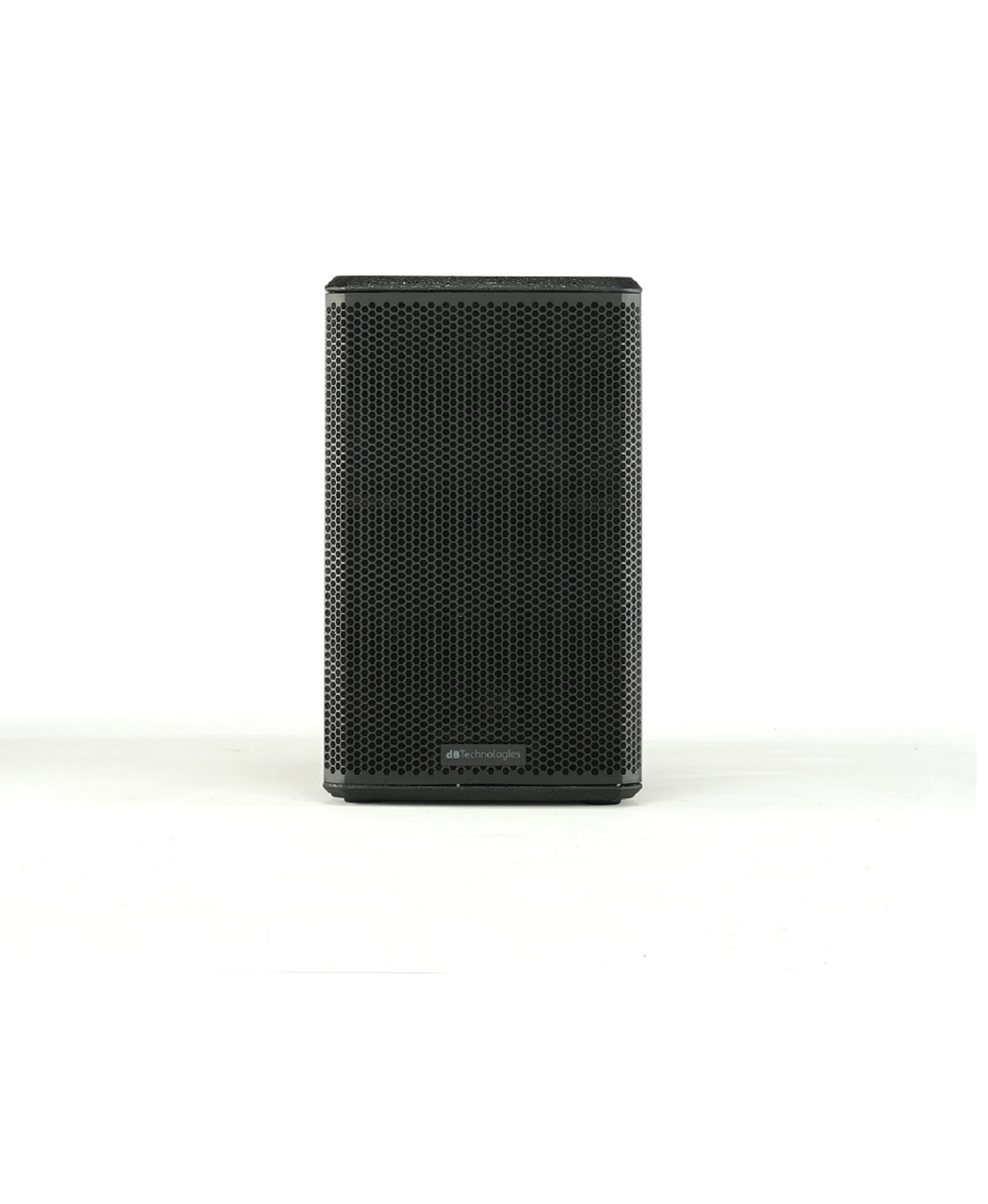

Born as an evolution of wooden LVX active series, the new LVX P family moves into the installation world with a passive selection of cabinets where a clean, essential design merges with a very detailed and coherent audio performance.

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance. Full range LVX P10 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.

The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP810H) or vertical (VB-LP810V) brackets.  The cabinet features an integrated handle on back side and a 36 mm pole mount plate.


    • 2-way passive speaker
    • Clean design
    • Available in black or white
    • M8-thread rigging points
    • Rotatable horn for vertical or horizontal use
    • Wooden lightweight enclosure

  • Speaker Type: 2-Way Passive Speaker
  • Peak Power: 600 W
  • Impedance: 8 Ohms
  • Frequency Response: [- 10 dB]73- 19.000 Hz
  • Max SPL: 125 dB
  • HF: 1 “, 1" v.c.
  • Directivity: 90x70 °
  • Horn: Rotatable
  • LF: 10“, 1.5" v.c.

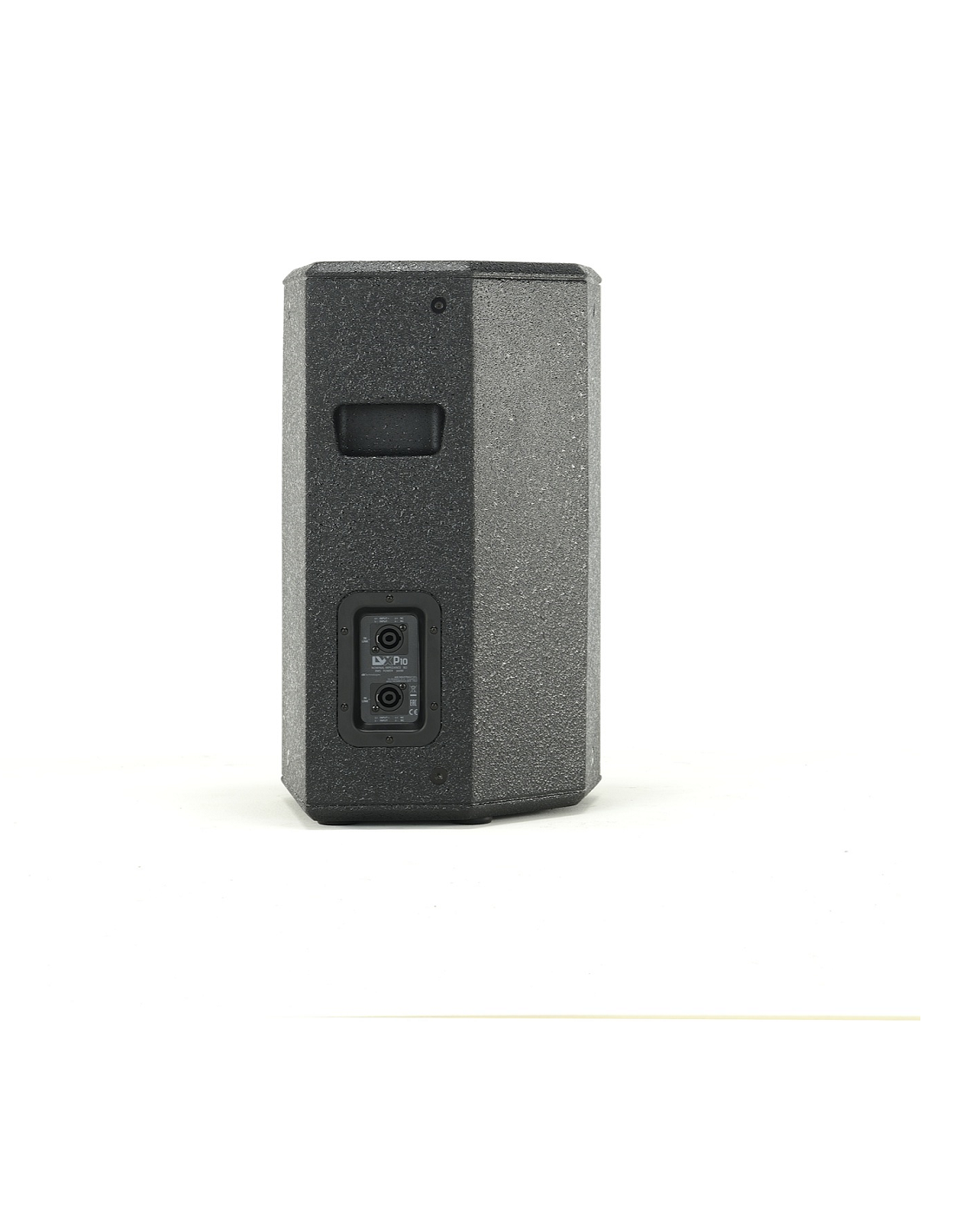

  • Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
  • Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
  • Housing: Plywood
  • Pole Mount: 36mm
  • Angle Up: Monitor use 40°
  • Rigging Points: 12 x M8
  • Handles: 1 on back side
  • Width: 300mm
  • Height: 496mm
  • Depth: 298mm
  • Weight: 9.3kg
