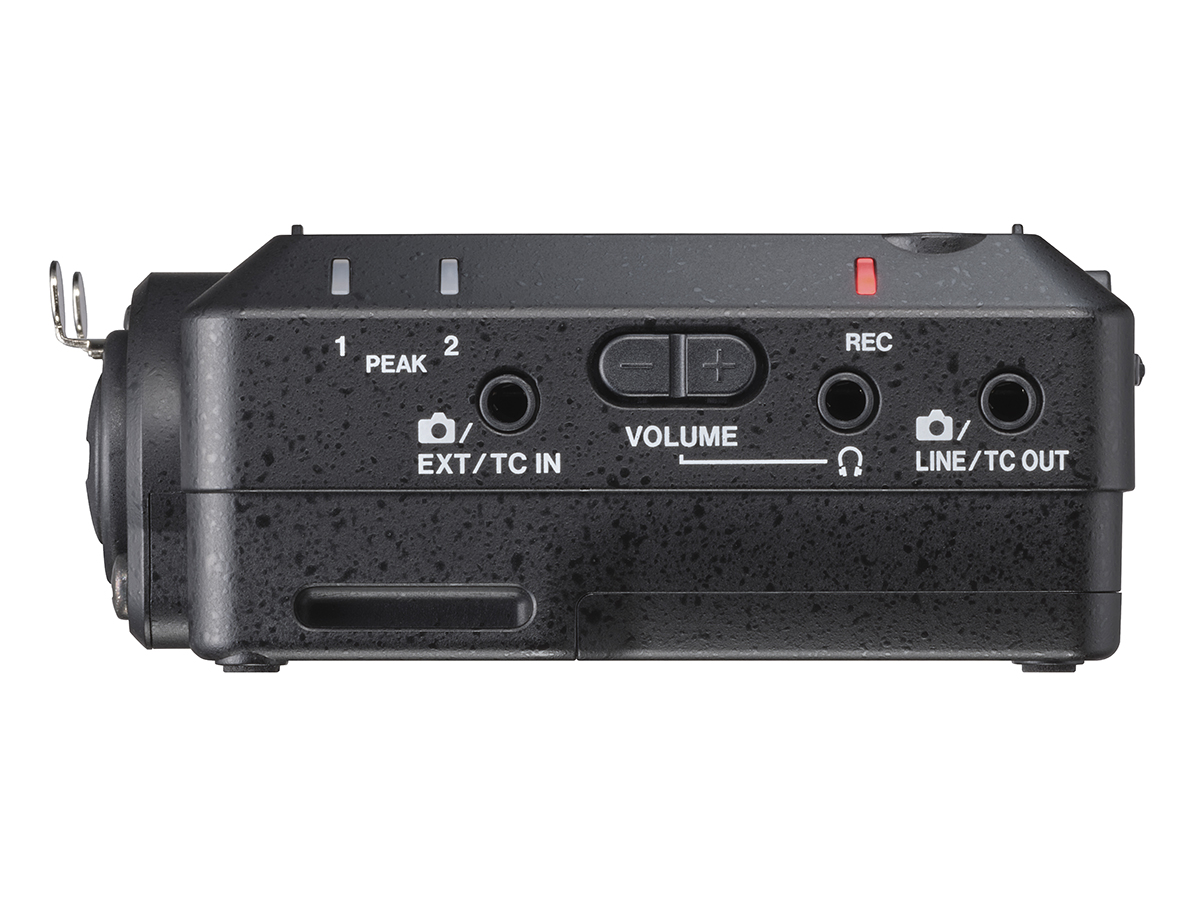

fr av2 p bottom

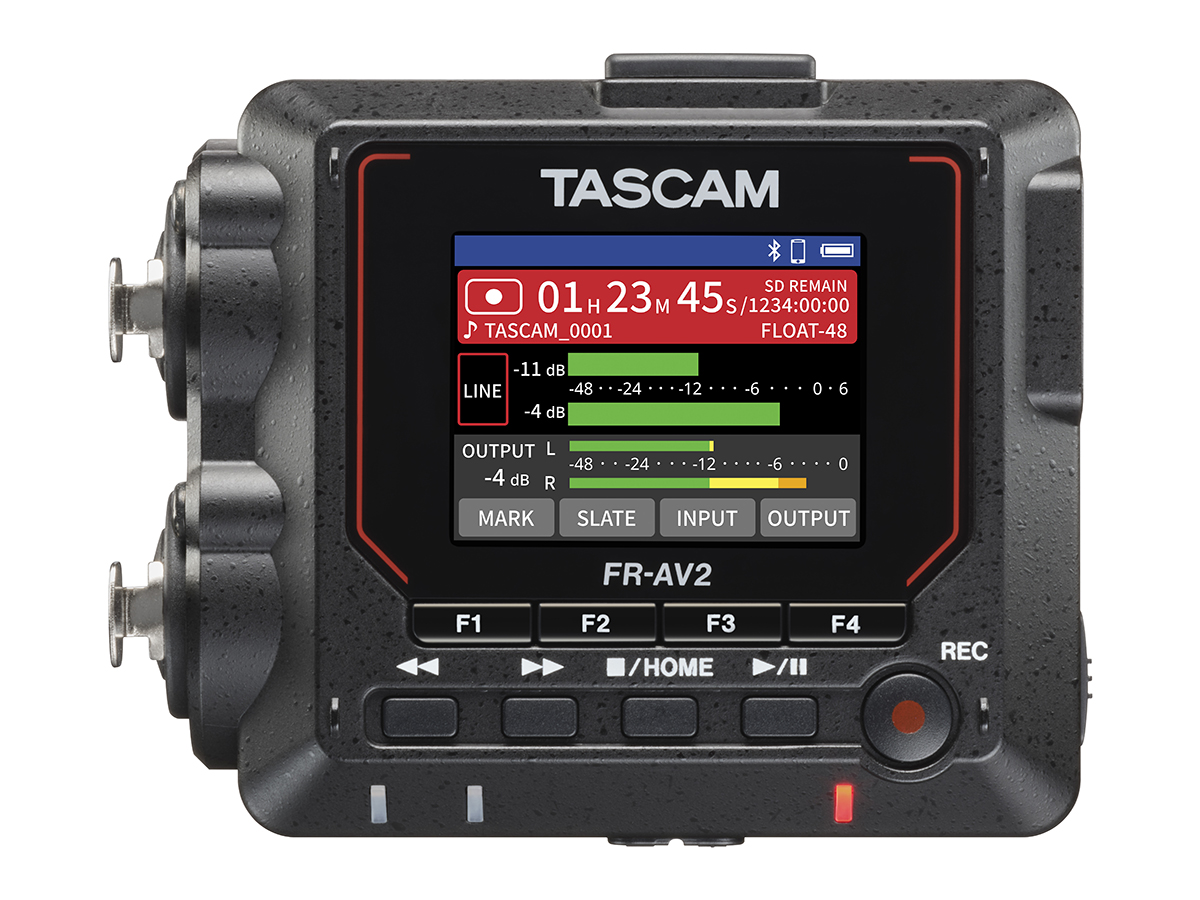

fr av2 p front

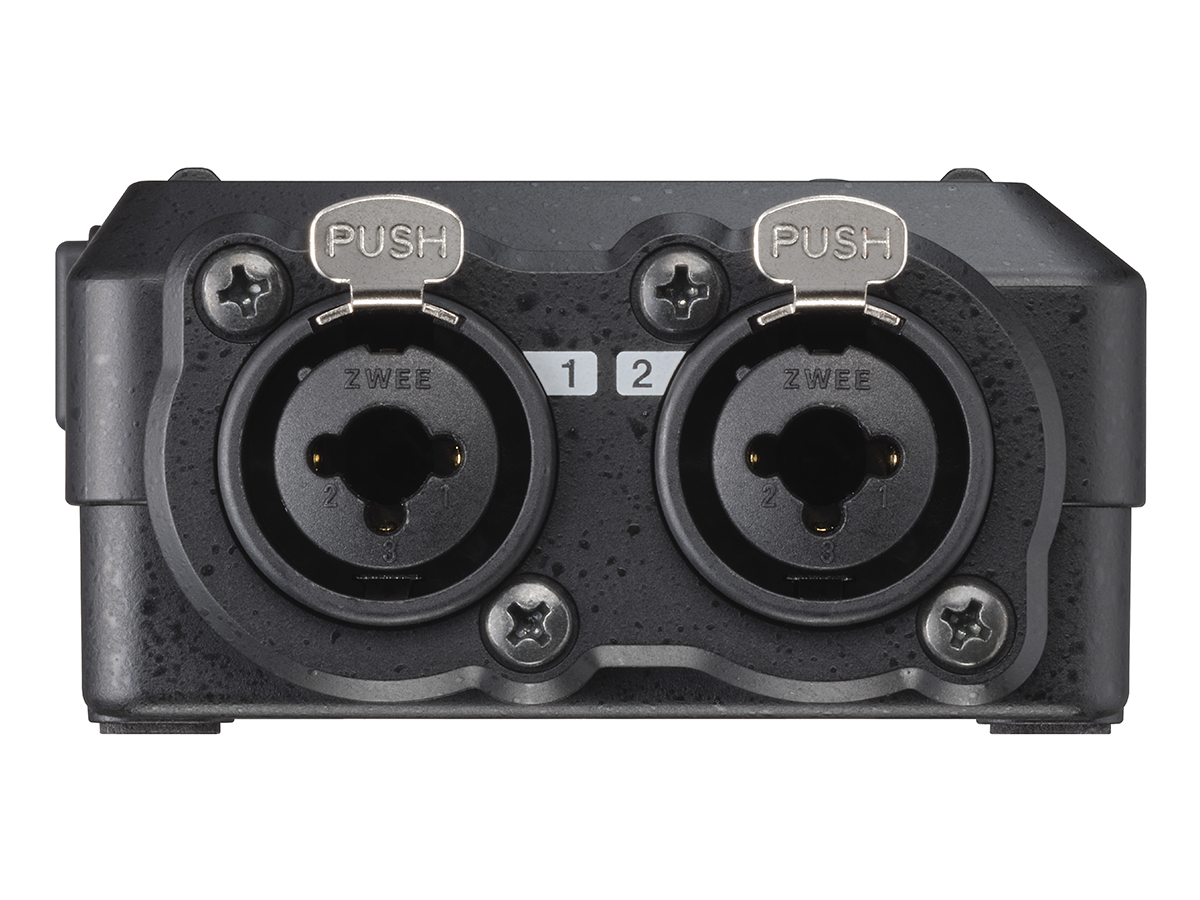

fr av2 p left

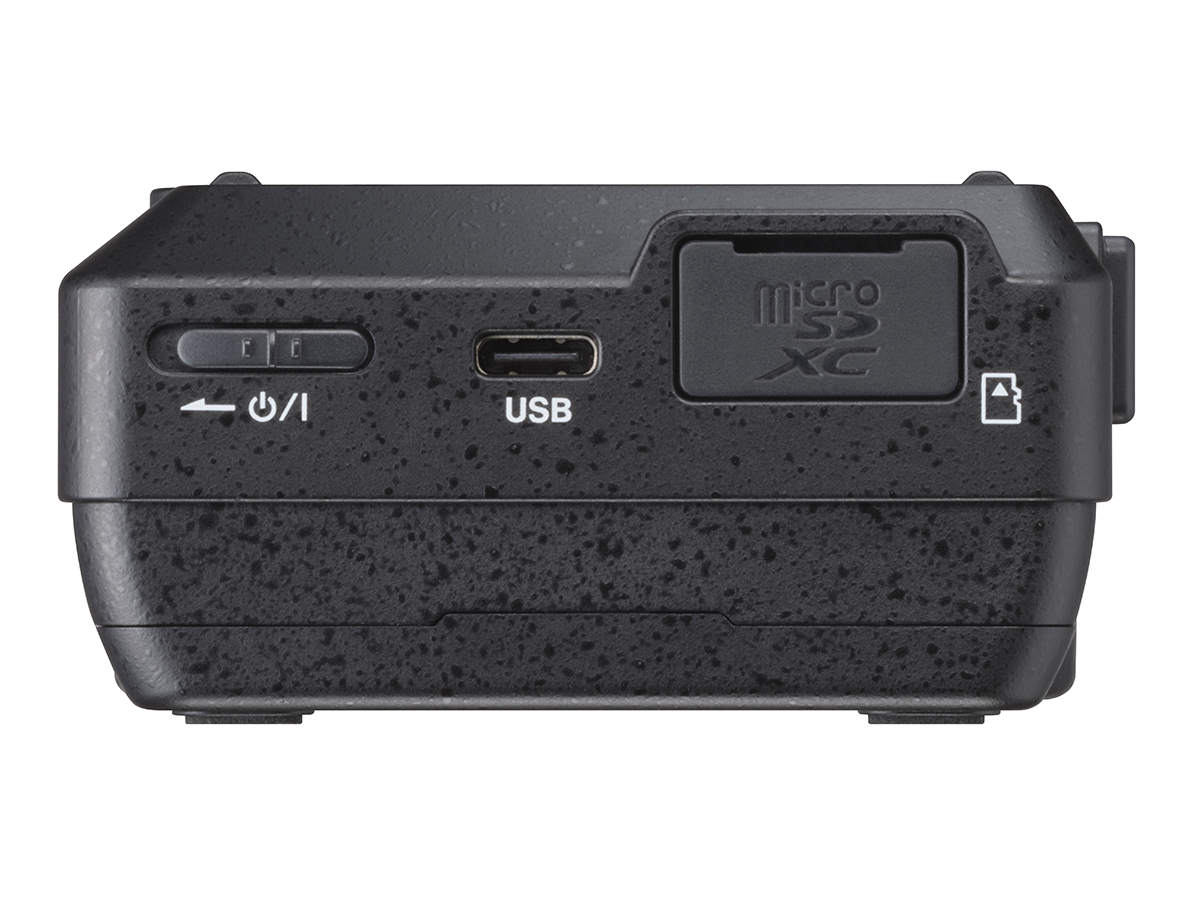

fr av2 p right

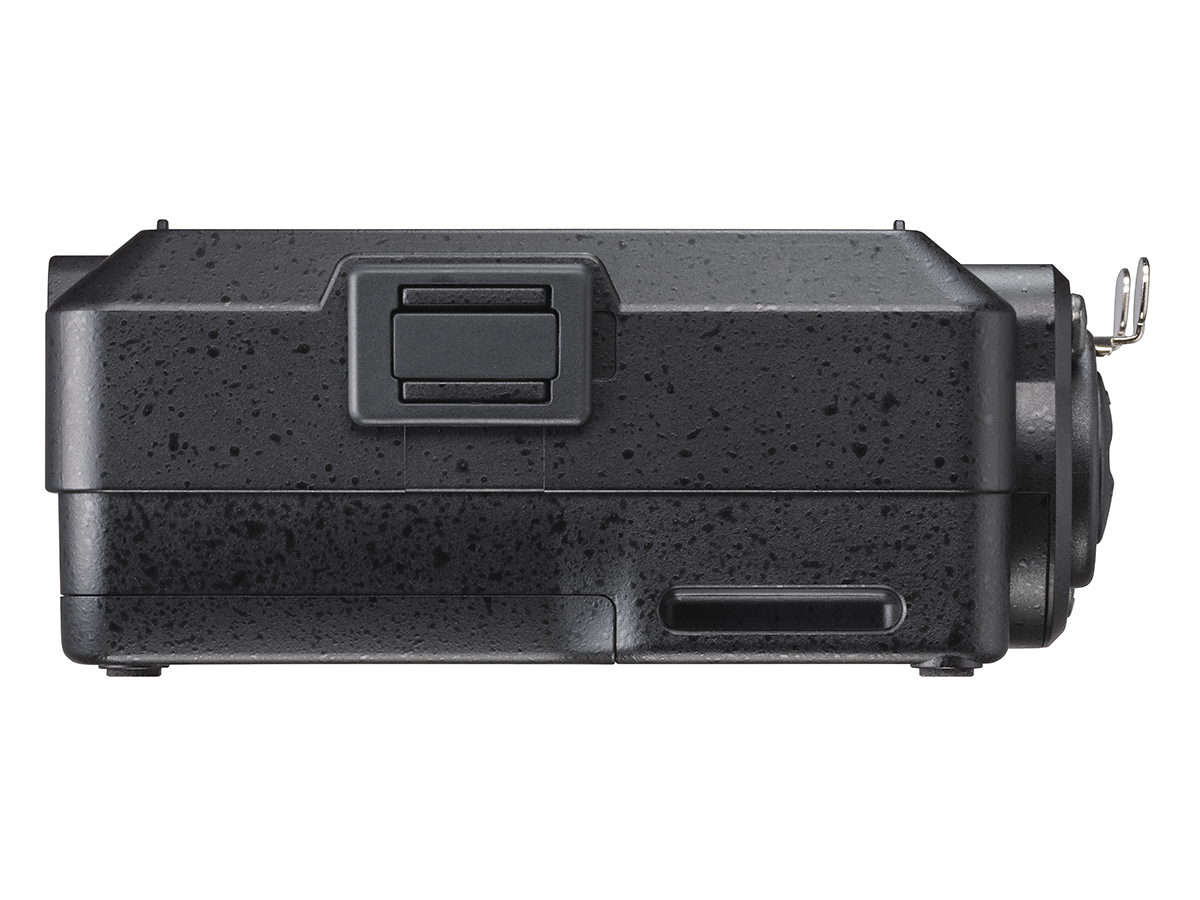

fr av2 p top

FR-AV2

Code: 7567

Compact 32-bit Float Field Recorder and Timecode Generator with Mixer

Price: €528.00
Price: €528.00
BUY Online: €422.00
BUY Online: €422.00
You Save €106
You Save €106
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

The TASCAM FR-AV2 is a compact and comprehensive audio recording solution for videographers, combining enhanced 32-bit float point recording with built-in timecode generation to greatly improve efficiency. Ultimate Timecode allows you to integrate industry-standard videography gear, with no need for an external timecode device. And you can wirelessly monitor your audio signals with the optional AK-BT2 Bluetooth adapter.

    • Dual ADCs with enhanced 32-bit float recording for fast setup and worry-free capture
    • 2 XLR/TRS Combo inputs with Ultra HDDA Preamps, EIN -127dBu, and 3.5 mm input
    • Rec format: 48k/96k/192kHz supported
    • Timecode IN/OUT and timecode generation/sync function with high accuracy TCXO
    • Wireless audio monitoring with the optional AK-BT2 Bluetooth adapter (sold separately)
    • 2-in/2-out USB-C audio interface for Mac/Windows/iOS devices supporting 32-bit float
    • Supports up to SDXC 512 GB recording media
    • Free TASCAM RECORDER CONNECT app for iOS, iPadOS and Android allows you to control multiple units including FR-AV2 and DR-10L Pro with the optional AK-BT2 Bluetooth adapter (sold separately)
    • 2-inch color LCD screen for easy visibility and operability
    • Multiple functions on inputs, including low-cut, compressor, limiter, and noise gate
    • Adjustable input delay to compensate for distance between microphones [0-300 ms].
    • Output delay adjustment available to compensate for camera video and audio output [0-300 ms].
    • Mark and auto-slate tone functions
    • Automatic file closing function to prevent the loss of recorded data if the batteries run out
    • 3.5mm stereo headphone jack
    • Camera/EXT input with plug-in power (+2.5V/+5.0V) function and Camera/Line outputs
    • Wireless timecode synchronization with Atomos UltraSync Blue
    • 3 AA batteries or USB bus power
    • Supports capturing metadata (WAV file BEXT and iXML) when recording
    • Compact, lightweight fiberglass enclosure designed for use with camera rigs
  • Recording / playback formats: WAV (BWF)
  • Sampling frequency: 48 kHz, 96 kHz, 192 kHz
  • Quantization bit depth: 24-bit/32-bit float
  • Maximum number of input channels: 2
  • Maximum number of recordable tracks: 2
  • Phantom power: +24V / +48V (*selectable when [MIC] input is selected)
  • Line input (unbalanced) Camera/EXT/TC IN jack (can provide plug-in power)
  • Connector: 3.5mm (1/8") stereo mini jack
  • Plug-in power: +2.5 V/+5.0 V
  • TC IN: (Tip: Timecode IN, Ring: −, Shield: GND)
  • Signal level range: 0.5Vp-p to 5.0 Vp-p
  • Input impedance: 10 kΩ or more
  • Line output (unbalanced): Camera/LINE/TC OUT jack
  • Connector: 3.5 mm (1/8") stereo mini jack, Camera/LINE (Tip: L ch, Ring: R ch, Sleeve: GND)
  • Headphone output: headphone jack, Connector: 3.5mm (1/8") stereo mini jack
  • Maximum output: 50 mW + 50 mW (THD + N less than 0.1% into 32 Ω load)
  • Recommended headphone impedance: 16–400 Ω
  • USB Connector: USB Type-C
  • Transfer format: USB2.0 High Speed
  • Device Class: Mass Storage Class
  • USB Audio Class 2.0 (USB Class Compliant)
  • USB Audio: Sampling frequency 48 / 96 kHz
  • Quantization bit depth: 24-bit / 32-bit float
  • Number of inputs: 2 channels * output from this unit
  • Number of outputs: 2 channels *input to this unit
  • Time code input / output: Format According to SMPTE ST 12-1 (LTC)
  • Frame rate: 23.98, 24, 25(50), 29.97(59.94), 29.97DF(59.94DF), 30(60) fps* (*Half frame rate time code is used for high frame rate videos of 50 fps or higher)
  • Bluetooth device connector: For Bluetooth adapter (AK-BT2) only
  • Power: 3 AA batteries (alkaline, NiMH or lithium-ion)
  • USB bus power from a computer, etc.
  • TASCAM PS-P520U AC adapter (sold separately)
  • Power consumption     3.8 W (maximum)
  • Weight: 267 g (including batteries), 195 g (not including batteries)
  • Operating temperature range: 0 - 40°C
  • Dimensions: 99 x 80.4 x 40.3 mm (W x H x D, including protrusions)
  • Included items: FR-AV2 x1, Safety guide (including warranty) x1, TASCAM ID registration guide x1
