Digital Mixers

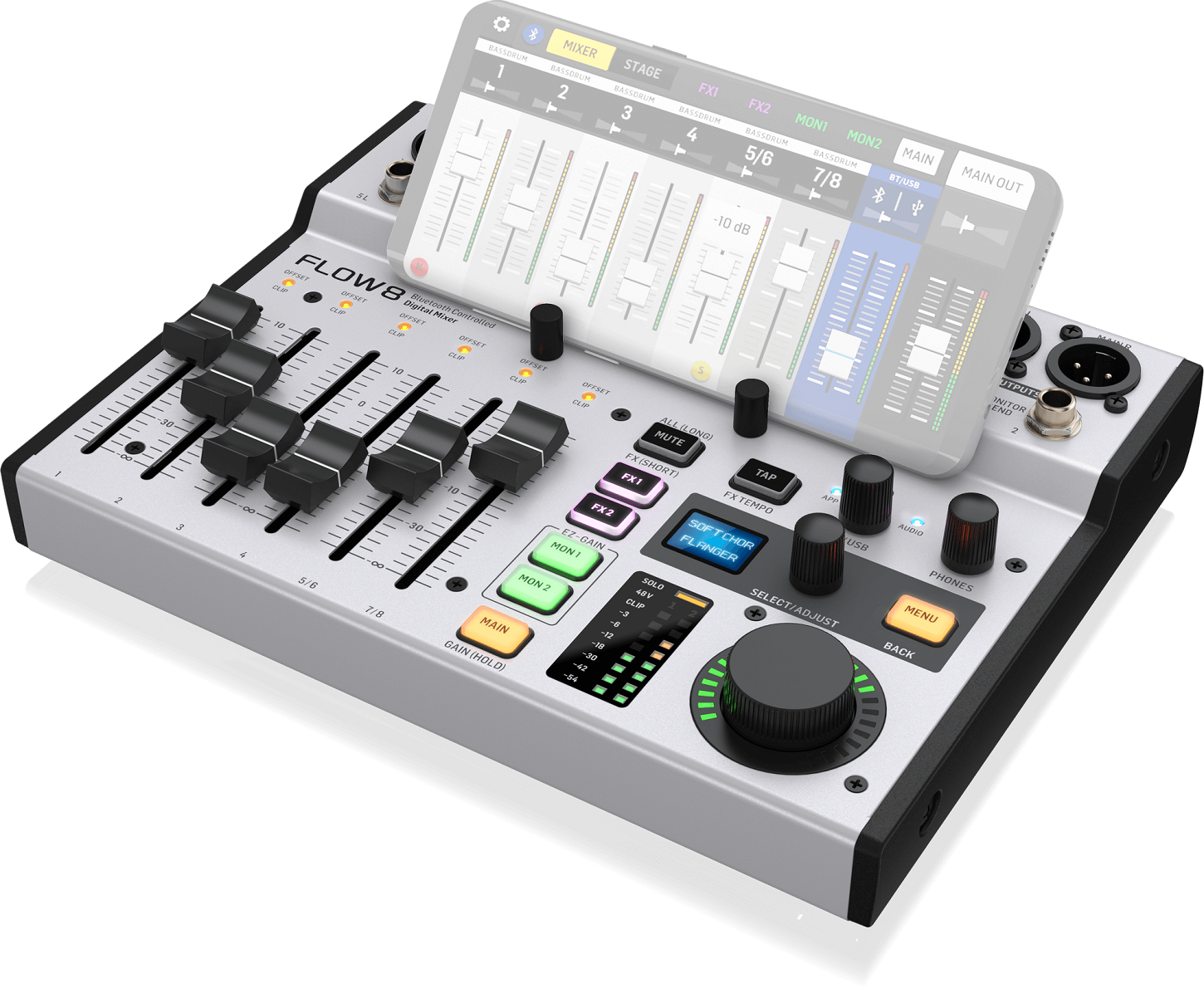

FLOW 8 P0DNM Other1 XL

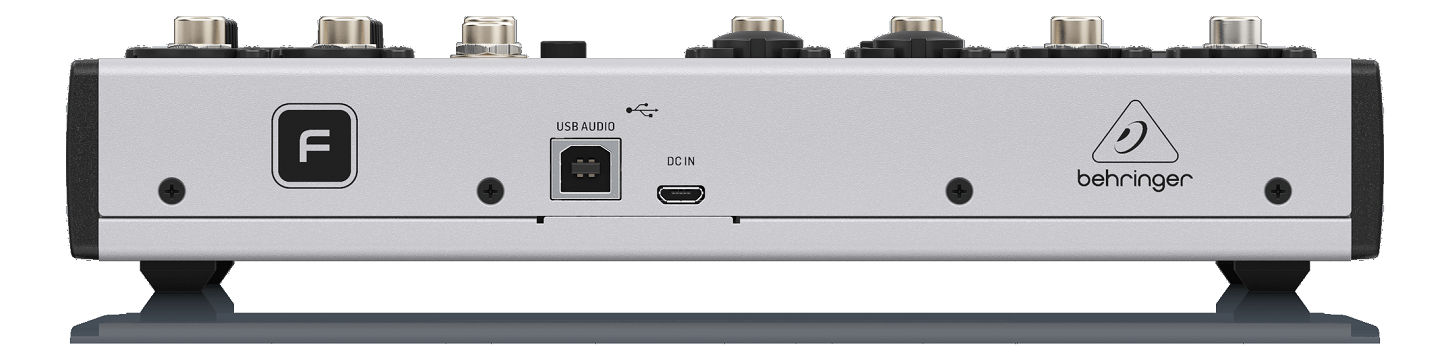

FLOW 8 P0DNM Rear XL
FLOW 8 P0DNM Top XL copy

FLOW 8

Code: 7843

8-Input Digital Mixer with Bluetooth

Price: €365.00
Price: €365.00
BUY Online: €328.00
BUY Online: €328.00
You Save €37
You Save €37
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

8-Input Digital Mixer with Bluetooth Audio and App Control, 60 mm-Channel Faders, 2 FX Processors and USB/Audio Interface.

EZ-GAIN Assisted Gain Staging

Have you ever heard someone say, “you need to pay attention to your gain staging?” Do you know what the “gain structure” is about? When you are interested in clean and healthy signals, with low noise and low harmonic distortion then adjusting the right amount of preamp gain is paramount. It is defining the amount of amplification a signal gets when entering the mixer. Since source signals can be anything from a strong hit on the snare drum, to the subtle hum of bees, there is not one gain that fits all possible purposes.
Gain staging is always a compromise and finding the right one requires either experience and technical knowledge, or the new FLOW 8 EZ-GAIN feature. The function can monitor signals on one or all channels at the same time, until you think the loudest sounds have been put to it. EZ-GAIN will then automatically adjust the channel gain to the optimum headroom.


Oh, by the way, EZ-GAIN will automatically engage the 48 V phantom power on mic inputs 1 or 2 when no signal is detected, just in case you forgot to do that.

Full App Remote Control

Let’s face it, small mixers are more often placed where cables end, rather than in a position where it would be most useful for controlling the mix. You may have to stretch out for controlling levels or walk away from the mixer to judge if your adjustment has the desired effect. No longer!
FLOW 8 mixers offer full remote control from basically any Android or iOS device, giving you the freedom to go exactly where the sound is ideal for making any sort of adjustment. Tweak the 9-band EQ for the main PA speakers, set the compressor on the bass guitar or adjust the mix for the talents on stage.





    • Gain range: -20 dB to +60 dB
    • Phantom power: +48 V, switchable (inputs 1 / 2 only)
    • Line Inputs Type: 2 x 1/4" TRS jacks, balanced (channels 5L / 7L)
    • Impedance: 20 kΩ balanced, 10 kΩ unbalanced
    • Gain range: -20 dB to +60 dB
    • Distortion (THD+N): 0.005%, A-weighted, 0 dB gain, 0 dBu out
    • Max. input level: +22 dBu
    • Guitar (Hi-Z) Inputs Type: 2 x 1/4" TRS jacks, balanced (channels 6R / 8R)
    • Impedance: 2 MΩ balanced, 1 MΩ unbalanced
    • Distortion (THD+N) : 0.005%, A-weighted, 0 dB gain, 0 dBu out
    • Max. input level: +19 dBu
    • Channel EQ: Low ±15 dB @ 20 Hz, shelving, Low mid ±15 dB @ 300 Hz, High mid ±15 dB @ 1.5 kHz, High ±15 dB @ 20 kHz, shelving
    • Monitor Outputs Type: 2 x 1/4" TRS jacks, balanced
    • Impedance: 75 Ω, balanced
    • Max. output level: +14 dBu
    • Main Outputs Type: 2 x XLR jacks, balanced
    • Impedance: 150 Ω, balanced
    • Max. output level: +14 dBu
    • Phones Output Type: 1 x 1/4" TRS jack, stereo
    • Max. output level: +18 dBm / 40 Ω
    • Footswitch Input Type: 1 x 1/4" TRS jack (tip / ring normally open)
    • Function configurable: FX mute / Tap tempo or Snapshot load next / previous
    • Input / Output and Processing
    • Frequency range: 10 Hz to 22 kHz (+0/-1 dB)
    • Dynamic range, analog in to analog out: Typ. 108 dB
    • I/O latency: 0.6 ms
    • Signal processing: 32-bit VFP (Vector Floating Point)
    • A/D - D/A conversion: 24-bit / 48 kHz
    • Dynamic range: 114 dB
    • Number of input processing channels: 10 input channels, 4 fx return channels
    • USB Audio Interface type: USB 2.0
    • Connector: Type B
    • Bit depth: 24-bit / 48 kHz
    • Channels: 10 out / 2 in
    • Bluetooth
    • Frequency range: 2402 MHz ~ 2480 MHz
    • Channel number: 79
    • Version: Bluetooth spec 4.0 compliant
    • Compatibility: Supports A2DP 1.2 profile
    • Max. communication range: 12 m (without interference)
    • Max. output power: 8 dBm
    • Power Supply / Voltage Connector: Micro-USB
    • Power supply: 5 VDC 2A
    • Power consumption: Max. 10 W (typ. 5 W)
    • Dimensions (H x W x D) 48 x 229 x 172 mm (1.9 x 9.0 x 6.8")
    • Weight 1.4 kg (3.1 lbs)
