Acoustic Treatment - Sound Absorption
VMT Photo 8 Final panels
download

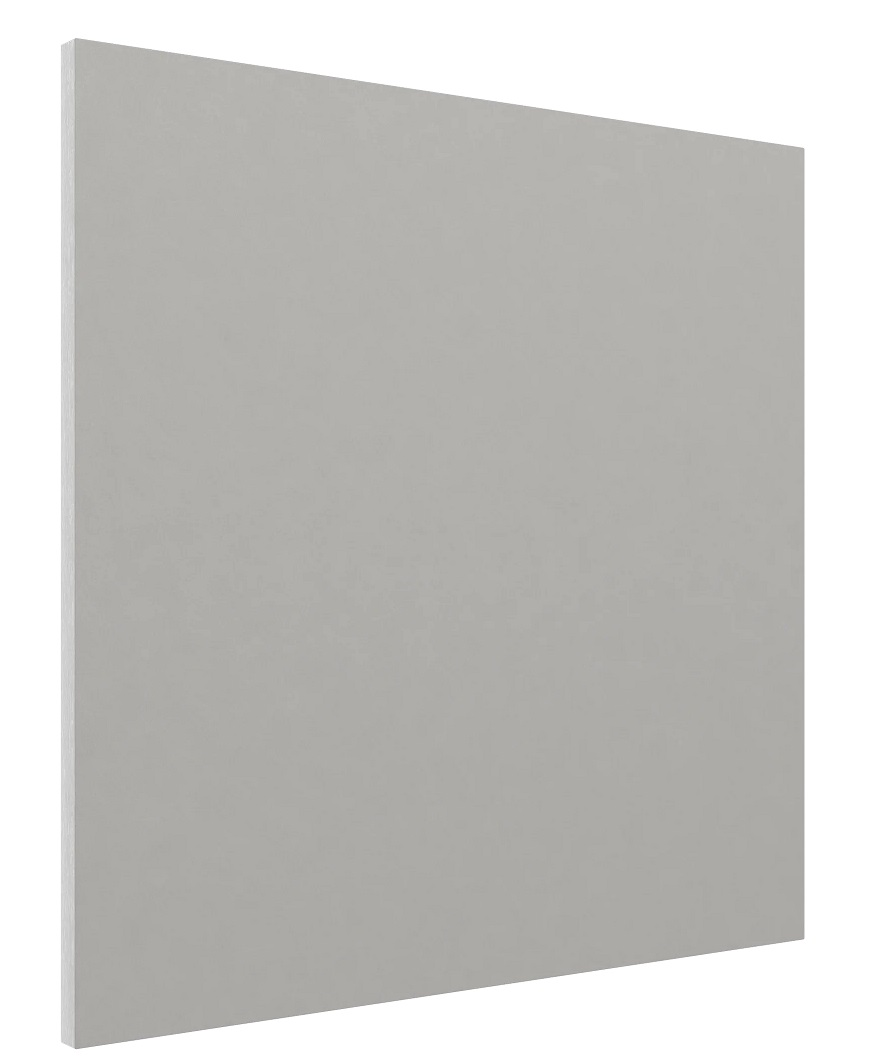

Flat Panel VMT Light Grey 23a 20mm (Box of 8 pcs)

Code: 8219

Sound Absorber Acoustic Panel

Price: €338.00
Price: €338.00
BUY Online: €299.00
BUY Online: €299.00
You Save €39
You Save €39
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

Vicoustic article: B04061

Walls and ceiling sound absorber acoustic panel made from VicPET Wool, produced mainly from recycled plastic bottles, in 60cm and a wide range of color options

Flat Panel VMT is a cutting-edge acoustic panel designed and manufactured by Vicoustic, using VicPET Wool—a non-woven textile made primarily from recycled plastic bottles and optimized for excellent sound absorption.

Thanks to the advanced dyeing technique introduced by Virtual Material Technology, Flat Panel VMT panels are offered in a broad selection of Solid Colors, combining performance with vibrant aesthetics.

Acoustic panels with the unique VMT technology also allow custom designs, including the printing of images, logos and company signage, that can be industrially bonded to the panels without losing their acoustic qualities.

Flat Panel VMT panels are designed to perform primarily in the medium and high frequencies. Therefore, these panels provide a great acoustic solution to implement in any commercial or residential setting and can be used on ceilings and walls.

The applications for Flat Panel VMT are infinite, making it perfect for both new construction and refurbishment projects.

The VMT acoustic panel can be fixed to any surface with Vicoustic fixation solutions, such as high tack glue.

    • Dimensions: 595x595x40mm / 23.4"x23.4"x1.6" (LxHxW, unit)
    • Weight: 0.55kg / 1.21lb (unit)
    • Raw Materials: VicPET Wool
    • Thermal Properties: A) Lambda-10: 34.37 mW/(m*K); R-10: 0.6197 m2K/W; TC: 0.1558 mW/(m*k2); B) Lambda-10: 37.12 mW/(m*K); R-10: 1.1449 m2K/W; TC: 0.1922 mW/(m*k2)W
    • Density: A) 1600gsm, ~80kg/m3; B) 1600gsm, ~40kg/m3
    • Functions: Absorption
    • Quantity: 4 or 8 units /box
    • Box Dimensions: BOX8: 665x675x360mm / 26.2"x26.6"x14.2"
    • Gross Weight: A) BOX8: 7.60kg / 16.76lb; B) BOX8: 7.60kg / 16.76lb
  • Absorption Frequency Range: Medium and High Frequencies

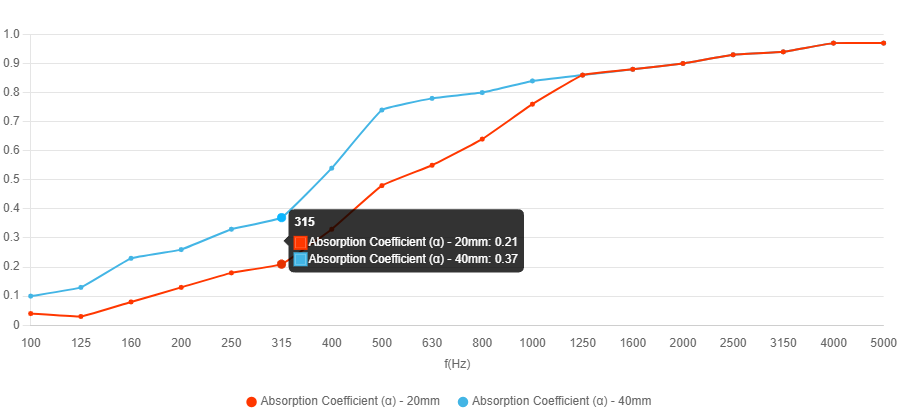

  • NRC: 0.55 (20mm); 0.70 (40mm)
  • αw: 0.45 (20mm); 0.60 (40mm)
  • Class: D (20mm); C (40mm)
  • Europe: Euroclass B -s2, d0
  • United States: Class A (ASTM-E84)
  • Canada: 20mm) CAN/ULC S102, Flame Spread Rating: 5, Smoke Developed Class.: 115
  • Placement: Ceiling, Walls
  • Fixation/Accessories: Flexi Glue Ultra ; AluFrame VMT T ; VicSpacer MKII ; VicSpacer Plus MKII ; VicSpacer XXL
  • Unless specified, accessories are sold separately.
