Pro Passive Speakers

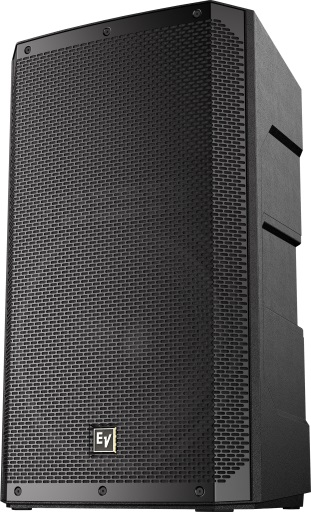

ELX200-15

Code: 7780

15" passive loudspeaker

Price: €700.00
Price: €700.00
BUY Online: €630.00
BUY Online: €630.00
You Save €70
You Save €70
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels.

Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

    • 1200 W (peak), 130 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
    • 1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
    • High-output EVS-15M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
    • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
    • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
    • WHERE T
  • Suspension    (3) M10 suspension points
  • Minimum Impedance    7.0Ω
  • HF Transducer    DH-1L 1-inch titanium compression driver
  • SPECIFICATIONS
  • Speaker Type    Full-Range
  • Woofer Size    15inch
  • Powered or Passive    Passive
  • Frequency Response (-3 dB)¹    77 Hz - 16 kHz
  • Frequency Range (-10 dB)¹    52 Hz - 19 kHz
  • Max. SPL/1m (calc)²    130dB
  • Coverage (Nominal -6 dB) H    90°
  • Coverage (Nominal -6 dB) V    60°
  • LF Transducer    EVS-15M 381 mm (15 in)
  • Power Rating    1200W
  • Crossover Frequency    1.6 kHz
  • Connector Type    Dual NL4
  • Enclosure Material    Polypropylene composite
  • Grille    18 AWG steel with powdercoat
  • Available Color    Black or White
  • Height    27.95" (710mm)
  • Width    16.65" (423mm)
  • Recommended High-Pass Frequency    42Hz
  • Depth    15.12" (384mm)
  • Weight Net    41.23lbs (18.7kg)
  • Shipping Weight    47.18lbs (21.4kg)
  • Family    ELX200
  • Nominal Impedance    8Ω
  • Axial Sensitivity (SPL, 1 W @ 1 m)    95dB
  • Power Handling (Continuous / Peak)    300W/1200W
