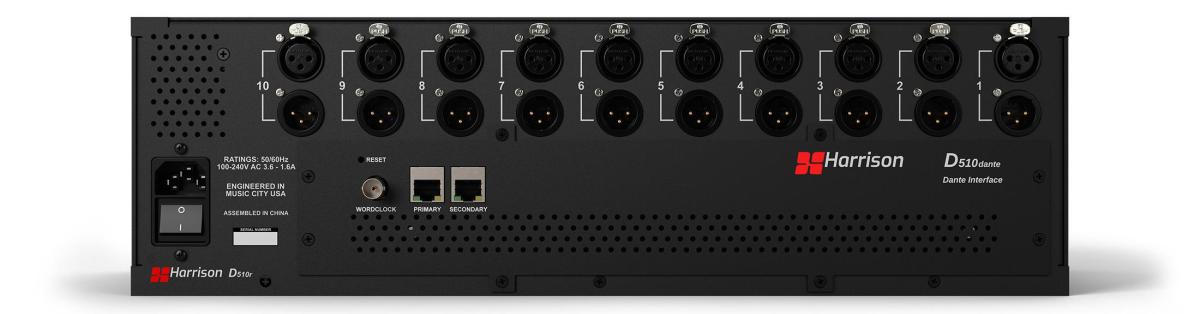

D510r Dante Rear 6b50d717e579e7cbef889bba8d5f4c93

D510dante AoIP Interface

Code: 8006

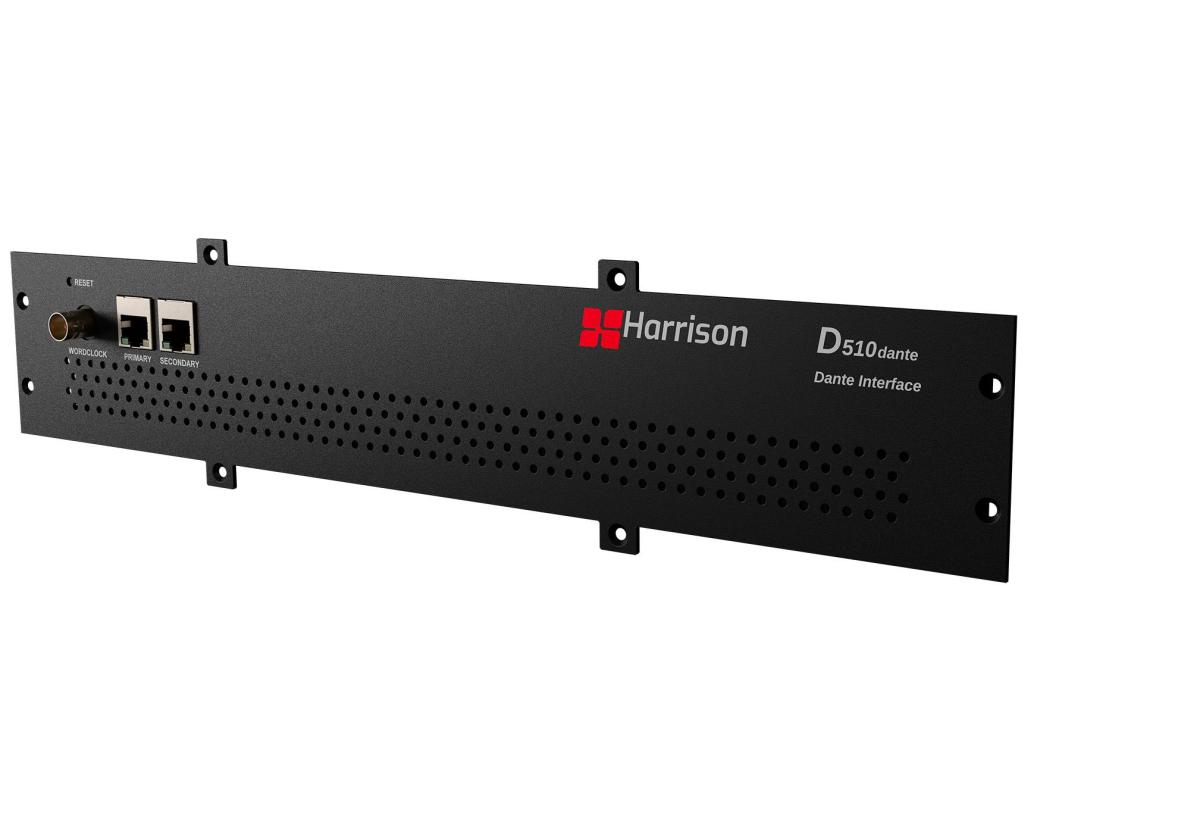

Dante Interface for D510 System

Pre-Order

Enquire to be notified upon availability

years

Ultra-flexible Harrison 500 Series System

The Harrison D510r is an ultra-flexible ten-slot 500 Series rack system with expandable analog summing mixer, Dante AoIP interface, or USB interface options. Built on a legacy that shaped the sound of legends like Michael Jackson, Led Zeppelin, and Steely Dan, Harrison continues to push the boundaries of music and audio production. Whether in the studio, on stage, or the big screen, Harrison’s design philosophy remains focused on delivering the sonic excellence and flexibility that modern artists, producers, and engineers need.

Audio over IP connectivity for live sound and studio

Built around 10 in/14 out, high-performance A/D & D/A converters for pristine audio quality, the D510dante card brings the power of Dante AoIP to your Harrison 500 rack. Easily integrate 500 Series processing into your mix bus, subgroups, or channel inserts on a Dante-compatible live sound console. In a hybrid studio setup, take full advantage of Dante’s flexible routing matrix to send and receive audio seamlessly across your modules.



    • Dante interface card for D510r 500 Series chassis
    • Easily integrate your favorite modules into an AoIP network
    • Integrated Gigabit Ethernet switch
    • 10 x 14 I/O; Standard RJ45 network connectors
    • Sampling rates: 44.1/48kHz–88.2/96kHz
    • High-performance AKM Velvet AD/DA Converters
    • AD/DA frequency response: 20Hz–20kHz (+/- 0.25dB)
    • 2 RJ45 redundant network ports (primary, secondary)
    • BNC TTL word clock
  • Type:Dante Module
  • Compatibility:Harrison D510
  • Inputs:10
  • Outputs:14
  • Data I/O:2 x Ethernet (Dante)
  • Clock I/O:1 x BNC
  • Manufacturer Part Number:723732X1
