Neumann

BCM 705

Code: 1053

Dynamic Microphone for Broadcasting

Contact for Price

Pre-Order

Enquire to be notified upon availability

years

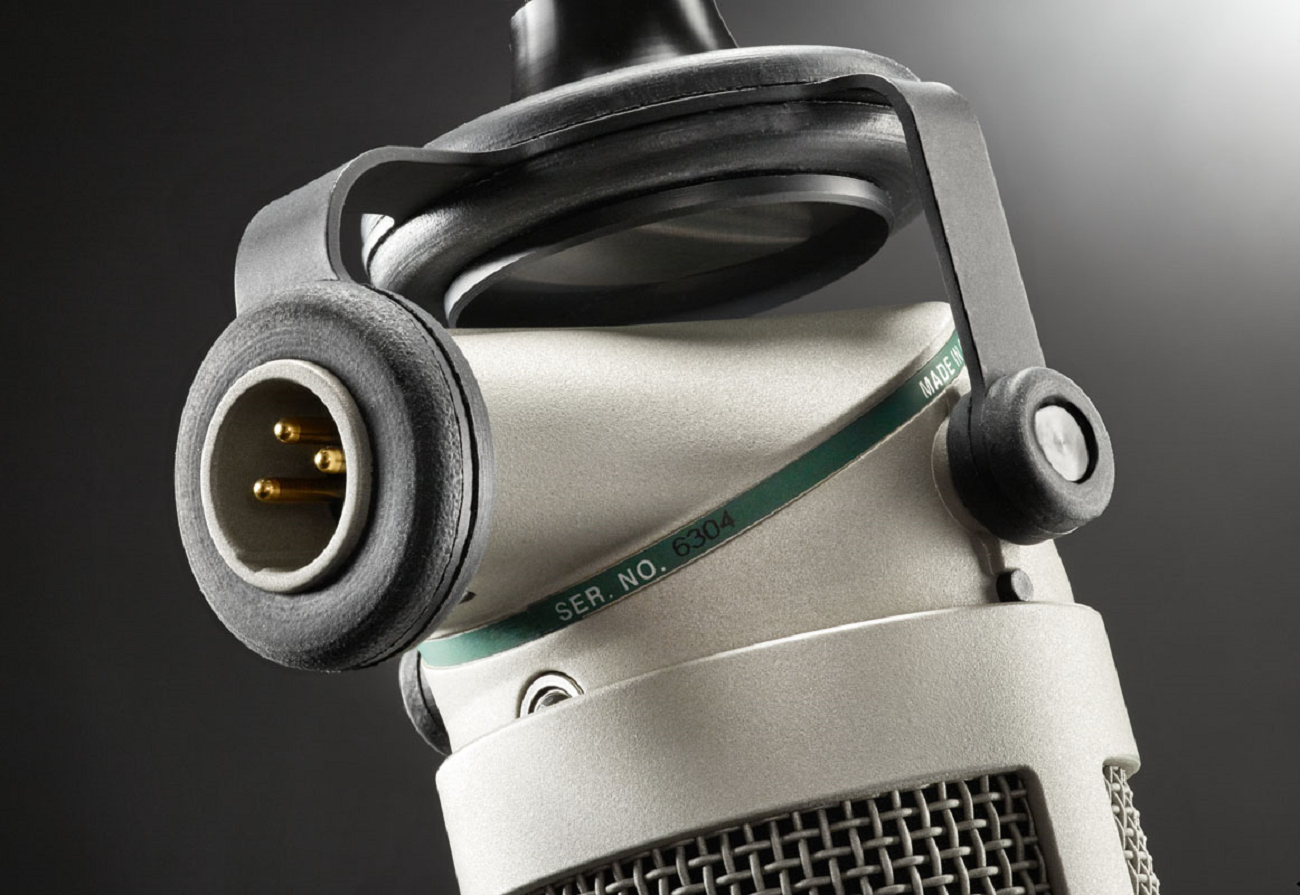

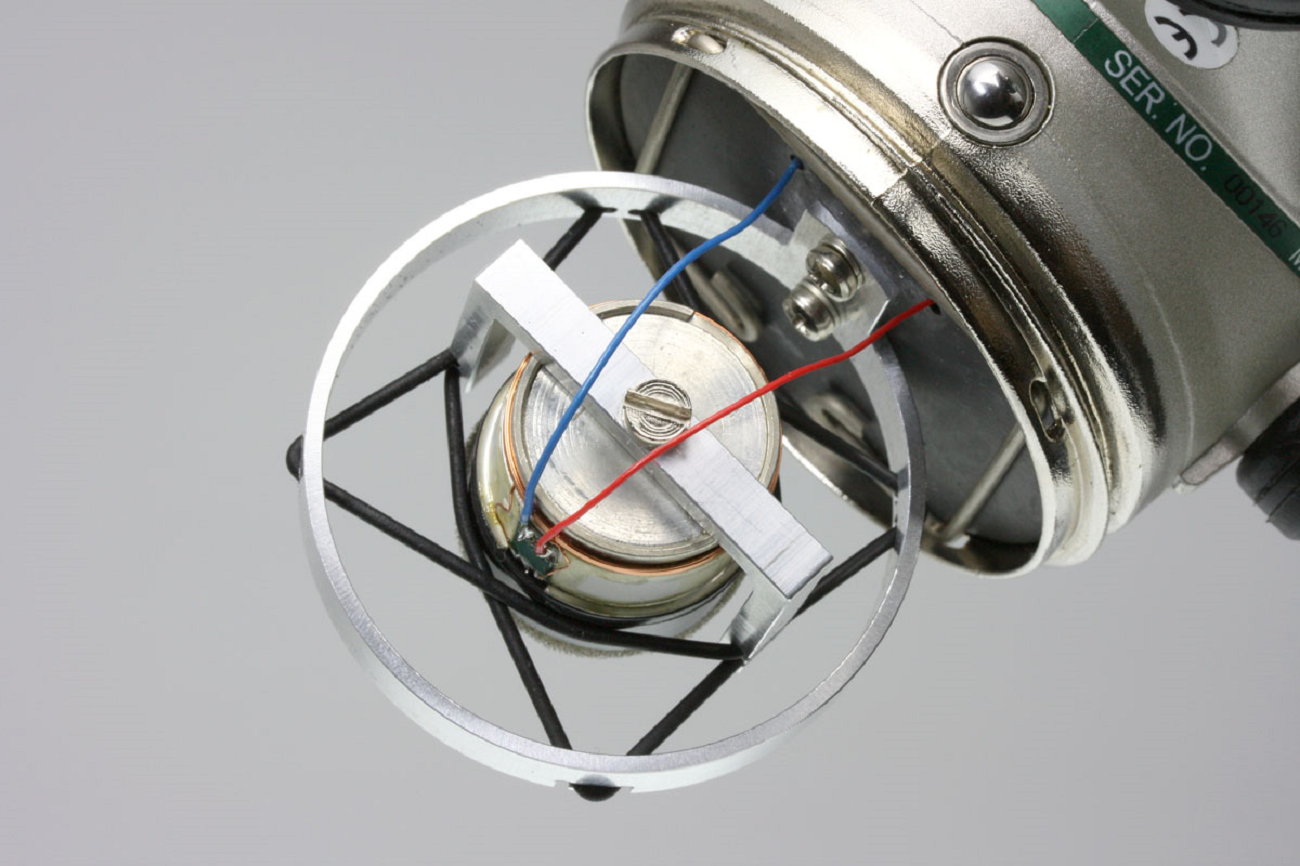

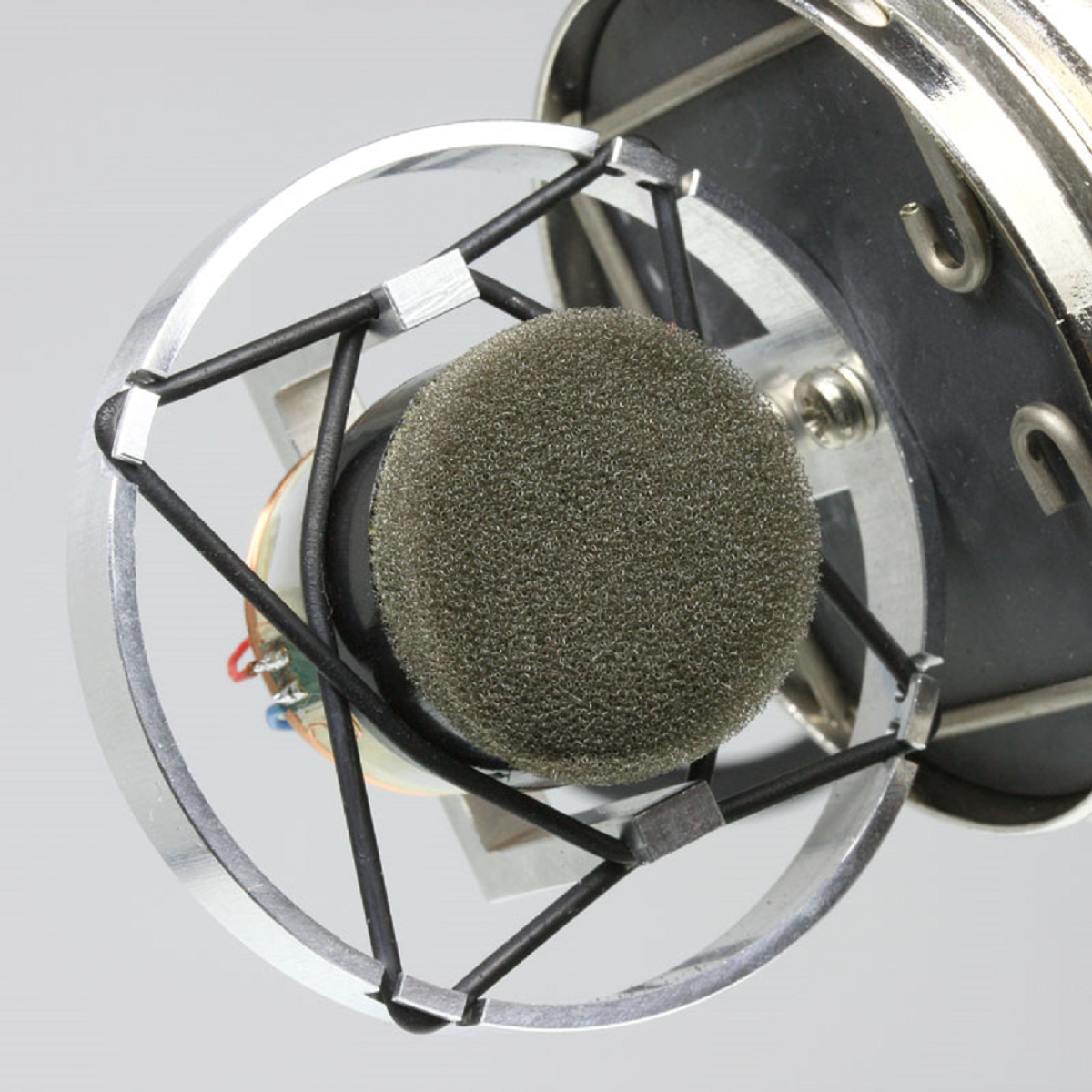

The BCM 705 is a dynamic studio microphone with a hypercardioid directional characteristic. It is especially designed for speech reproduction at close range and thus features an integrated pop screen. The frequency response is tailored to compensate bass boost due to the proximity effect. The headgrille and pop screen can be removed without the use of tools, permitting easy cleaning or replacement. The BCM 705 is designed so that it can be suspended from most standard microphone arms.

    • Dynamic supercardioid microphone for broadcast & studio
    • Does not require a power supply
    • Integrated elastic suspension
    • Integrated pop screen
    • Quick release head grille for easy cleaning
    • Individual head grilles available for each user
  • Acoustical operating principle: Pressure gradient transducer
  • Directional Pattern: Hypercardioid
  • Frequency Range: 20Hz ... 20kHz
  • Sensitivity at 1 kHz into 1 kohm: 1.7mV/Pa = –55.4dB ± 1dB
  • Rated Impedance: 200ohms
  • Rated load impedance: 10kohms
  • Equivalent noise level: 32dB
  • Equivalent noise level, A-weighted: 18dB-A
  • Signal-to-noise ratio: 62dB
  • Signal-to-noise ratio, A-weighted: 76dB
  • Weight: 500g
  • Diameter: 64mm
  • Length: 85mm
  • Height: 110mm (without suspension)
