ATW 1301 System 10 Pro Single Unipak System 2

ATW-1311 System 10 Pro Dual Unipak Wireless System

Code: 6802

System 10 PRO Digital Wireless

Price: €948.00

BUY Online: €878.00

You Save €70

including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout

Add to Cart

Pre-Order

Enquire to be notified upon availability

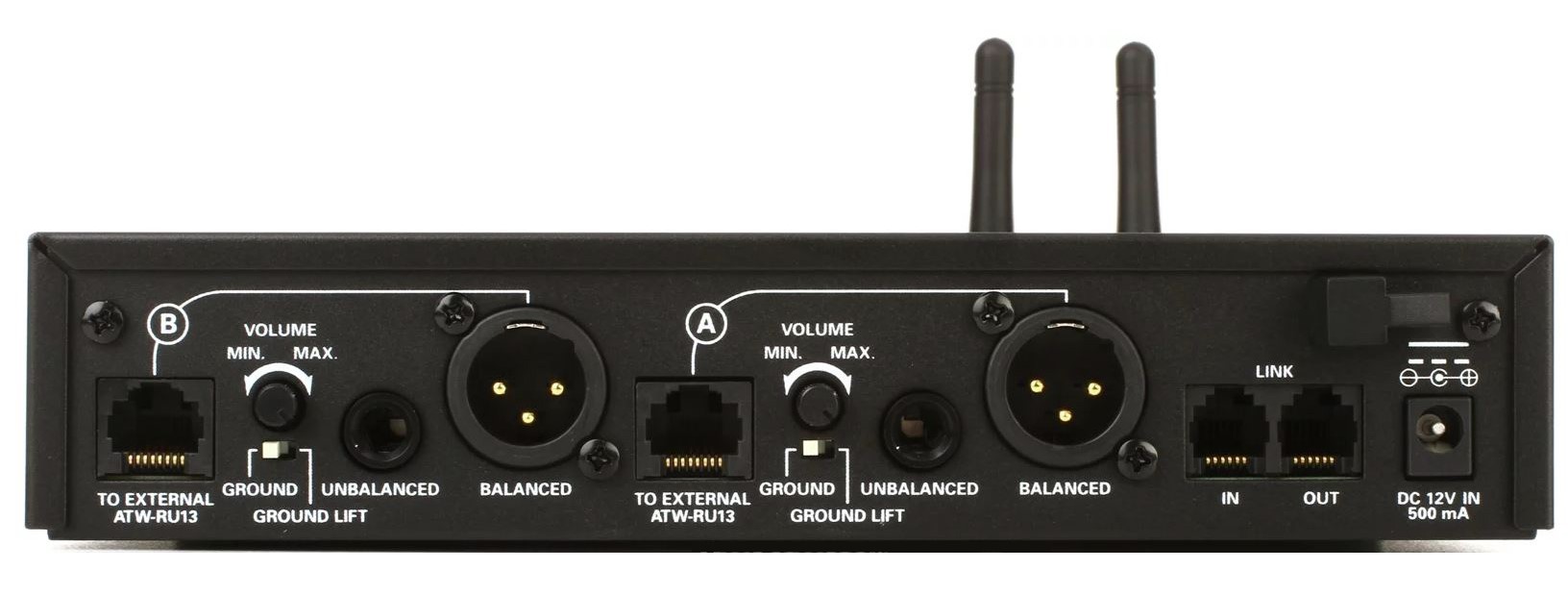

The Audio Technica System 10 PRO ATW-1311 wireless microphone system includes a rack mountable dual receiver chassis fitted with two receivers, with two beltpack transmitters. Operating on 2.4GHz, free from interference from TV frequencies and licence free.

The system offers three levels of diversity: frequency, time and space. Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimize immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

For Two Presenters or Performers
2 x Lav Mics + 2 x Bodypack Transmitters
Receiver Link for Multichannel Setup
2 x Triple-Diversity Rackmount Receivers
Remote-Mountable Antennas
7 Hours on AA Batteries
Expandable to 10 Mic Channels/200' Range

Overall System
Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response: 20 Hz to 20 kHz (Depending on microphone type)
Operating Range: 60 m (200') Open range env. with no interfering signals
Total Harmonic Distortion: <0.05% typical
Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures.
Body Pack
RF Power Output 10 mW
Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
Battery Type: Two 1.5V AA not included
Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Input Connections:
Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,

Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight: 100 grams (3.5 oz) without batteries
Spurious Emissions: Following federal and national regulations
Receiver
Receiving System: Diversity (frequency/time/space)
Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
Dimensions: 209.8 mm (8.26") W x 44 mm (1.73") H x 169.3 mm (6.67") D
Weight 940 grams (33.2 oz)
Accessories Included: AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
Output Connector:
Remote Receiver Connector: RJ45
Link Connector: RJ12
