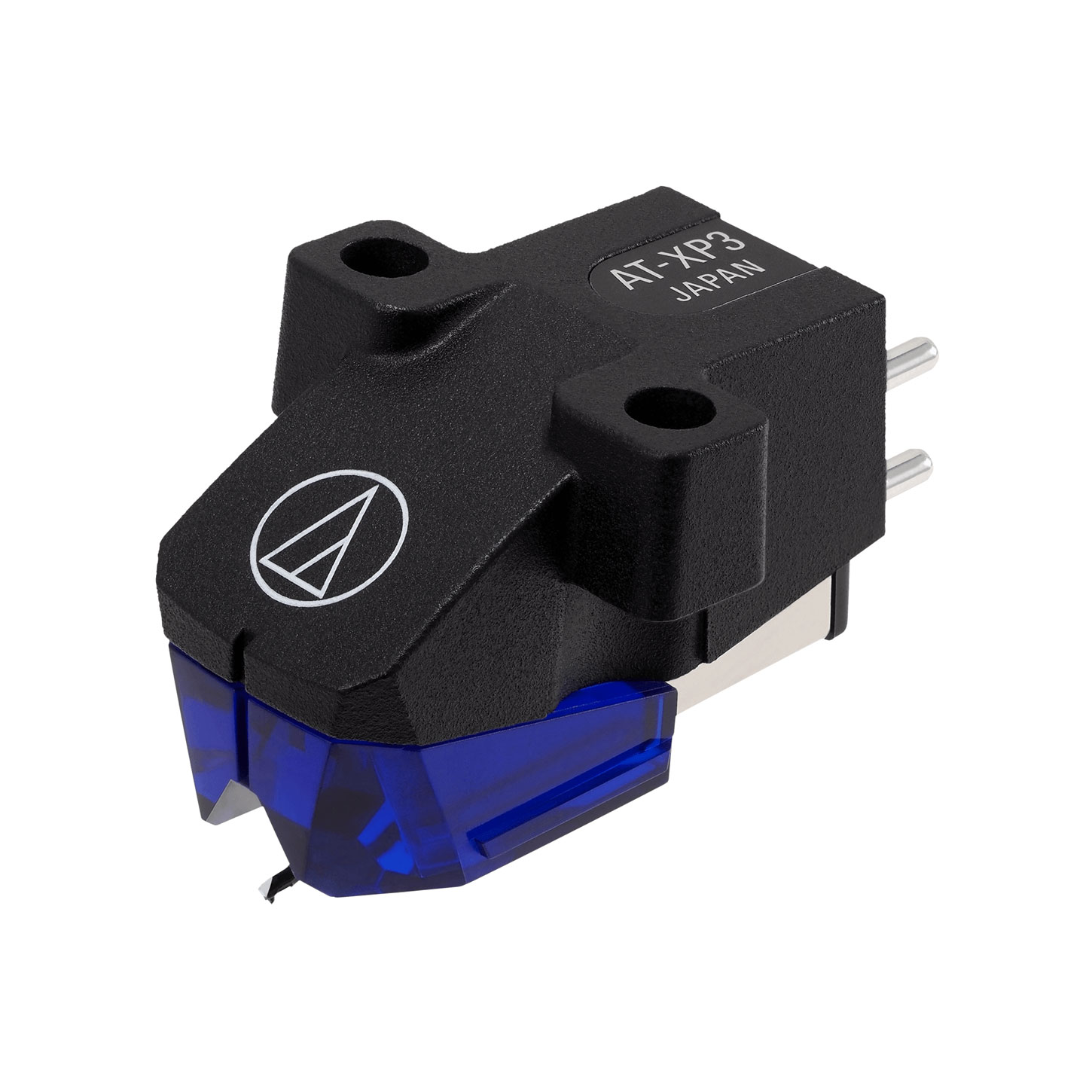

AT-XP3 Phono Cartridge

Code: 4853

Dual Moving Magnet Stereo DJ Cartridge

Price: €68.00
Price: €68.00
BUY Online: €65.00
BUY Online: €65.00
You Save €3
You Save €3
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

The AT-XP series cartridges provide a high quality sound for vinyl DJ’s. Offering all of the features of a DJ cartridge, but with a Hi-fi sound, the XP series are perfect for the stage and club DJ who prioritises sound quality.



Accessories Included:
Two 11 mm installation screws
Two 8 mm installation screws
Two washers
Two Nut
Non-magnetic screwdriver

    • Audiophile DJ cartridge equipped with a conical stylus
    • VM dual magnet construction
    • Durable robust design for high-quality specialist DJ playback
    • Signal output level and output impedance characteristics suited for professional DJ applications
    • Carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
    • Compatible with the replacement styli ATN-XP5 and ATN-XP7 for an upgrade
    • Configuration as single cartridge (AT-XP3), Replacement Stylus (ATN-XP3) and as headshell bundle together with the headshell AT-HS6BK available (AT-XP3/H).
  • Mounting: Half-inch
  • Frequency Response: 20 to 18,000 Hz
  • Channel Separation: 20 dB (1 kHz)
  • Output Channel Balance: 2.0 dB (1 kHz)
  • Output Voltage: 5.5 mV (at 1 kHz, 5 cm/sec)
  • Vertical Tracking Angle: 20 degrees
  • Vertical Tracking Force Range: 2.0 to 4.0g (standard 3.0 g)
  • Stylus Shape: Conical
  • Stylus Size: 0.6 mil
  • Stylus Construction: Bonded Round Shank
  • Cantilever: Carbon reinforced ABS
  • Coil Impedance: 6,700 ohms (1 kHz)
  • Coil Inductance: 550 mH (1 kHz)
  • Static Compliance: 20 x 10 – 6 cm / dyne
  • Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)
  • Recommended Load Impedance: 47,000 O
  • Recommended Load Capacitance: 100-200 pF
  • Cartridge Weight: 6.2g
  • Dimensions: 17.2 x 17.8 x 28.3 ( H x W x D mm)
  • Replacement Stylus: ATN-XP3
