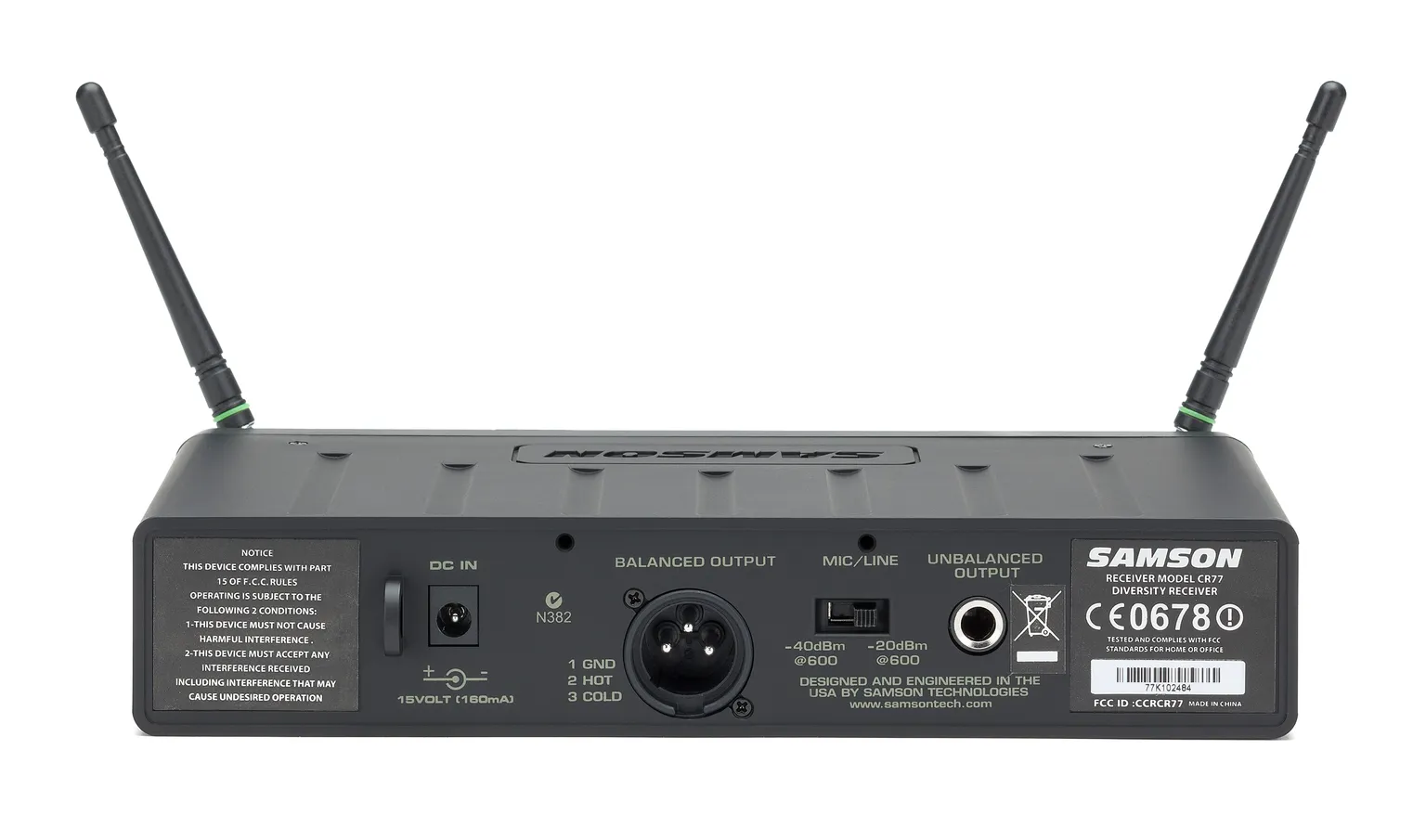

CR77 Back Panel

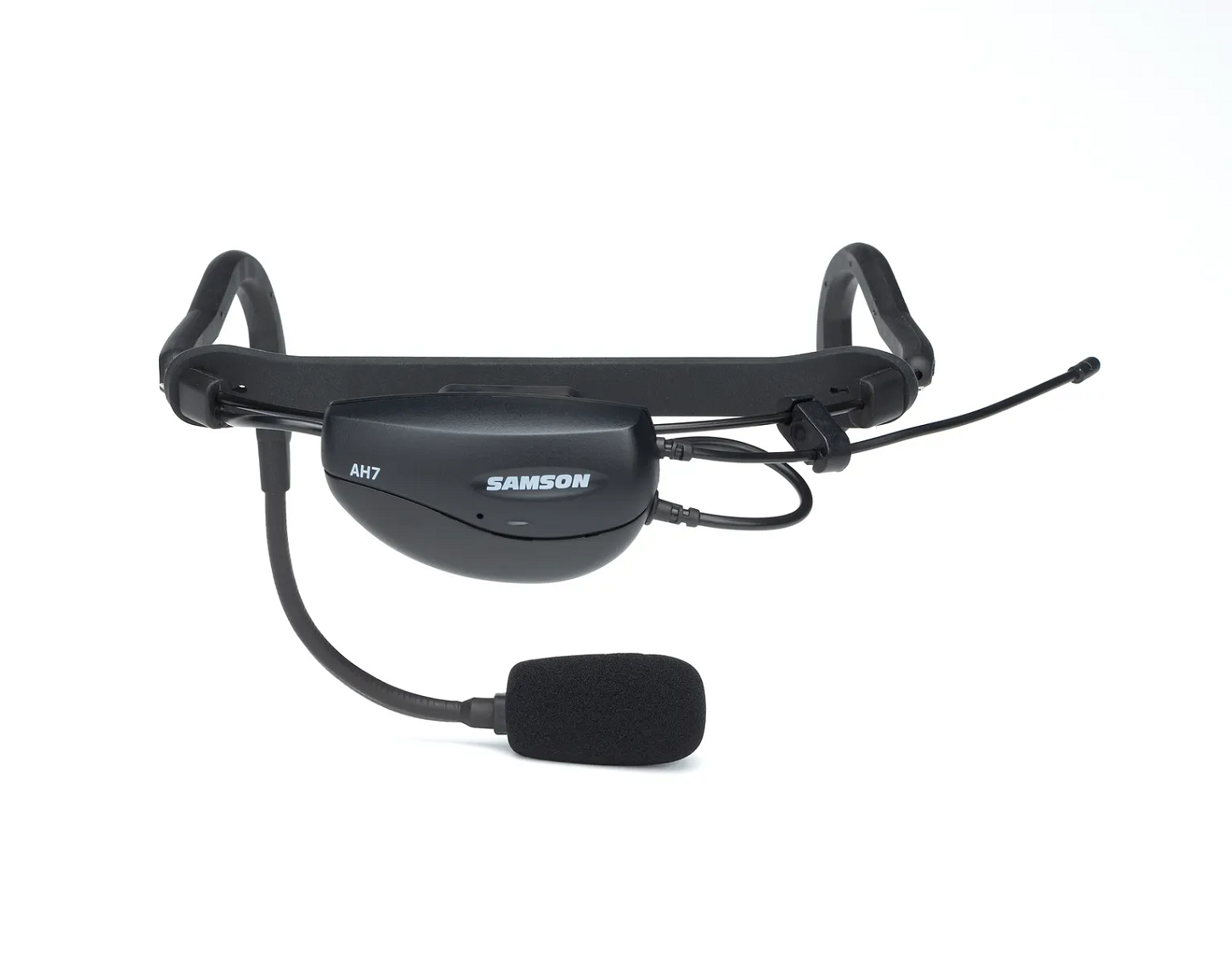

AH7 Qe Headset HO 1a Rev2

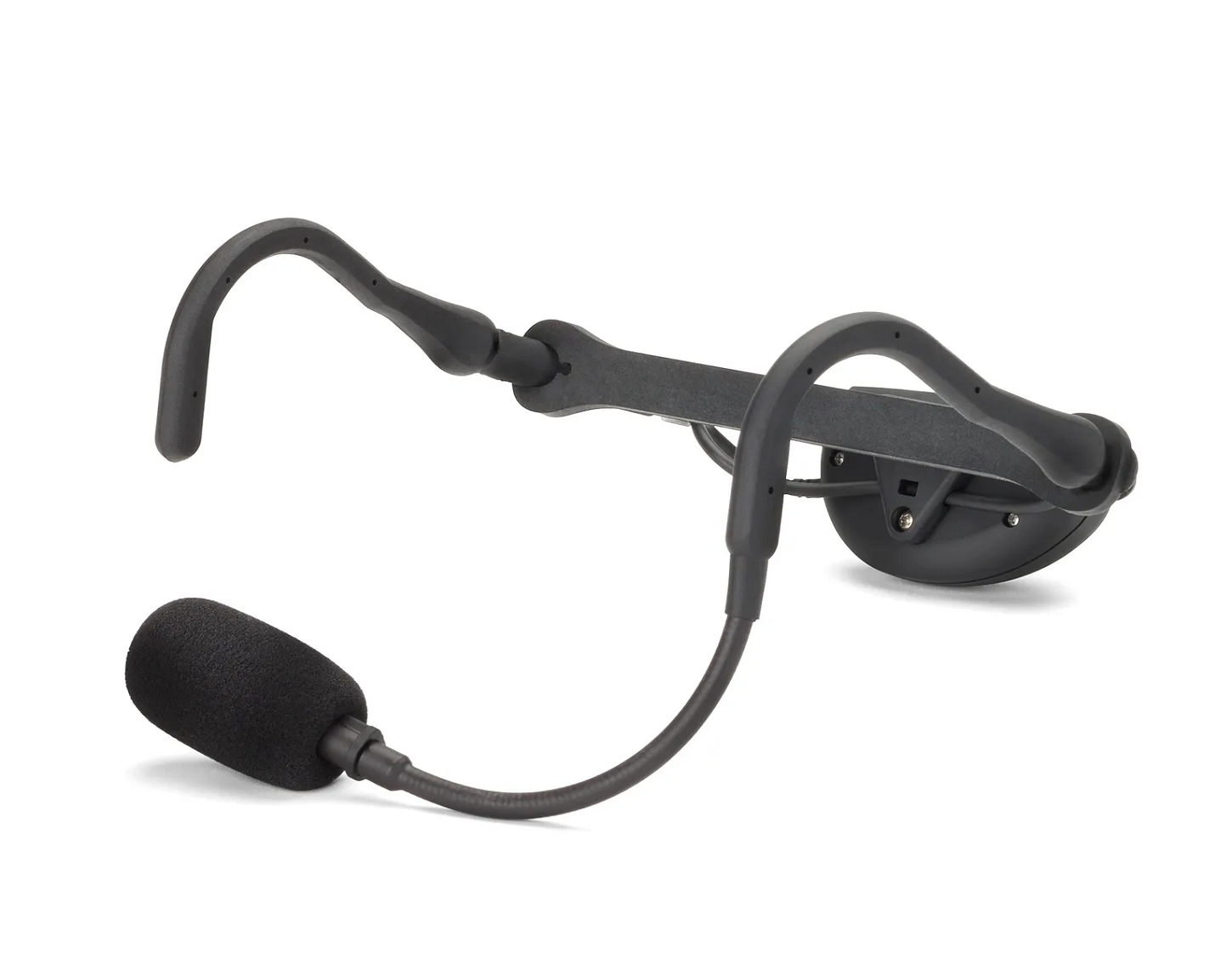

AH7 Qe Headset

AirLine 77 AH7 Fitness Headset

Code: 7959

Headset Wireless System

Price: €478.00
Price: €478.00
BUY Online: €398.00
BUY Online: €398.00
You Save €80
You Save €80
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

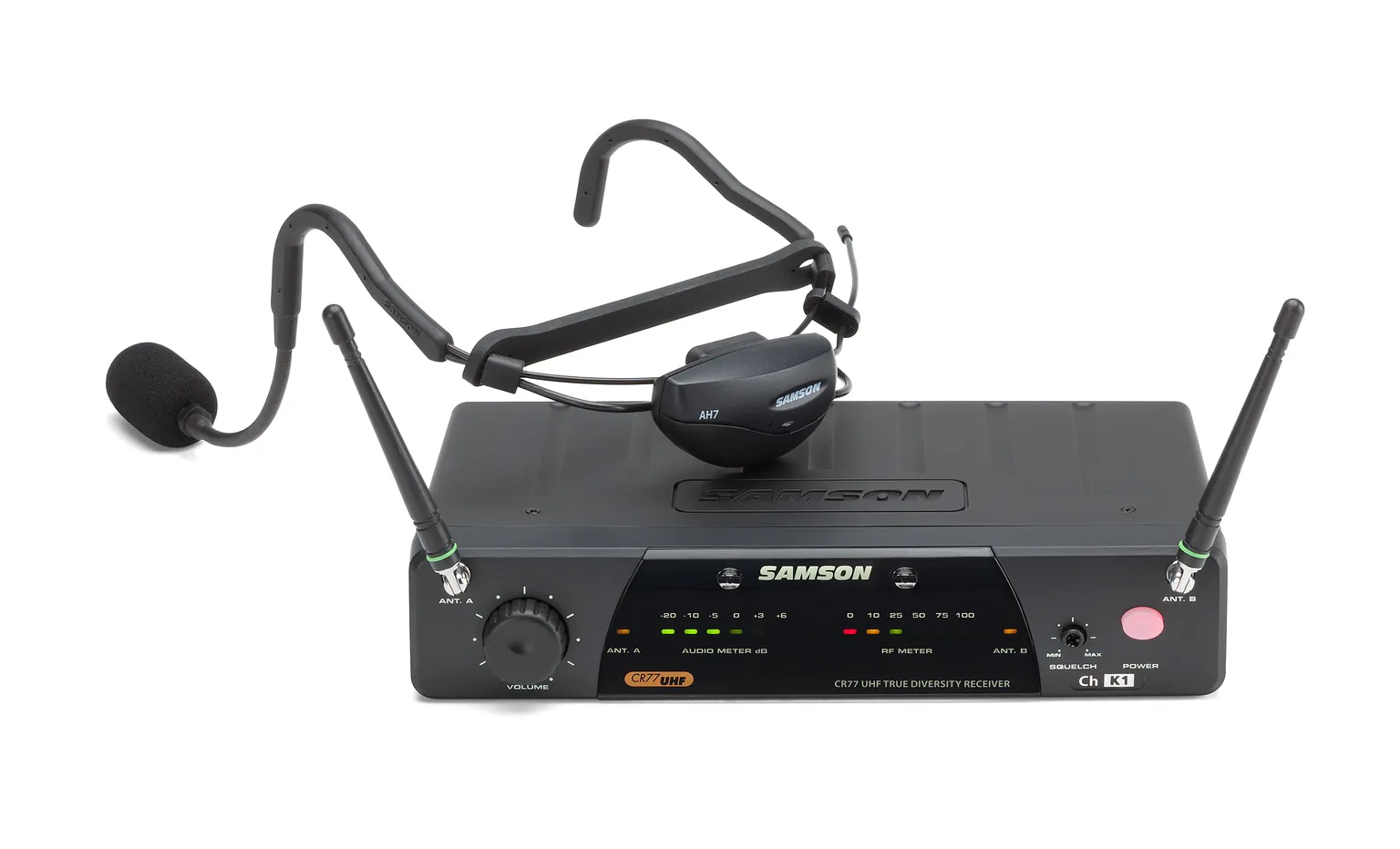

The Samson AirLine 77 AH7 Fitness Headset system is a wireless microphone solution designed to meet the specific demands of fitness instructors and active performers.

    • Up to 300' (90m) operating range (line-of-sight)
    • Available in multiple channels (region dependent)
    • AC adapter and 1/4" audio cable included
    • Fitness headset with mounted micro transmitter (no beltpack or cable required)
    • Qe condenser microphone element with bidirectional pickup pattern
    • Sweat-resistant mic design for high-energy instructors/performers
    • Up to eight hours of battery life using single AAA battery
    • Power/Low battery LED indicator
    • Internal Power switch
    • True Diversity design minimizes dropouts
    • Mountable half-rack chassis
    • 1/4-wave antennas
    • Multi-segment audio and RF level LED meters
    • Volume and squelch controls
    • Balanced XLR output, unbalanced 1/4" output
    • Mic/Line level output switch
  • Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum
  • Current Consumption: 60mA Typical
  • Battery Life: 8 Hours (AAA size battery)
  • RF Output Power (5mW): -4dB Minimum, +3dB Maximum
  • THD: < 2% (1 kHz deviation 15kHz)
  • Audio Frequency Response: 50Hz - 15kHz (±3.5 dB)
  • Controls: Internal Power Switch
  • Indicators: Power On (LED Flash), Low Battery (LED On)
  • CR77 Receiver Oscillation Type: PLL
  • Antennas: 1/4 Wavelength Rod
  • Indicators: Receiver A/B (Green), Power On (Red), AF Level (6 segment), RF Level (6 segment)
  • Level Control: Audio Level Volume, Squelch Level Control
  • Operating Temperature: 0° C / 50° C
  • Operating Voltage: 12 Volts ±10%
  • Current Consumption: 160 mA (all LED lights illuminated)
  • Sensitivity: 18 dBm (@ THD 2%)
  • Squelch Sensitivity: 0 - 40 dBm (Adjustable)
  • T.H.D. (Overall): 1% Max (@AF 1 kHz, RF 46 dBu)
  • S/N Ratio (Overall): 90 dB (w/IHF-A Filter)
  • Residual Noise: 90 dBv (w/IHF-A Filter)
  • AF Frequency Response: 50 Hz – 15 kHz (±3 dB overall)
  • Audio Output Level: Unbalanced: 0 dBv; Balanced: -20 dBm (Line), -40 dBm (Mic)
  • Audio Output Impedance: Unbalanced: 5 kΩ; Balanced: 600 Ω
