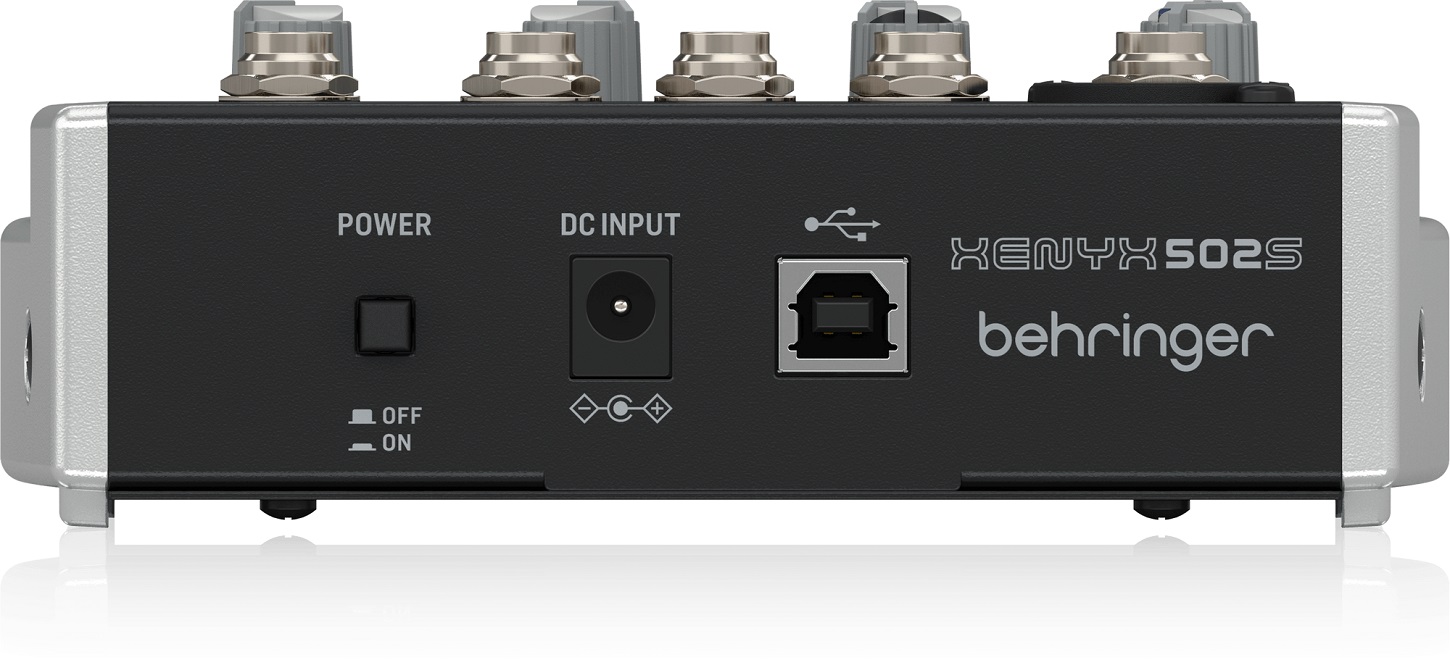

Image BE 0601 AHT XENYX 502S Rear XL

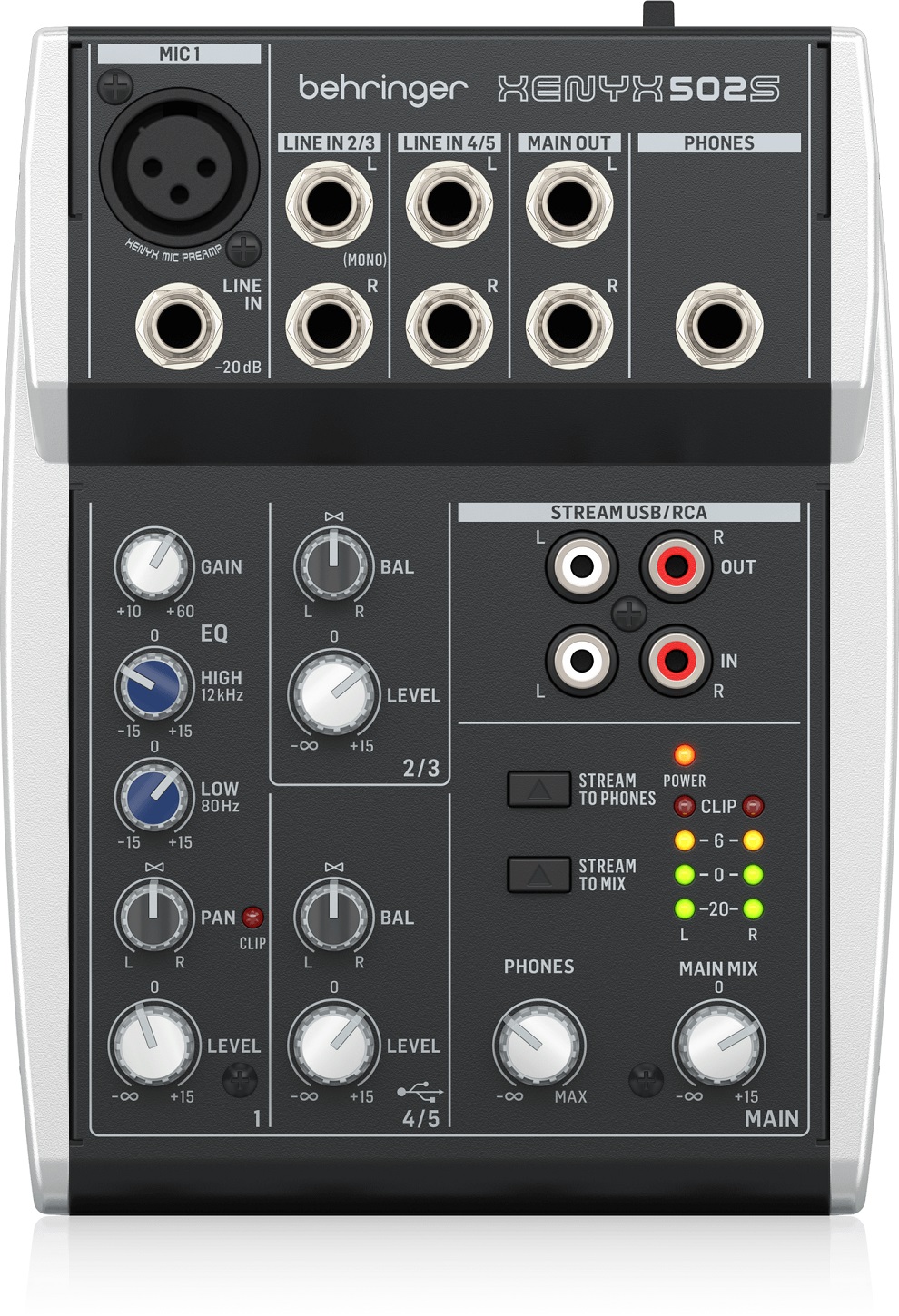

Image BE 0601 AHT XENYX 502S Top XL

Behringer

XENYX 502S

Code: 7640

Premium Analog 5-Input Mixer with USB Streaming Interface

Price: €94.00
Price: €94.00
BUY Online: €86.00
BUY Online: €86.00
You Save €8
You Save €8
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Get it within 24 hours, at your closest courier!
With free delivery for orders total € 100 +
Add to Cart

In Stock

years

XENYX 502S
The ultra-compact XENYX 502S mixer’s 5 inputs allow you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting and recording. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamp.

Great for Any Setup
The new XENYX “S” series can be connected to computers or mobile devices via USB making it super easy to integrate digital sources with analog equipment. One mono and 2 stereo channels allow you to mix up to 5 signals, blending them to a stereo RCA streaming input and a stereo USB input. That is a total of 9 crystal-clear audio signals for monitoring via headphones or the high-quality TRS Main outputs. The 502S can also be used as a versatile sub mixer for combining network enabled audio devices with other analog signals.

Amazing Gear at an Affordable Price
The XENYX 502S is a great partner for any dynamic microphone, upgrading your streaming, podcasting or recording setup with a decent microphone input, while simultaneously providing simple, super-convenient control at your fingertips.



    • Microphone Input   :Balanced XLR, discrete input circuit
    • Frequency response Gain +10 dB: 10 Hz to 150 kHz
    • Frequency response Gain +60 dB: 20 Hz to 70 kHz
    • Gain range: +10 dB to +60 dB
    • Max input level  +10 dB Gain: +12 dBu
    • Input Impedance: 2 kΩ balanced
    • Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%
    • Impedance: 22 kΩ balanced, 10 kΩ unbalanced
    • Gain range: -10 dB to +40 dB
    • Max input level @ 0 dB Gain: +21 dBu
    • Frequency response: 20 Hz to 200 kHz
    • Impedance: 22 kΩ balanced, 10 kΩ unbalanced
    • Max input level @ 0 dB Gain: +21 dBu
    • Impedance: 10 kΩ unbalanced
    • Max input level: 10 dBu
    • EQUALIZER Low   :80 Hz/±15 dB
    •  EQUALIZER High  12 kHz/±15 dB
    • Main, Monitor & FX Send Outputs Type   1/4" TRS connector impedance-balanced
    • Impedance  :120 Ω
    • Max output level  21 dBu
    • Phones Out Type   1/4" TRS connector unbalanced
    • Impedance  23 Ω
    • Max output leve  19 dBu/150 Ω
    • STREAM out (Analog) Type  :RCA connector unbalanced
    • Impedance  :1 kΩ unbalanced
    • Max output level :10 dBu
    • Main Mix @ -∞  :-109 dBu A-weighted
    • Channel @ -∞   :-109 dBu A-weighted
    • USB Type   :Type-B connector
    • USB Audio Data  :48 kHz 16 bit
    • UAC2 Class Compliant  stereo in/out
    • Power Consumption
    • 8 W
    • Adaptor input    100 - 240 V~, 50/60 Hz, 0.5 A
    • Adaptor output    18 V DC 1.0 A
