Telefunken

U47

Code: 8033

Diamond series, vacuum tube conderser microphone

Contact for Price

Pre-Order

Enquire to be notified upon availability

The TELEFUNKEN Elektroakustik recreation of the iconic U47 is exact in every detail, down to the historically accurate BV8 transformer and M7 capsule.

For more than 70 years the U47 has been a staple of every professional, top tier recording studio. With an authoritative mid-range and extended low-end response, the U47 excels at everything from vocals and electric guitar, to orchestral and chamber recordings. The TELEFUNKEN Elektroakustik recreation of the U47 large diaphragm tube microphone is true to the original design, even down to the historically accurate BV8 output transformer and M7 capsule, which provides the same rich and vibrant tone that has made the original U47 into a legend.



    • Classic punchy, mid-forward sound with pleasing bite
    • Legendary extended low frequency response
    • Cardioid and Omni polar pattern selection
    • US-made historically accurate M7 center-terminated capsule
    • TELEFUNKEN Elektroakustik VF14k vacuum tube
    • Point-to-point wired in the USA true to the original design

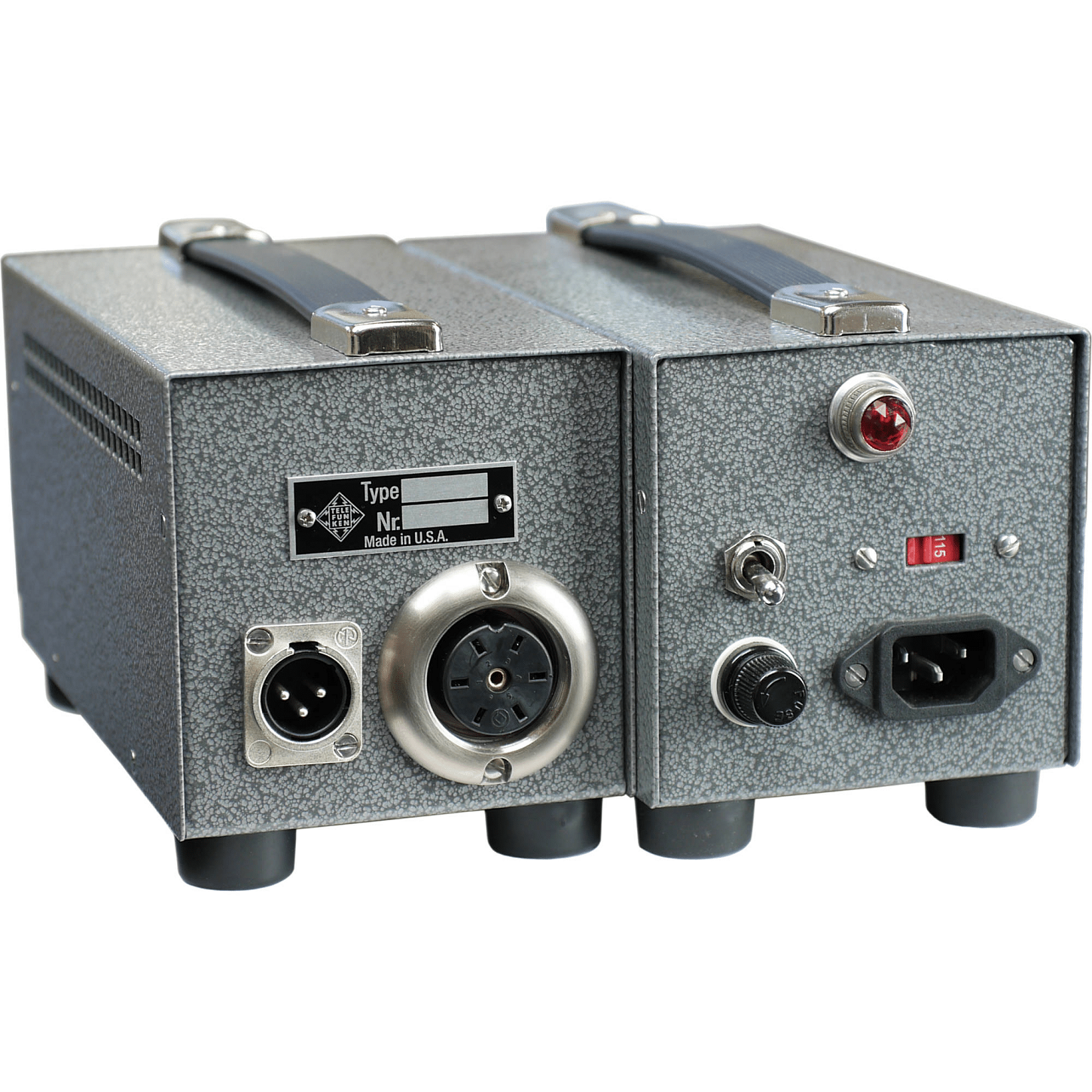

    • Includes American-made vintage-compatible cable and fully regulated power supply
  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid, Omnidirectional
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TELEFUNKEN Elektroakustik M7 – Center Terminated Large Diaphragm
  • Tube: TELEFUNKEN Elektroakustik VF14K
  • Transformer: TELEFUNKEN Elektroakustik BV8
  • Sensitivity: 24.5 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.3%
  • Output Impedance: 200 Ω
  • Maximum SPL (for 1% THD): 127 dB
  • S/N Ratio: 85 dBA
  • Self Noise (Amplifier): 9 dBA
  • Dimensions: 240 mm L x 60 mm Dia
  • Weight: 620 g

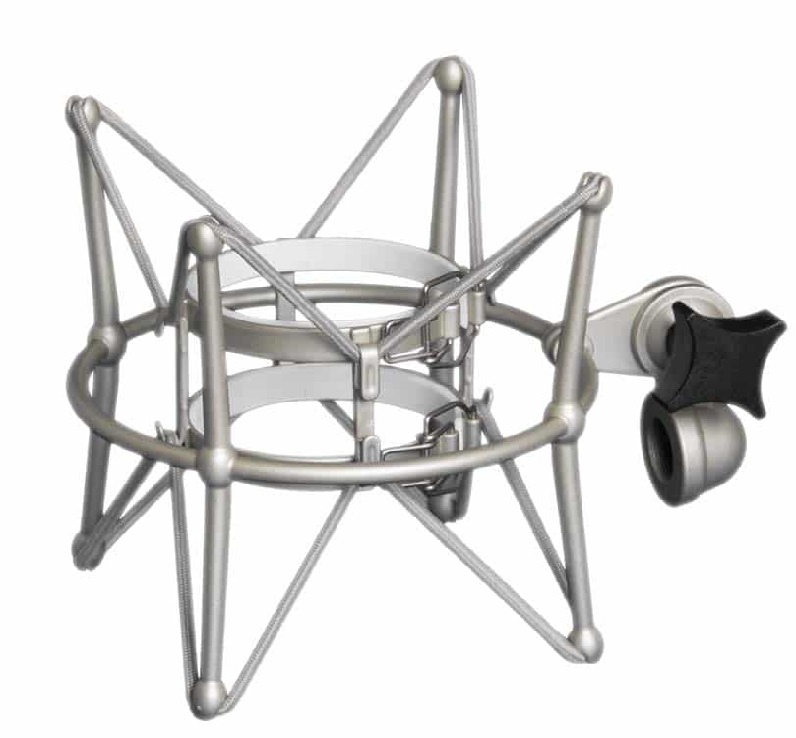

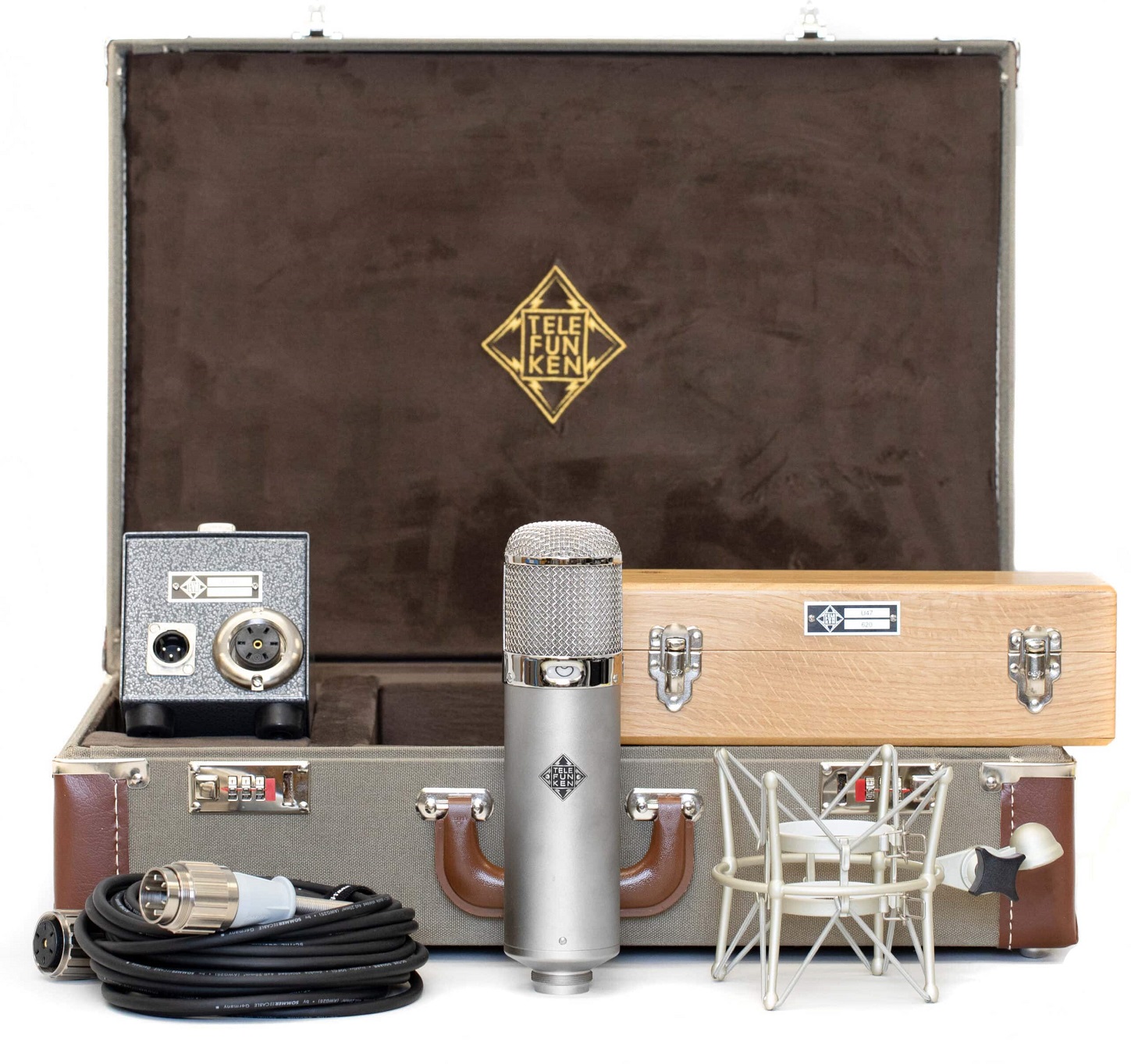

  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case
