Telefunken

TF29 Copperhead

Code: 8038

Alchemy Series Condeser Microphone

Contact for Price

Pre-Order

Enquire to be notified upon availability

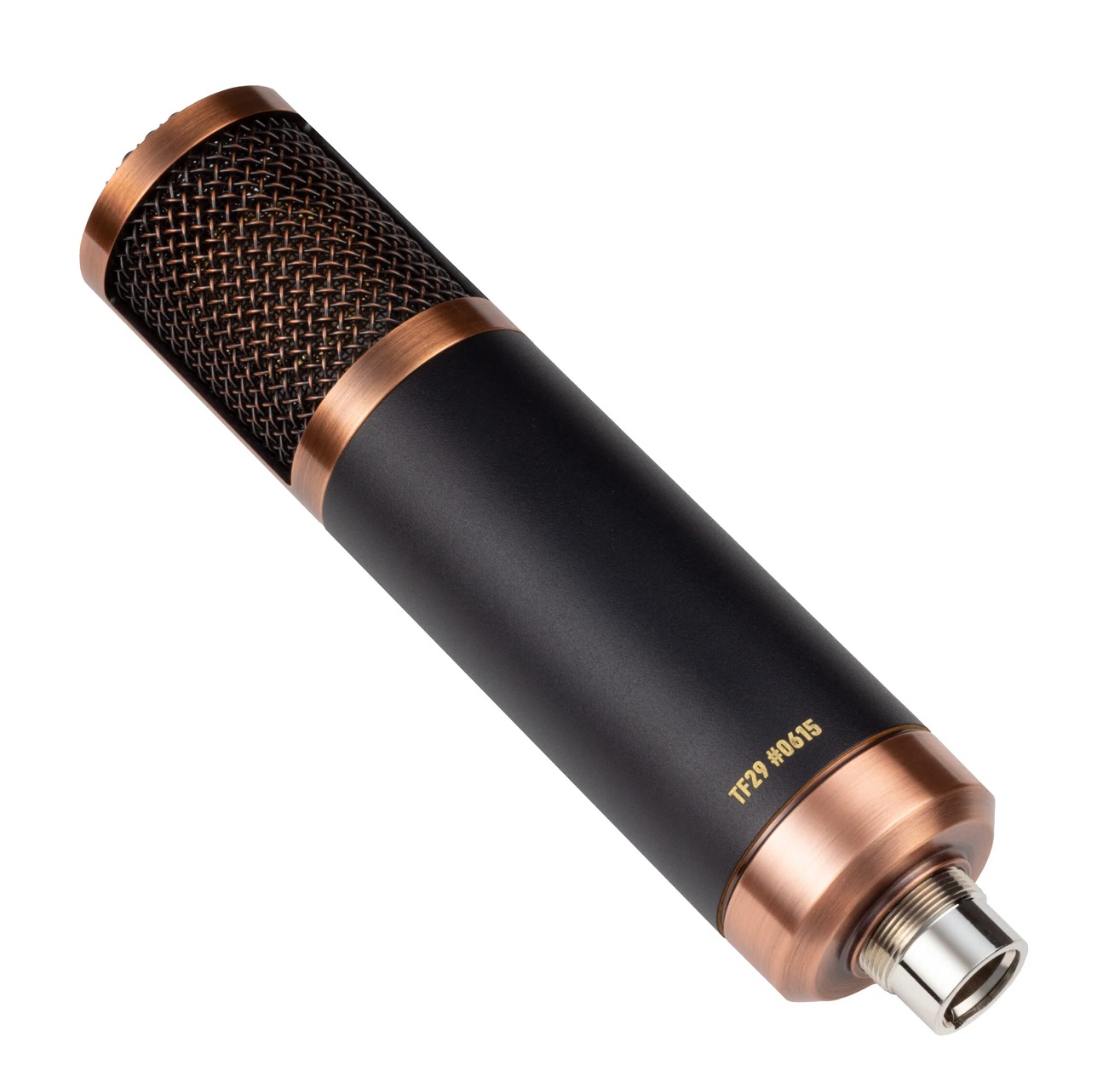

The fixed cardioid TF29 is a workhorse microphone, accurately capturing nearly any source put in front of it with a natural tonality.

The TF29 is an original TELEFUNKEN Elektroakustik design that has garnered fans for its natural and non-hyped tonality and unparalleled “quality for price”. It’s a workhorse microphone with a reputation of outstanding sonic performance and value, capable of accurately and honestly capturing vocals, guitars, drums, and nearly any other source put in front of it. The Cardioid-only TF29 Copperhead is easily distinguishable from the TF39 by the addition of the Cardioid symbol on the front of the microphone.



    • Balanced, natural midrange and high end
    • Extended low frequency response
    • Fixed Cardioid polar pattern
    • Premium Swedish-made Lundahl output transformer
    • New Old Stock General Electric 5654W vacuum tube
    • Designed and hand assembled in the USA
    • Recommended Applications: Vocals, Guitar Amps, Saxophone, Drum Overheads
  • Type: Vacuum Tube Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 20 Hz – 20 kHz, ±3 dB
  • Power Source: External Power Supply
  • Capsule: TK67S Center Terminated Large Diaphragm, Single Membrane
  • Tube: NOS GE 5654W
  • Transformer: Lundahl LL1935
  • Sensitivity: 17 mV/Pa, ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): < 0.3%
  • Output Impedance: < 300 Ω
  • Maximum SPL (for 1% THD): 130 dB
  • S/N Ratio: 87 dBA
  • Self Noise (Amplifier): 7 dBA
  • Dimensions: 200 mm L x 46 mm Dia
  • Weight: 650 g

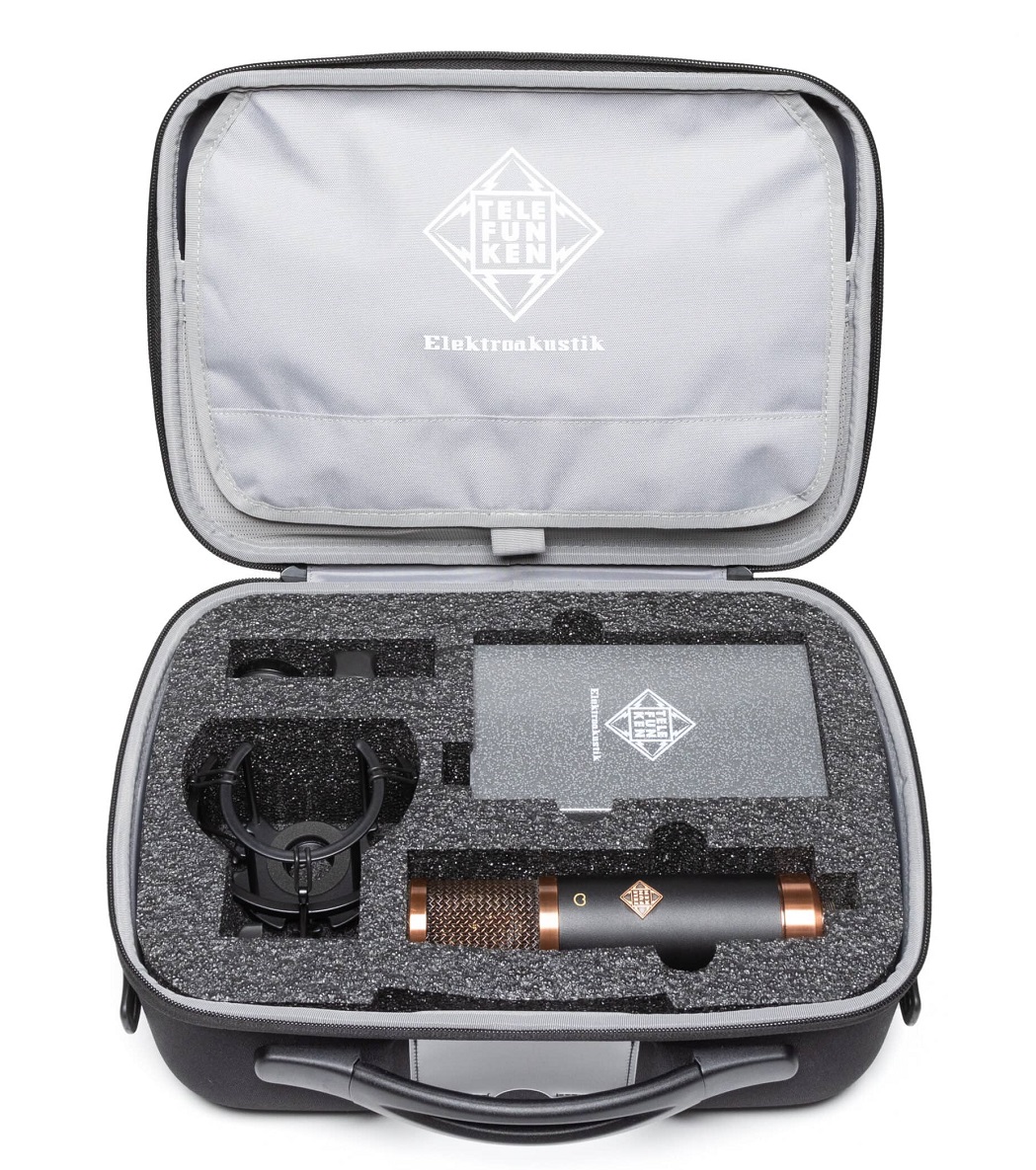

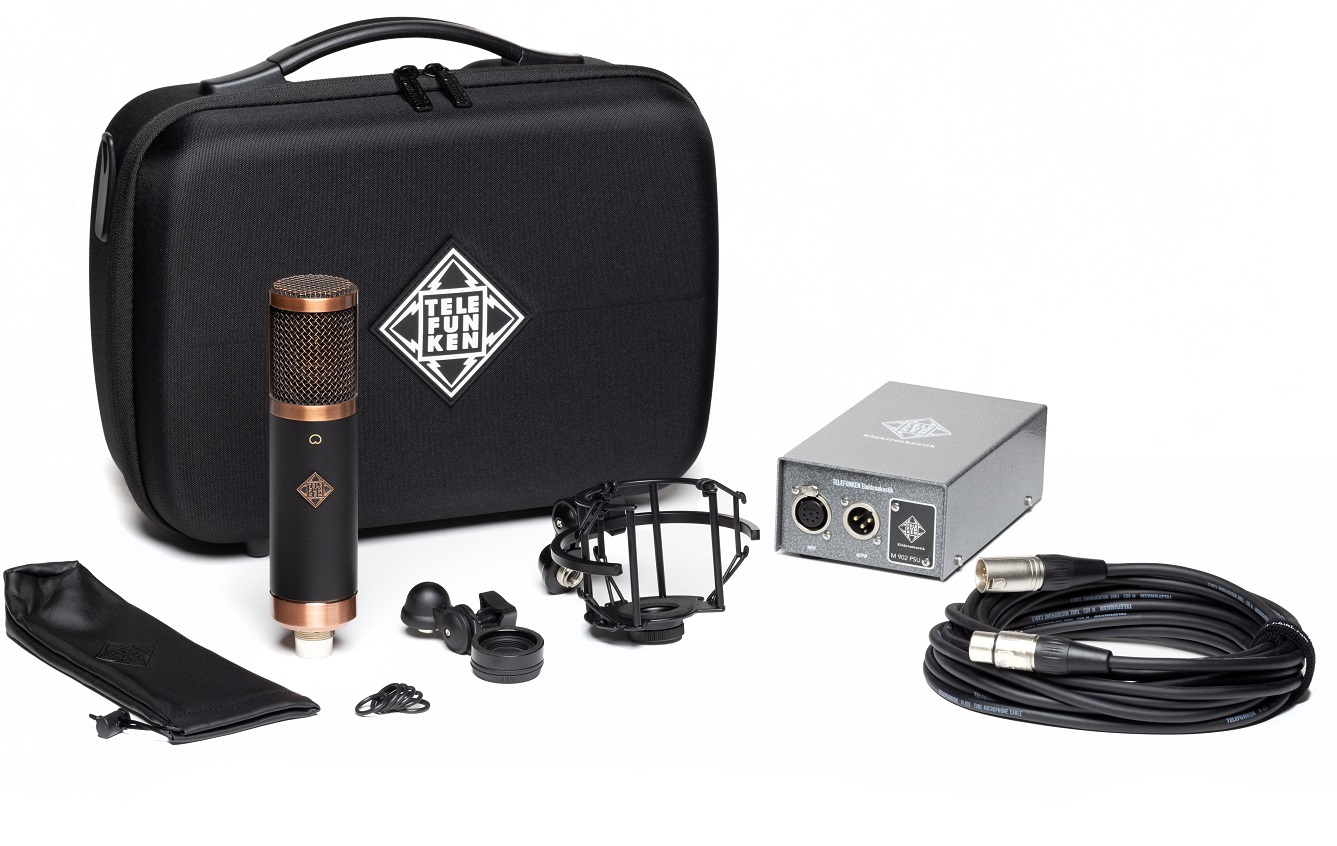

  • Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case
