Tascam

SB-16D

Code: 6461

Dante Stage Box (16-in/16-out)

Contact for Price
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout

Pre-Order

Enquire to be notified upon availability

years

Analogue Inputs and Outputs for Dante Networks
Top-Quality Audio Begins Right Here


The SB-16D is a Dante-enabled active stage box with 16 analogue inputs and 16 analogue outputs. As an analogue interface equipped with 32-bit A/D converters and Class 1 HDIA microphone preamps, the SB-16D captures your audio in the highest quality right at the beginning of the signal path. You can use multiple devices simultaneously in a Dante network – placed on the floor or mounted in a rack.

Having the same performance and hardware quality as Tascam Sonicview live recording consoles, the SB-16D offers all the advantages of Dante networking, combined with seamless integration with Sonicview mixers and other Dante-enabled products from Tascam – and other manufacturers.


    • Dante-enabled stage box and interface with 16 analogue audio inputs and outputs.
    • Redundant Dante operation using Primary/Secondary lines.

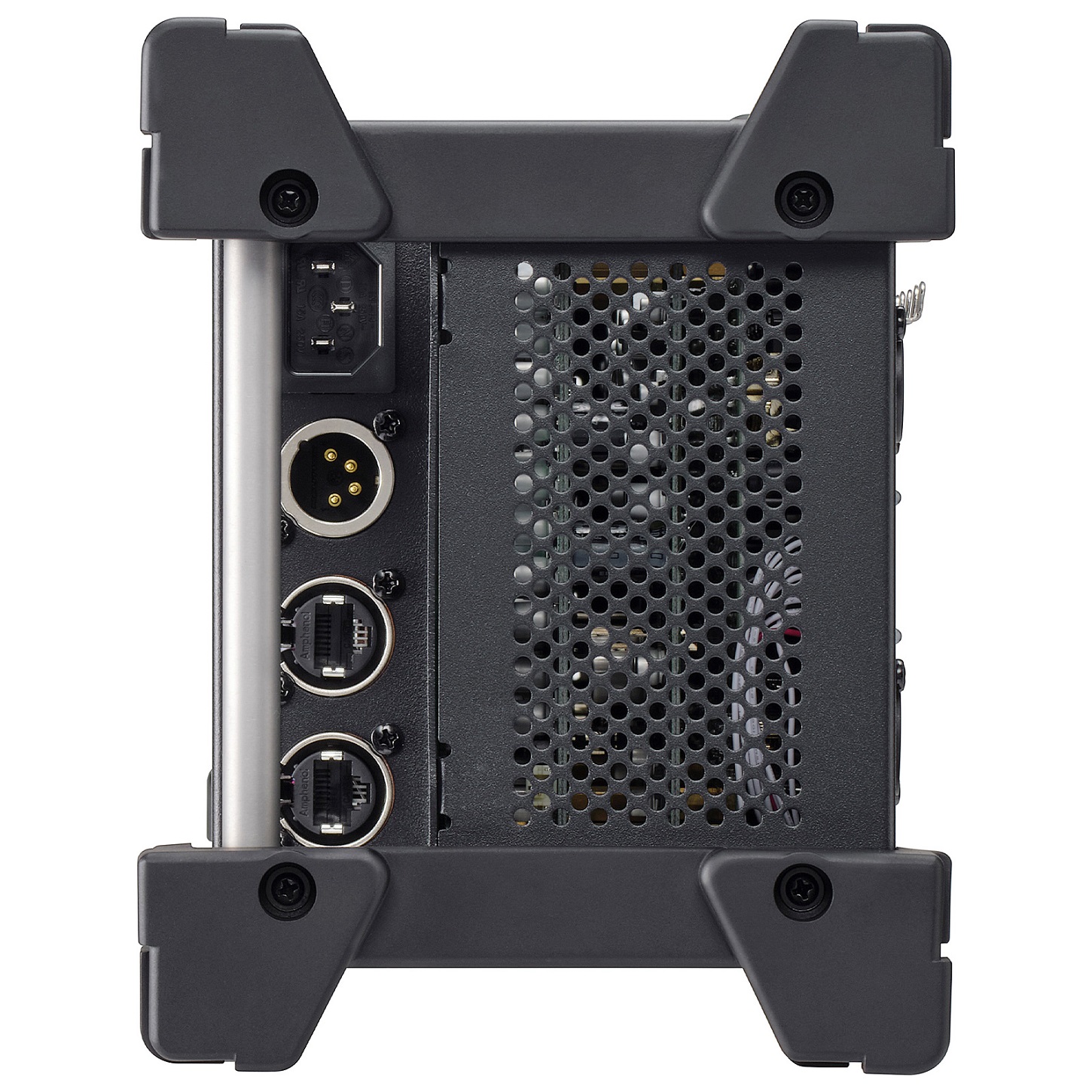

    • Equipped with etherCON-compatible connectors.
    • Support for Dante Domain Manager.
    • AES67 is supported to allow connection with Ravenna and other compatible audio network technologies.
    • Data transfer compliant to SMPTE 2110.

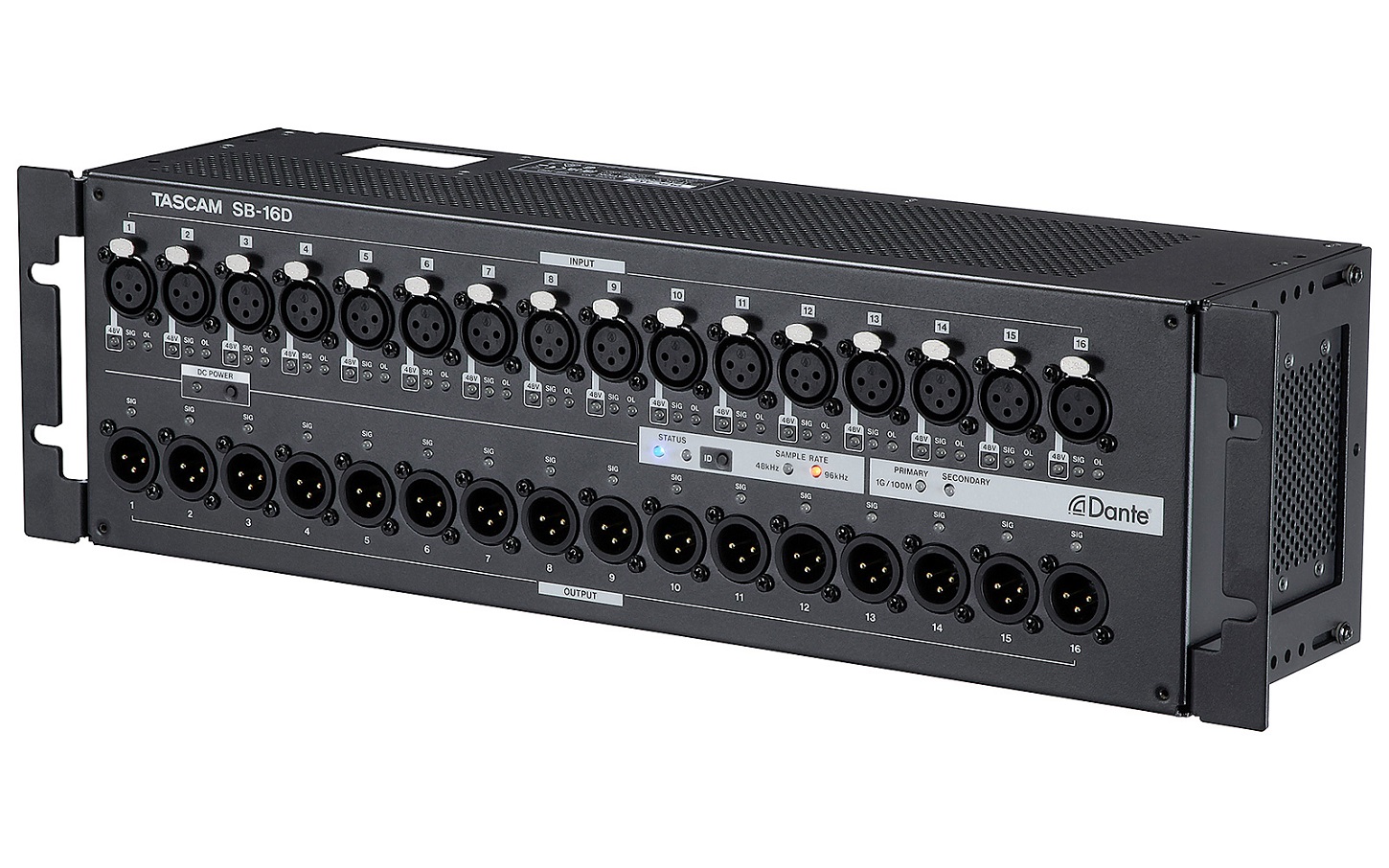

    • 16 balanced mic/line inputs (XLR) with switchable phantom power (48 V), input signal and overload indicators.
    • 16 balanced line outputs (XLR) with output signal indicators.
    • Up to 96 kHz sampling frequency at 32-bit resolution.

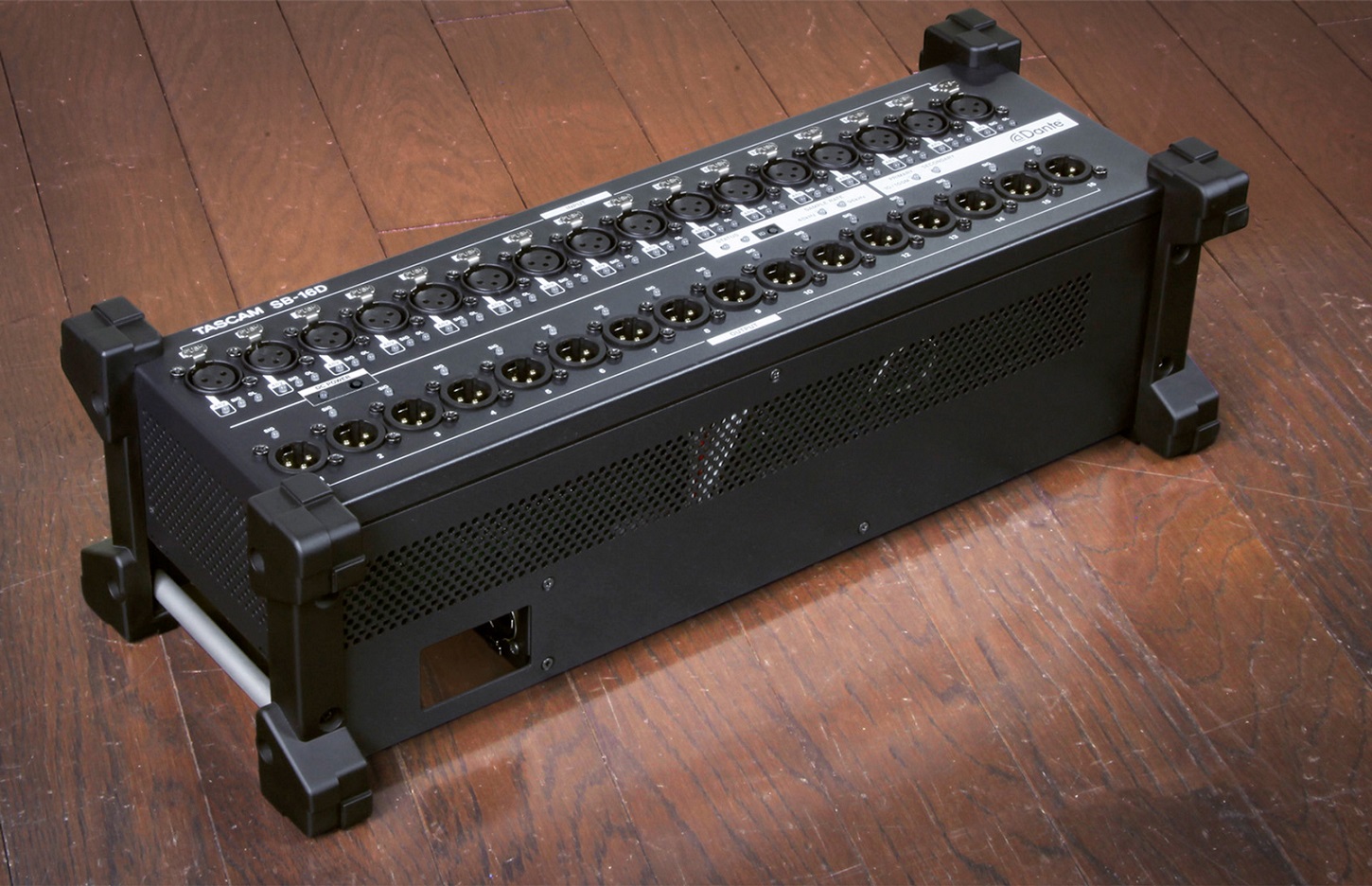

    • Can be positioned on the floor or mounted in a rack (3U).
    • Fully controllable from connected Sonicview mixer.
    • Remote control and offline editing using Tascam IO Control software for Windows, macOS and iPadOS.
    • Selectable reference level.

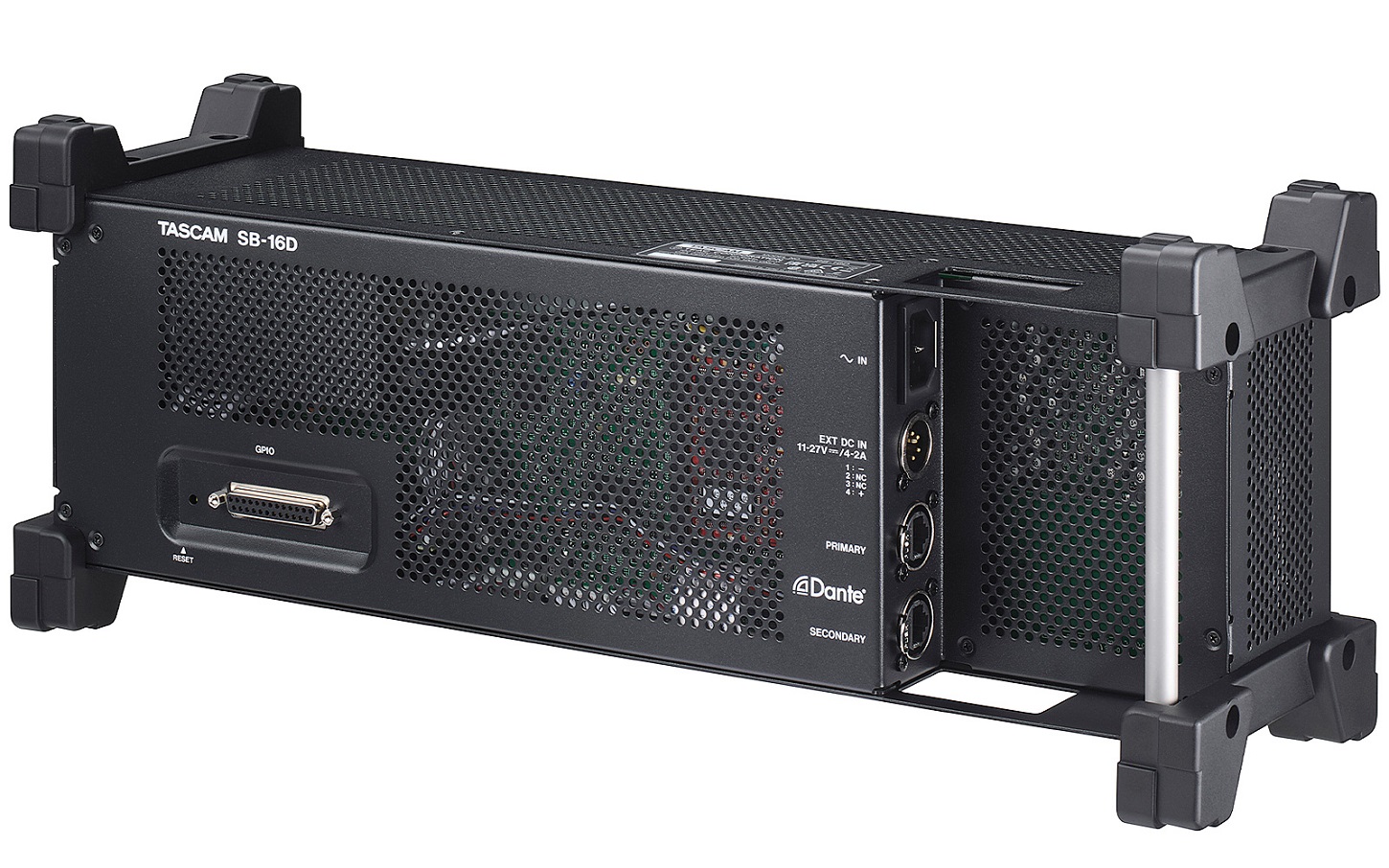

    • GPIO interface with eight inputs and outputs, expands to 16 inputs and outputs when connected to a Sonicview mixer.
    • Selectable LED brightness.

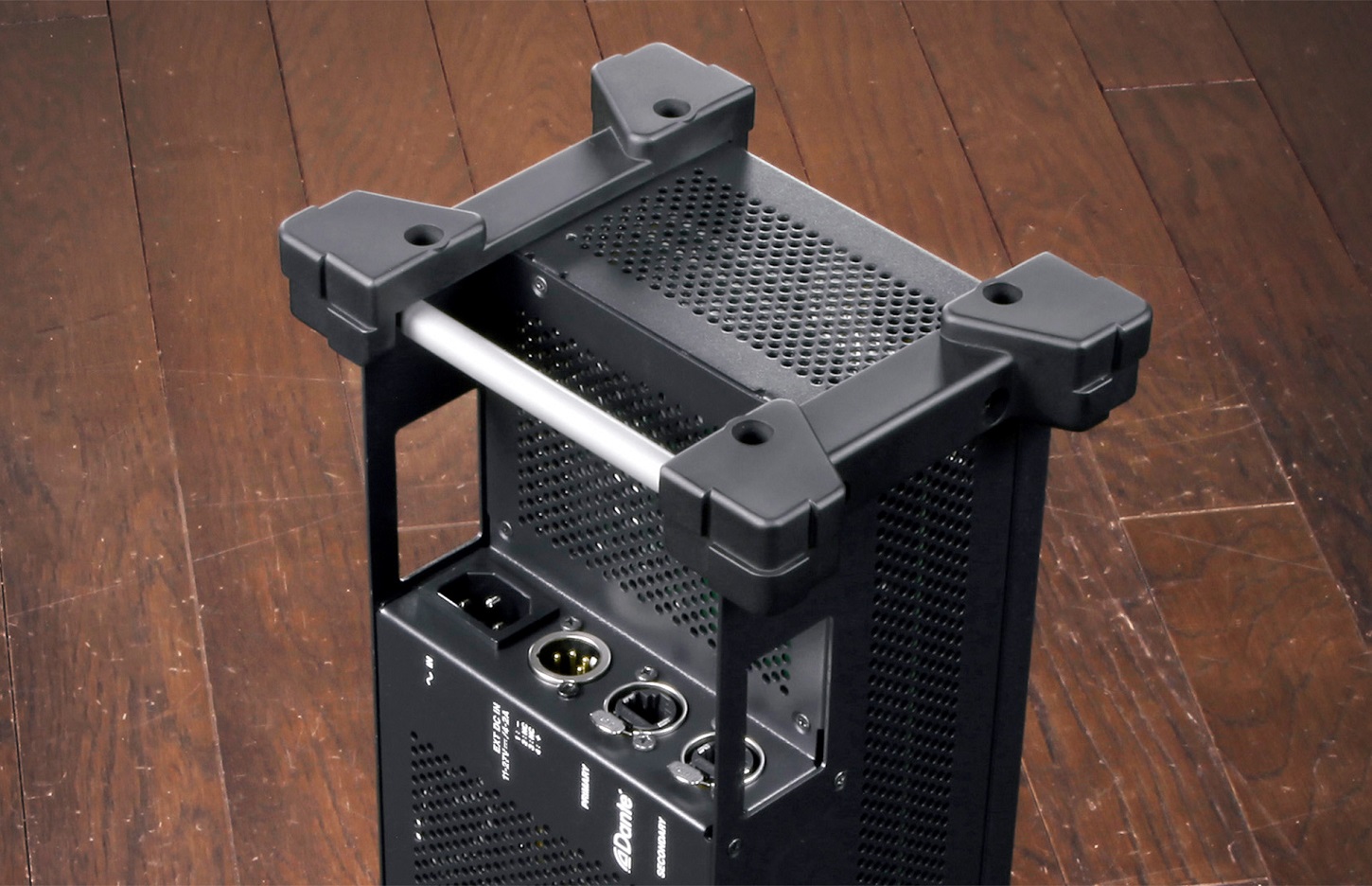

    • DC input for redundant power supply (DC power supply not included).
  • Mic/Line inputs (balanced, INPUT 1–16): XLR-3-31 (1: GND, 2: HOT, 3: COLD)
  • +12 dBu (TRIM at minimum, Pad off)
  • +32 dBu (TRIM at minimum, Pad on)
  • –62 dBu (TRIM at maximum, Pad off)
  • –42 dBu (TRIM at maximum, Pad on)
  • +15 dBu (Ref(D): –9 dBFS, Ref(A): +6 dBu)
  • +18 dBu (Ref(D): –14 dBFS, Ref(A): +4 dBu)
  • +20 dBu (Ref(D): –16 dBFS, Ref(A): +4 dBu)
  • +18 dBu (Ref(D): –18 dBFS, Ref(A): 0 dBu)
  • +20 dBu (Ref(D): –20 dBFS, Ref(A): 0 dBu)
  • +22 dBu (Ref(D): –18 dBFS, Ref(A): +4 dBu)
  • +24 dBu (Ref(D): –20 dBFS, Ref(A): +4 dBu)
  • +6 dBu (Ref(D): –9 dBFS)
  • +4 dBu (Ref(D): –14 dBFS, –16 dBFS)
  • +4 dBu or 0 dBu (Ref(D): –18 dBFS, –20 dBFS)
