OC-S10

Code: 8099

Large-diaphragm condenser microphone

Price: €2798.00
Price: €2798.00
BUY Online: €2598.00
BUY Online: €2598.00
You Save €200
You Save €200
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

The OC-S10 is a reference large-diaphragm condenser microphone, meticulously designed for recording lead vocals and solo instruments with unparalleled precision. With five selectable polar patterns, three low-cut filter options, and switchable -10dB and -20dB pads, the OC-S10 offers exceptional versatility to suit any recording scenario. In combination with the dual-output feature (both standard XLR) it provides maximum post-production flexibility, ensuring you can discover and craft your perfect sound.

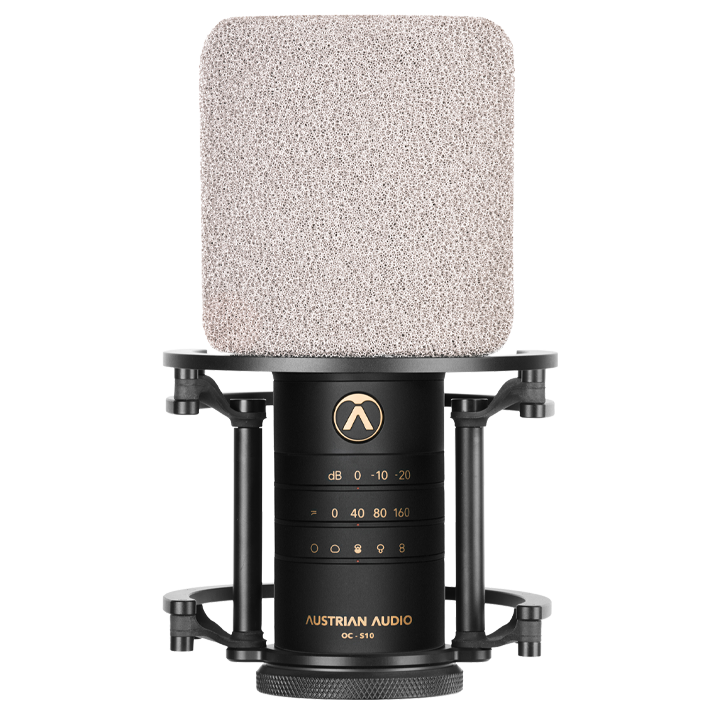

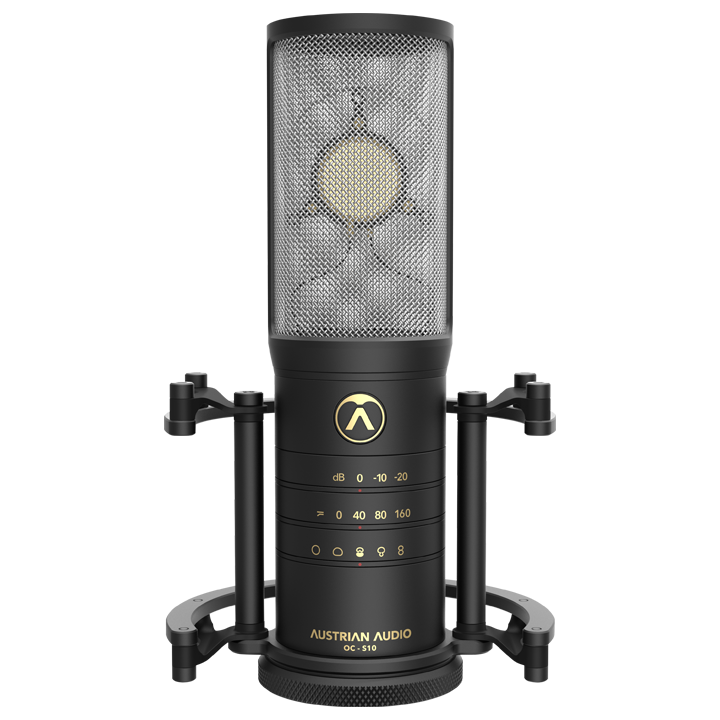

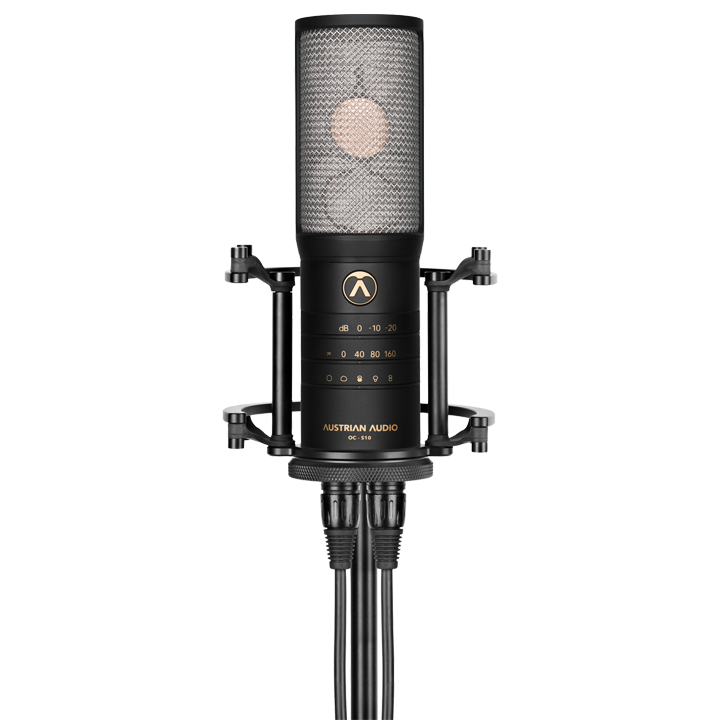

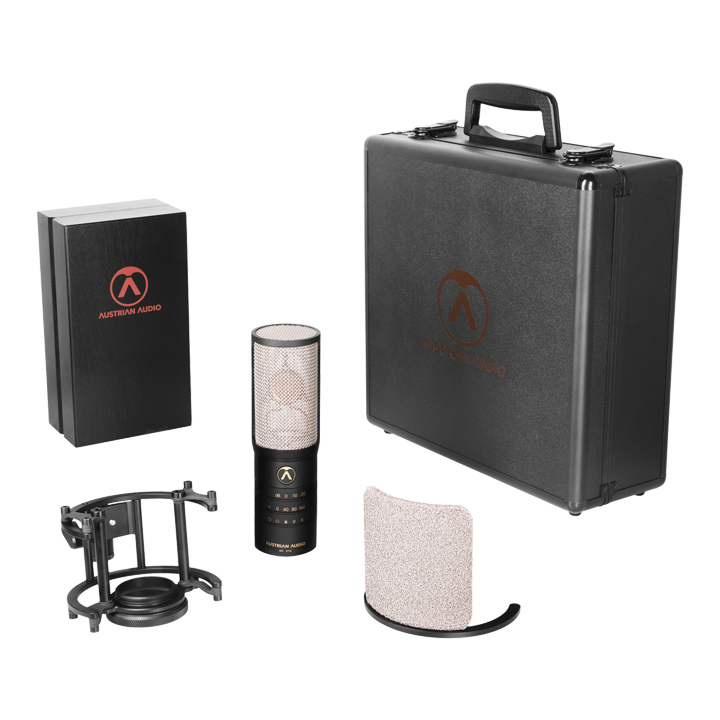

The included shock mount features a ball-joint connection for precise and delicate positioning, making setup effortless. Additionally, the magnetically attached metal mesh filter (not shown) effectively reduces unwanted plosive sounds while preserving the full richness and detail of the vocal spectrum.

    • Multipattern, dual-output large-diaphragm condenser microphone
    • Handmade, dual-diaphragm capsule
    • Selectable polar patterns: omni, wide cardioid, cardioid, hypercardioid, figure-8, custom (with dual output)
    • 3 highpass filters: 40Hz, 80Hz, 160Hz
    • Selectable 10dB and 20dB pre-attenuation pads
    • Dual outputs for recording each diaphragm separately
    • Compatibility with Austrian Audio plug-in suite: PolarDesigner, StereoCreator, and AmbiCreator
  • Directional characteristic (Multi) : Omni, Wide Cardioid, Cardioid, Hypercardioid, Figure-of-Eight, Individual (with Dual Output)
  • Frequency range : 20 Hz - 22 kHz
  • Sensitivity : 14 mV/Pa
  • Equivalent noise level : 8 dB SPL (A)
  • Max SPL : 147 dB SPL (157 dB SPL)
  • Analog low cut filter : 40 Hz (2nd Order), 80 Hz (2nd Order), 160 Hz (1st Order down to 80Hz, 2nd Order below)
  • Switchable pad : -10 dB, -20 dB
  • Impedance : 108 Ω (symmetrical)
  • Load impedance : > 1 kΩ
  • Supply voltage : 48 V (< 3 mA)
  • Connectors : 2x XLR 3 pin
  • Dimensions : 205 x 63 x 63 mm
  • Weight : 710g
