Dynamic Microphones
M80 WH 45TopDown 1 scaled
M80 WH 45TopUp 1 scaled

Telefunken

M80-WH Wireless Capsule

Code: 8042

Dynamic Series, Microphone

Contact for Price

Pre-Order

Enquire to be notified upon availability

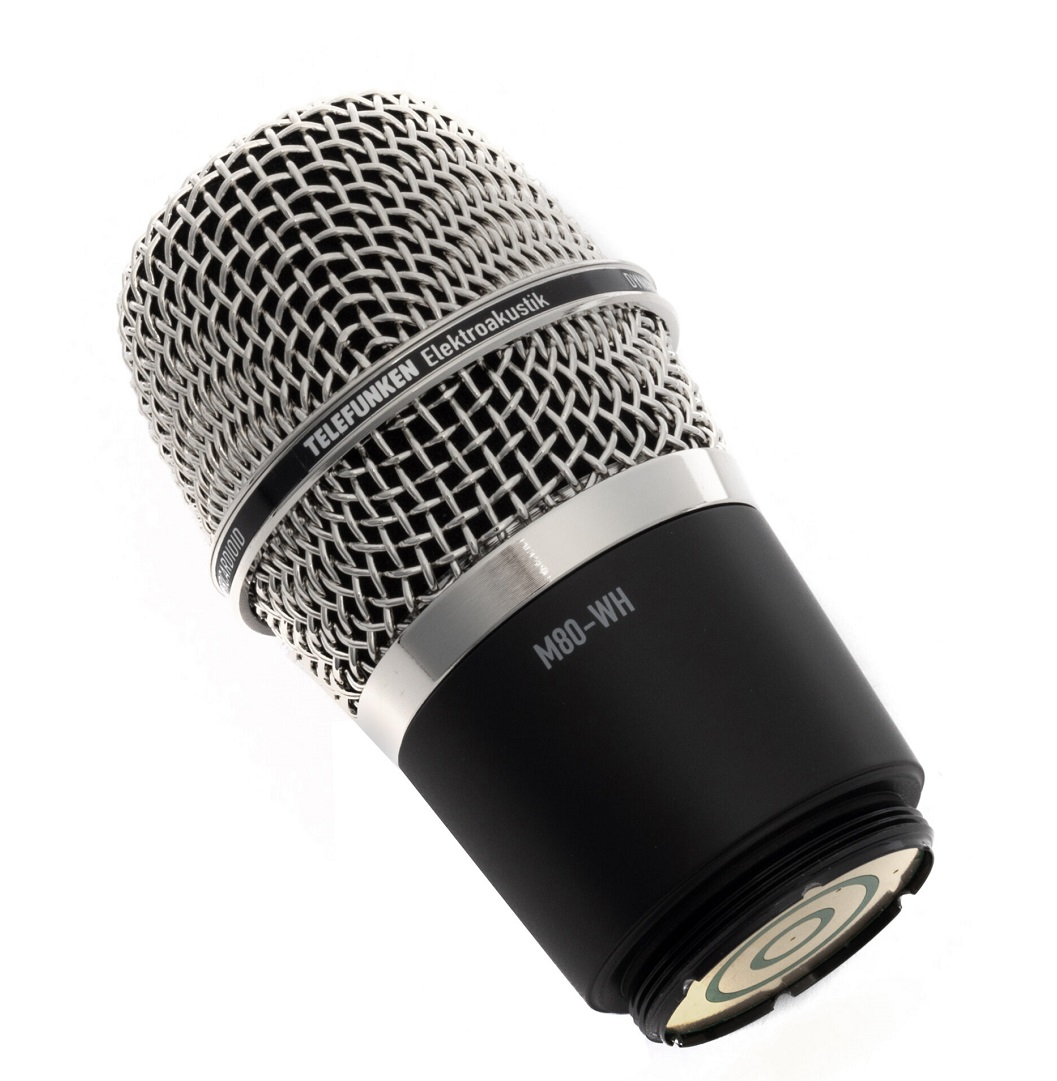

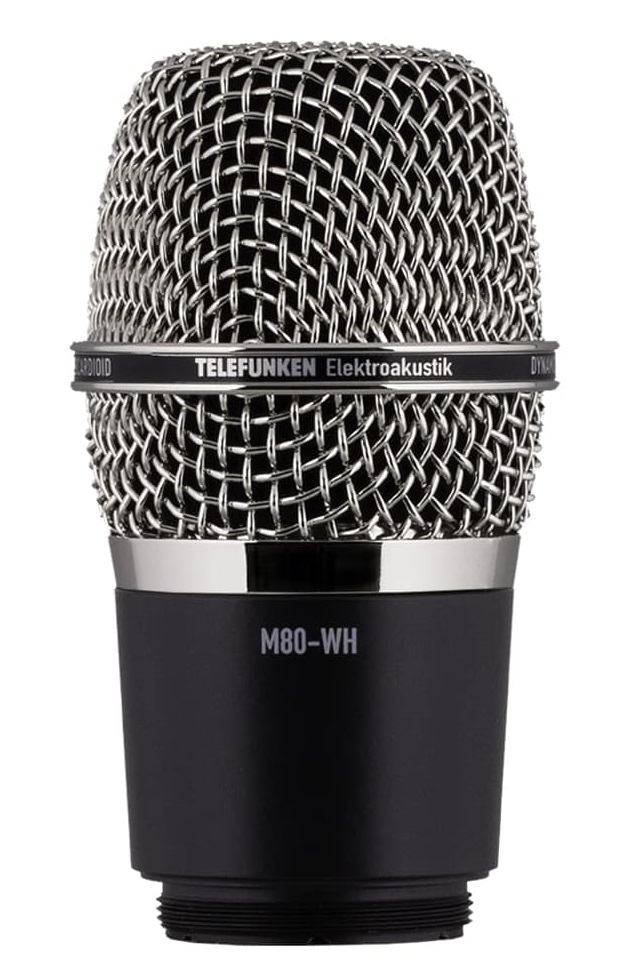

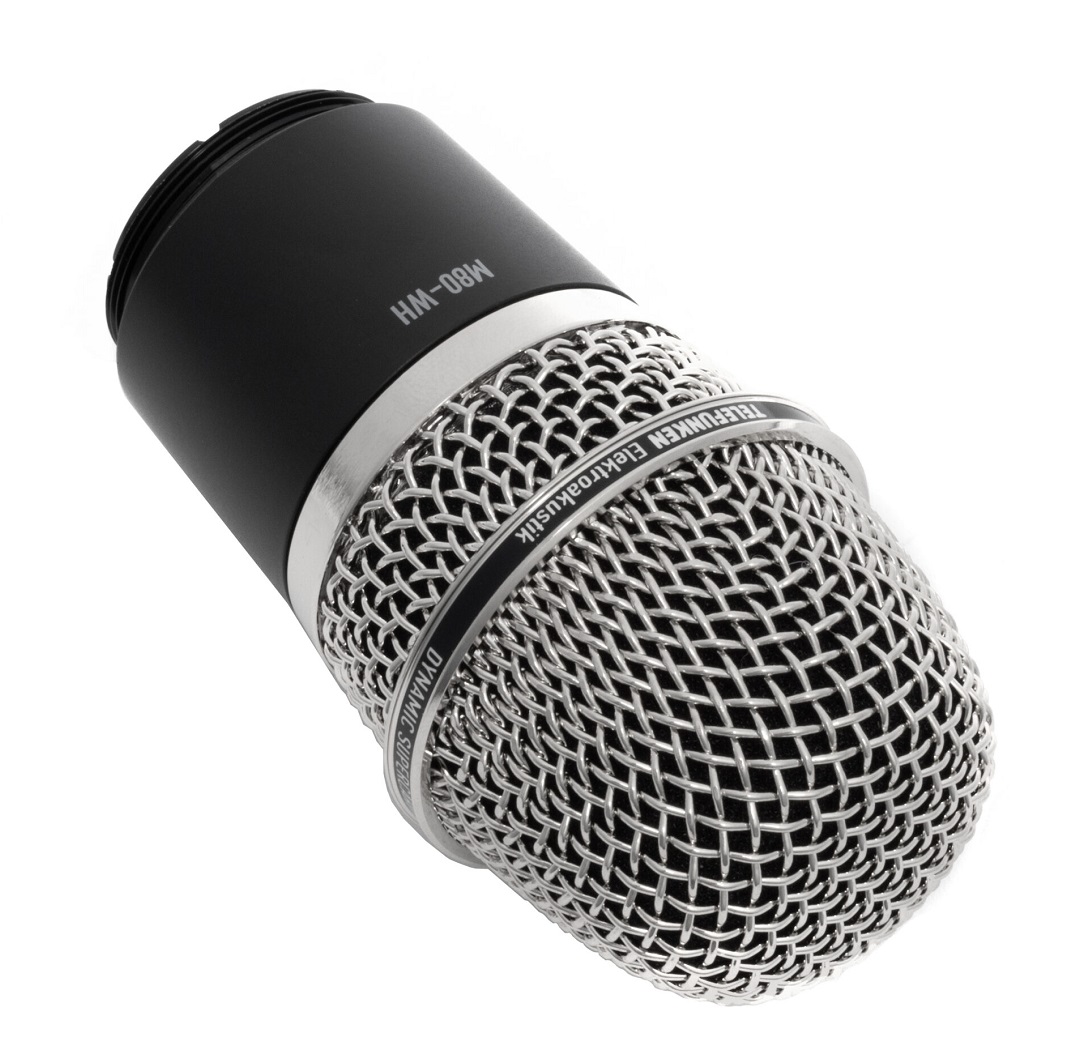

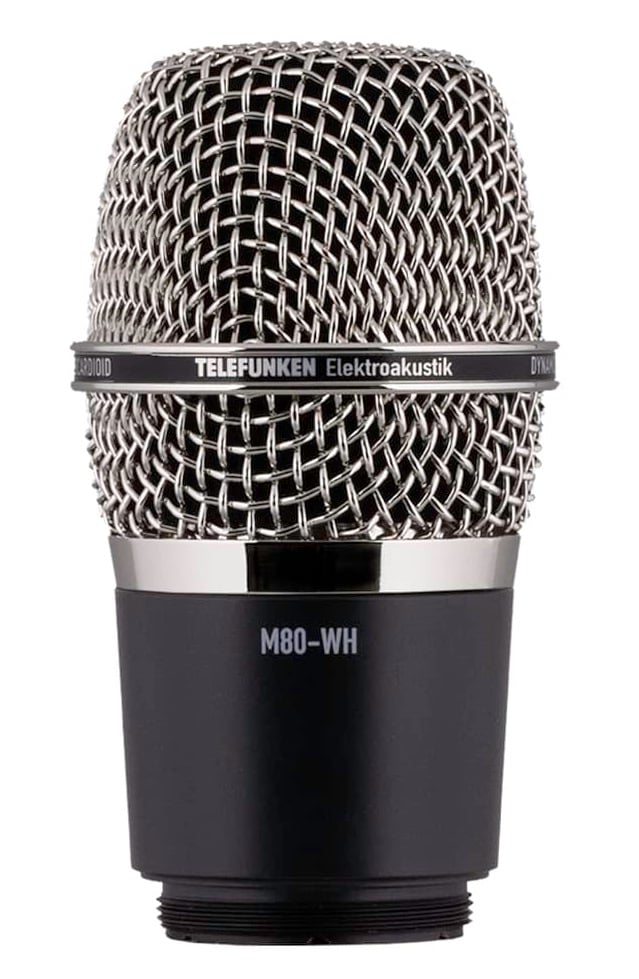

The M80-WH wireless capsule head is designed to mate with Shure® wireless transmitters and features the same sonic characteristics as the standard M80 dynamic microphone.

The M80-WH brings the M80’s condenser-like performance, minimal proximity effect, and superior feedback rejection to the Shure® wireless transmitter platform. Featuring the same low mass diaphragm and custom wound output transformer as the handheld M80 Standard and low-profile M80-SH, the M80-WH provides the impressive sound quality and reliability one expects from a Telefunken Dynamic Series microphone. This product is intelligently designed to minimize handling noise and seamlessly mate to your wireless system of choice.

Compatible with the following transmitters:

• UHF-R
• ULX
• ULXD
• UR2



    • Same detailed, condenser-like performance as the wired M80
    • Prestine audio quality with a wide frequency response and high SPL handling
    • Supercardioid polar pattern provides excellent feedback rejection
    • Low mass diaphragm reduces proximity effect
    • Custom-wound impedance-matching audio transformer
    • Mates with many industry-standard wireless transmitters
    • Designed and hand assembled in the USA
  • Type: Dynamic
  • Polar Pattern: Supercardioid
  • Frequency Range: 50 Hz – 18 kHz, ±3 dB
  • Capsule: 25mm Dynamic Moving Coil
  • Transformer: TELEFUNKEN Elektroakustik T80
  • Sensitivity: 1.54 mV/Pa, ±1 dB
  • Output Impedance: 325 Ω
  • Maximum SPL (for 1% THD): 135 dB
  • Dimensions/Size: 90 mm L x 48 mm Dia
  • Weight: 165 g
  • Included Accessories: none
