Pro Passive Speakers

ELX200-12

Code: 7848

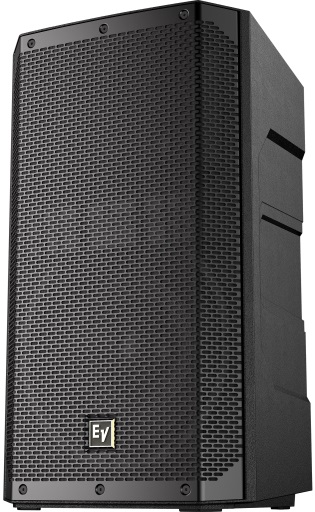

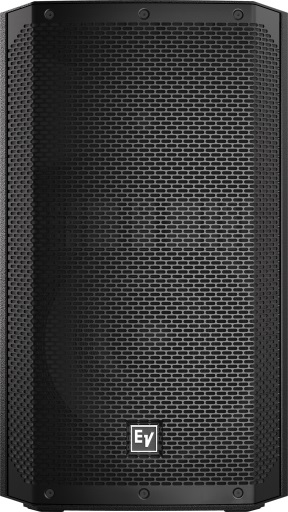

12" passive loudspeaker

Price: €585.00
Price: €585.00
BUY Online: €526.00
BUY Online: €526.00
You Save €59
You Save €59
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

Pre-Order

Enquire to be notified upon availability

years

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels.

Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.


    • 1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
    • 1.4-inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
    • High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
    • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
    • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

  • Suspension  :  (3) M10 suspension points
  • Minimum Impedance :   7.5Ω
  • HF Transducer :   DH-1L 1-inch titanium compression driver
  • Speaker Type  :  Full-Range
  • Woofer Size    12inch
  • Powered or Passive ":   Passive
  • Frequency Response (-3 dB)¹ :   77 Hz - 17 kHz
  • Frequency Range (-10 dB)¹  :  51 Hz - 20 kHz
  • Max. SPL/1m (calc)² :    128dB
  • Coverage (Nominal -6 dB) H :   90°
  • Coverage (Nominal -6 dB) V :   60°
  • LF Transducer :   EVS-12M 300 (12 in)
  • Power Rating :   1200W
  • Crossover Frequency   : 1.7 kHz
  • Connector Type  :  Dual NL4
  • Enclosure Material  :  Polypropylene composite
  • Grille  :  18 AWG steel with powdercoat
  • Available Color  :  Black
  • Height  :  24.76" (629mm)
  • Recommended High-Pass Frequency   : 50 Hz
  • Width :   14.29" (363mm)
  • Depth :   13.54" (344mm)
  • Weight Net   : 33.51lbs (15.2kg)
  • Shipping Weight   : 37.7lbs (17.1kg)
  • Family :   ELX200
  • Axial Sensitivity (SPL, 1 W @ 1 m) :   93dB
  • Power Handling (Continuous / Peak) :  300W/1200W
  • Nominal Impedance :   8Ω
