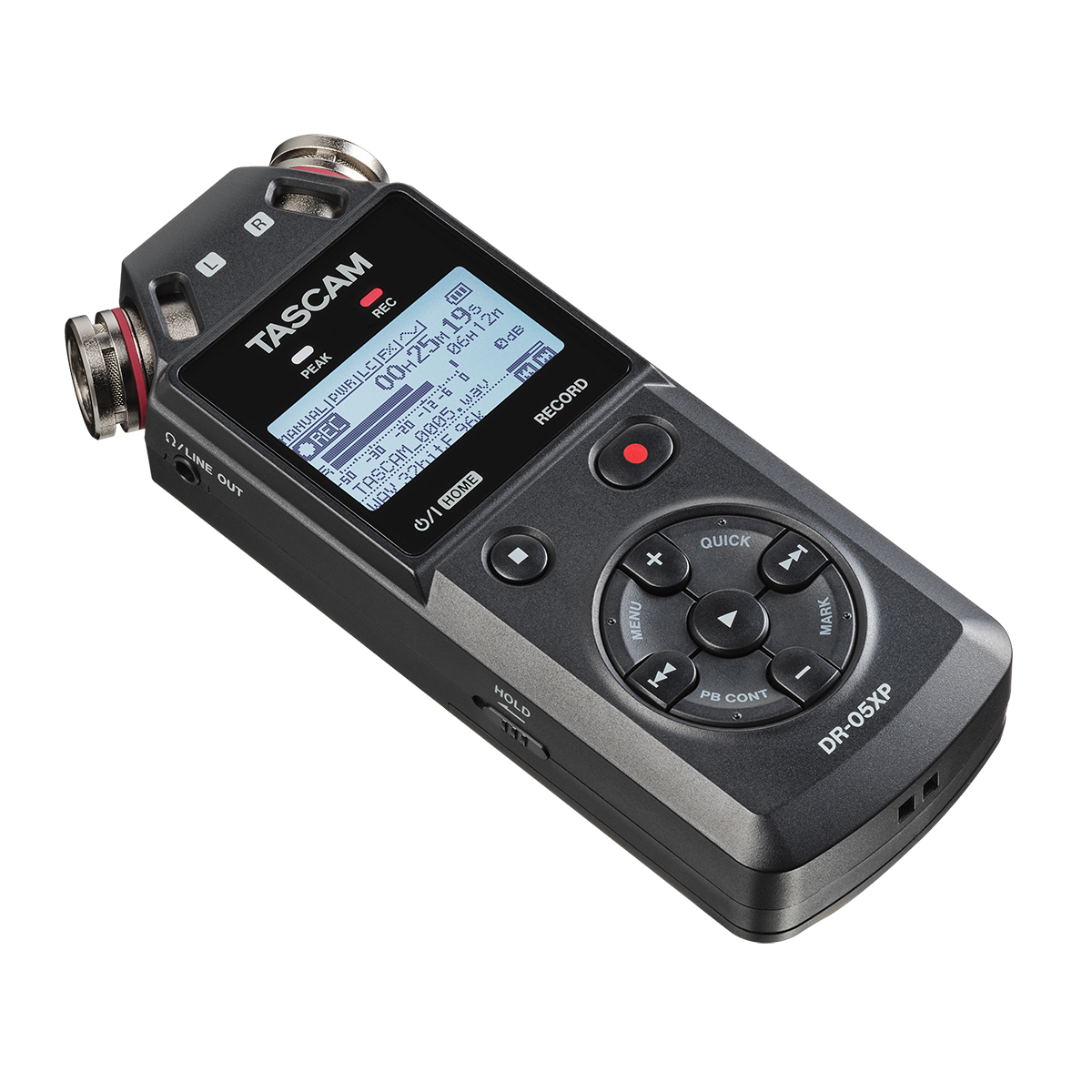

dr 05xp left bottom

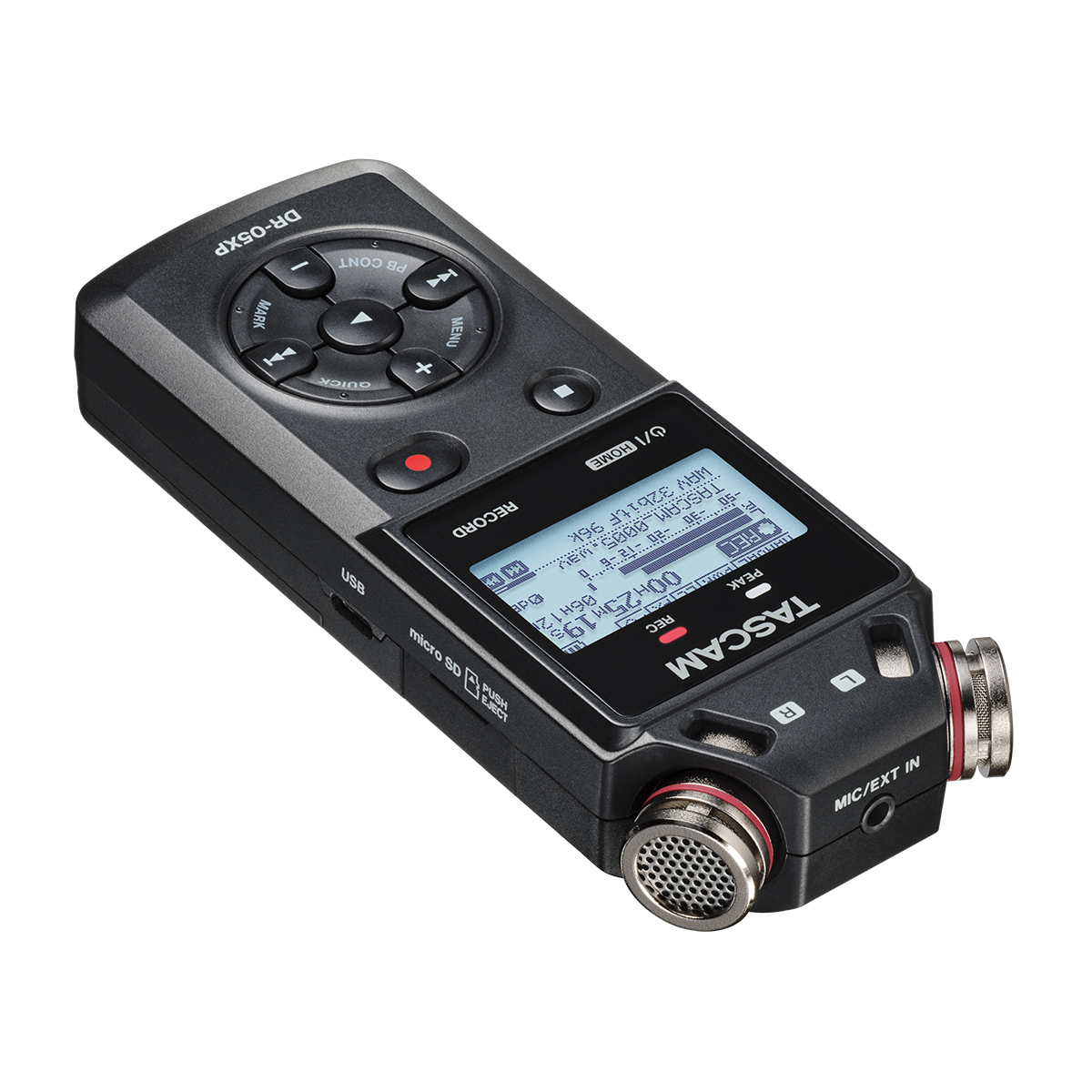

dr 05xp right top

DR-05XP

Code: 7798

2-Channel Portable Handheld Recorder With USB Interface

Price: €168.00
Price: €168.00
BUY Online: €118.00
BUY Online: €118.00
You Save €50
You Save €50
including 19% VAT Excluding VAT (For shipments to Non EU countries, or intra community upon VIES Validation) price, to be calculated during checkout
Add to Cart

In Stock

years

The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

    • 2-channel portable handheld audio recorder with microSDXC card storage
    • 32-bit float recording mode ensures low-noise, distortion-free recordings
    • Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)
    • 2-in/2-out USB-C audio interface for recording directly to your computer
    • Up to 17.5 hours of operation with 2 x AA alkaline batteries
    • Recording modes include 32-bit float/24-bit/16-bit, 96kHz/48kHz/44.1kHz
    • microSDXC (up to 512GB) cards can be used as recording media
    • USB Type-C port
    • Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
    • Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
    • Long recordings as MP3 files possible
    • Various recording function (Auto rec, Self timer, Pre rec)
    • Overdubbing function
    • Limiter and Peak reduction
    • Three low-cut filter levels (40/80/120Hz)
    • Auto Tone output for use with DSLR camera
    • Reverb effect for vocal and instrument resonance
    • Mark function 128×64 pixel graphic LCD with backlight
    • Tripod mounting point attaches to any standard tripod
    • Stereo mini line output and headphone output
    • Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
    • Playlist function
    • Built-in monaural speaker makes it easy to check your recordings
    • Chromatic tuner for tuning musical instruments before recording

  • Recording media/file systems    microSD cards / microSDHC cards / microSDXC cards (up to 512 GB)
  • Sampling frequency    44.1 kHz / 48 kHz / 96 kHz
  • Quantization bit depth    16-bit / 24-bit / 32-bit float
  • Sampling frequency    44.1 / 48 kHz
  • Quantization bit depth    32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
  • Maximum number of input channels    2
  • Maximum number of recordable tracks   2
  • Connector    3.5mm (1/8") stereo mini jack
  • Input Impedance    18 kΩ or more (when plug-in power is turned off)  ,2 kΩ or more (when plug-in power is turned on)
  • Nominal input level    - 20 dBV
  • Maximum input level    -4 dBV
  • Connector    3.5mm (1/8") stereo mini jack
  • Output impedance    12 Ω
  • Nominal output level    - 14 dBV (10kΩ loaded)
  • Maximum output level    +2 dBV (10kΩ loaded)
  • Maximum output    20 mW + 20 mW (32 Ω load)
  • Working impedance    16 - 250Ω
  • Connector    USB Type-C
  • USB 1.1 Full Speed Audio Class
  • Sampling rate    44.1 / 48 kHz
  • Number of inputs    2 channels (output from this unit)
  • Number of outputs    2 channels (input to this unit)
  • Power    2AA batteries (alkaline or NiMH)
  • USB bus power (5V/0.5A) from a computer, etc.
  • TASCAM PS-P520U AC adapter (sold separately)
  • Power consumption    1.7 W (maximum)
  • Weight    174 g / 0.384 lb (including batteries)
  • 126 g / 0.278 lb (not including batteries)
  • Operating temperature range    0 – 40 °C / 32 – 104 °F
  • Dimensions    60.5 x 142.3 x 27 mm
