Wireless Microphone Options

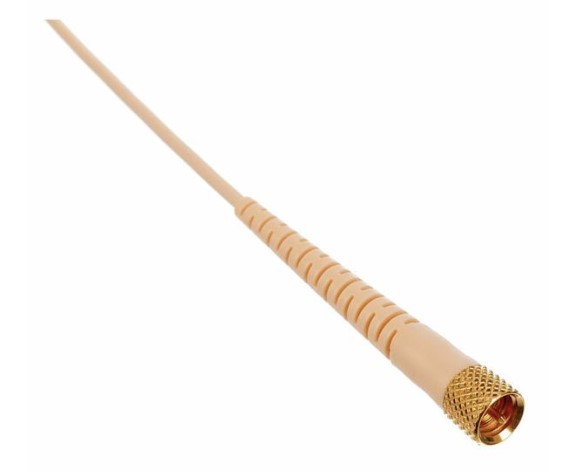

DPA microdot con

DPA Microphones

4166

Code: 6965

Flex Omnidirectional Headset and Earset Microphone

Contact for Price

Pre-Order

Enquire to be notified upon availability

years

The 4166 Omnidirectional Headset Microphone combines the legendary sound of the 4066 Omnidirectional Capsule with a lightweight and flexible headset system. This condenser headset mic is easy and fast to adjust and it offers clean and transparent sound quality with lots of headroom. The capsule itself is the same type as the 4066, but is attached to an interchangeable boom arm.

    • Pristine audio quality
    • Lightweight and flexible
    • Easy mounting to the left or right
    • Minimal visual impact
    • Resistant to humidity
    • Flexible adapter system fits most professional wireless systems

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: 40 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
  • Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
  • Dynamic range - Legacy: Typ. 97 dB
  • Dynamic range - CORE: Typ. 111 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
  • Common mode rejection ratio (CMRR)> 60 dB from 50 Hz to 15 kHz with DAD: 6001-BC XLR Adapter
  • Power supply (for full performance)For wireless systems: Min. 5 V - max. 10 V through DPA adapter
  • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • ConnectorMicro: Dot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Color: Black, beige or brown
  • Weight: Microphone boom: 0.8 g (0.03 oz). Earhook: 1.1 g (0.04 oz). Cable: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz)
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: Boom length: Normal: 120 mm (4.7 in), Medium: 100 mm (3.9 in)
  • Cable length: 1.3 m (4.3 ft)
  • Cable color: Black, beige or brown
  • Cable diameter: 1.6 mm (0.06 in)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Electromagnetic compatibility (EMC): Fully compatible
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
