DAW Controllers
8804 Fader Pack for 8816 3
8804 Fader Pack for 8816 2

AMS-Neve

8804 Fader Pack for 8816

Code: 6652

8804 Fader Pack

Contact for Price

Pre-Order

Enquire to be notified upon availability

years

Transform the 8816 into a tabletop Neve® console with the 8804 fader pack.

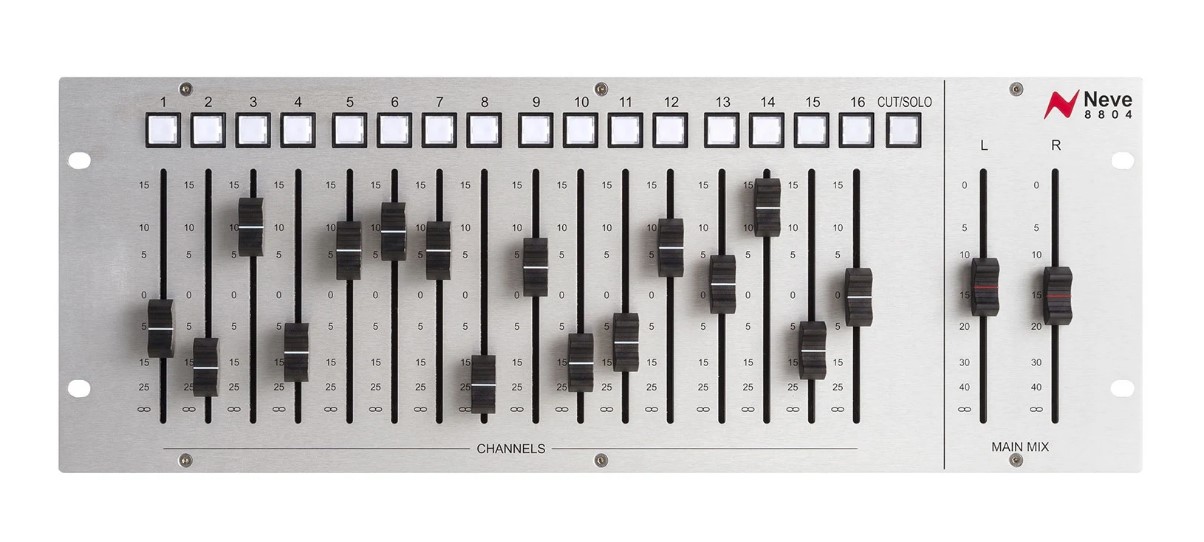

Designed for rackmount or tabletop use, the 8804 features 16 long-throw channel faders, with associated cut & solo switches, and two master faders. The faders’ solid feel as you adjust to the mix, the convenience of Total Recall™ of all parameters, and the pristine sound quality make the 8804 a must-have product in tandem with the 8816.

There’s no substitute for real hands-on fader control when it comes to real console feel. By adding the 8804 to the 8816 Summing Mixer, the two units form a fully-fledged Neve® console.

Eighteen total long-throw faders deliver ultimate precision for finely tuning an 8816 mix. Each fader runs from -inf to 0dB at the central position and up to +15dB at the top.

The 8804’s features separate left and right main mix faders. This unique layout allows for fine stereo balancing at the crucial master stage.

The Neve® recall software forms a software bridge between the 8816 and 8804 units, linking solo and cut switches for seamless integration.

Adding an 8804 to your 8816 gives you access to a host of new features and capabilities! The 8804 has 16 direct outputs via D-Type connection; these outputs add even more flexibility when recording through the 8816, allowing individual ‘stems’ to be tracked pre or post-fade from all 16 inputs.

Adding an 8804 to your 8816 opens up the possibility of using the 8816’s level pots as aux sends – ideal for an additional cue mix or as reverb sends into your favourite outboard FX units.

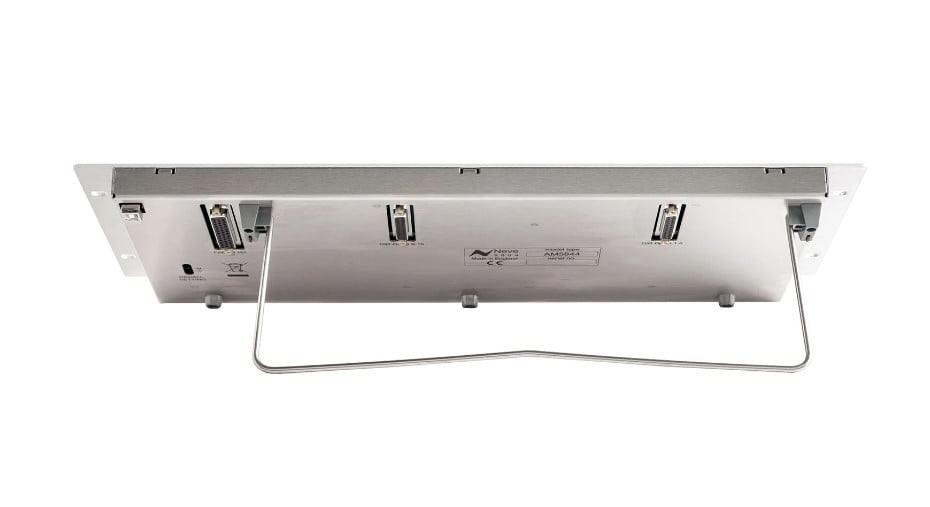

Depending on your studio setup, the 8804 can be mounted multiple ways – rack-mounted into a 4U 19″ frame or mounted onto your studio desk using the built-in stand or optional tabletop side cheeks.

Every fader position and switch setting on the 8804 can be recalled quickly via the Neve® recall software. The interactive recall application tracks and follows manual fader positions allowing you to recall your mix sessions in seconds.


    General Specification

    • High-quality long-throw fader module for use with popular 8816 Summing Mixer
    • Hand-made by Neve in Burnley, England
    • 16 Channel Faders and 2 Master Faders
    • 16 Mute/Solo Switches
    • 16 Direct Outputs Allow 8816 level pots to become auxiliary sends
    • Instant Recall of settings stored on PC or Mac via USB
    • 4U rackmount or tabletop operation using built-in stand or optional Neve 8804 side cheeks

    Audio Performance

    • Level: Channel 1 to 16: -∞ to +15dB,  Mix Left and Right: -∞ to 0dB
    • Frequency Response: +/- 0.2dB: 10Hz to 20kHz, +/- 0.5dB: 10Hz to 40kHz
    • Distortion: Measurement Bandwidth: 10Hz to 80kHz – Fader at 0dB: distortion < 0.005% (20Hz to 20kHz)
    • Noise: Measurement Bandwidth: 10Hz to 22kHz – Fader at 0dB: noise < 90dBu (20Hz to 20kHz)

    Dimensions

    • Width: 48.2cm (19 inches)
    • Height:17.6cm (6.9 inches) (3U)
    • Depth: 3.2cm (1.3 inches) – when flat mounted
    • Weight: 2.1kg (5 lbs.)
